- 16 microphone/line inputs and 8 line outputs for versatile stage and installation use
- Dante networking for low-latency digital audio transmission over Ethernet
- Remote-controllable D-PRE microphone preamps from compatible Yamaha mixers
- Quick Config mode for fast, automatic setup with Yamaha TF series consoles
- Plug-and-play operation without complex configuration
- Compact 2U rackmount design for easy transport and installation

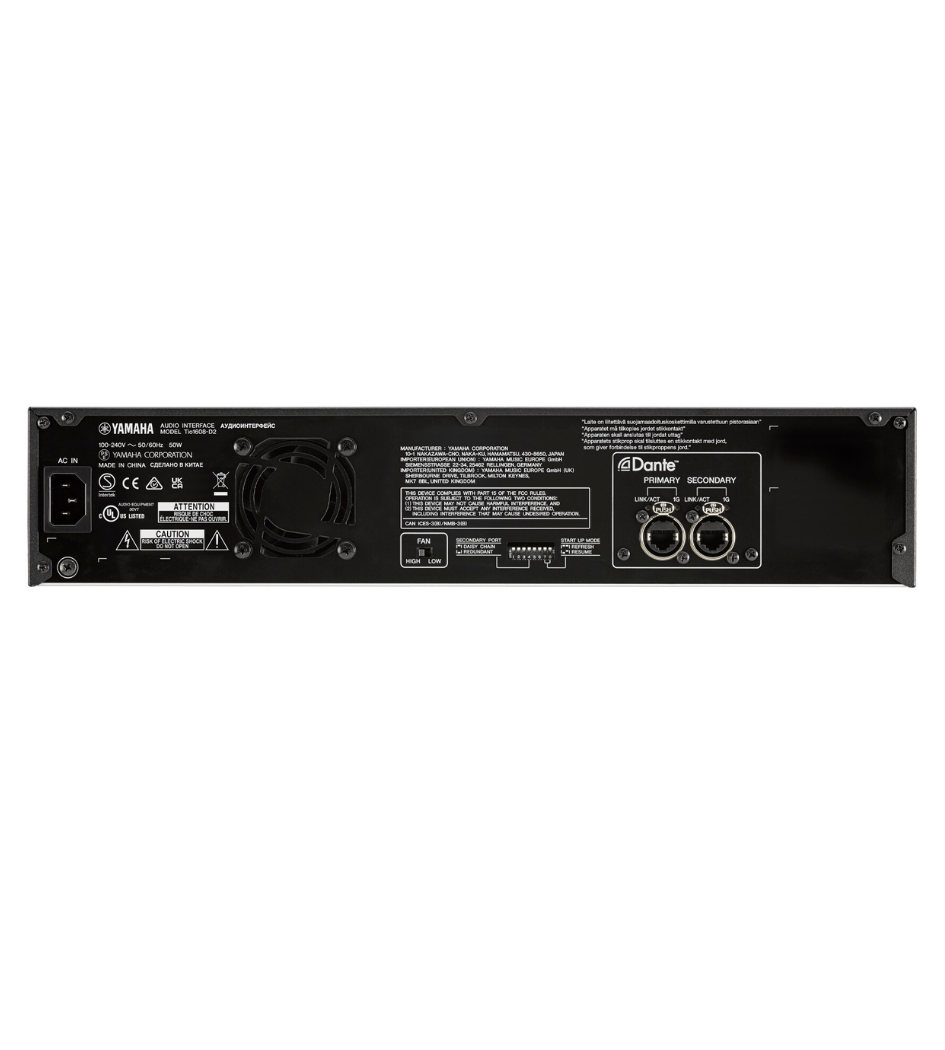

- Dual Dante ports (Primary/Secondary) for redundancy
- High-quality AD/DA conversion for clean and accurate sound reproduction
| Specification | Detail |
|---|---|
| Analog Inputs | 16 × XLR (mic/line) |
| Analog Outputs | 8 × XLR (line) |
| Mic Preamps | 16 × D-PRE (remote controllable) |
| Network Audio | Dante (Primary / Secondary) |
| Sampling Rate | 44.1 kHz / 48 kHz |
| Word Clock | Internal / Dante sync |
| Control | Via Yamaha TF series or Dante Controller |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | 50 W |
| Dimensions (W × H × D) | 480 × 88 × 364 mm |
| Net Weight | 5.7 kg |
Not officially specified by manufacturer.

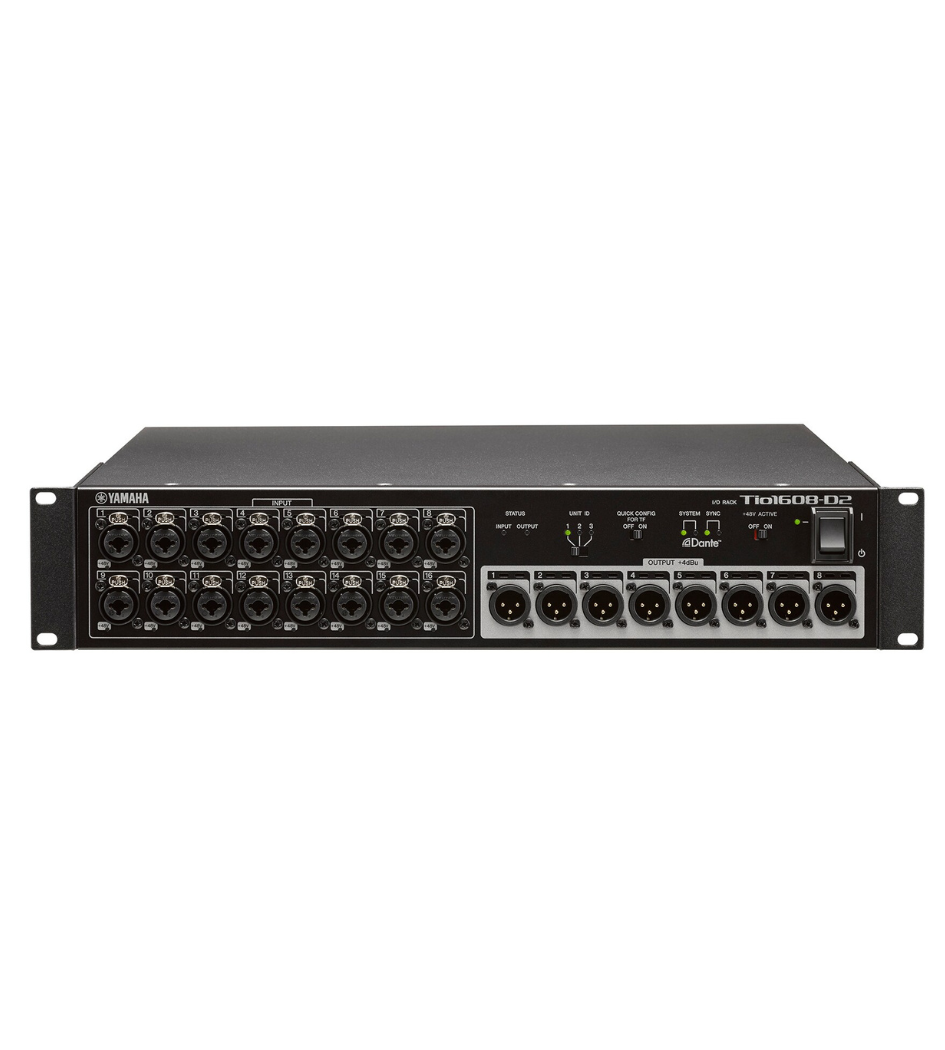

- Yamaha Tio1608-D2 digital stage box unit
- AC power cable
- Rubber feet
- User manual and documentation
