- Features
- Specifications
- Dimensions
- Whats in the box
- 48 input channels (40 mono + 2 stereo + 2 return) for flexible mixing

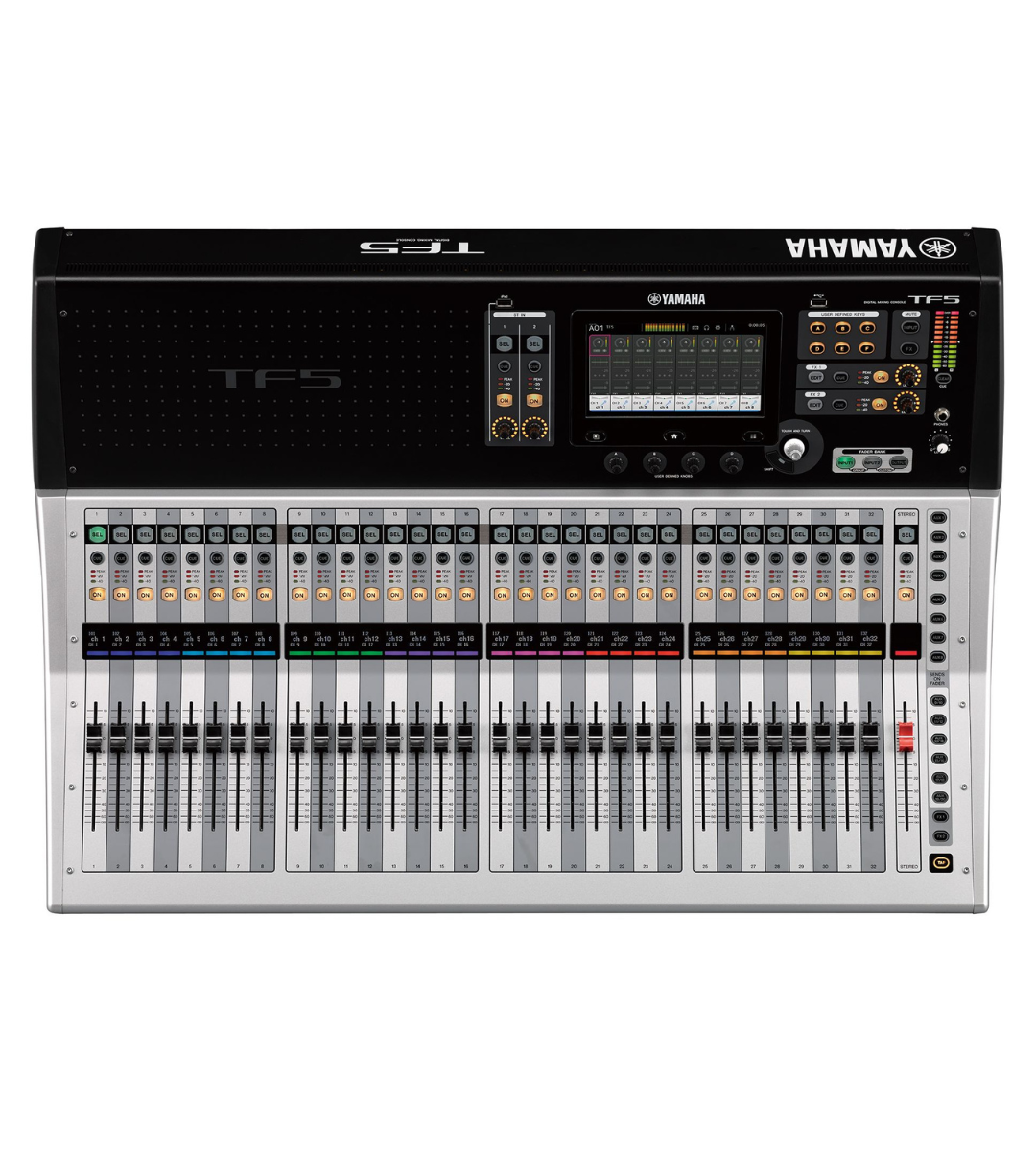

- 33 motorized faders (32 channel + 1 master) for precise control
- Large touchscreen interface with TouchFlow Operation for fast workflow
- 32 recallable D-PRE microphone preamps for clean, natural sound
- 8 high-quality onboard effects processors (reverb, delay, modulation, etc.)
- 10 GEQ processors for output equalization control
- 34x34 USB audio interface for multitrack recording and playback
- Direct recording to USB storage device (stereo or multitrack options)
- Scene memory and recall for fast show setup changes
- Optional Dante expansion support via NY64-D card
| Specification | Detail |
|---|---|
| Input Channels | 48 (40 mono + 2 stereo + 2 return) |
| Faders | 33 motorized (32 + 1 master) |

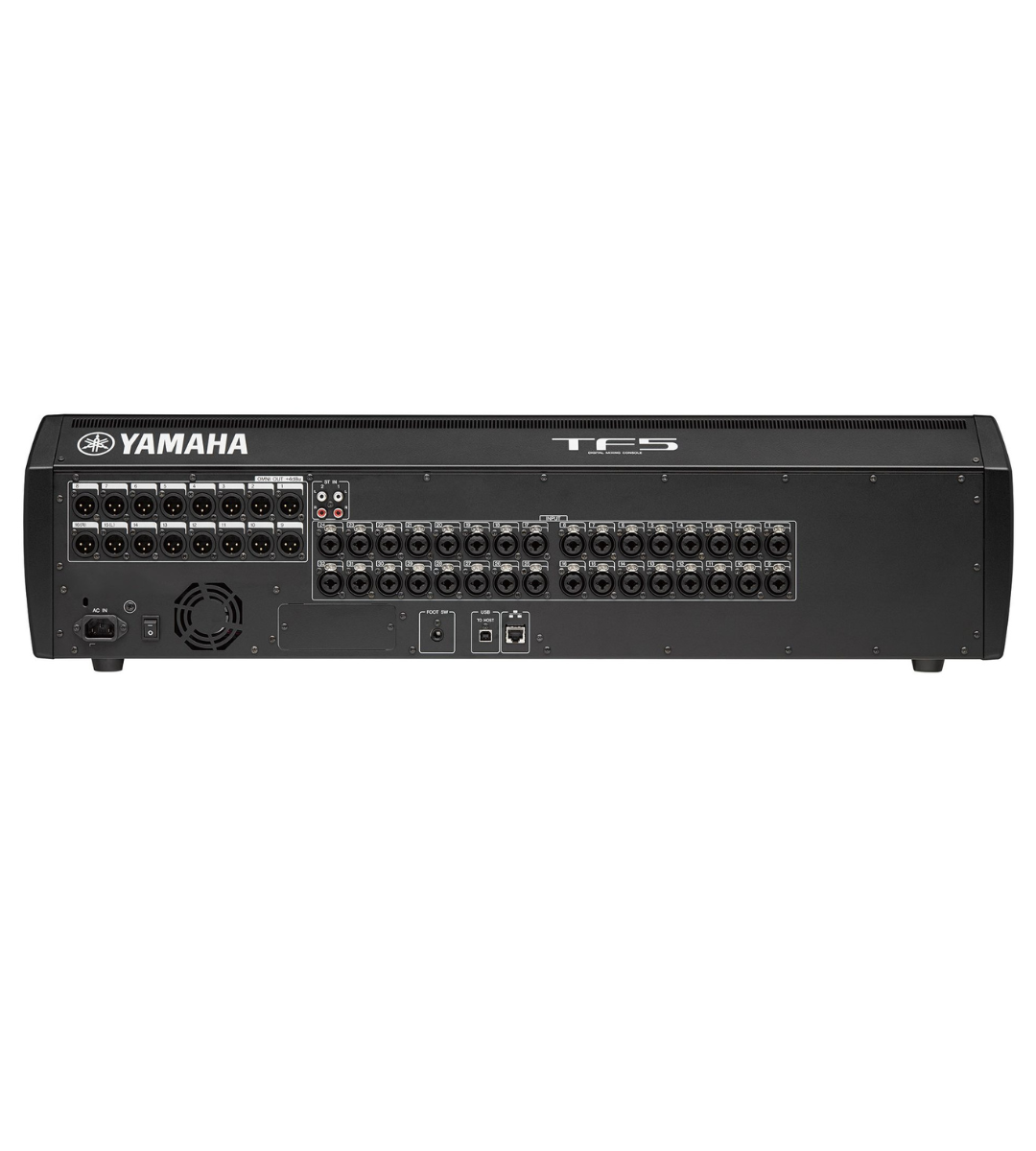

| Analog Inputs | 32 XLR/TRS combo + 2 stereo RCA |
| Analog Outputs | 16 XLR |
| DCA Groups | 8 |
| Effects | 8 processors + 10 GEQ |
| USB Audio Interface | 34 in / 34 out |
| Recording | 2-track USB / multitrack via DAW |
| Power Requirements | AC 100–240V, 50/60Hz |
| Power Consumption | 120W |
| Dimensions (W × H × D) | 866 × 225 × 599 mm |
| Net Weight | 20.0 kg |
Boxed dimensions: Approximately 960 × 350 × 750 mm (varies by shipping region)

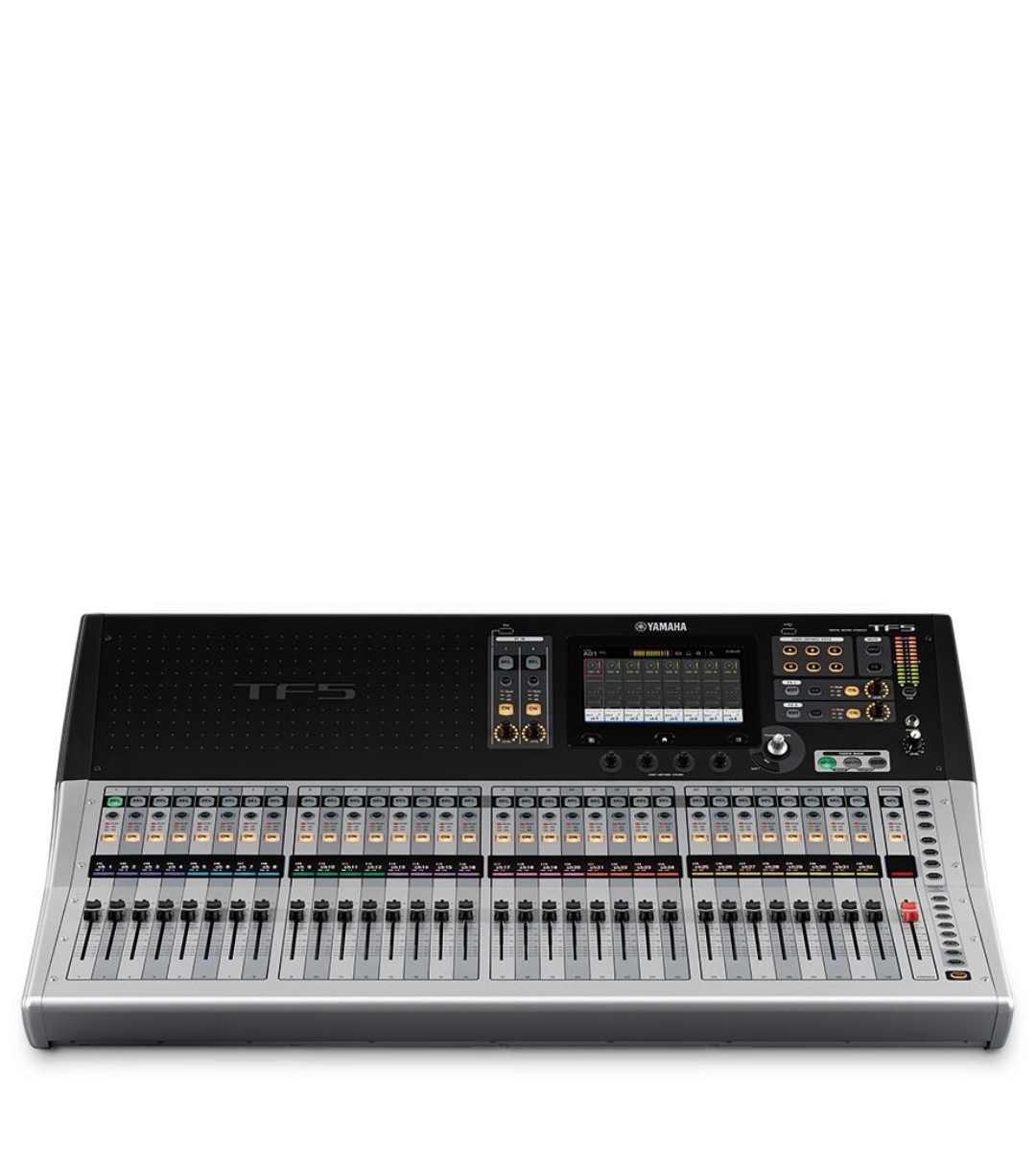

- Yamaha TF5 digital mixing console
- Power cord
- Quick start guide
- Steinberg Nuendo Live software license
