- 180 W Class-D amplifier (LF 150 W + HF 30 W)
- Coaxial compression driver: 8″ LF cone + 1.4″ voice-coil HF driver

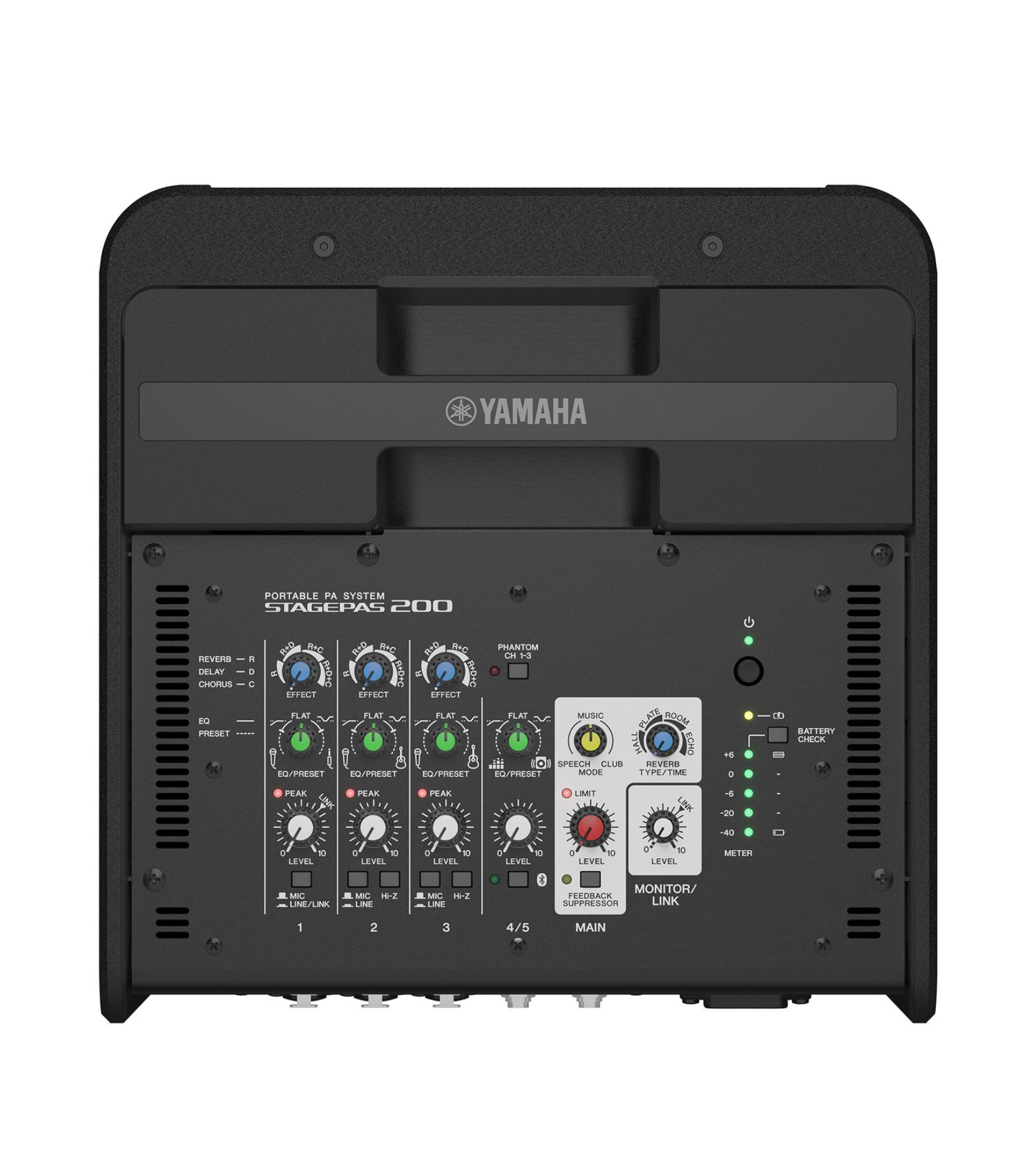

- 5-channel digital mixer (3 mono mic/line, 1 stereo line)
- Main output multi-band compressor “MODE” (Speech / Music / Club)
- 1-knob EQ/preset per channel
- SPX digital effects: reverb (4 programs), delay, chorus
- Hi-Z instrument-compatible inputs on channels 2 & 3
- Link-out / Monitor outputs for expansion
- Bluetooth 5.0 (A2DP SBC, AAC) audio streaming and app control
- Can be controlled via STAGEPAS Controller app (iOS/Android)

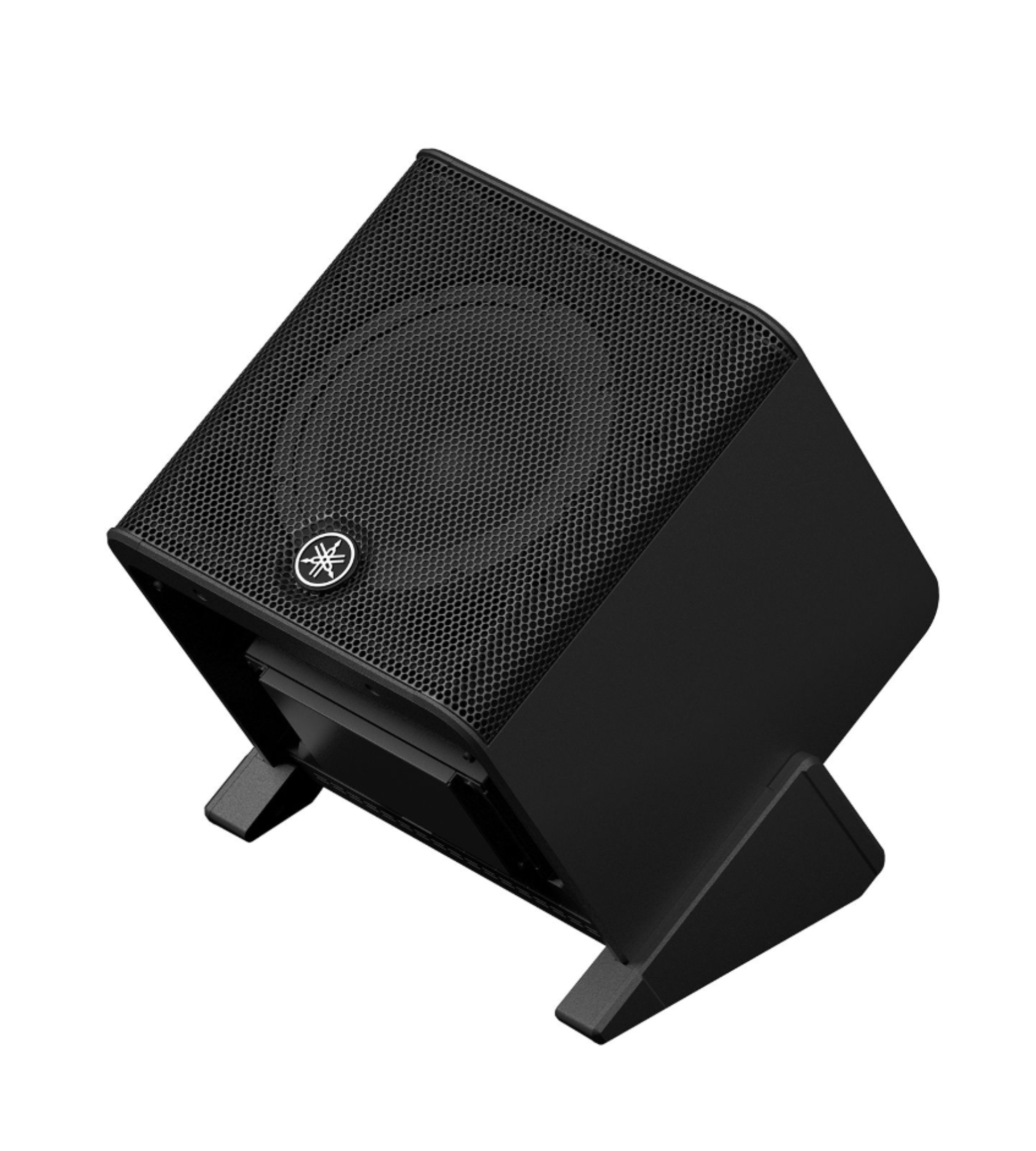

- Rubber stand supports tilt angles of 30° or 60°

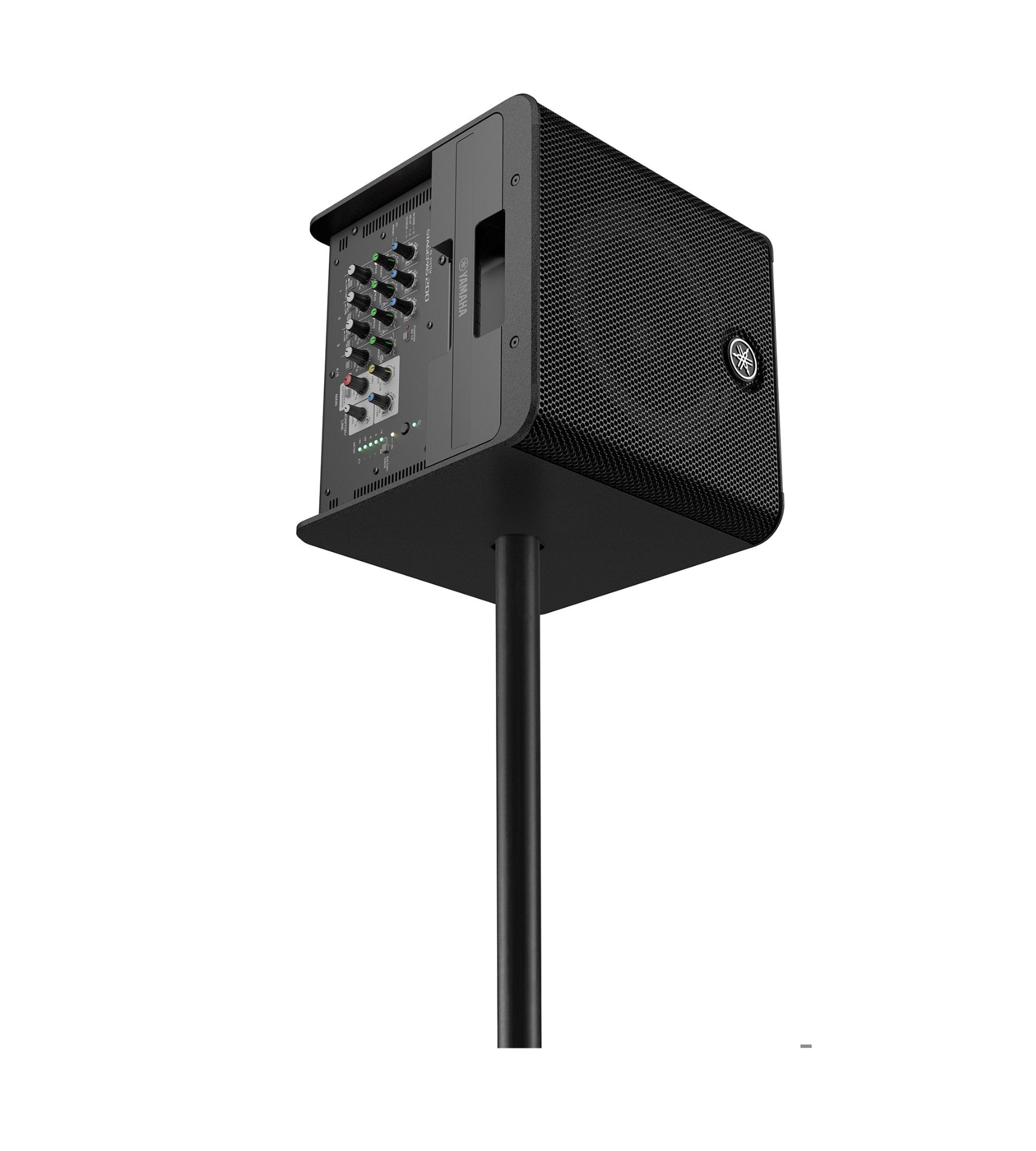

- Pole-mountable via a 35 mm socket on side
- Frequency range (-10 dB): 60 Hz – 20 kHz
- Coverage angle: Horizontal 90° × Vertical 90°
- Crossover frequency: 2.0 kHz
- Maximum output level: 125 dB SPL (peak, at 1 m)
- Bluetooth: Version 5.0, Class 1, A2DP support (SBC, AAC)
- Power consumption: Idle 10 W, 1/8 power ~20 W
- Power requirements: 100–240 V AC (50/60 Hz) or 29.6 V DC
- Battery capacity: 79.92 Wh (2700 mAh, 29.6 V), up to 10 h runtime
- Charging time for battery: approx. 4 h
- Cabinet material: ABS plastic
- Mounting: Side 35 mm speaker stand socket; rubber stand for tilt
Unit: 30.0 cm × 30.8 cm × 30.1 cm
Boxed dimensions: not officially published
- STAGEPAS 200BTR unit
- High-capacity rechargeable lithium-ion battery pack (BTR-STP200)
- Power cord
Mix it up

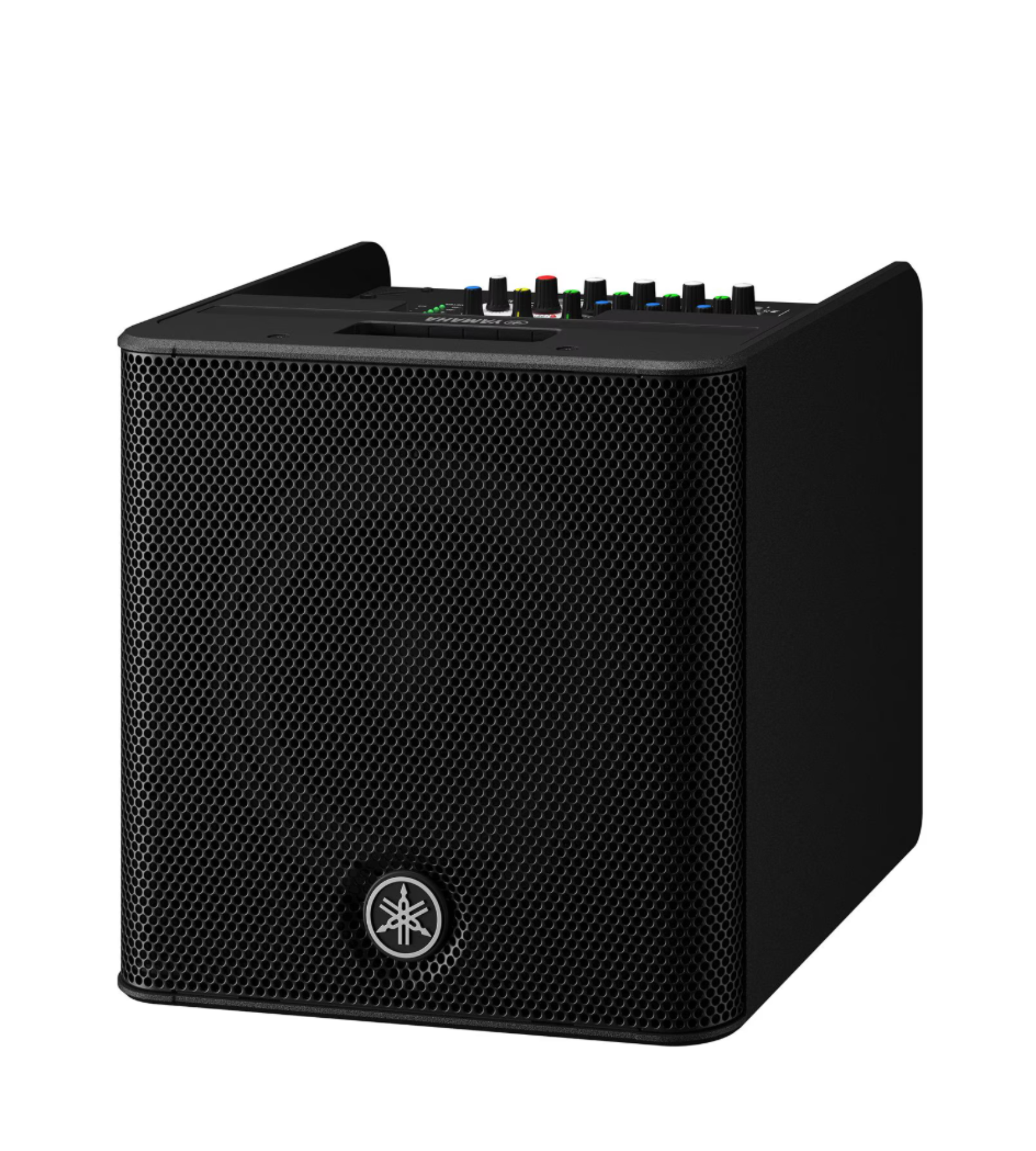

The STAGEPAS 200 puts a strong emphasis on its “all-in-one” designation offering all the connectivity, performance functions, and mixing capability you would ever need for small-scale duo or trio performances—all packed into a compact 300 mm cube-style cabinet. Equipped with a digital mixer that can be controlled remotely for up to 5 channels, 3 mic preamps, and a comprehensive range of practical functions you’ll be thankful to have at your disposal, the STAGEPAS 200 is without peer in the compact all-in-one PA market.
Featuring a high-quality coaxial transducer design, the STAGEPAS 200 is capable of delivering best-in-class sound pressure, precise phase response, and a very natural dispersion of high frequencies. Adopting some of the same expertise used in our high-end professional audio gear, this mighty yet minimalistic powerhouse will stun your audience with the full dynamic range and response of your performance.
Dial in. Vibe Out.

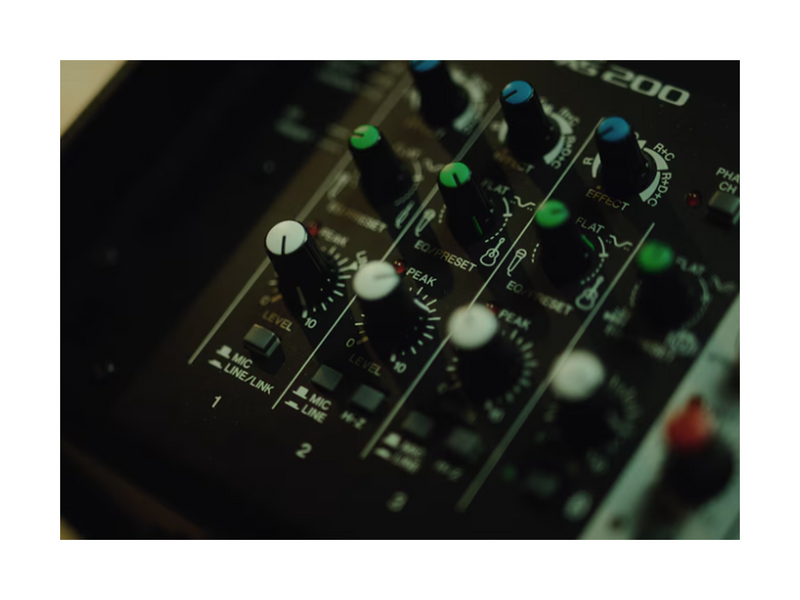

The simple, intuitive operation of the STAGEPAS 200 makes dialing in your ideal sound a painless — even enjoyable process. Each channel is equipped with a 1-knob EQ/preset and SPX digital effects, along with the master output MODE compressor, enabling fast yet powerful adjustments to your sound, while channels 2-3 feature microphone simulators included in the 1-knob EQ/preset that can add instantaneous warmth and beauty to acoustic guitars.
Smooth Operator
The STAGEPAS 200 comes equipped with adaptive functions that help alleviate anxiety about your sound, allowing you to focus on performing your absolute best. The onboard Priority Ducker automatically reduces background music or secondary signals when inputs from a primary microphone or a specific sound source is detected. Additionally, the Intelligent Feedback Suppressor function eliminates unpleasant feedback that can occur when a microphone picks up sound from a speaker, ensuring a more comfortable sonic experience for both you and your audience.
