- 1100 W Class-D amplifier driving a 12″ subwoofer and 10 × 1.5″ J-curve line array drivers
- Digital mixer: 5 channels (3 mono mic/line with Hi-Z on CH2/3 + 1 stereo line)
- 1-knob EQ per channel and MODE multiband compressor (Speech / Music / Club)
- SPX digital reverb (4 types, parameter control)
- Priority Ducker for stereo channel, Link and Monitor outputs
- Bluetooth 5.0 (A2DP SBC/AAC) for audio streaming and remote control via STAGEPAS Controller app
- 170° horizontal × 30° vertical coverage, FIR-X-like crossover
- High-grade polyurea-coated ABS cabinet with included fitted cover
- Optional accessories: FC5 footswitch, DL-SP1K dolly
- Power Output: 1100 W dynamic (Class-D)
- Speakers: 12″ (30 cm) powered subwoofer; 10 × 1.5″ (3.8 cm) HF drivers
- Frequency Range (-10 dB): 37 Hz – 20 kHz
- Coverage: Horizontal 170°, Vertical 30°
- Crossover Frequency: 240 Hz
- Maximum SPL (1 m, peak): 125 dB
- Power Consumption: approx. 25 W (idle), 91 W (1/8 power)
- Power Requirements: 100–240 V AC, 50/60 Hz (region-dependent)
- Bluetooth: Version 5.0 with A2DP (SBC, AAC)
- Remote Control: STAGEPAS Controller app (iOS/Android)
- Mix Processing: 1-knob EQ, MODE compressor, SPX reverb
- Inputs: 3 mono (XLR-¼″ combo) with Hi-Z on CH2/3, 1 stereo line; Link-in
- Outputs: Link out, Monitor out (XLR)
- Accessories: Fitted cover included; optional FC5 footswitch and DL-SP1K dolly
System (assembled): 2000 mm × 334 mm × 418 mm (200 cm × 33.4 cm × 41.8 cm)
Subwoofer unit (individual): 55.0 cm × 41.8 cm × 33.4 cm
Line array section: 58.2 cm × 8.6 cm × 6.7 cm
- Powered subwoofer unit
- Line array speaker section
- Spacer(s) for assembly
- Power cord

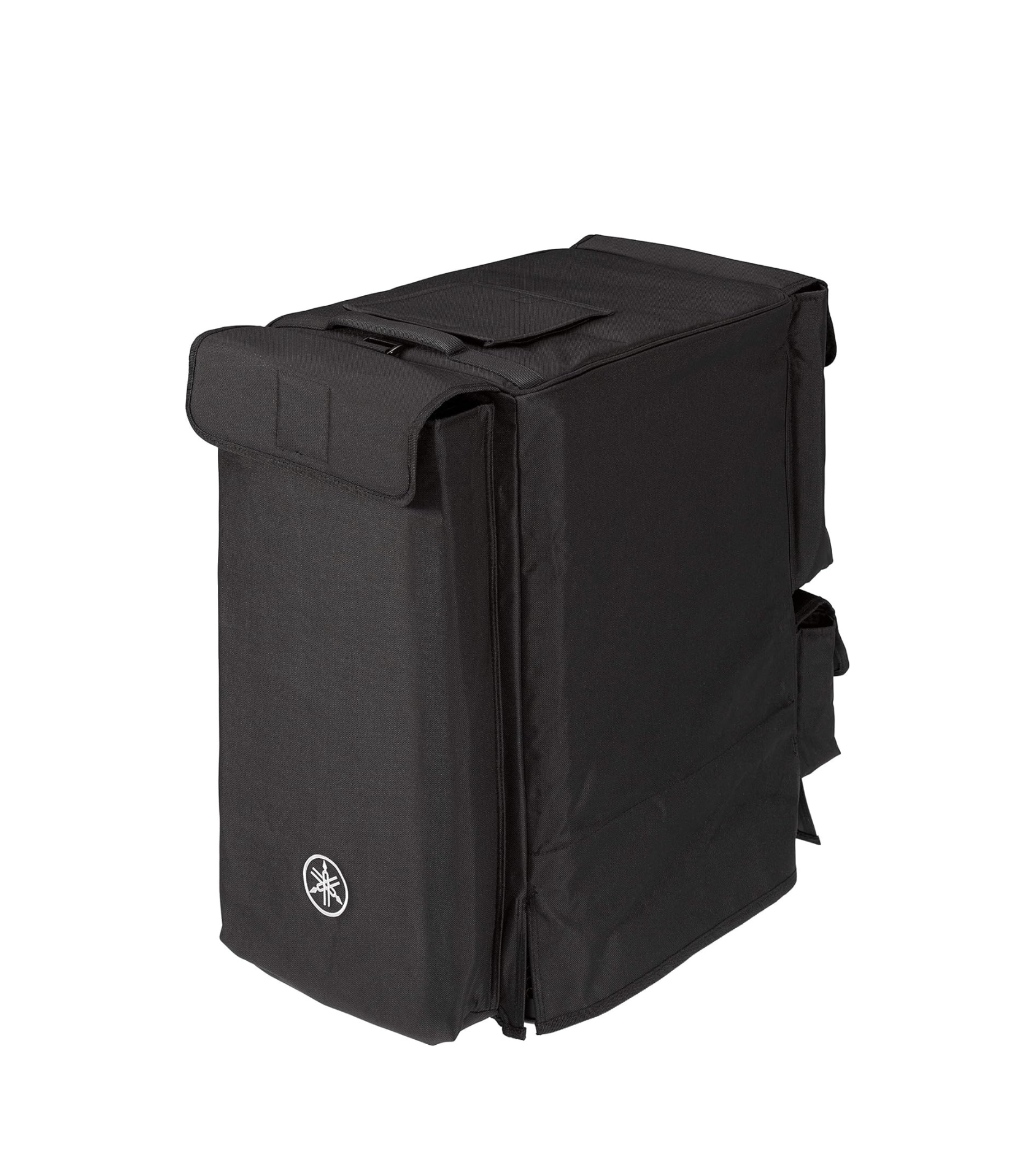

- Fitted protective cover (includes storage for components and accessories)

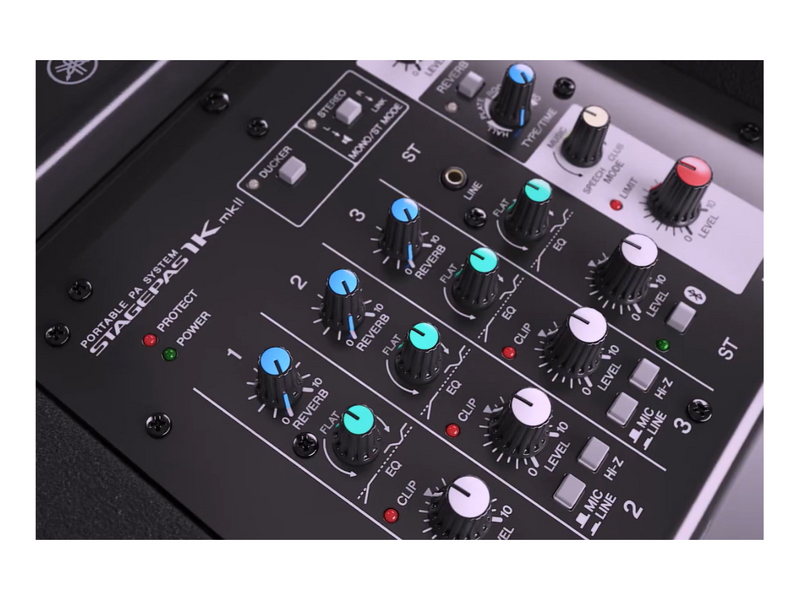

Simple setup and control allow you to focus on your performance
The STAGEPAS 1K mkII comes equipped with a wealth of sound adjustment features, including 1-knob EQ to perform multiple EQ processes simultaneously, and MODE which allows you to adjust optimized compression settings like “Speech” or “Music” to match various applications. All adjustments can be done simply with one knob, making the perfect mix fast and easy without a complex workflow letting you focus on your performance.

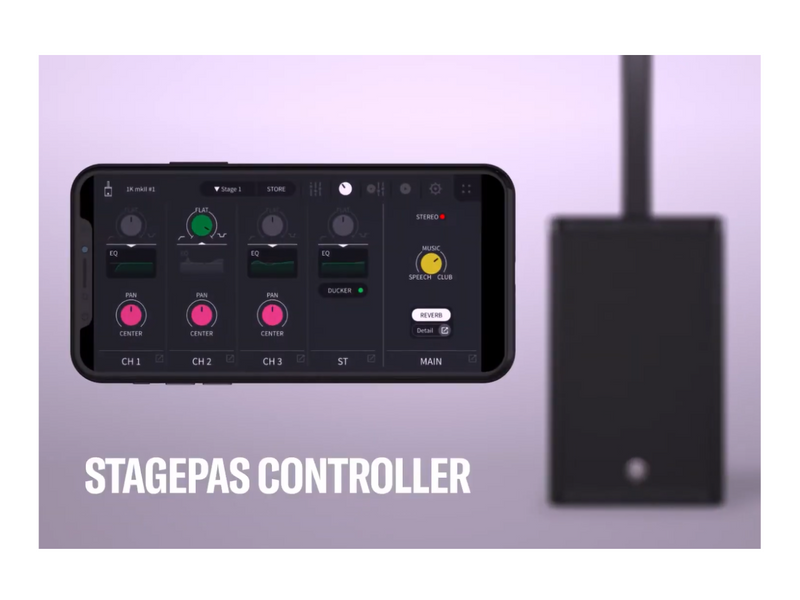

The STAGEPAS Controller app
The STAGEPAS Controller app is a powerful companion for the Yamaha STAGEPAS 1K mkII, designed to give users full wireless control over the system from a smartphone or tablet. With this app, you can remotely adjust individual channel volumes, fine-tune the overall mix using a 4-band parametric EQ, and select from multiple SPX reverb types—all in real time, even during performances. This eliminates the need to go back and forth to the mixer, making it especially useful for solo performers or event hosts who manage their own sound.
