- Features
- Specifications
- Dimensions
- Whats in the box
- 100 W Class-D amplifier, bi-amped coaxial speaker (6.5″ LF cone + 1.4″ compression driver) with FIR-X crossover

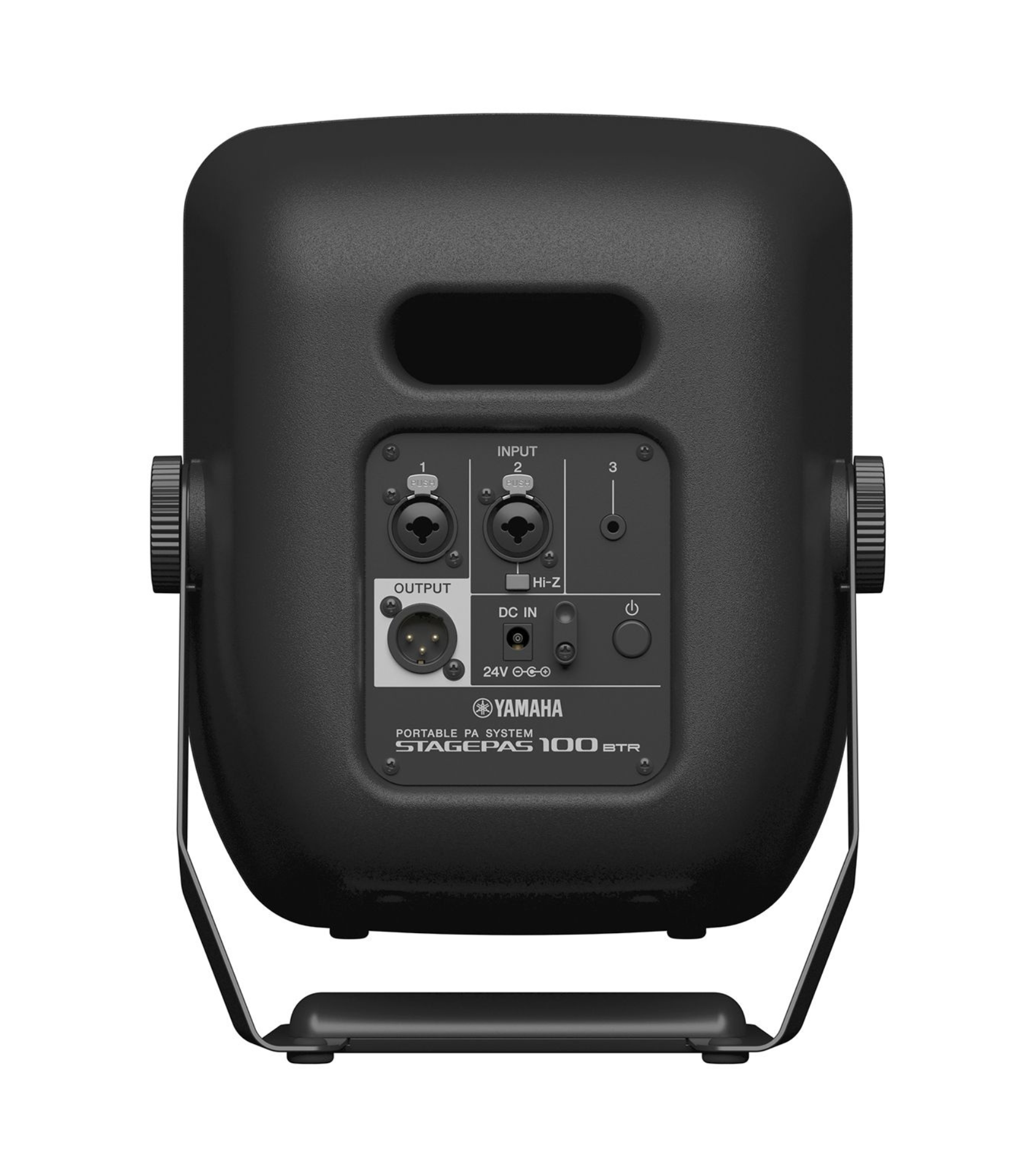

- 3-channel mixer: 2 mic/line combo inputs (channel 2 Hi-Z–instrument compatible), 1 stereo mini aux input mixed to mono
- 2-band master EQ (Low/High)
- Mix-out (XLR) for expansion
- Bluetooth®, multipoint audio streaming

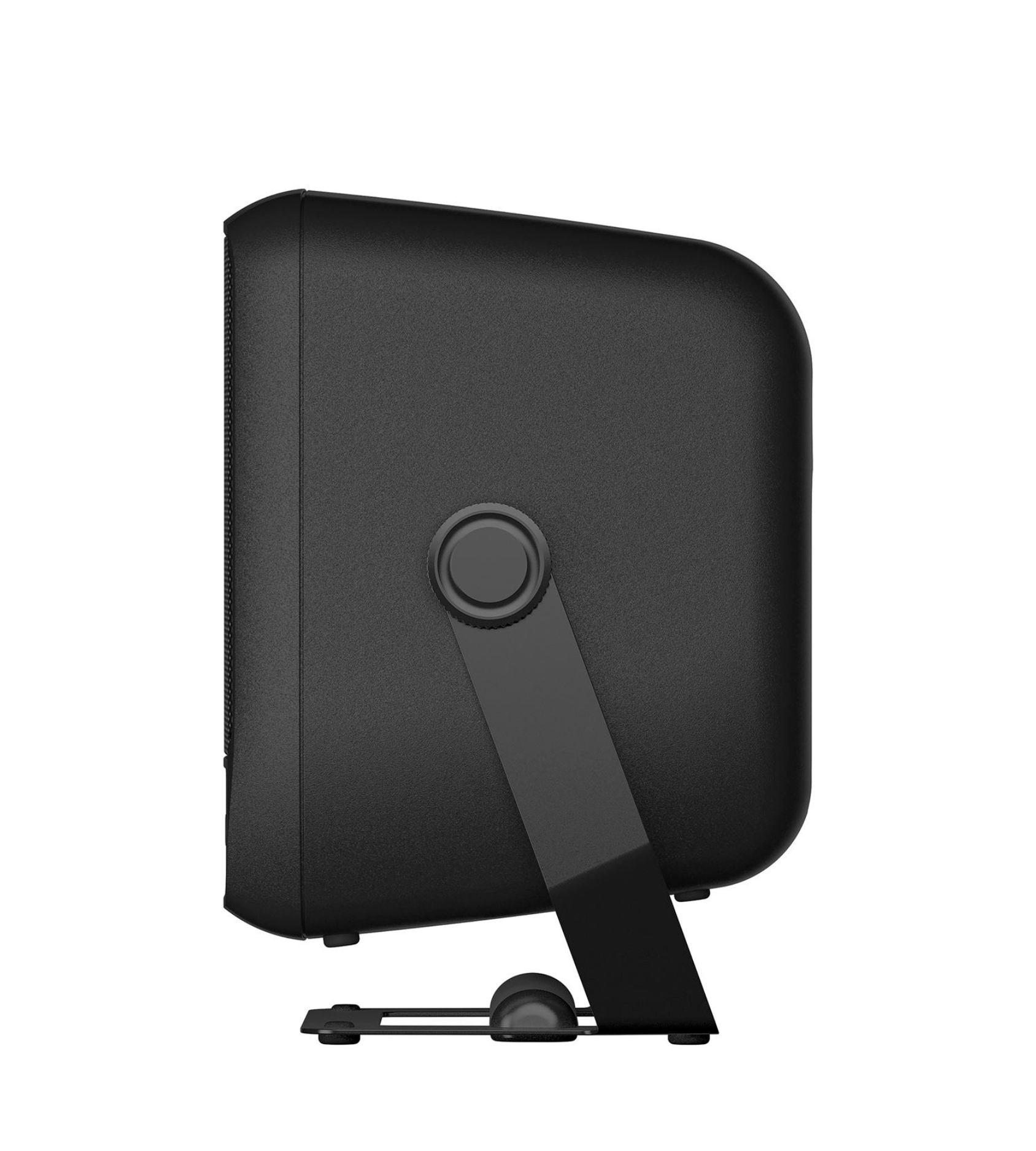

- Adjustable carrying handle doubles as a tilt stand
- 90° × 90° sound dispersion, max SPL 120 dB @ 1 m
- Coaxial driver with integrated air-vented structure and polyimide diaphragm for clarity and durability

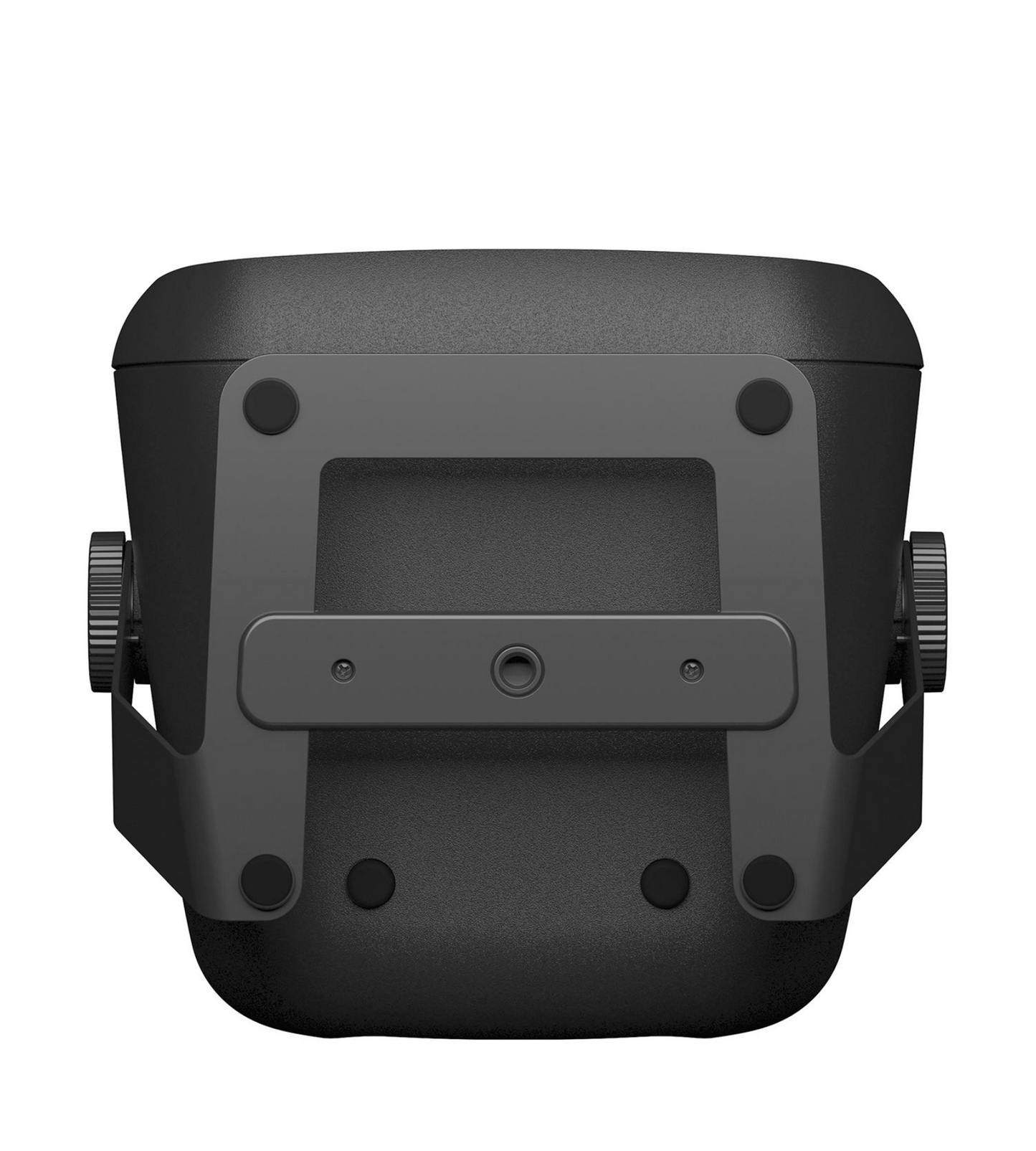

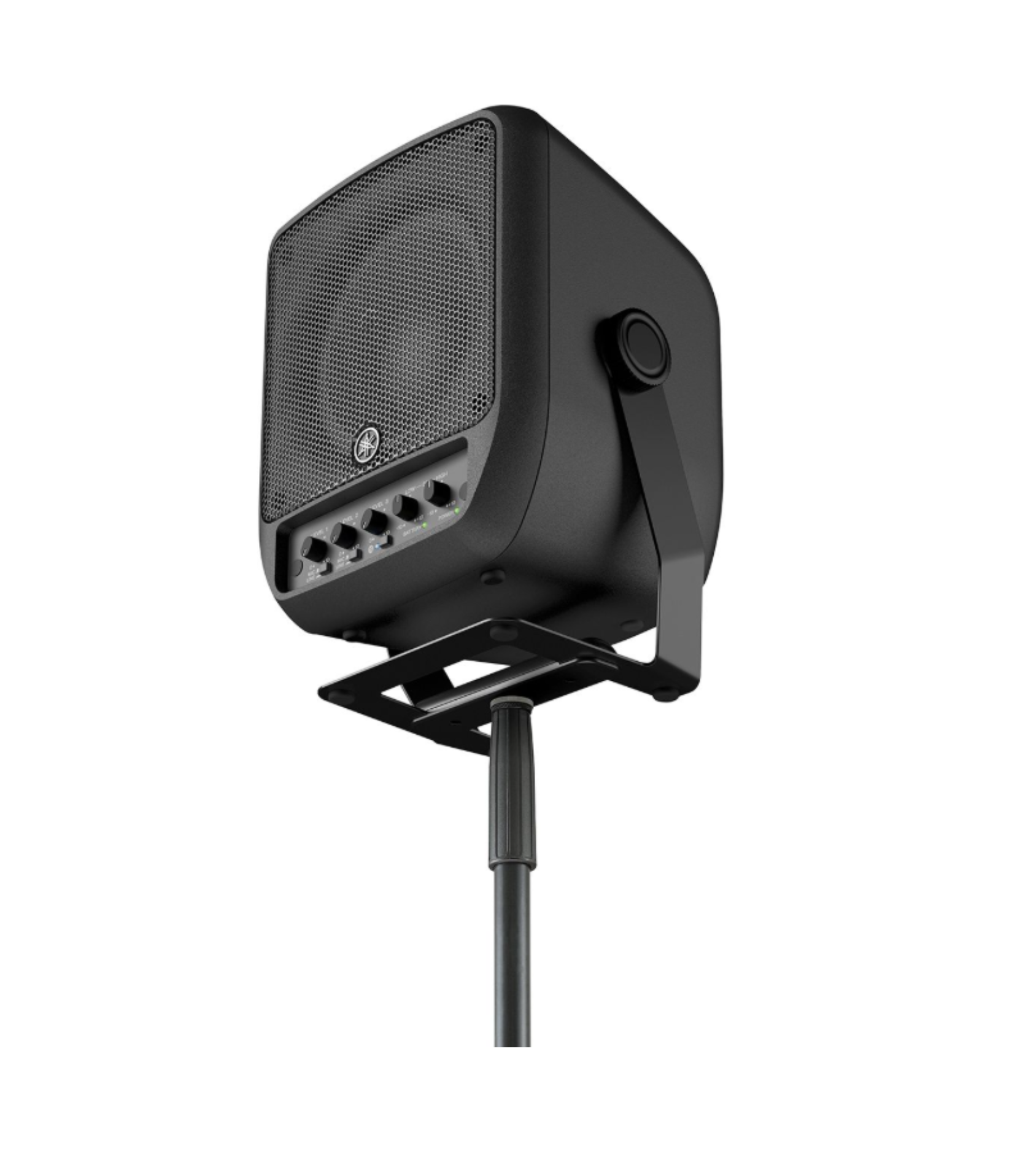

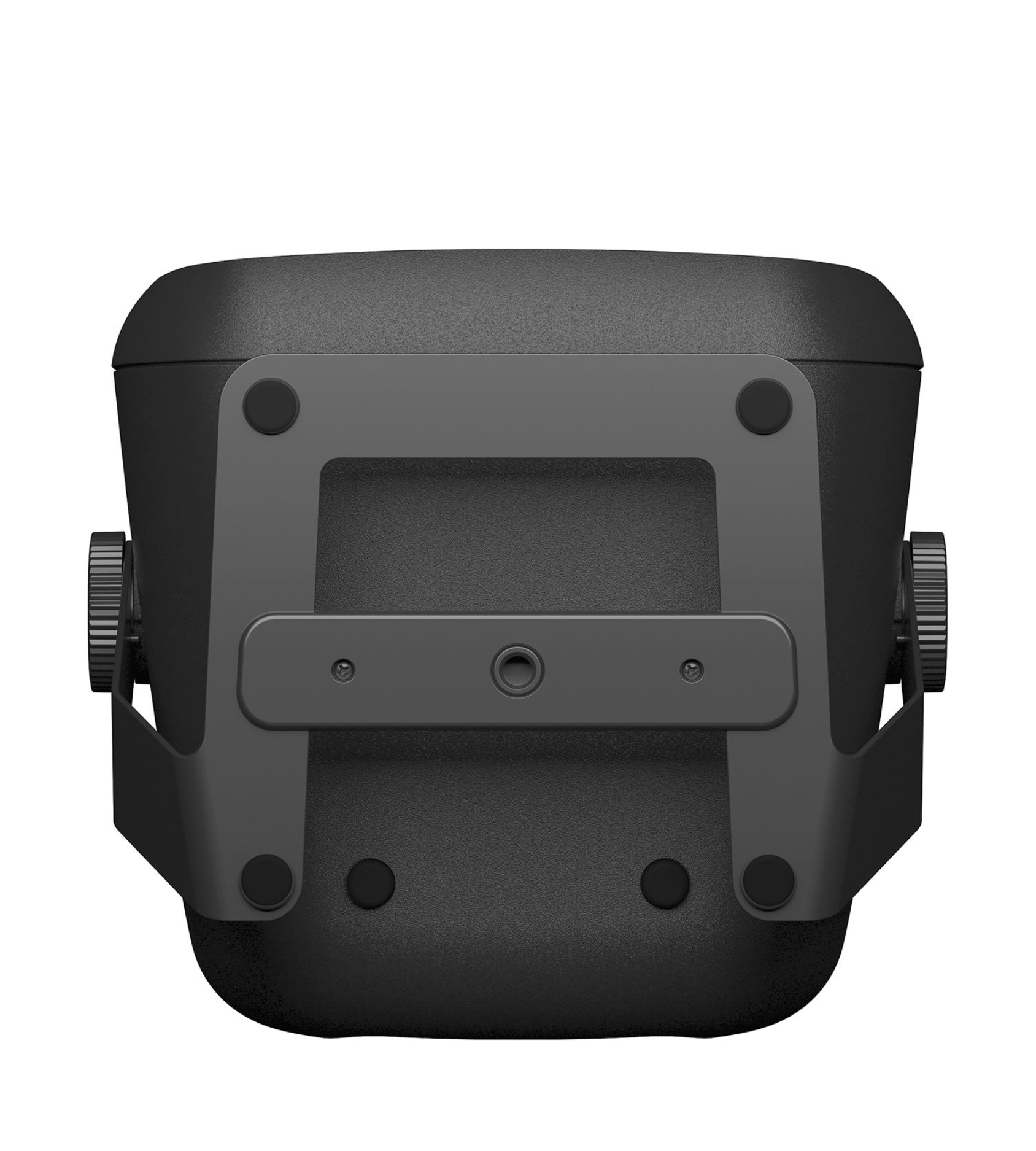

- Pole-mountable via 3/8″ socket on bottom
- Speaker components: 6.5″ cone LF (1.7″ voice coil), 1″ throat compression HF driver (1.4″ voice coil)
- Frequency range (-10 dB): 70 Hz–20 kHz
- Max output level: 120 dB SPL (measured at 1 m, pink noise)
- Crossover: FIR-X, 1.8 kHz
- Coverage: Horizontal 90°, Vertical 90°
- Amplifier power: Total 100 W dynamic (LF 93 W + HF 7 W)
- Power consumption: Idle 10 W; 1/8 power ~30 W; Rated ~50 W
- Power requirements: 100–240 V AC, 50/60 Hz
- Cabinet: Plastic (PP) with rotatable bottom handle/stand
- Weight (without AC adapter): approx. 5.2 kg–5.5 kg
Unit: 23.9 cm (W) × 31.0 cm (H) × 21.5 cm (D)
Boxed dimensions: approximately 38.4 cm × 34 cm × 30.2 cm (15.1″ × 13.4″ × 11.9″)
- STAGEPAS 100 unit
- Power cord
- AC adapter (PA-500)

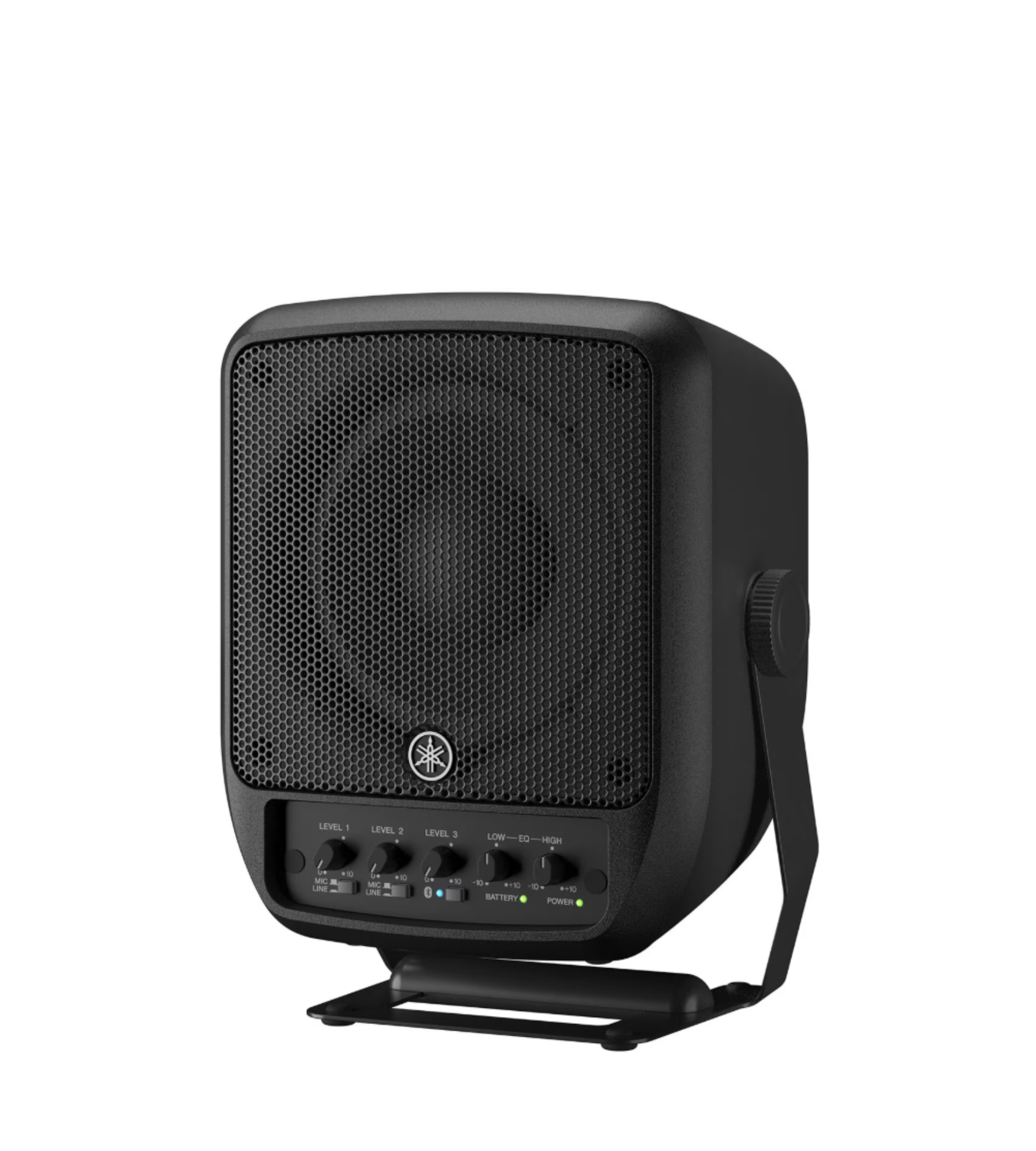

Compact design. Big sound
Far more than just a speaker, the STAGEPAS 100 delivers impressive sonic performance by leveraging some of the same technologies used in our high-end professional products. A powerful, high-quality coaxial compression driver combined with proprietary FIR-X filters for the HF and LF crossover deliver sound pressure, precise phase response, and a natural dispersion to ensure every nuance of your performance is conveyed loud and clear to your audience.
Start the show in seconds

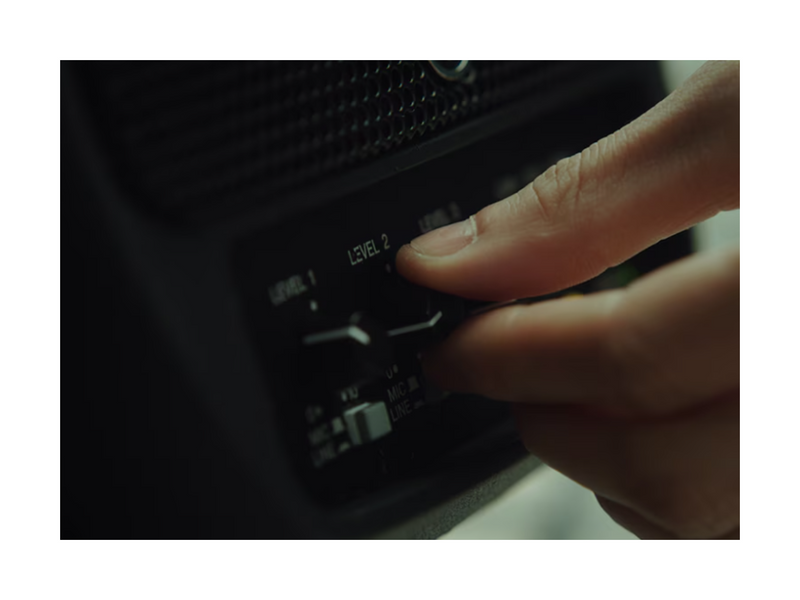

With an unrivaled ease of operation and setup, the STAGEPAS 100 will have you sounding great and performing in an instant. Just turn the power on, connect a microphone and instrument, turn up the volume, and you're ready to go. The master EQ is right on the front panel making it easy to dial in your sound or adjust settings on the fly.
