- 32 analog inputs and 24 analog outputs for large-scale audio systems
- Dante audio networking for low-latency, high-channel-count digital audio transmission
- Remote-controllable head amps for precise gain adjustment from compatible mixers

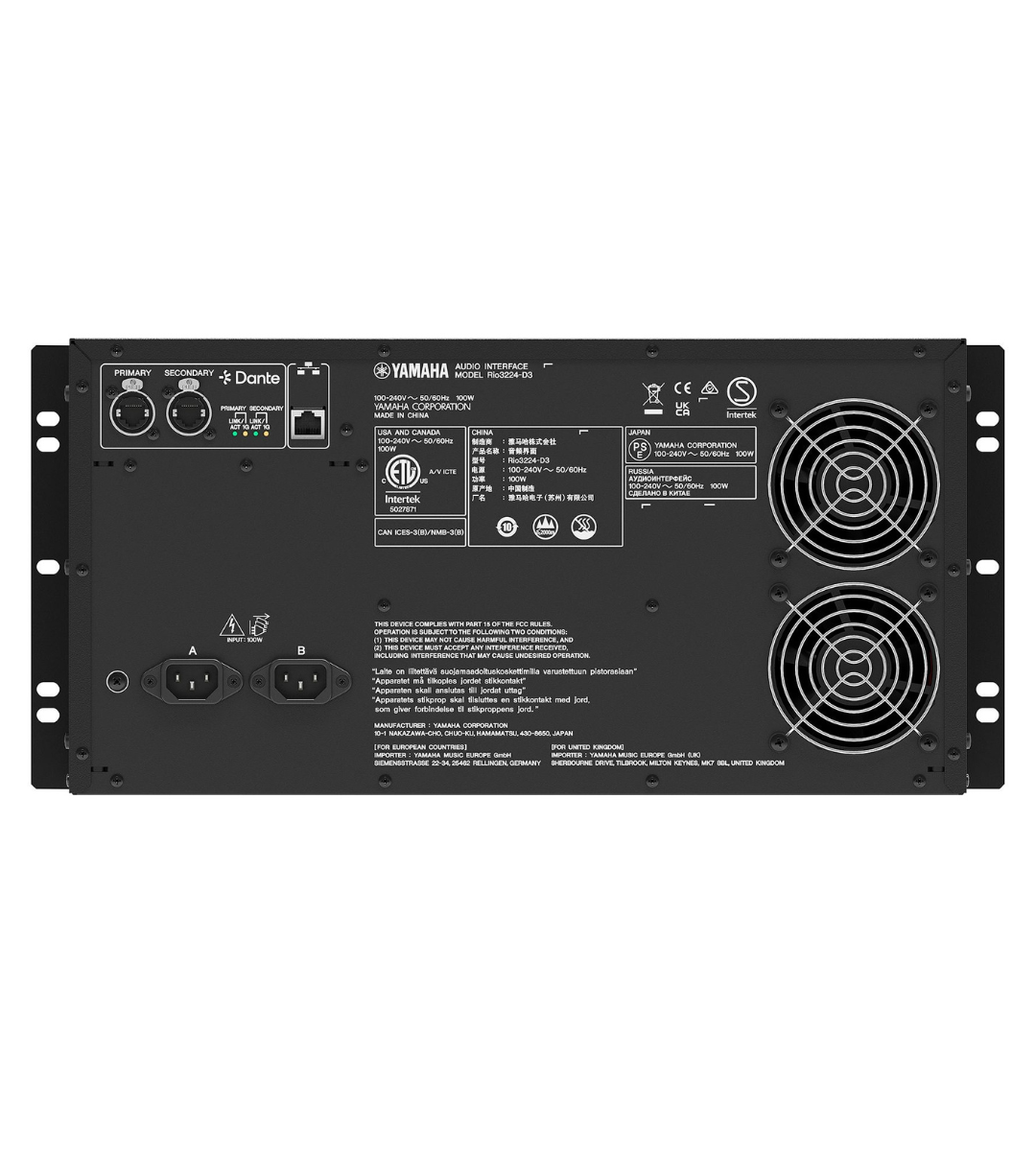

- Redundant Dante ports (Primary/Secondary) for increased reliability
- Dual power supply units for uninterrupted operation
- High-quality AD/DA conversion for clean and transparent audio
- Flexible mounting options for stage or rack installation
- Seamless integration with Yamaha CL, QL, and RIVAGE PM series consoles
| Specification | Detail |
|---|---|
| Analog Inputs | 32 × XLR (mic/line) |
| Analog Outputs | 24 × XLR (line) |
| Head Amplifiers | 32 remote-controllable mic preamps |
| Network Audio | Dante (Primary / Secondary ports) |
| Digital I/O | Word Clock In/Out |
| Sampling Rate | 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz |
| Control | Ethernet remote control via Yamaha consoles |
| Power Supply | Dual redundant internal power supplies |
| Power Consumption | 120 W |
| Dimensions (W × H × D) | 480 × 220 × 368 mm |
| Net Weight | 13.5 kg |
Not officially specified by manufacturer.

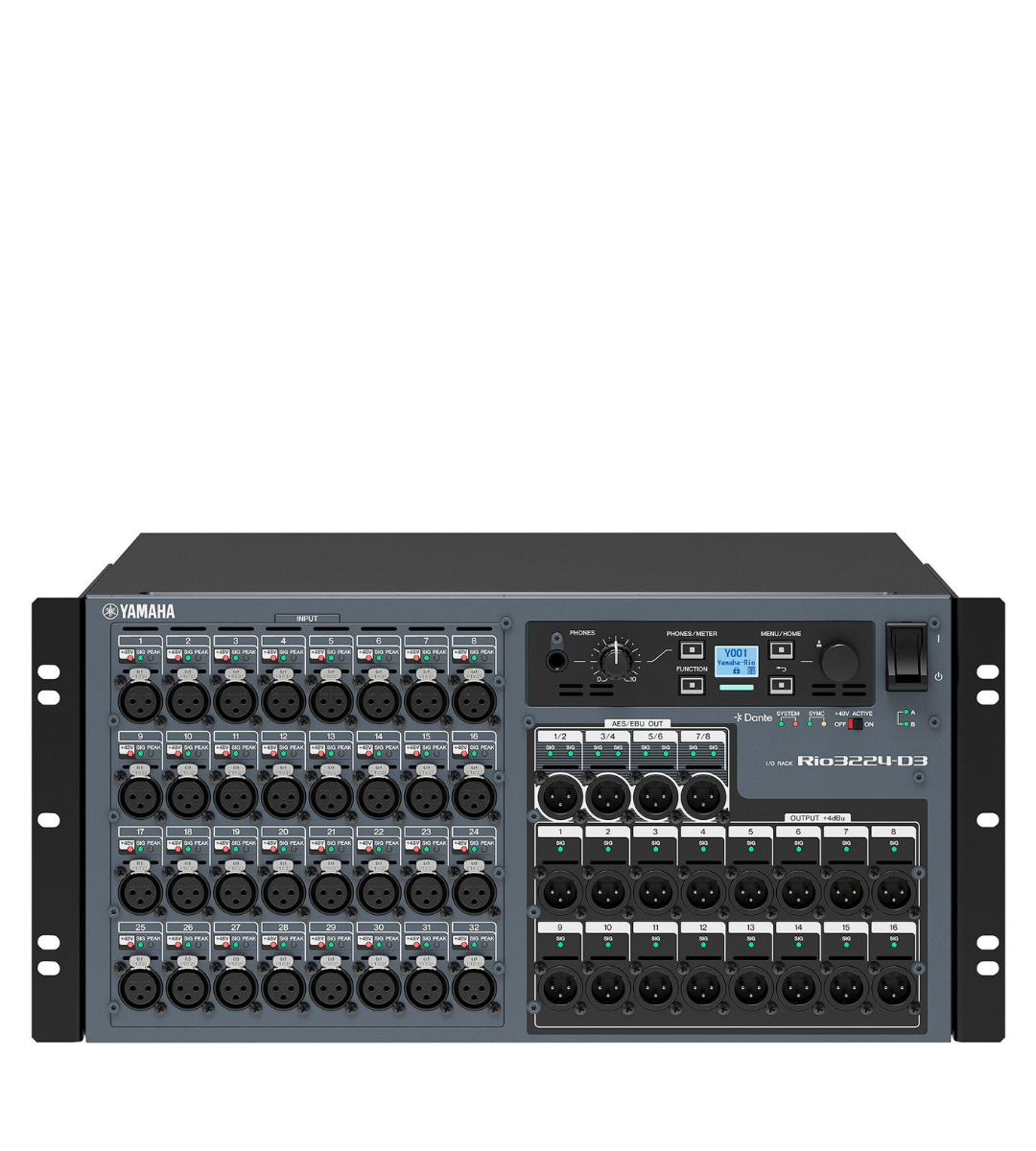

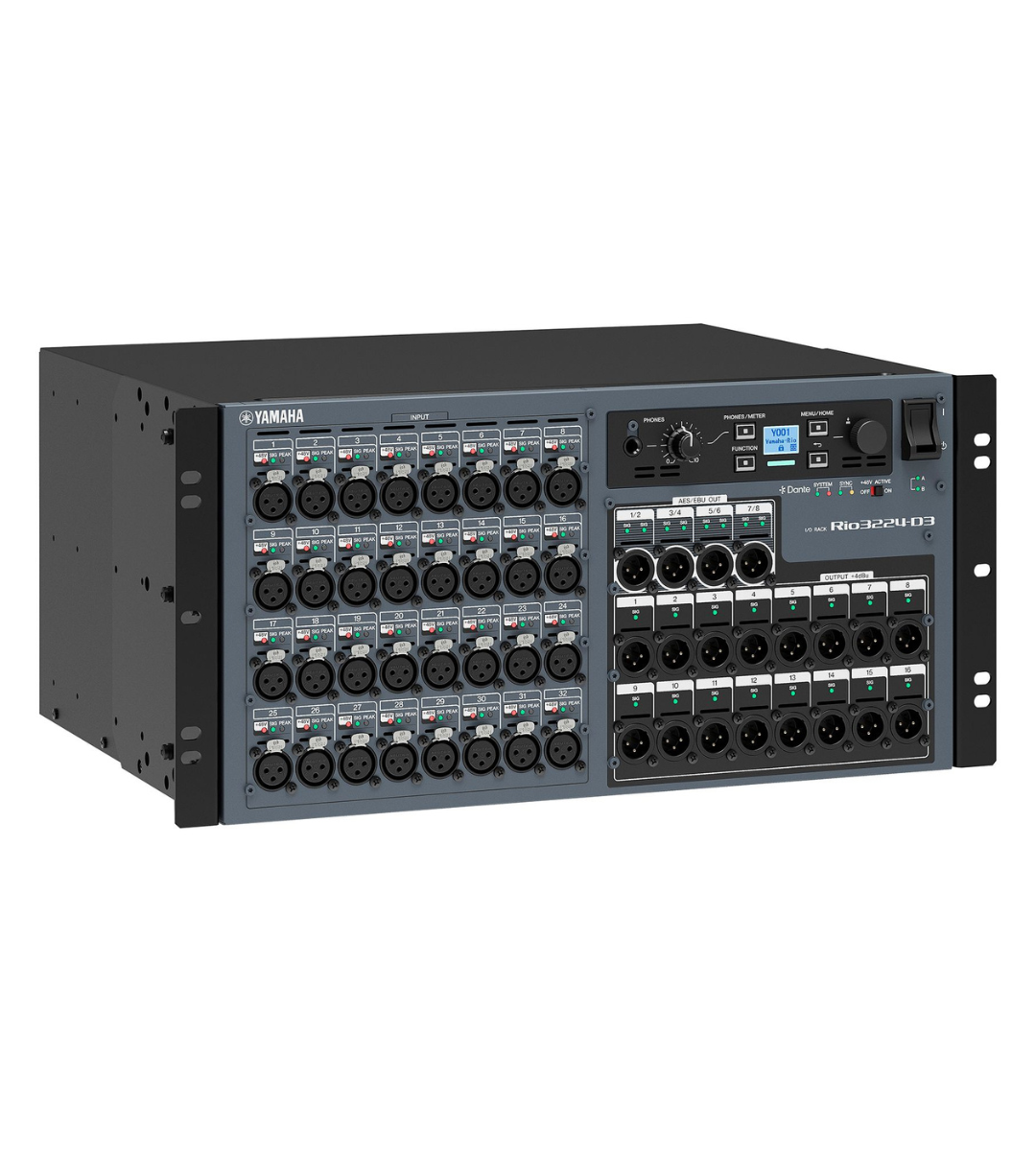

- Yamaha Rio3224-D3 Digital Network I/O rack unit
- AC power cables (dual power supply)
- User manual and documentation
