Features
- 61-key touch-sensitive organ-style keyboard (Soft, Medium, Hard, Fixed)
- Expressive real-time controls: pitch bend wheel, two Live Control knobs, Motion Effect button
- Massive sound palette: 820 voices including Super Articulation Lite, 290 accompaniment styles
- Groove Creator for building custom backing tracks with Intro, Section change, and Climax
- Quick Sampling (One-shot and Loop) from AUX IN, mic, USB audio interface
- Built-in effects: Reverb (12 types), Chorus (5 types), DSP, Master EQ, Harmony, Arpeggio
- Replay & //record: 6-track sequencer (10 user songs), USB audio recorder (WAV, 80 min per song)
- Performance enhancements: Mega Boost (+6 dB), Melody Suppressor, Crossfade, Portable Grand button

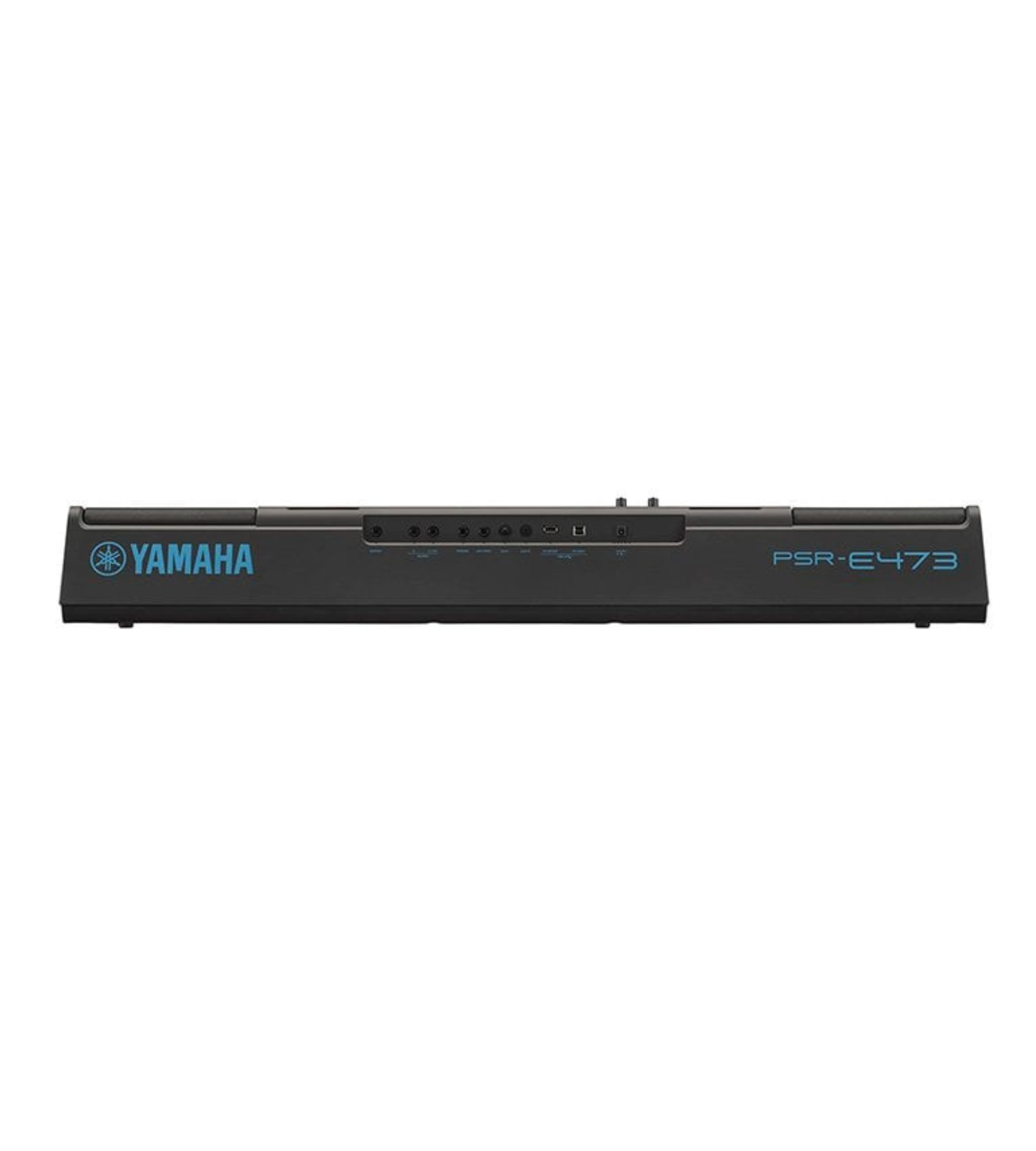

- Connectivity: AUX IN, Mic in, Headphones out, USB to HOST (MIDI/audio), DC IN
Technical Specs
- Polyphony: 64 voices
- Tone Generation: AWM Stereo Sampling
- Voices: 820 (294 panel + 28 drum/SFX + 40 arpeggio + 458 XGlite)
- Effects: DSP1 (41 types), DSP2 (12 types), Reverb 12, Chorus 5, EQ 4
- Accompaniment Styles: 290; Expansion: 10 styles via Style File Format
- Sequencer: 6-track, 10 songs, ~19,000 notes, SMF 0 & 1
- USB Audio Recorder: WAV, 44.1 kHz 16-bit stereo, ≈80 min/song
- Quick Sampling: 4 samples, ≈9.6 sec, from AUX IN, mic, USB
- Memory: 1.72 MB internal; external via USB flash drive
- Controls: Metronome, Transpose (±12), Tempo 11–280, Tuning 427–453 Hz
- Speakers: 2 × 4.7″, 6 W each; Amplifier: 6 W + 6 W
- Power: 12 V DC adapter (included) or 6 × AA batteries (not included)
Dimensions
Boxed Dimensions not officially published. Unboxed: 99.2 cm × 40.4 cm × 13.6 cm (W × D × H)
What’s in the Box
- Yamaha PSR-E473 61-key keyboard
- 12 V DC power supply

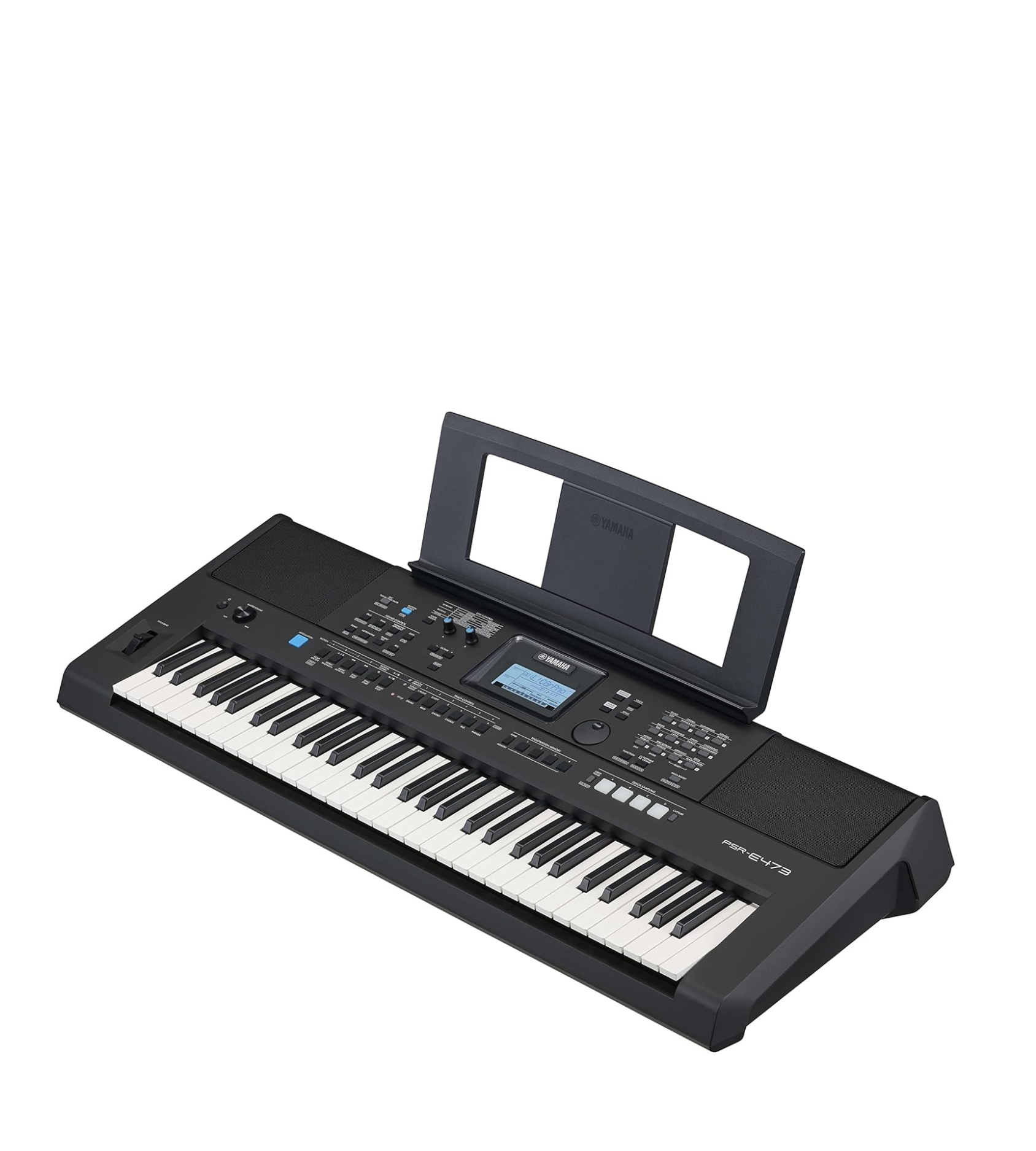

- Music rest
Sound like a PRO!
The PSR-E473 delivers the same pro-quality sound found in high-end models. They’re loaded with augmented effects and a wide range of Styles—from the latest hits to genres from around the world.
Express yourself

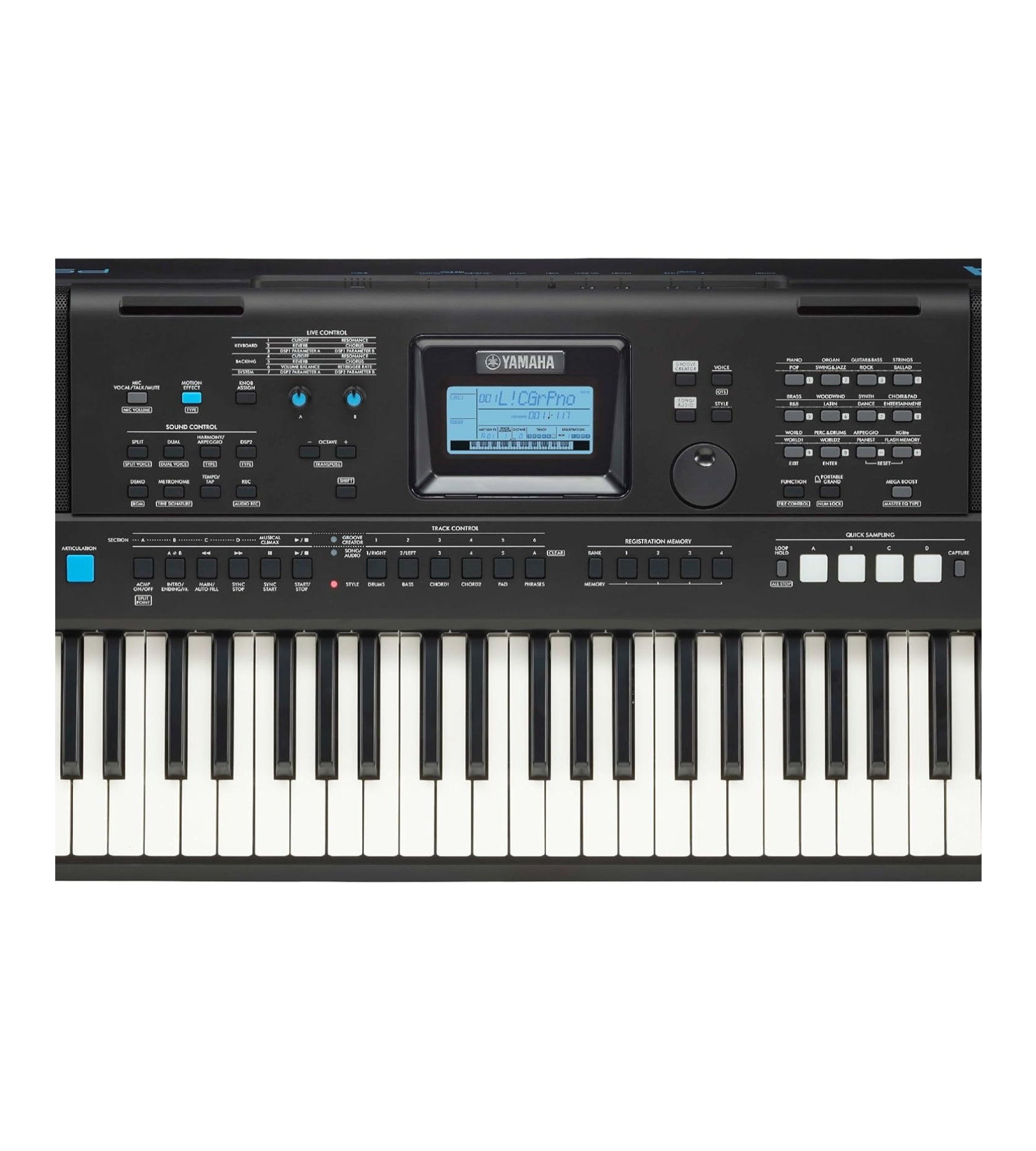

Yamaha revamped the control panel and LCD, phased out the numeric keypad, and added Direct Category Access buttons.
The optimized control panel makes it quick and easy to access Voices, Styles and functions so that you can focus your time on being creative.

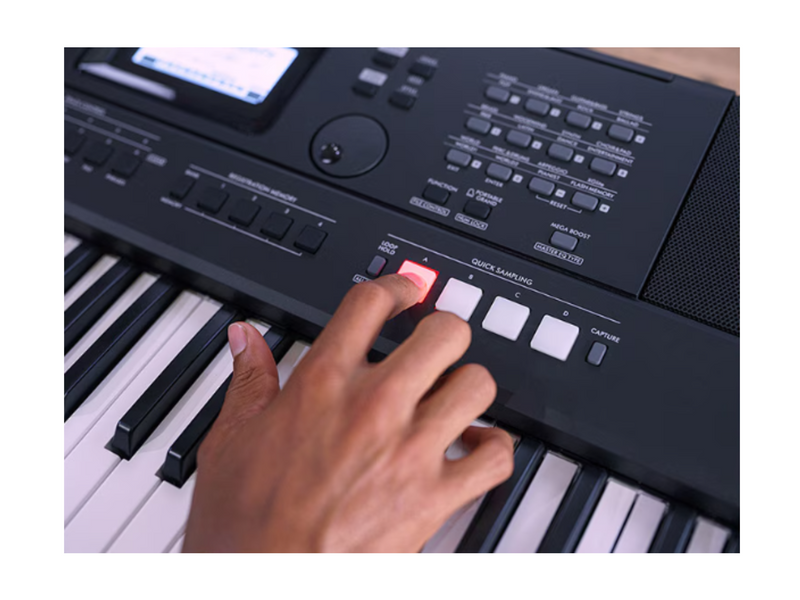

With dedicated buttons, Quick Sampling, and innovative Motion Effect functionality, you can intuitively express the sounds you're hearing in your head.
