- High-efficiency Class-D power amplifier
- Up to 500 W × 2 at 8Ω and 800 W × 2 at 4Ω
- Built-in DSP with PEQ, crossover, delay, filters, and limiter
- Factory speaker presets for Yamaha passive loudspeakers
- Large backlit LCD display with intuitive rotary encoder
- Dual operating modes: Basic and Advanced
- USB port for preset storage and firmware updates
- Panel lock function prevents accidental setting changes
- Variable-speed dual cooling fans for reliable operation
- Lightweight 2U rackmount chassis for easy transport and installation
| Model | PX5 |
| Amplifier Type | Class-D |
| Channels | 2 |
| Output Power @ 8Ω | 500 W × 2 |
| Output Power @ 4Ω | 800 W × 2 |
| Output Power @ 2Ω | 500 W × 2 |
| Power Boost Mode | 800 W × 1 (8Ω), 1400 W × 1 (4Ω) |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Signal-to-Noise Ratio | 100 dB |
| THD+N | 0.1% (1 kHz, 10 W) |
| DSP Functions | PEQ, HPF, LPF, Delay, Limiter, Speaker Presets |

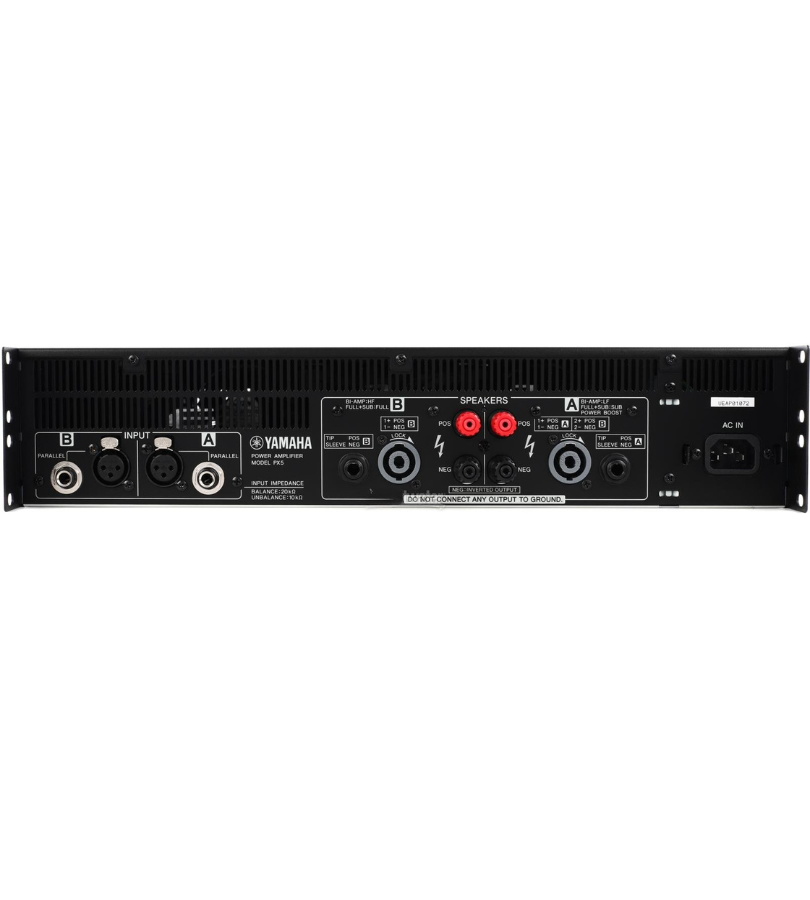

| Inputs | 2 × XLR, 2 × 1/4" TRS |
| Outputs | 2 × speakON NL4, Binding Posts, 2 × 1/4" TS |
| USB | USB Type-A |
| Cooling | Dual Variable-Speed Fans |
| Rack Size | 2U |
| Power Requirements | 100–240 V AC, 50/60 Hz (Region Dependent) |
| Product Dimensions (L × W × H) | 388 × 480 × 88 mm |
| Product Weight | 6.9 kg |
| Package Dimensions (L × W × H) | 552 × 552 × 191 mm |
| Shipping Weight (with Box) | 8.8 kg |

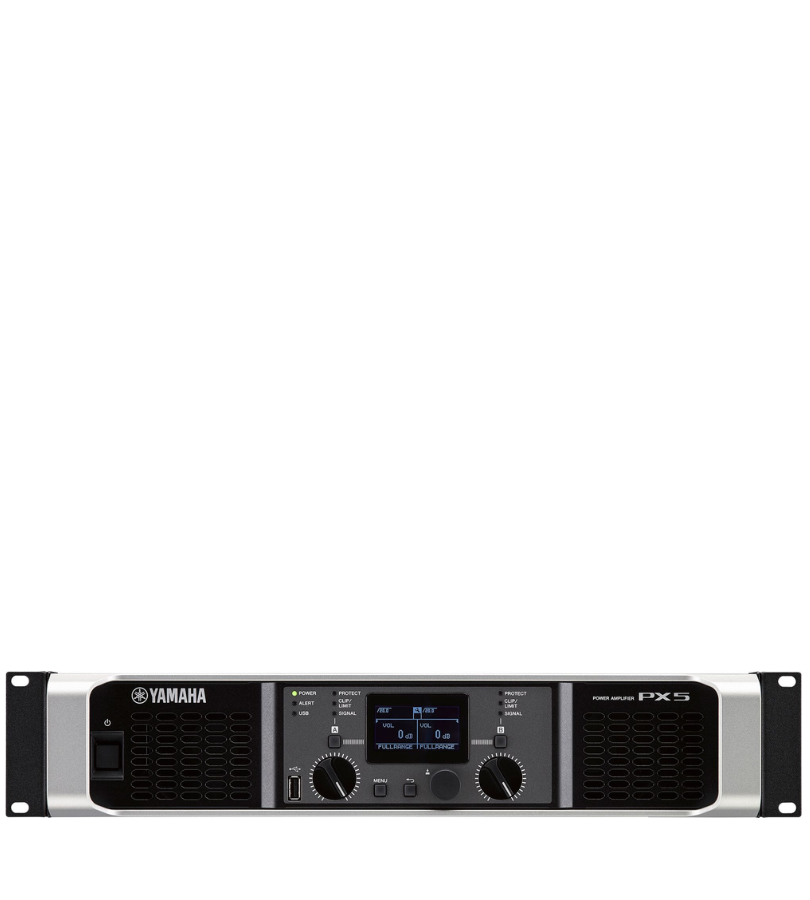

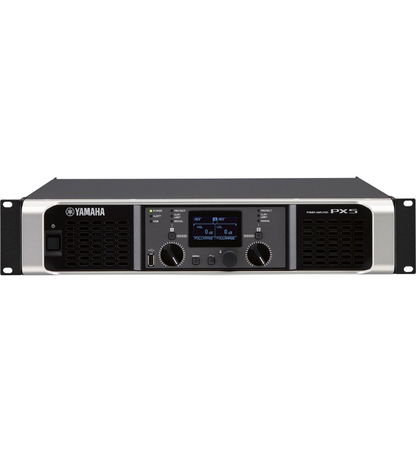

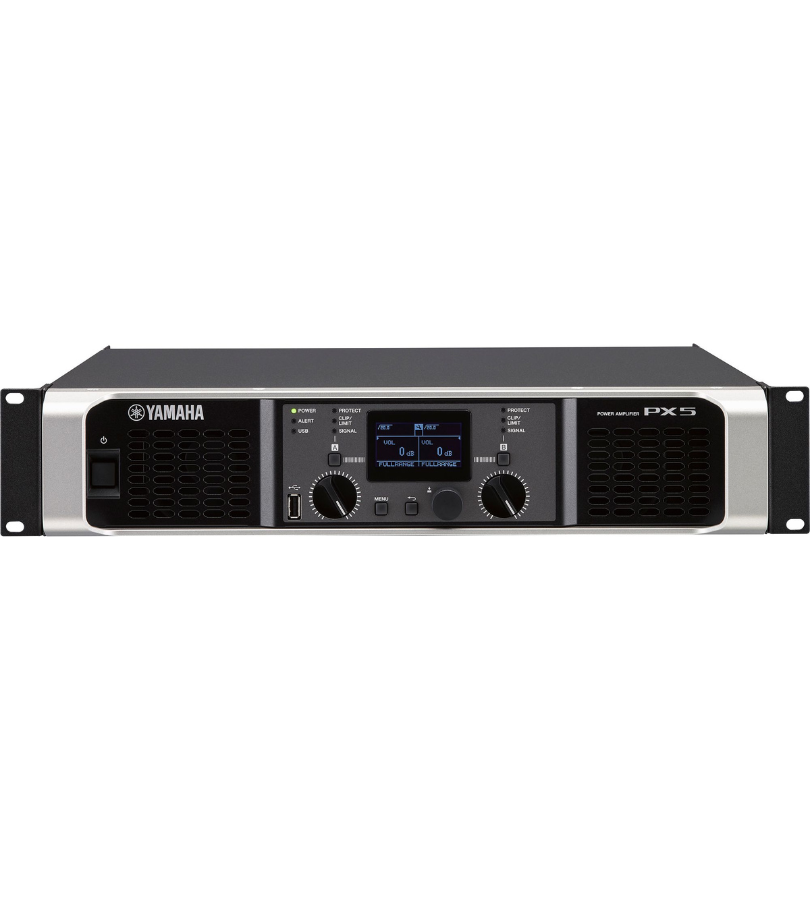

- Yamaha PX5 Power Amplifier
- AC Power Cord (2.0 m)
- USB Port Cover
- Owner's Manual
- Specification Sheet
