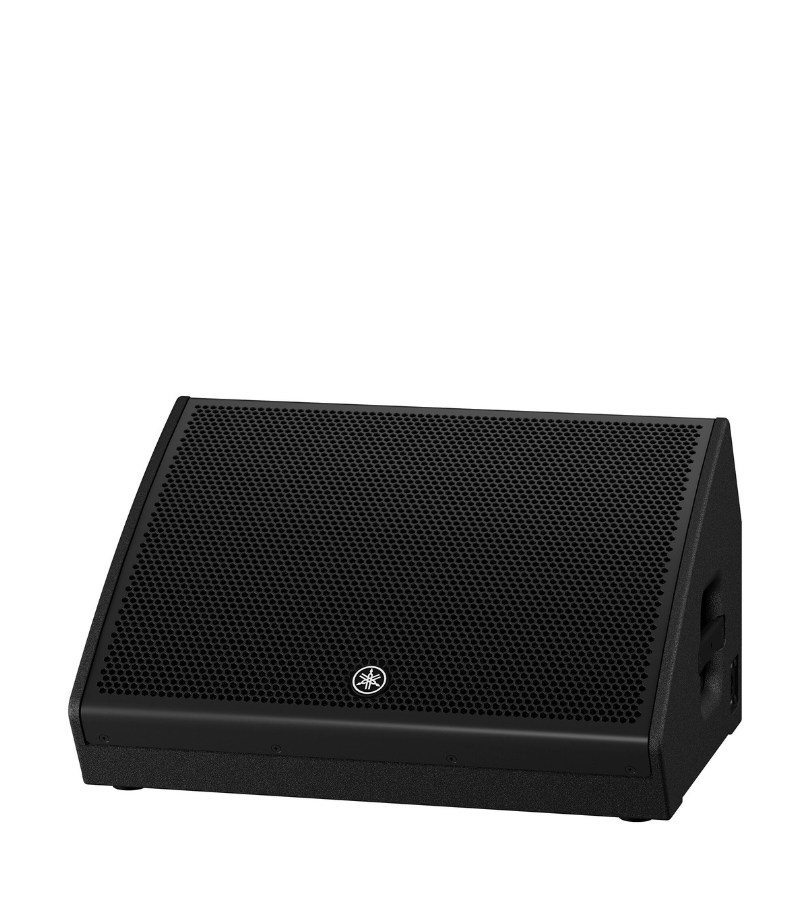

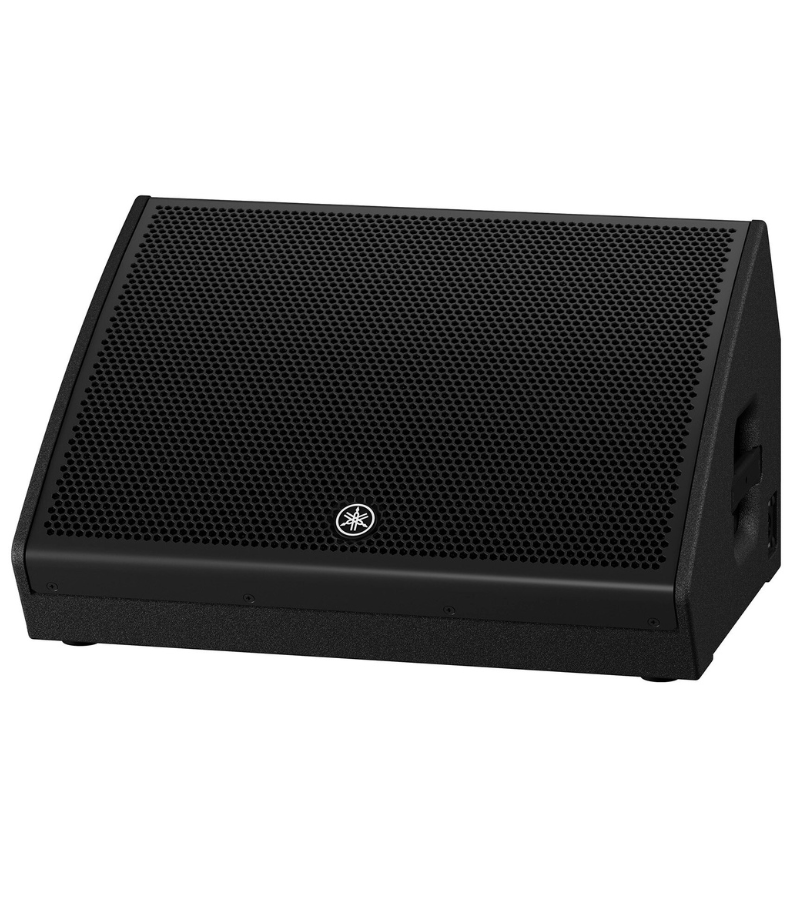

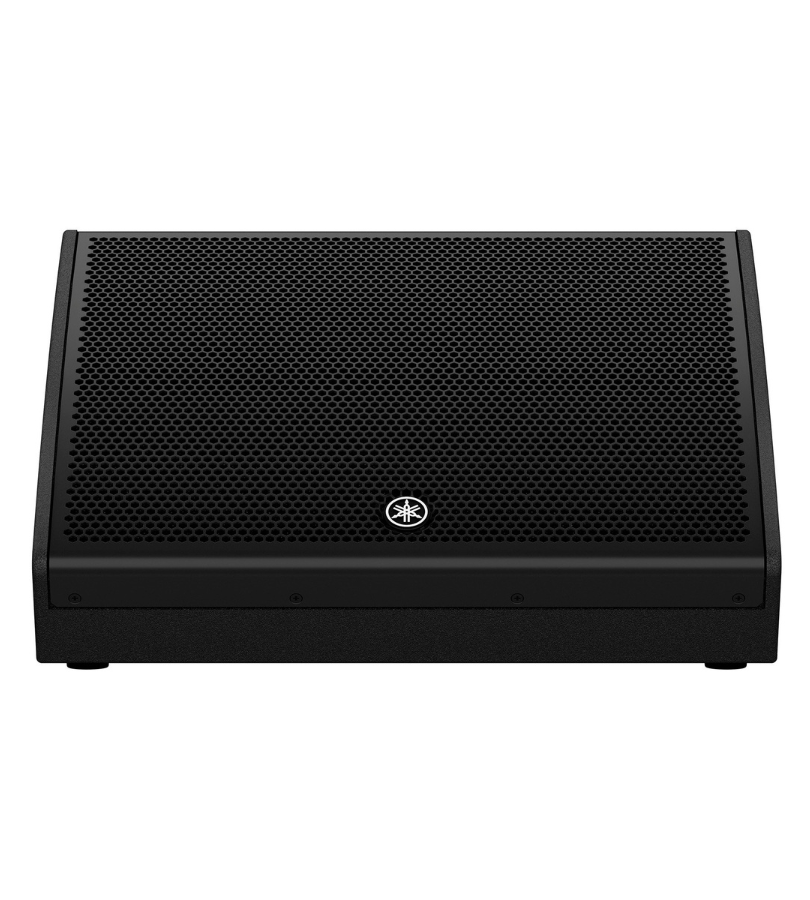

- 2-way passive bass-reflex floor monitor

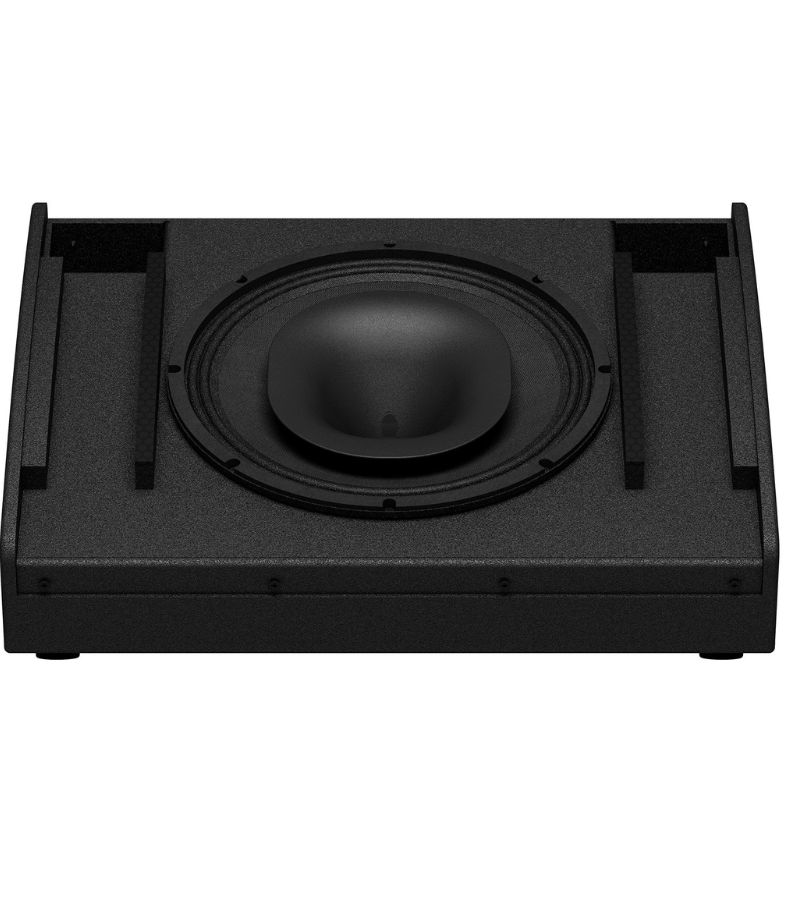

- 15" ferrite woofer with 3" voice coil
- 1.75" coaxial compression driver for superior phase coherence
- 275W continuous, 550W program, 1,100W peak power handling
- Coaxial design provides smooth frequency response and accurate monitoring
- 65° × 75° coverage optimized for stage monitoring
- Premium plywood enclosure with durable Polyurea coating
- 57° monitor angle for optimal performer coverage
- 35 mm pole socket allows use as a compact FOH speaker
- Optimized for Yamaha PX Series amplifiers with dedicated speaker presets
| Model | CHR15M |
| Speaker Type | 2-Way Passive Bass-Reflex Floor Monitor |
| LF Driver | 15" Cone, 3" Voice Coil, Ferrite Magnet |
| HF Driver | 1.75" Coaxial Compression Driver |
| Frequency Range (-10 dB) | 58 Hz – 20 kHz |
| Power Rating (Continuous) | 275 W |
| Power Rating (Program) | 550 W |
| Power Rating (Peak) | 1,100 W |
| Nominal Impedance | 8 Ω |
| Sensitivity | 95 dB SPL (1W/1m) |
| Maximum SPL | 125 dB SPL |
| Coverage | 65° H × 75° V |
| Crossover Frequency | 2.0 kHz |

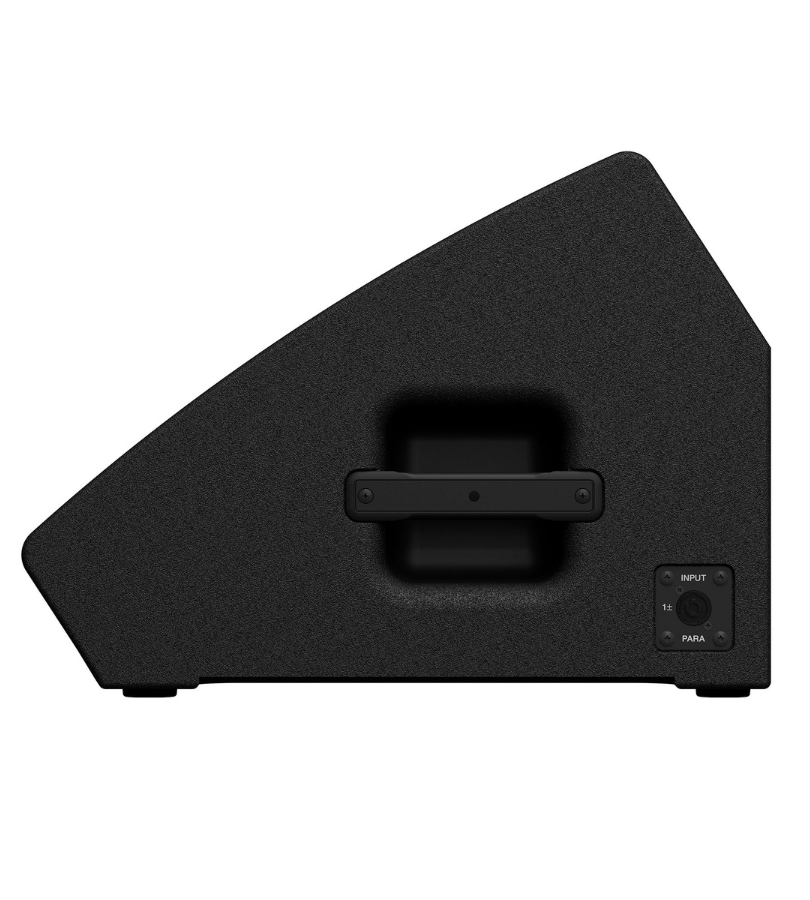

| Connectors | 3 × speakON NL4 (Parallel) |
| Pole Socket | 35 mm (Side Mount) |
| Enclosure Material | Plywood with Polyurea Coating |
| Product Dimensions (L × W × H) | 642 × 505 × 369 mm |
| Product Weight | 21.3 kg |
| Package Dimensions (L × W × H) | Not specified by manufacturer |
| Shipping Weight (with Box) | Not specified by manufacturer |
