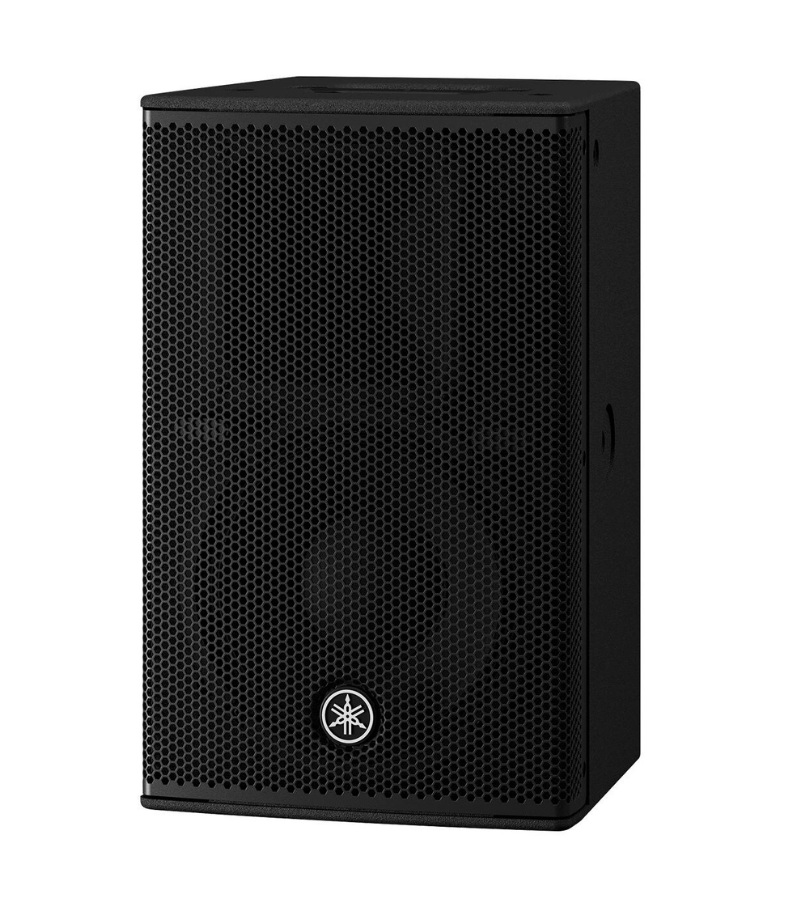

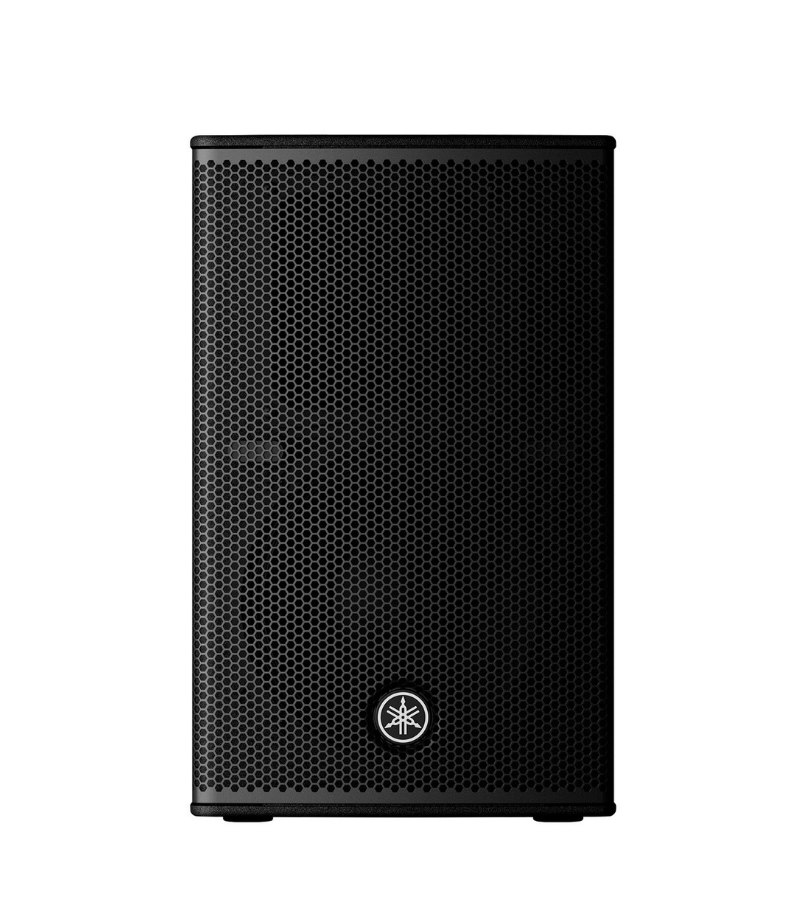

- 2-way passive bass-reflex loudspeaker
- 12" high-performance ferrite woofer
- 1.4" HF compression driver with constant-directivity horn
- 500W continuous, 1,000W program, 2,000W peak power handling
- 90° × 60° rotatable horn for horizontal or vertical installation
- Premium plywood enclosure with durable Polyurea coating
- Symmetrical cabinet design for FOH or stage monitor applications
- 35 mm pole socket for speaker stand mounting
- M10 rigging points for suspended installations
- Optimized for Yamaha PX Series amplifiers with dedicated speaker presets
| Model | CHR12 |
| Speaker Type | 2-Way Passive Bass-Reflex |
| LF Driver | 12" Ferrite Woofer |
| HF Driver | 1.4" Compression Driver |
| Frequency Range (-10 dB) | 48 Hz – 20 kHz |
| Power Rating (Continuous) | 500 W |
| Power Rating (Program) | 1,000 W |
| Power Rating (Peak) | 2,000 W |
| Nominal Impedance | 8 Ω |
| Sensitivity | 96 dB SPL (1W/1m) |
| Maximum SPL | 131 dB SPL |
| Coverage | 90° H × 60° V (Rotatable) |

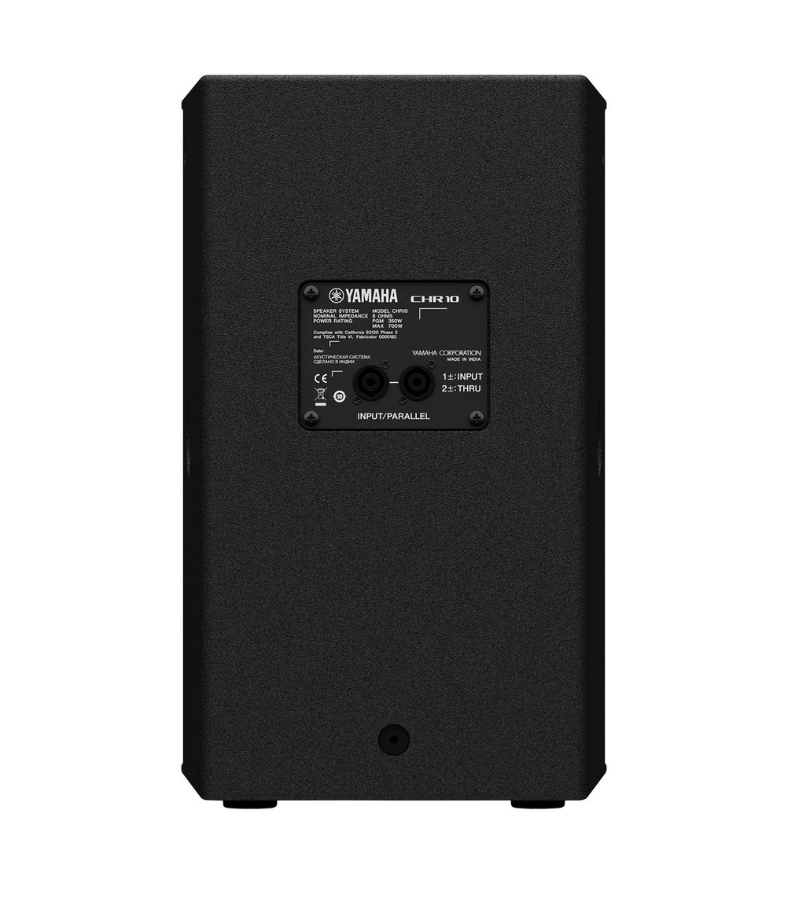

| Connectors | 2 × speakON NL4 |
| Pole Socket | 35 mm |
| Enclosure Material | Plywood with Polyurea Coating |
| Product Dimensions (L × W × H) | 376 × 396 × 599 mm |
| Product Weight | 18.6 kg |
| Package Dimensions (L × W × H) | 695 × 480 × 470 mm |
| Shipping Weight (with Box) | 21.2 kg |
