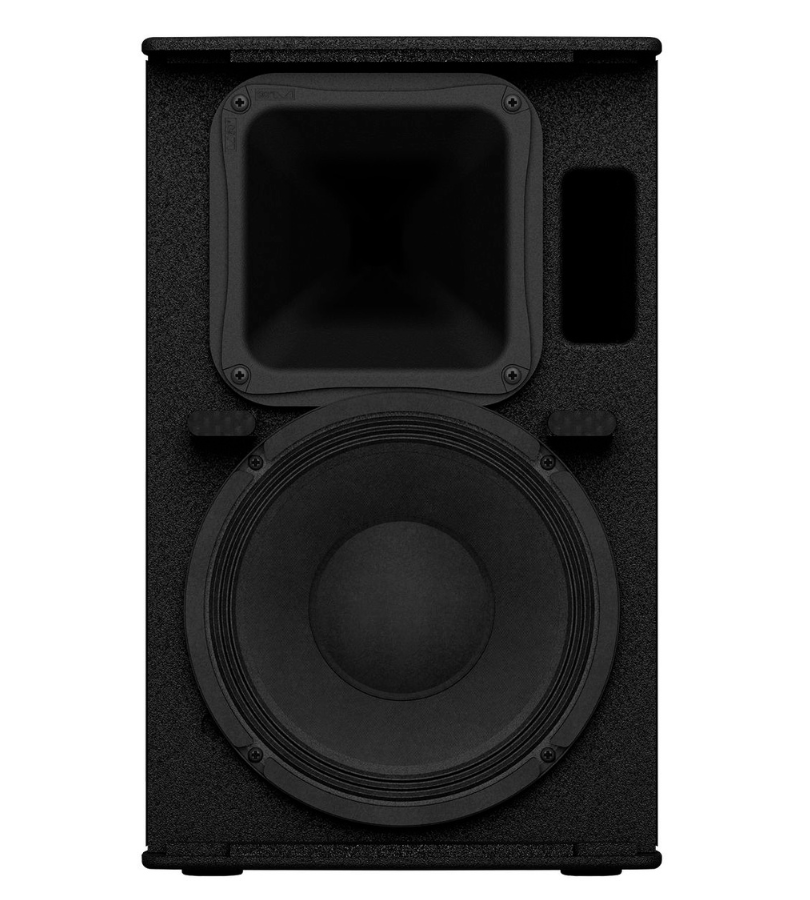

- 2-way passive bass-reflex loudspeaker
- 10" high-performance ferrite woofer
- 1.4" compression driver with constant-directivity horn
- High-strength plywood enclosure with durable Polyurea coating
- 90° × 60° rotatable horn for flexible installation
- Symmetrical enclosure design for FOH or stage monitor use
- 35 mm pole socket for speaker stand mounting
- M10 rigging points for suspended installations

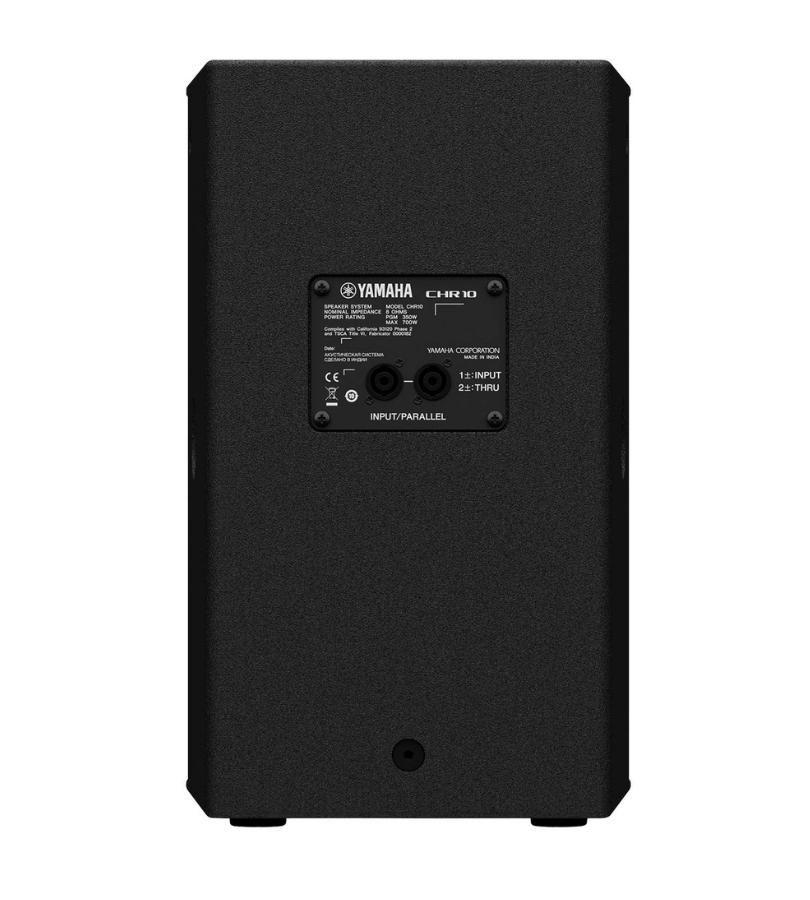

- Dual speakON NL4 connectors
- Optimized for Yamaha PX Series amplifiers with dedicated speaker presets
| Model | CHR10 |
| Speaker Type | 2-Way Passive Bass-Reflex |
| LF Driver | 10" Ferrite Woofer |
| HF Driver | 1.4" Compression Driver |
| Frequency Range (-10 dB) | 54 Hz – 20 kHz |
| Power Rating (Continuous) | 350 W |
| Power Rating (Program) | 700 W |
| Power Rating (Peak) | 1400 W |
| Nominal Impedance | 8 Ω |
| Sensitivity | 94 dB SPL (1W/1m) |
| Maximum SPL | 128 dB SPL |
| Coverage | 90° H × 60° V (Rotatable) |
| Connectors | 2 × speakON NL4 |
| Pole Socket | 35 mm |
| Enclosure Material | Plywood with Polyurea Coating |
| Product Dimensions (L × W × H) | 349 × 271 × 494 mm |
| Product Weight | 10.9 kg |
| Package Dimensions (L × W × H) | 610 × 420 × 350 mm |
| Shipping Weight (with Box) | 12.8 kg |

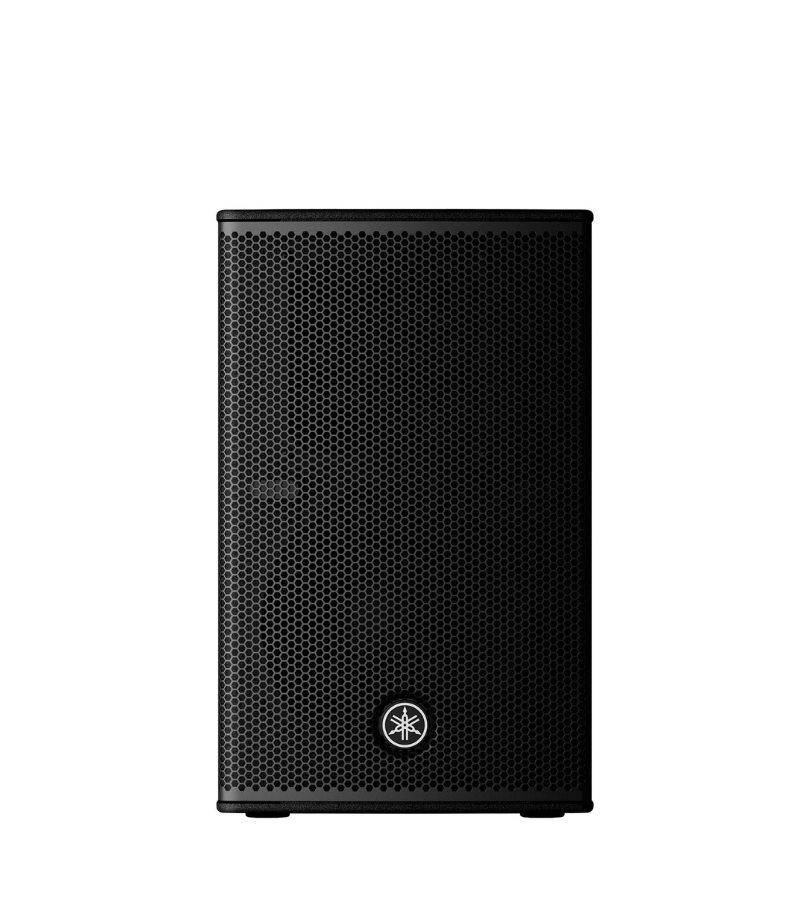

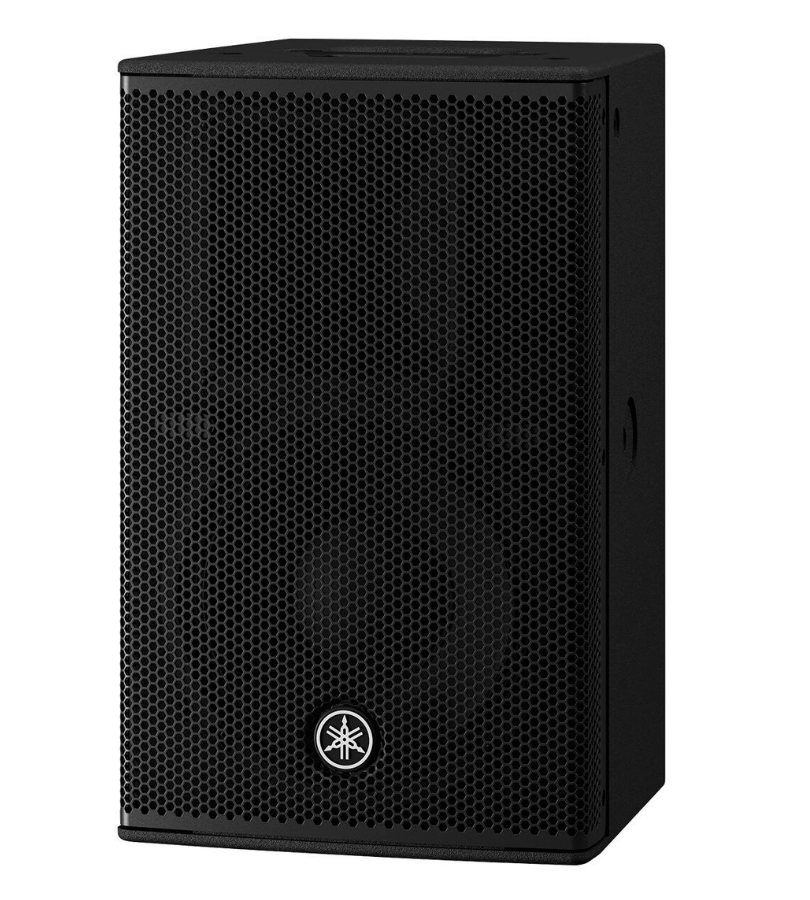

- Yamaha CHR10 Passive Speaker
