Yamaha

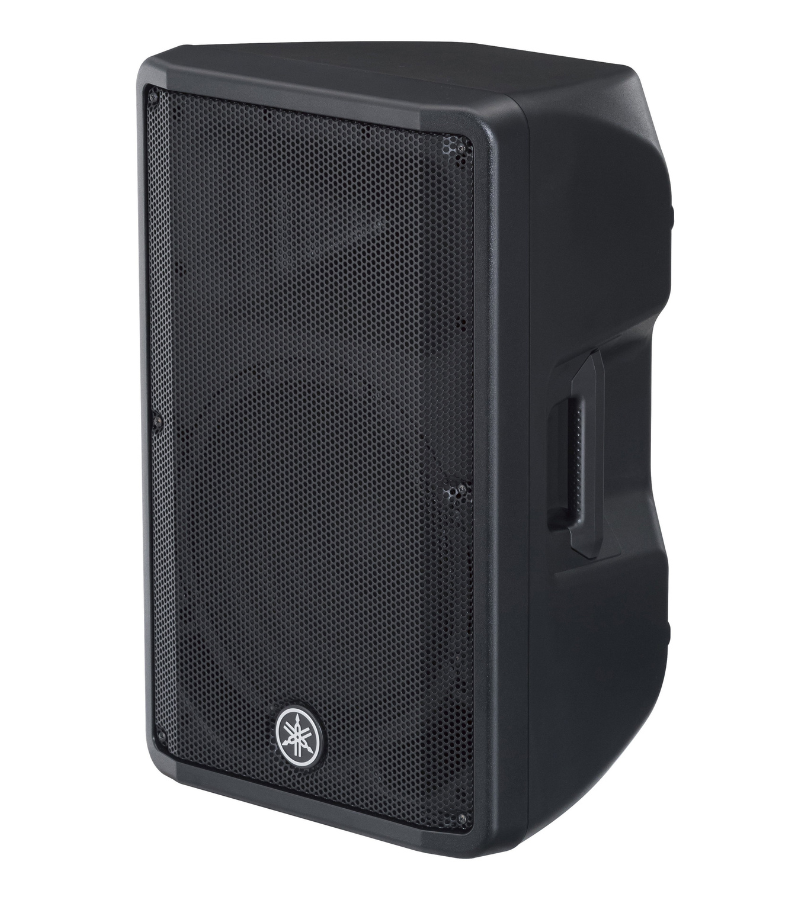

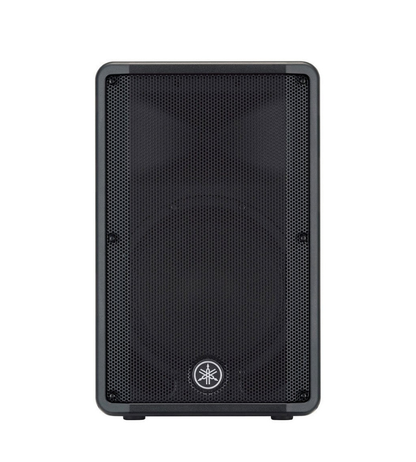

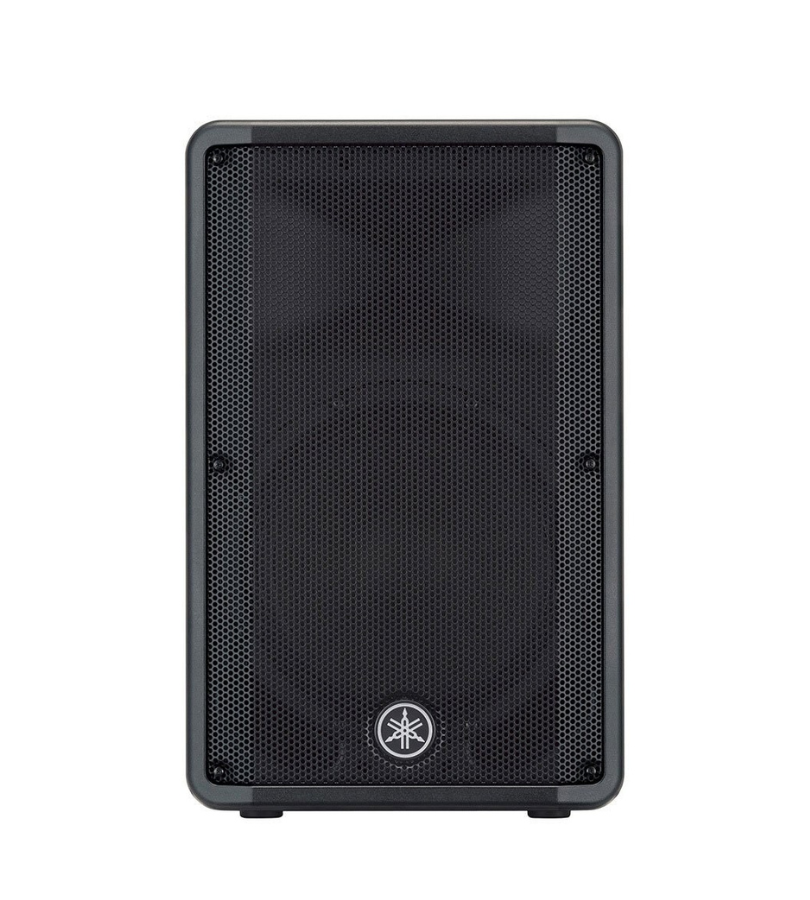

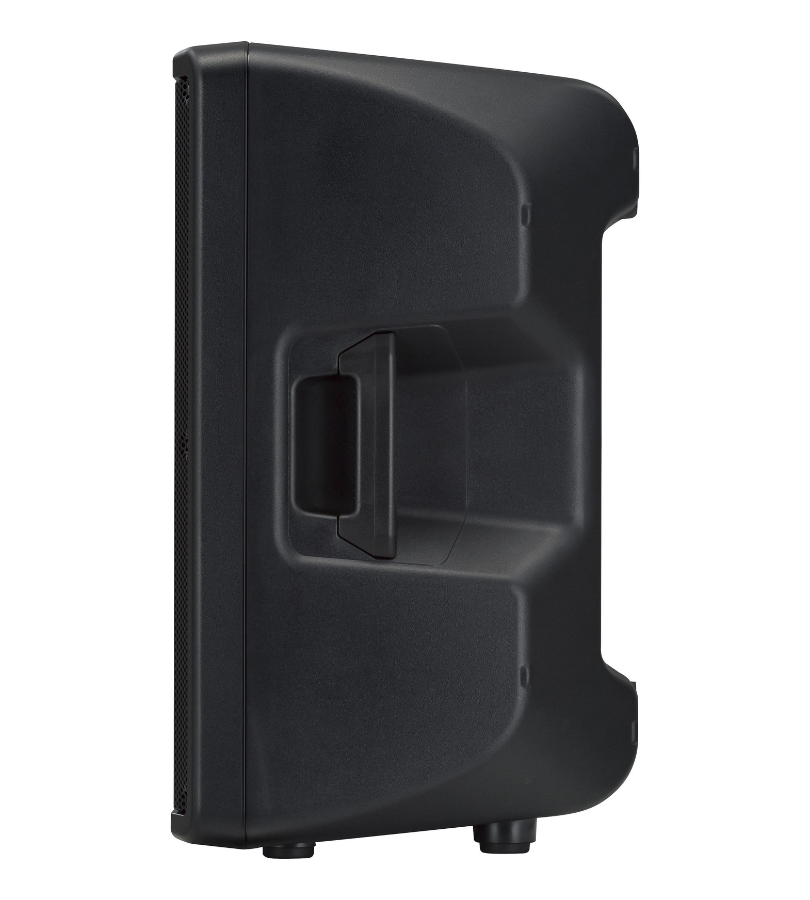

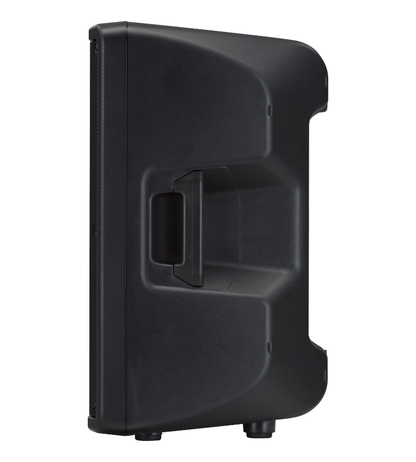

YAMAHA PASSIVE SPEAKER - CBR12

YAMAHA PASSIVE SPEAKER - CBR12

₱22,900.00 PHP
₱22,900.00 PHP
Sale Sold out

Deliver powerful, high-quality sound with the Yamaha CBR12 Passive Speaker, designed for live performances, portable PA systems, stage monitoring, and permanent installations. Featuring a custom 12-inch woofer, precision high-frequency driver, and a lightweight yet durable enclosure, the CBR12 offers outstanding clarity, wide coverage, and dependable performance for musicians, DJs, houses of worship, and audio professionals.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box
  • Product Manual

  • 2-way passive bass-reflex loudspeaker
  • 12" custom woofer with 2" voice coil
  • 1.4" compression driver with constant-directivity horn
  • Wide 90° × 60° coverage pattern
  • Lightweight, rugged plastic enclosure

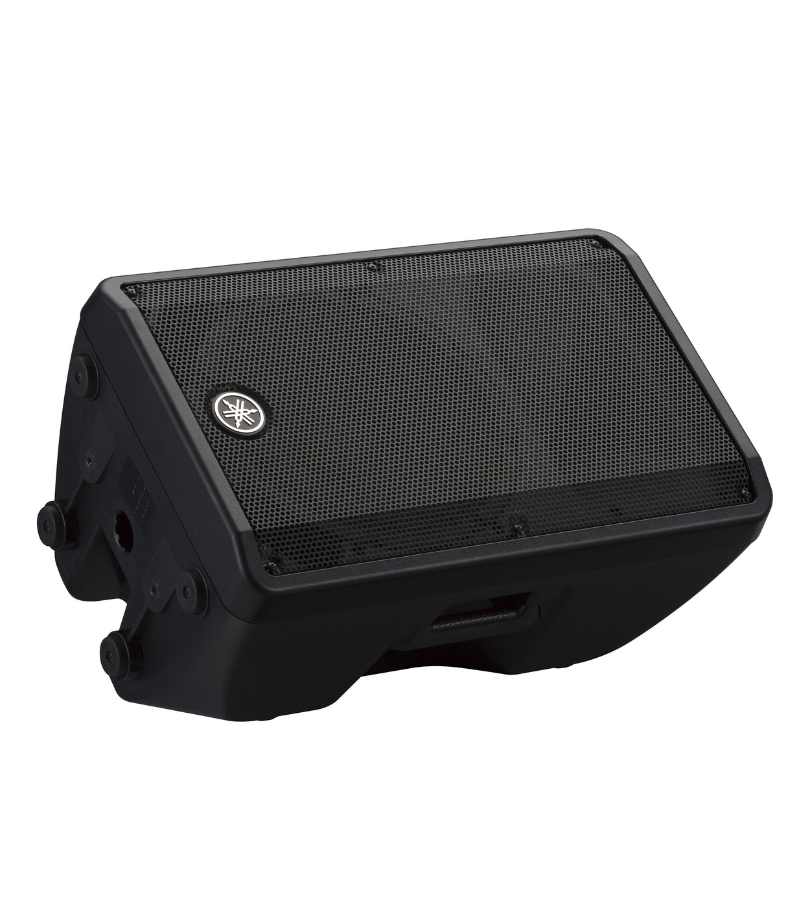

  • 50° wedge design for floor monitor applications
  • M8 rigging points for suspended installations
  • 35 mm pole socket for speaker stand mounting

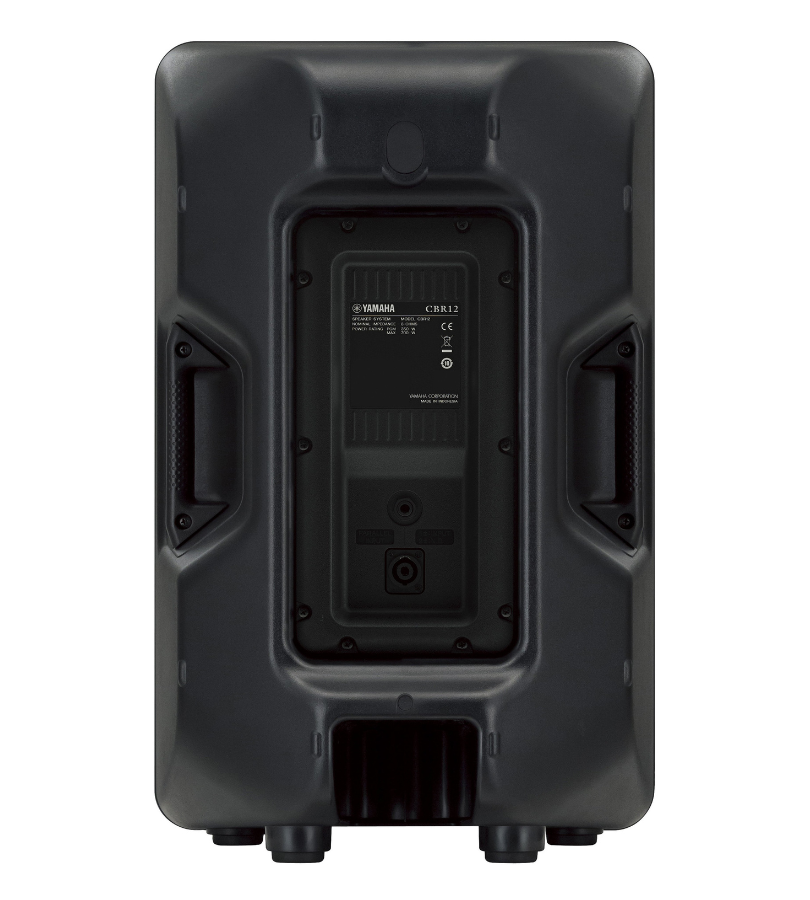

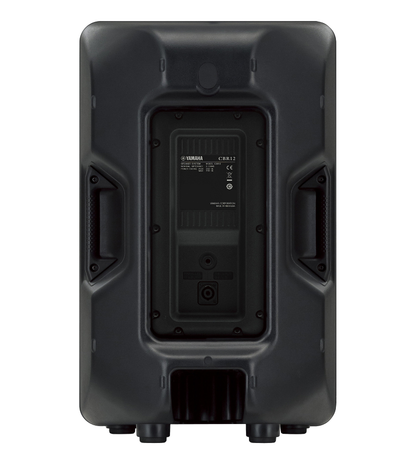

  • Dual input connectors: Speakon NL4 and 1/4" phone jack
  • Ideal for FOH, stage monitoring, portable PA, and installed sound systems

ModelCBR12
Speaker Type2-Way Passive Bass-Reflex
LF Driver12" Cone, 2" Voice Coil (Ferrite)
HF Driver1.4" Compression Driver (Ferrite)
Frequency Range (-10 dB)48 Hz – 20 kHz
Power Rating (Noise)175 W
Power Rating (Program)350 W
Power Rating (Peak)700 W
Nominal Impedance8 Ω
Sensitivity96 dB SPL (1W/1m)
Maximum SPL125 dB SPL
Coverage90° H × 60° V
Crossover Frequency2.1 kHz
Connectors1 × Speakon NL4, 1 × 1/4" Phone Jack
Pole Socket35 mm

Product Dimensions (L × W × H)348 × 376 × 601 mm
Product Weight13.9 kg
Package Dimensions (L × W × H)660 × 457 × 432 mm
Shipping Weight (with Box)17.5 kg

  • Yamaha CBR12 Passive Speaker
  • Owner's Manual
