- 2-way passive bass-reflex loudspeaker
- 10" custom woofer with 2" voice coil
- 1" compression driver with constant-directivity horn
- Wide 90° × 60° coverage pattern
- Lightweight and durable molded plastic enclosure

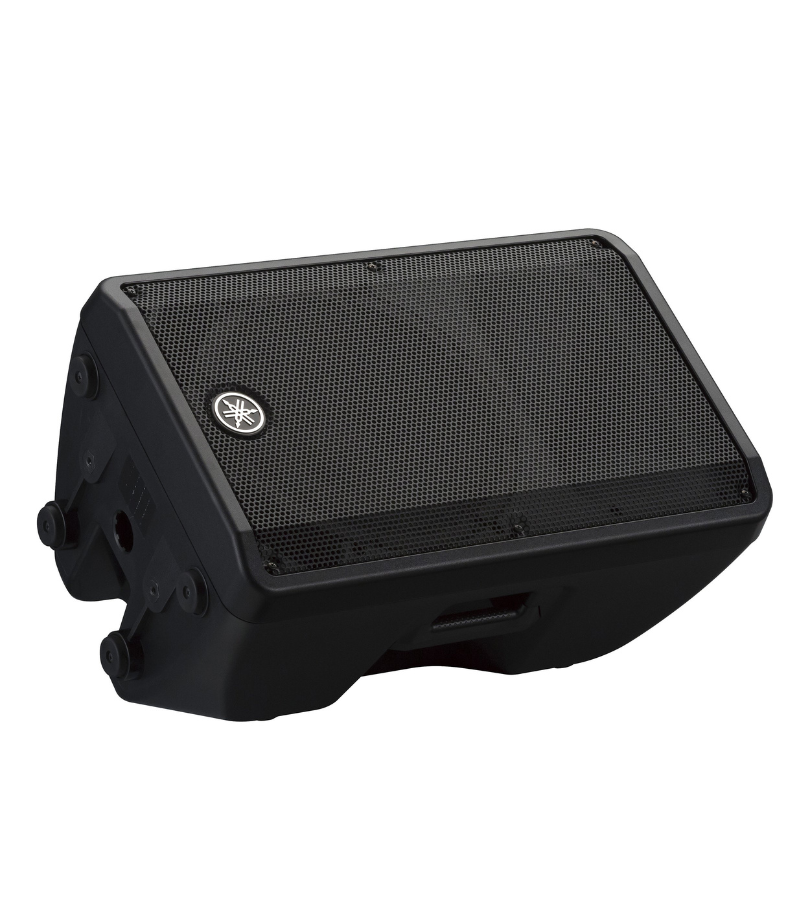

- 50° wedge design for floor monitor applications
- M8 rigging points for suspended installations
- 35 mm pole socket for speaker stand mounting
- Dual input connectors: Speakon NL4 and 1/4" phone jack
- Ideal for portable PA, live sound, stage monitoring, and installed audio systems
| Model | CBR10 |
| Speaker Type | 2-Way Passive Bass-Reflex |
| LF Driver | 10" Cone, 2" Voice Coil (Ferrite) |
| HF Driver | 1" Compression Driver (Ferrite) |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz |
| Power Rating (Noise) | 175 W |
| Power Rating (Program) | 350 W |
| Power Rating (Peak) | 700 W |
| Nominal Impedance | 8 Ω |
| Sensitivity | 94 dB SPL (1W/1m) |
| Maximum SPL | 123 dB SPL |
| Coverage | 90° H × 60° V |
| Crossover Frequency | 2.8 kHz |
| Connectors | 1 × Speakon NL4, 1 × 1/4" Phone Jack |
| Pole Socket | 35 mm |
| Product Dimensions (L × W × H) | 289 × 308 × 493 mm |
| Product Weight | 9.4 kg |
| Package Dimensions (L × W × H) | Not specified by manufacturer |
| Shipping Weight (with Box) | Not specified by manufacturer |

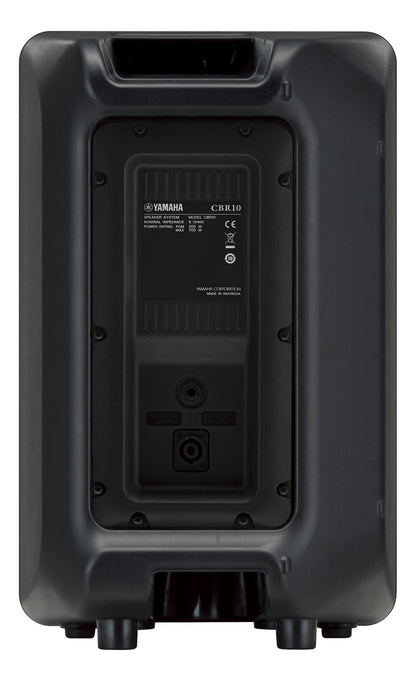

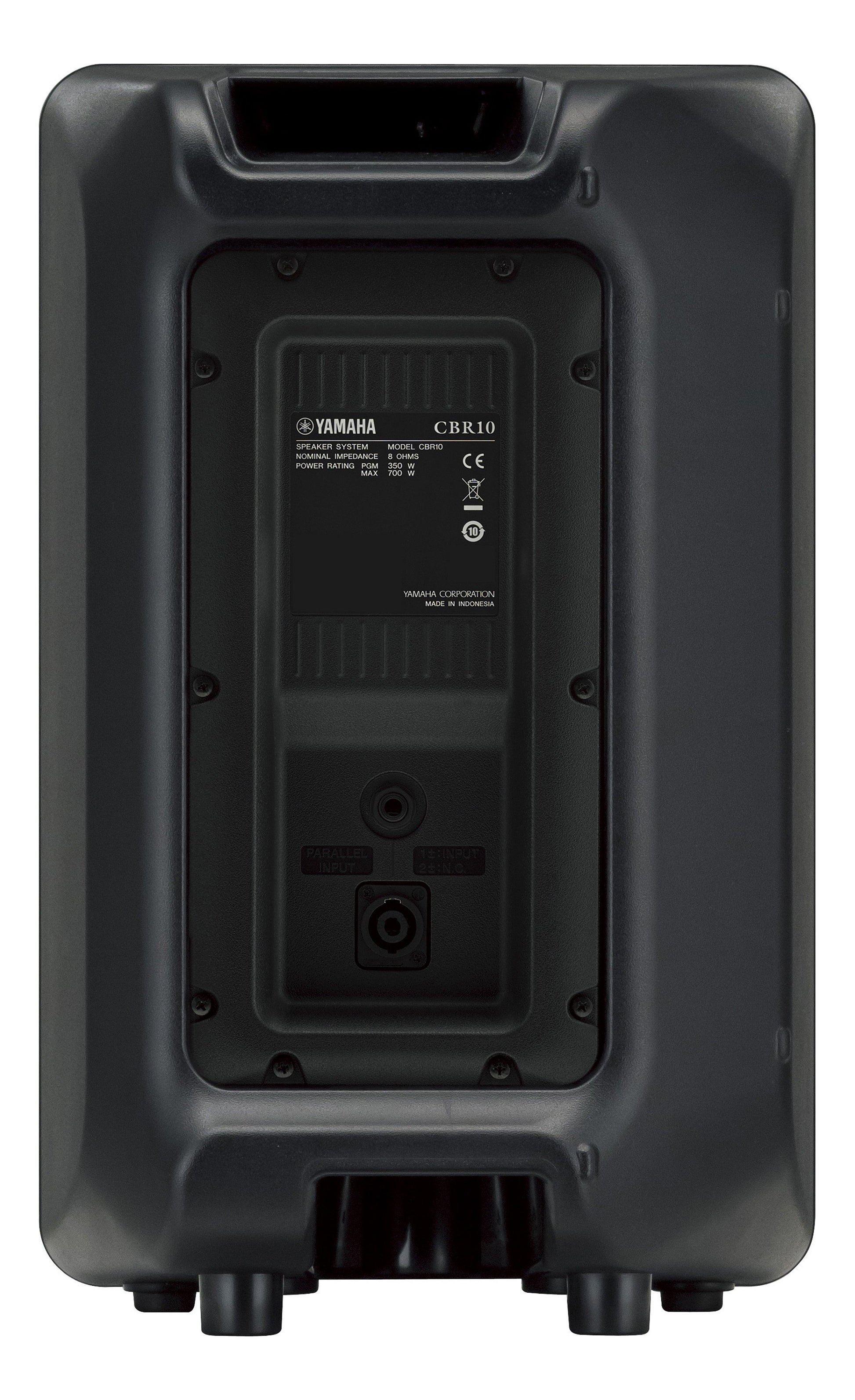

- Yamaha CBR10 Passive Speaker
- Owner's Manual
