- 15 + 1 non-motorized faders with 4.3″ touchscreen and five control knobs for intuitive operation
- 8 mono + 4 stereo + 1 Sound Pad + 2 FX return channels
- Built-in DSP effects incl. gate, compressor, EQ, reverb, amp simulation, ducker, and more
- Dual USB-C interfaces: MAIN (22 in / 22 out at 32-bit/96 kHz) and SUB (2 in / 2 out at 16-bit/48 kHz)
- microSD card slot for up to 16-track recording and 2-track playback
- Bluetooth 5.0 (A2DP) audio input for wireless music playback
- Multiple analog I/O: 8 × combo (mic/line), 4 × TRS line, 4 × RCA line
- 2 × XLR main outputs, 8 × TRS phone outs, 4 × TRS headphone outs
- Scene recall, Auto Gain, Clip Safe, Simple/Standard modes
- Includes AC adapter and Cubase AI + WaveLab Cast + Basic FX Suite software licenses
| Specification | Detail |
|---|---|
| Channels | 8 mono + 4 stereo + 1 Sound Pad + 2 FX return |
| Analog Inputs | 8 × XLR/TRS combo, 4 × TRS line, 4 × RCA line |
| Analog Outputs | 2 × XLR main, 8 × TRS phone |
| Headphone Outputs | 4 × TRS |
| USB MAIN | 22 in / 22 out (32-bit / 96 kHz) |
| USB SUB | 2 in / 2 out (16-bit / 48 kHz) |
| microSD | 16-track record / 2-track playback |
| Bluetooth | Bluetooth 5.0 audio input (A2DP) |
| DSP Effects | Gate, Compressor, EQ, Reverb, Amp Simulator, etc. |
| Display | 4.3″ touchscreen |
| Faders | 15 + 1 non-motorized |
| Power Requirements | DC 16 V / 2.4 A (PA-300C) |
| Net Weight | 4.7 kg (10.4 lb) |
| Dimensions (W × H × D) | 419 × 96 × 319 mm |
Not officially specified by Yamaha, but typical boxed dimensions are approximately 50 × 35 × 25 cm (estimate).

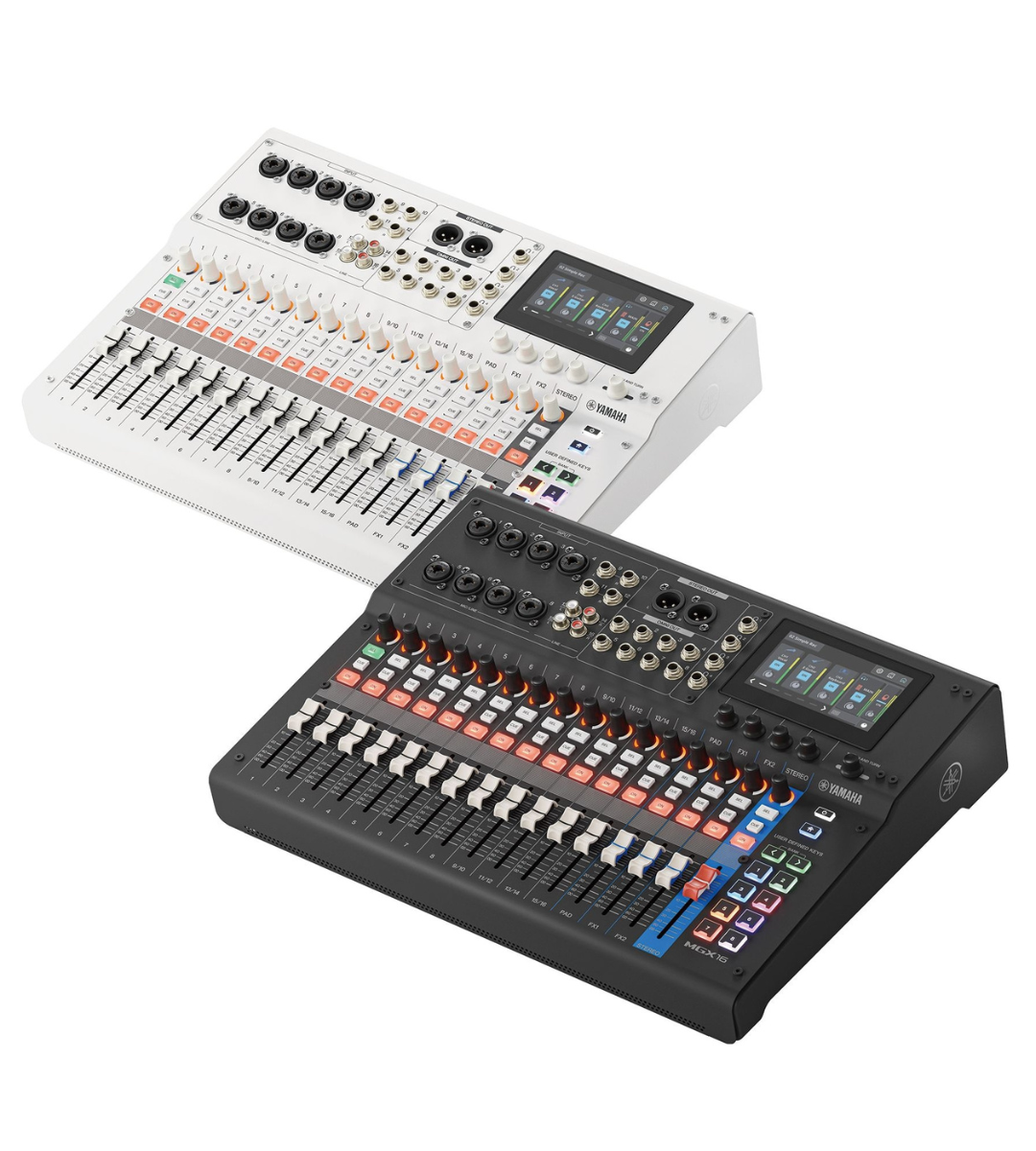

- MGX16 22-channel digital mixing console
- AC power adapter (PA-300C) with power cord
- Quick start guide / safety guide
- Steinberg software license cards (Cubase AI, WaveLab Cast, Basic FX Suite)
