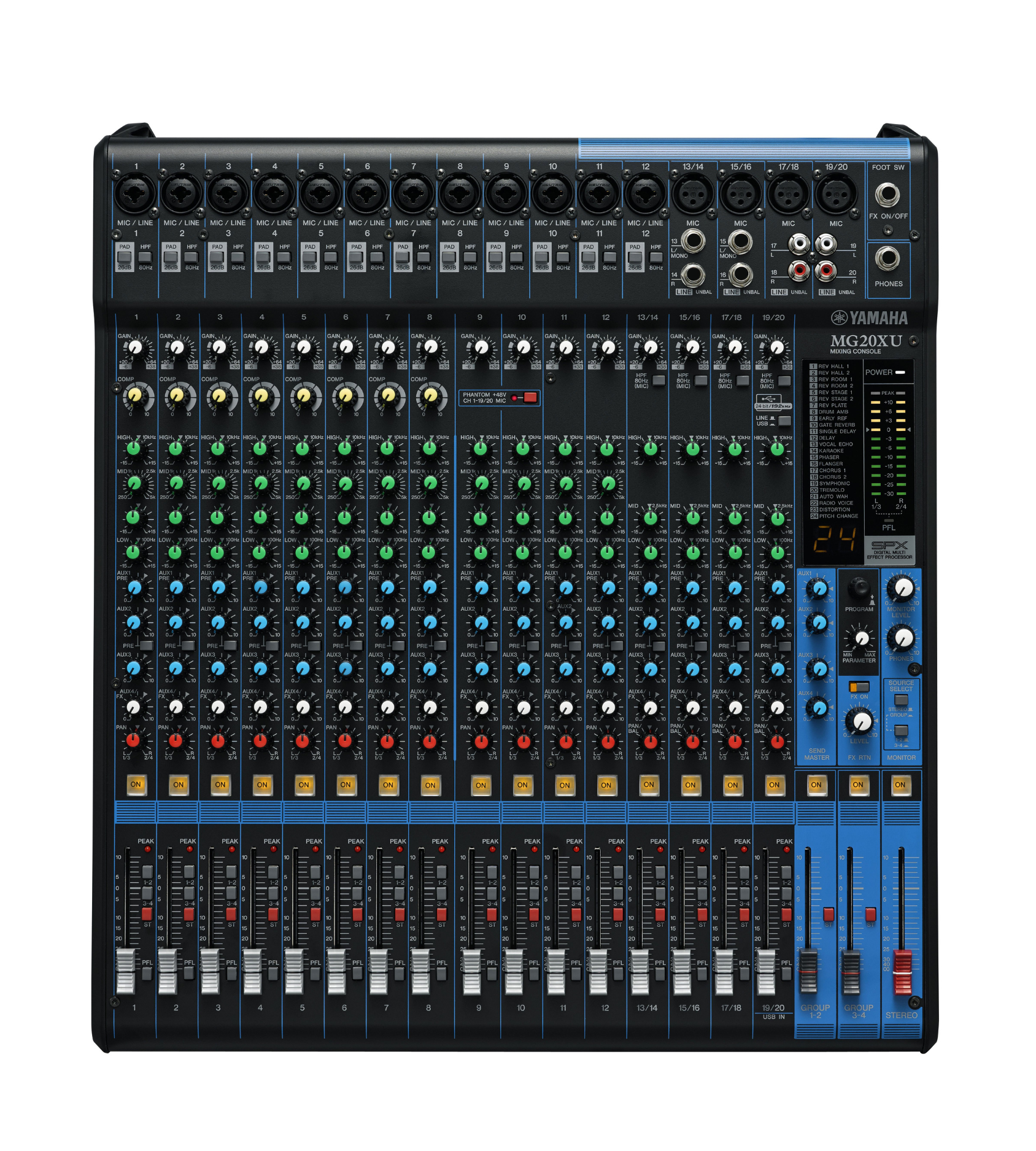

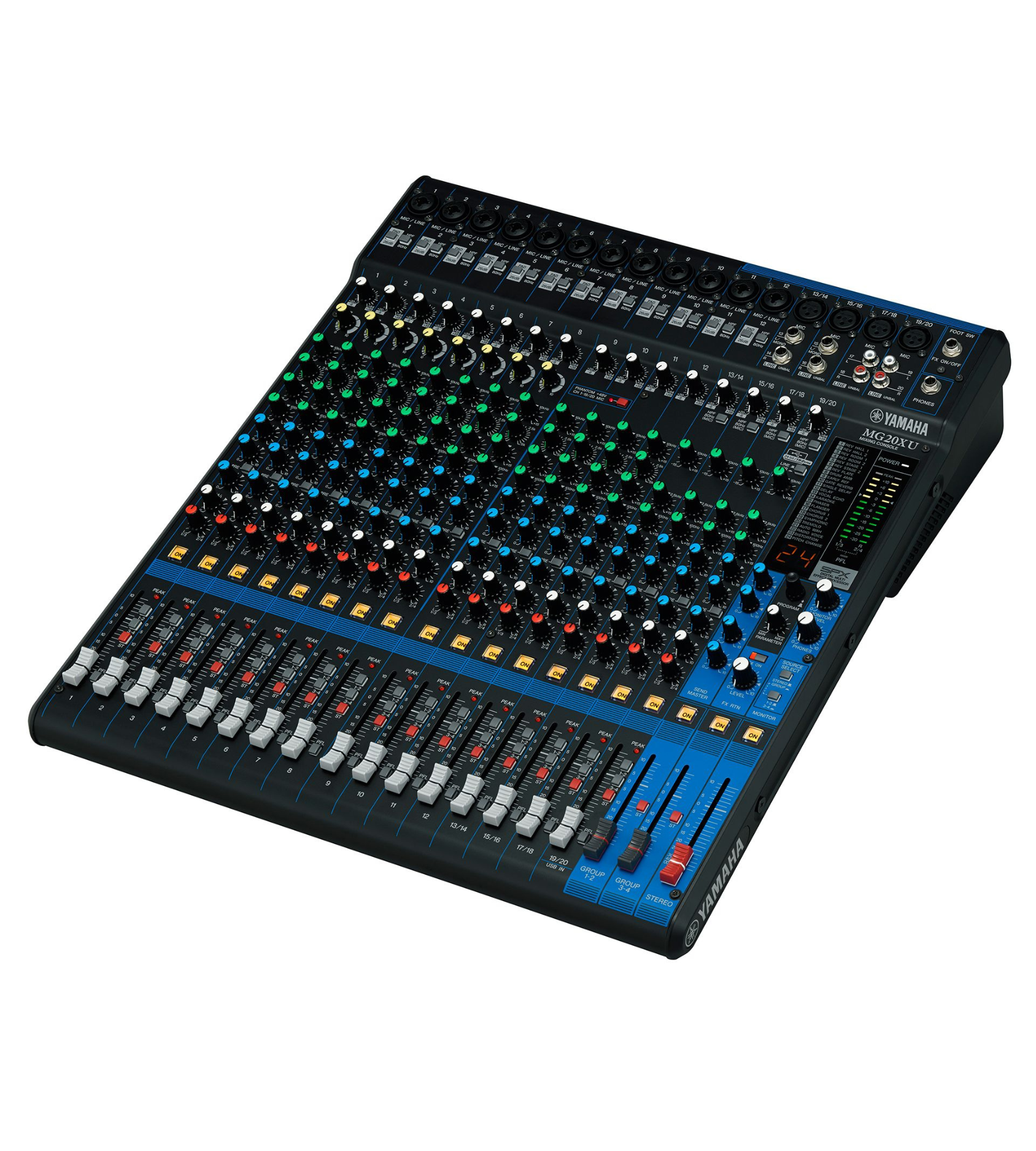

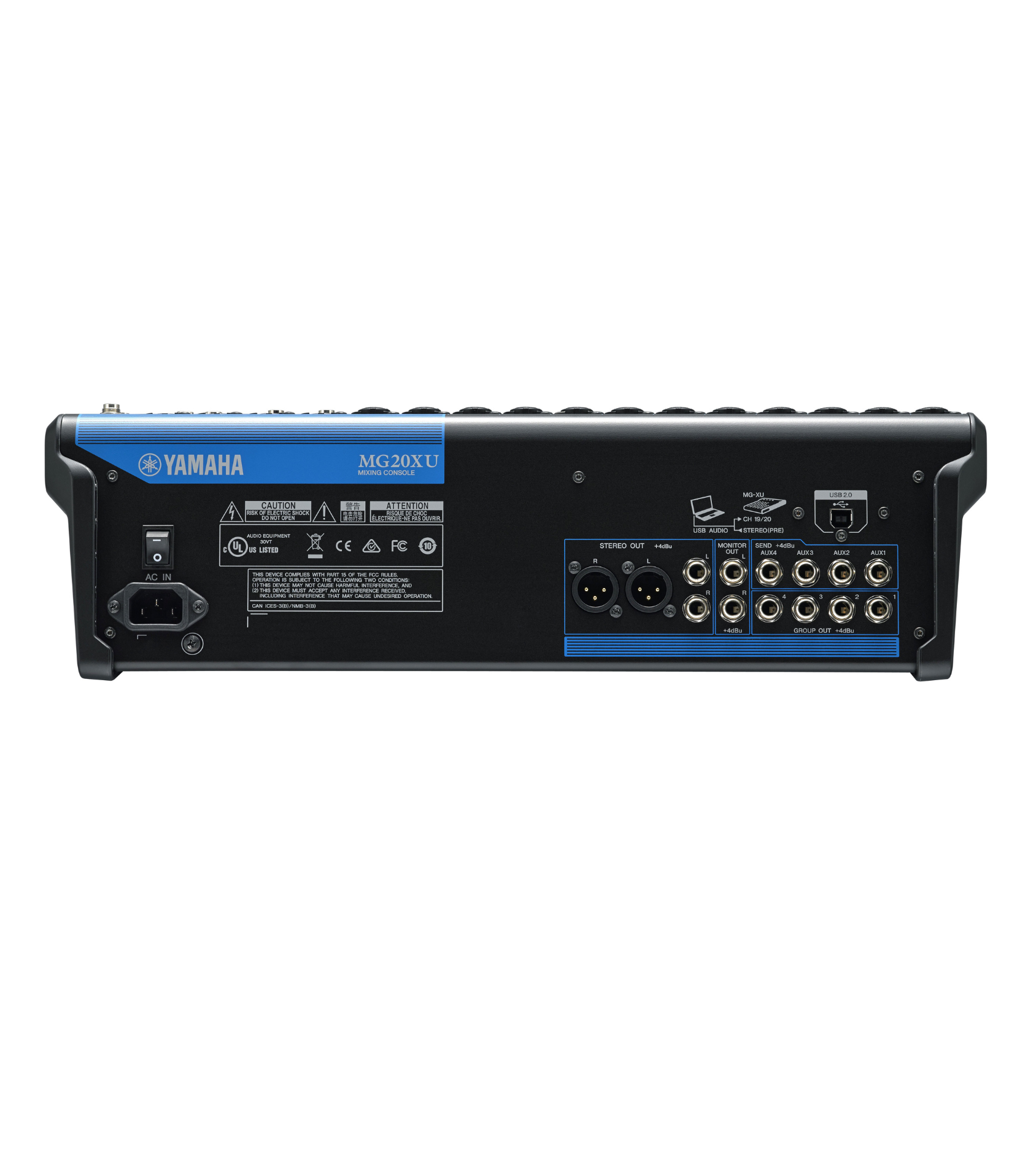

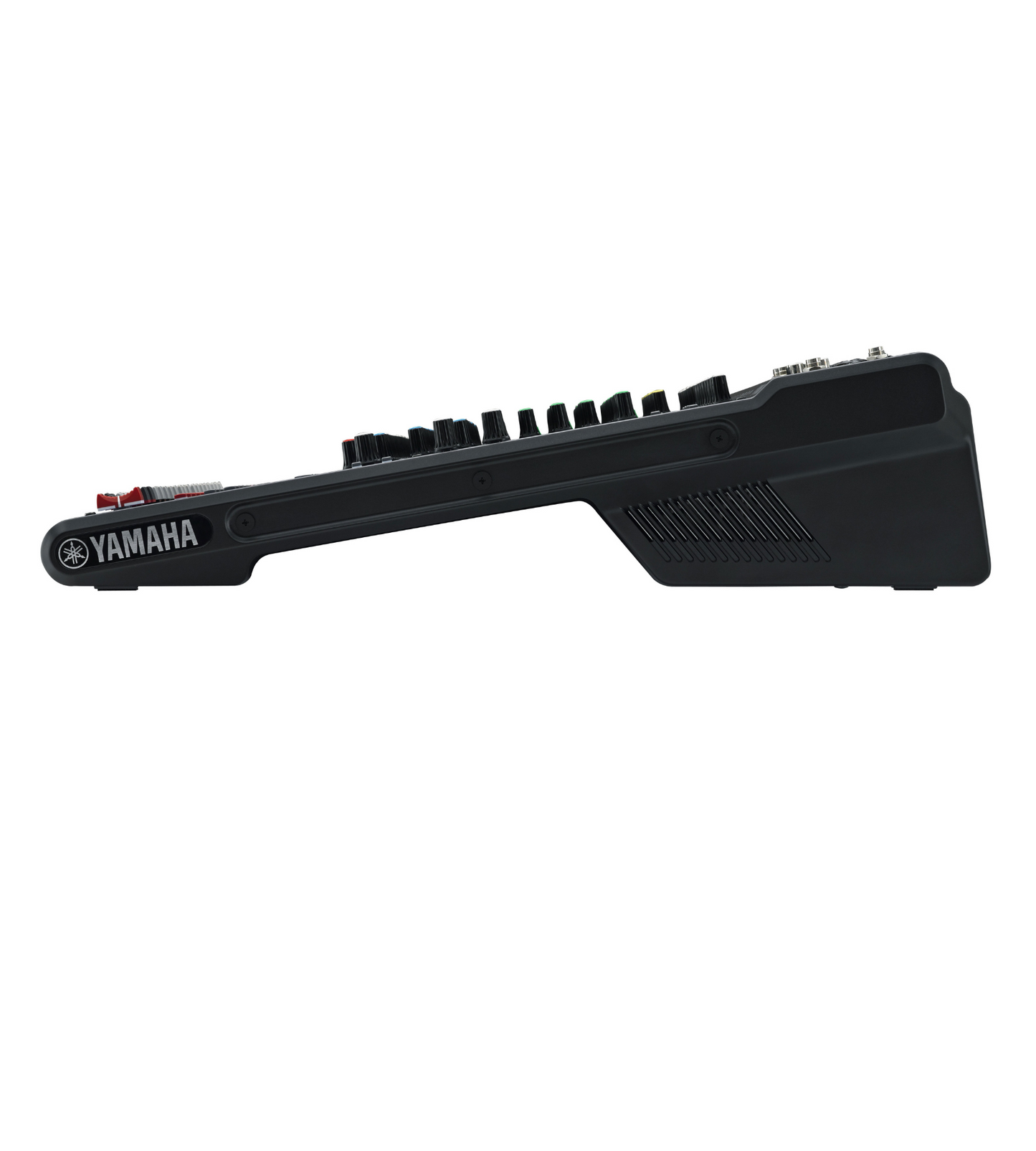

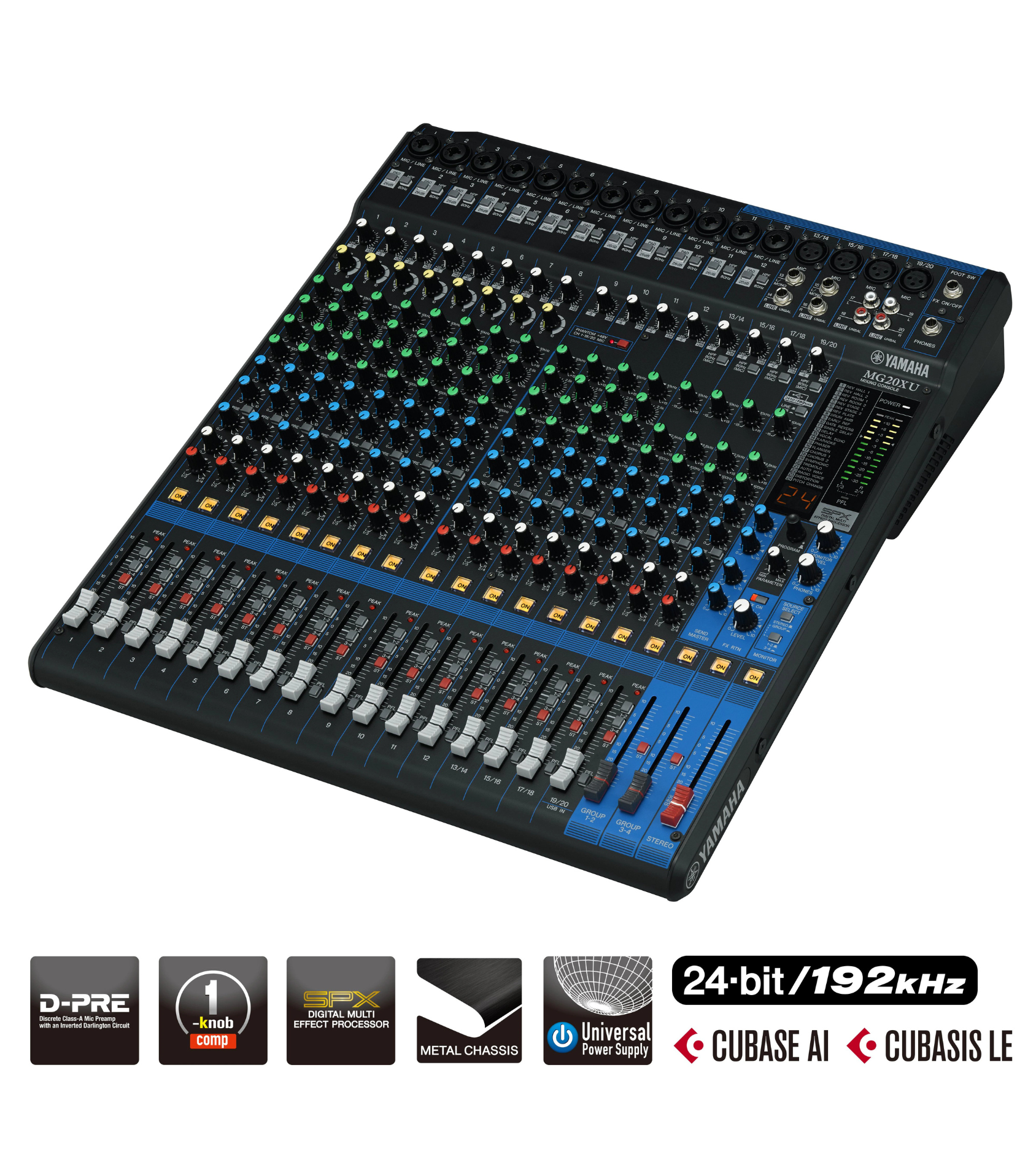

YAMAHA MG20XU MIXER CONSOLE

YAMAHA MG20XU MIXER CONSOLE

₱58,000.00 PHP
₱58,000.00 PHP
Sale Sold out

The Yamaha MG20XU analog mixer is well-suited for portable rigs or permanent installations, with its rich features and outstanding sound quality. The MG20XU's quality op-amp ensures that your mix sounds transparent and articulate. The MG20XU's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG20XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG20XU is ready to work for you!

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box
  • Product Manual

  • 20-channel analog mixer with USB audio interface (2‑in/2‑out, 24‑bit/192 kHz)
  • D‑PRE discrete Class‑A mic preamps with inverted Darlington circuit
  • Built‑in SPX digital effects processor with 24 editable programs
  • 1‑knob compressors on mono channels
  • 3‑band EQ and high-pass filters on mono and stereo channels
  • PAD switch (–26 dB) and +48 V phantom power on mic inputs
  • Four AUX sends (including FX) and four GROUP buses + stereo main bus
  • Robust metal chassis with rack‑mount kit included

  • Maximum mic/line inputs: 16 XLR/TRS combo mono + 4 stereo line
  • Channel EQ: 3‑band (High, Mid, Low); HPF 80 Hz, 12 dB/oct (for MIC channels)
  • Compressor: 1‑knob compressor (threshold +22 dBu to –8 dBu, ratio up to 4:1, attack ~25 ms, release ~300 ms)
  • AUX sends: 4 (includes FX send)
  • Buses: 4 GROUP + 1 stereo main bus
  • USB audio: Class 2.0 compliant, 24‑bit/192 kHz
  • Effect programs: SPX with 24 editable effects; FX Return channel on/off via footswitch supported
  • Metering: 2×12‑segment LED meters showing peak and level indications
  • Power consumption: approx. 36 W; universal AC 100–240 V, 50/60 Hz
  • Operating temperature: 0 °C to +40 °C

  • Net weight: 7.1 kg
  • Dimensions (W × H × D): 444 mm × 130 mm × 500 mm

  • Yamaha MG20XU mixer console
  • AC power cord
  • Rack‑mount kit
  • Owner’s manual and technical specifications sheet
  • Cubase AI DAW software download code

Versatile Mixing for Live and Studio Use

The Yamaha MG20XU is a 20-channel analog mixing console designed to meet the demands of live performances, recording setups, and broadcast applications. It features 16 mono mic/line combo inputs and 4 stereo line inputs, offering ample connectivity for instruments, vocals, and playback sources. With studio-grade 24-bit/192 kHz USB audio interface support, it allows direct multitrack recording or live streaming. Yamaha’s acclaimed D-PRE Class-A mic preamps ensure warm, detailed sound with exceptional headroom and low distortion.

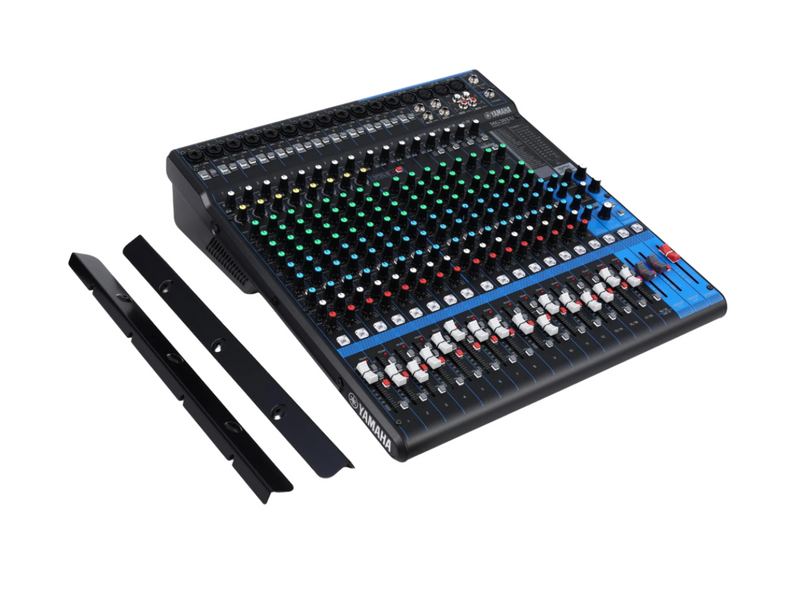

Custom Image 1

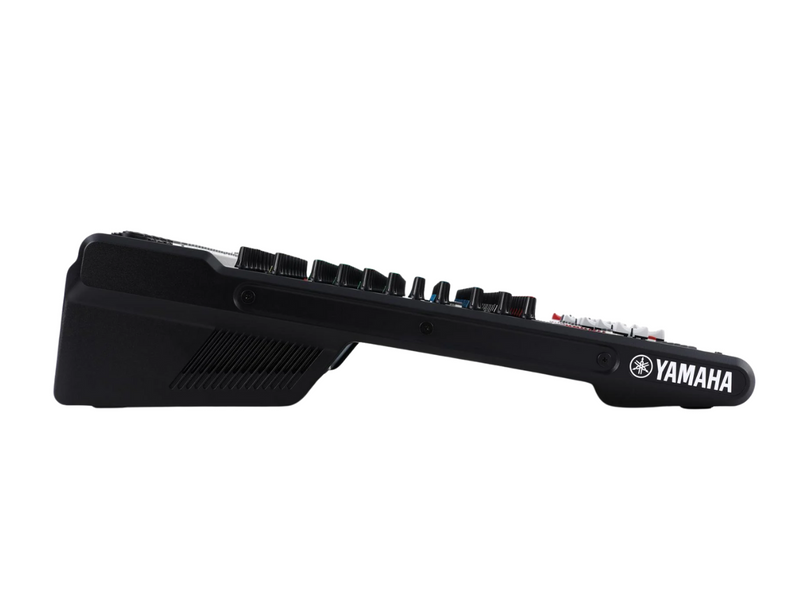

Custom Image 2

Built-In Effects and Pro-Grade Reliability

The MG20XU includes a powerful SPX digital effects processor with 24 presets such as reverb, delay, and modulation, enabling users to polish their mix without external gear. Each mono channel features a 3-band EQ, high-pass filter, pad switch, and one-knob compressors for dynamic control. Housed in a durable metal chassis, it’s built to withstand regular transport and rigorous use. With four AUX sends, phantom power, and balanced XLR outputs, the MG20XU offers professional routing flexibility and rugged reliability in one all-in-one console.
