Yamaha

YAMAHA MG16XU MIXER

YAMAHA MG16XU MIXER

₱38,010.00 PHP
₱38,010.00 PHP
Sale Sold out

The Yamaha MG16XU analog mixer is well-suited for portable rigs or permanent installations, with its rich features and outstanding sound quality. The MG16XU's quality op-amp ensures that your mix sounds transparent and articulate. The MG16XU's crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring onboard digital effects, switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG16XU can take on just about any task you throw at it. Utilizing many state-of-the-art features from Yamaha's high-end consoles, the MG16XU is ready to work for you!

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box
  • Product Manual

Key Features of Yamaha MG16XU Mixer

  • 16-channel analog mixer
    Supports up to 10 mic/line inputs (8 mono + 4 stereo).
  • D-PRE Class-A Mic Preamps
    Inverted Darlington design delivers smooth, natural sonic character.
  • Onboard SPX Effects & One-Knob Compressors
    24 editable effect programs and per-channel compression for instant control.
  • Built-in USB Audio Interface
    2-in / 2-out at up to 24‑bit / 192 kHz for direct computer recording.
  • Flexible Routing & Phantom Power
    4 AUX sends, 4 group buses, stereo bus, and +48 V phantom power on mic inputs.
  • Metal Chassis with Rack Mount Hardware
    Rugged design suited for live sound and permanent install setups.

Technical Specifications

  • Channels: 16 (10 mic/line, 4 stereo line)
  • Effects: 24 SPX programs with adjustable parameters
  • Compressor: 1-knob compressor on mono channels
  • EQ: 3-band EQ per channel (semi-parametric mid), HPF @ 80 Hz (mono)
  • Pad: –26 dB switchable on mono channels
  • Noise Level: Equivalent input noise ~–128 dBu; residual output noise ~–102 dBu
  • THD: < 0.03%
  • Frequency Response: 20 Hz – 48 kHz (±0.5 dB)
  • USB Interface: Class 2.0, 24-bit/192 kHz, 2-in/2-out
  • Power: 30 W internal universal PSU; phantom power +48 V

Dimensions

  • Width × Height × Depth: ~444 × 130 × 500 mm (≈17.5″ × 5.1″ × 19.7″)
  • Weight: ~6.8 kg (≈15.0 lb)

What's in the Box

  • Yamaha MG16XU Mixer Console
  • Rack-mount Ears and Screws
  • Power Cord
  • Quick Start Guide / Warranty Card
  • Cubase AI Download Access Code

Studio-Quality Sound with Built-In FX

Equipped with Yamaha’s signature D-PRE mic preamps, the MG16XU ensures natural-sounding vocal and instrument capture with rich lows and crystal-clear highs. Each mono channel features a 3-band EQ, high-pass filter, and one-knob compression for effortless tone shaping. The integrated SPX effects processor offers 24 digital effects including reverb, delay, and modulation, allowing performers to polish their mix without external processors or plugins.

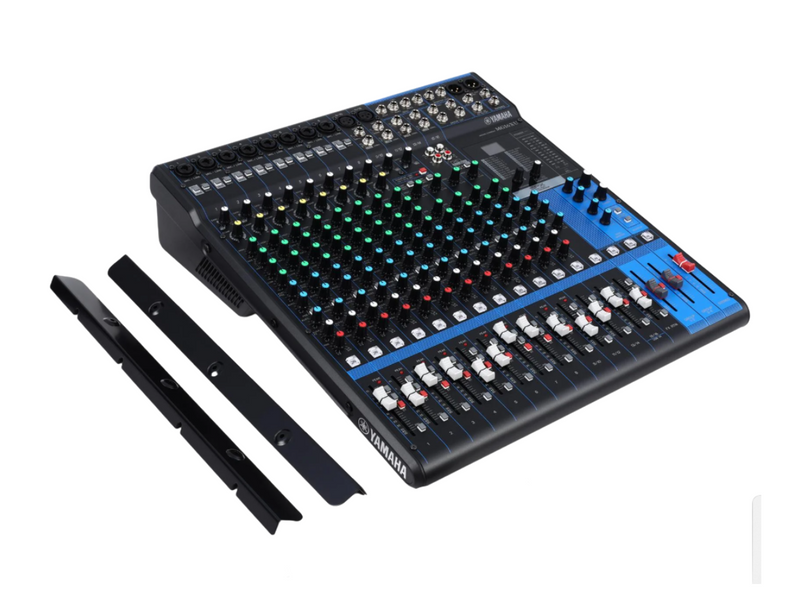

Custom Image 1

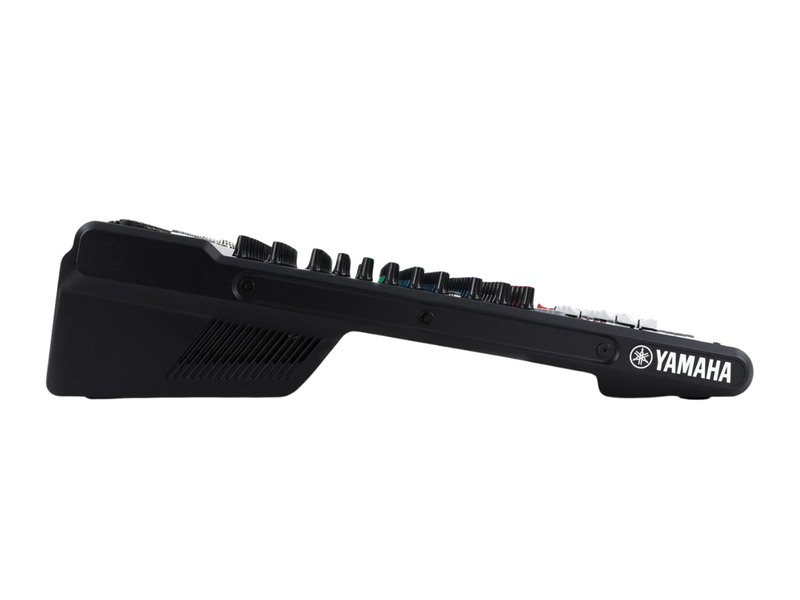

Custom Image 2

Durable Build and Flexible Routing Options

Constructed with a rugged metal chassis, the MG16XU is built to perform reliably in demanding live or studio environments. It offers phantom power for condenser microphones, four AUX sends per channel, and balanced XLR outputs for main and monitor mixes. Designed with intuitive layout and hands-on control, this mixer delivers the perfect balance of professional-grade performance and user-friendly operation—making it a trusted tool for mixing on the go or in fixed installations.
