Key Features of Yamaha HS5 Studio Monitor
- Accurate 2-Way Bi-Amplified Design

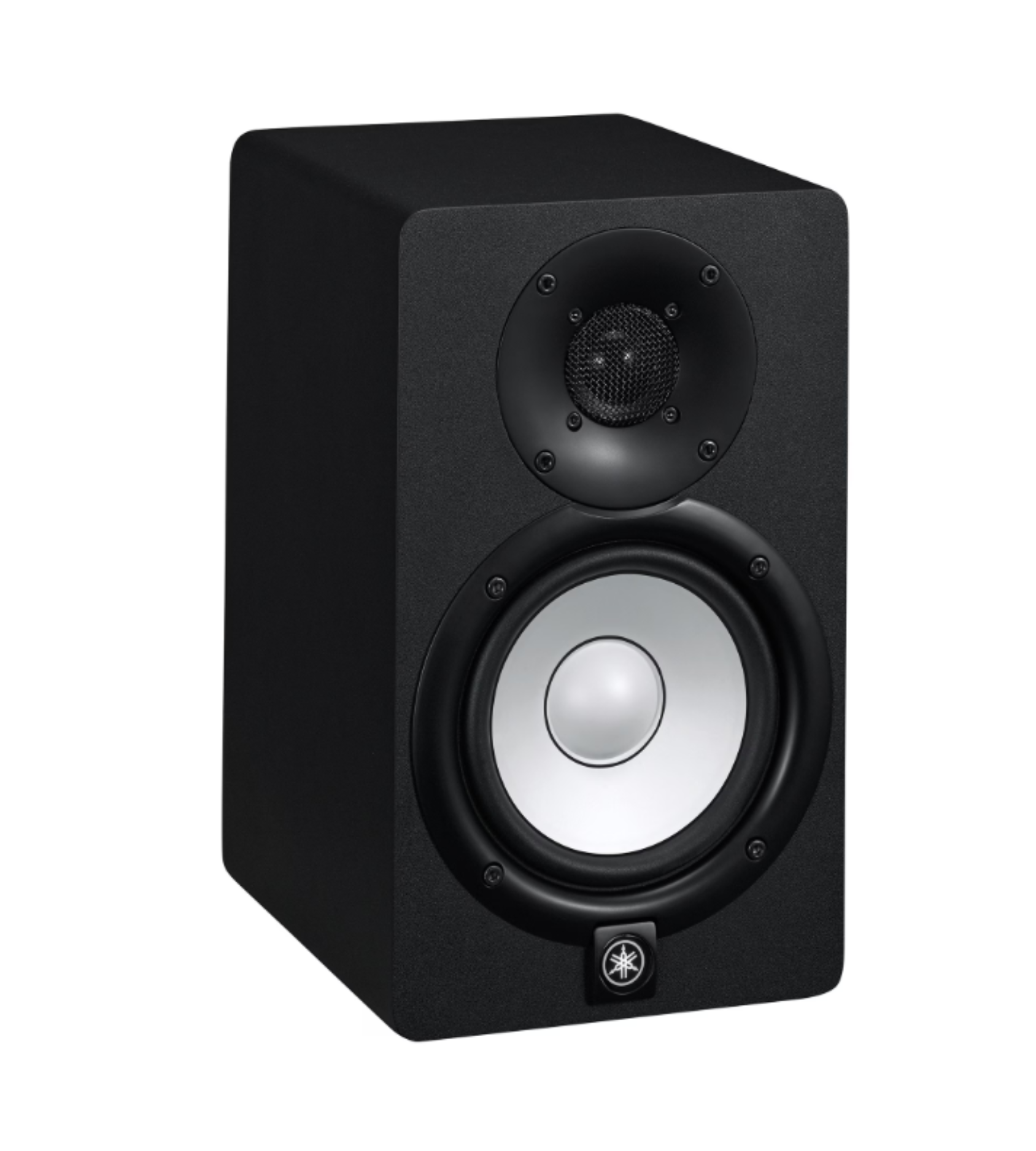

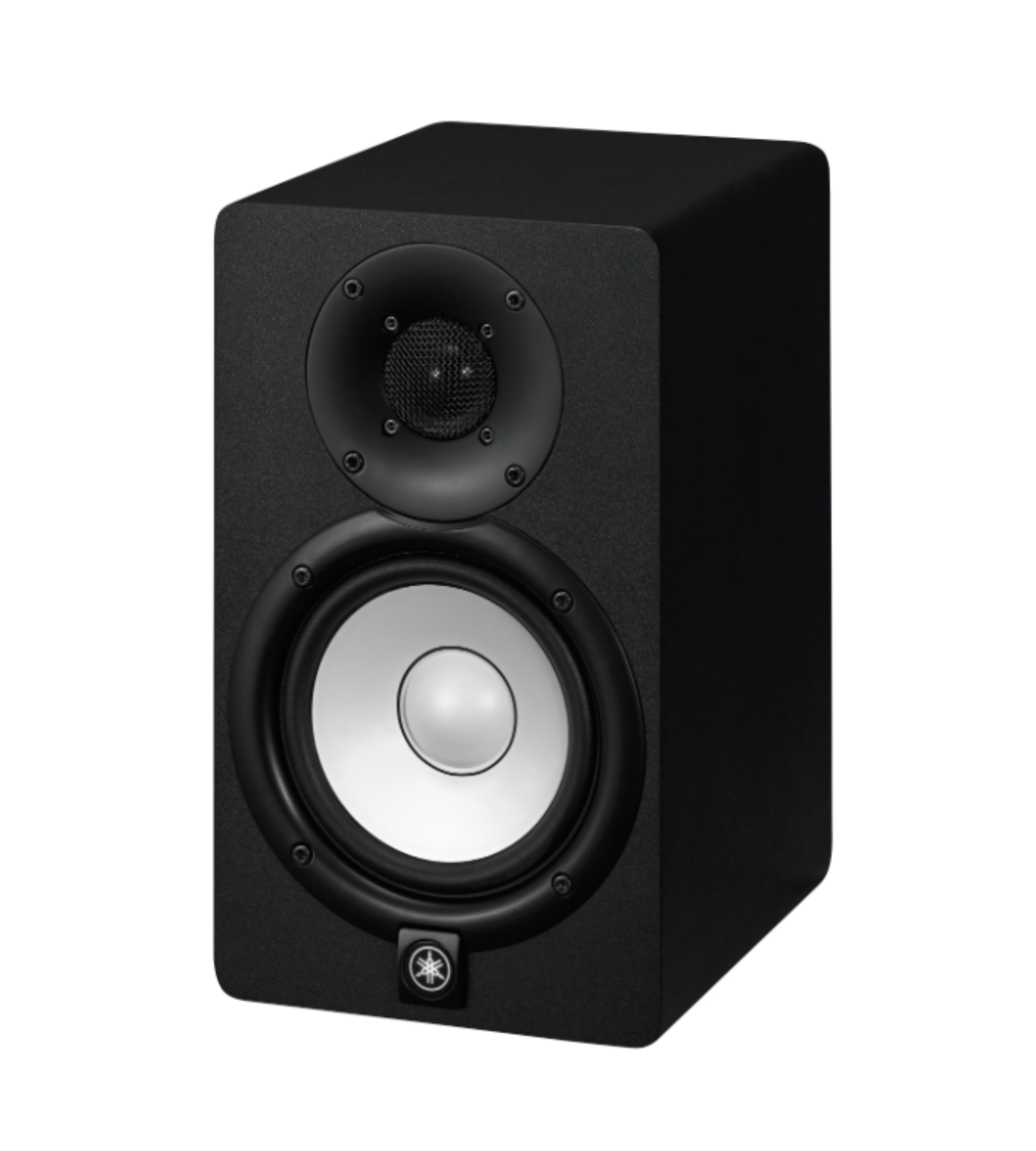

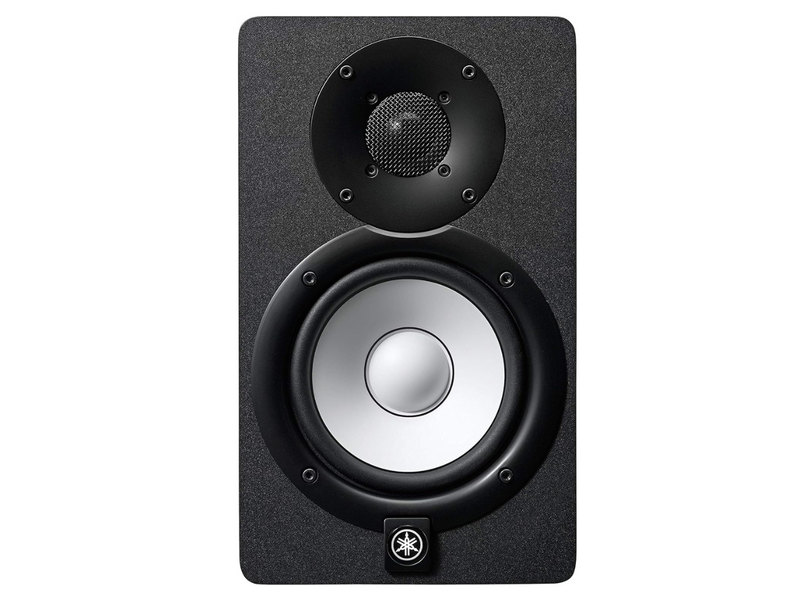

Power-matched 5″ cone woofer and 1″ dome tweeter in a bass-reflex enclosure deliver flat reference sound. - 70 W Total Output Power
Includes 45 W LF and 25 W HF amplification for clean, precise sound reproduction. - Room Control & High Trim Switches
Tailor the response with –2/–4 dB low-end and ±2 dB high-frequency adjustments. - Dual Balanced Inputs (XLR & TRS)
Accepts balanced or unbalanced signals for versatile studio or desktop setups. - Mounting Points on Four Surfaces
Enables flexible installation (HS5I version) for wall, ceiling or bracket use. - Professional Reference Standard
Built for accuracy, not coloration—widely used for mixing, mastering, and pro audio.
Technical Specifications
- Frequency Response: 54 Hz – 30 kHz (–10 dB), 74 Hz – 24 kHz (–3 dB)
- Amplifier Power: 45 W LF, 25 W HF bi-amp configuration
- Crossover: 2 kHz

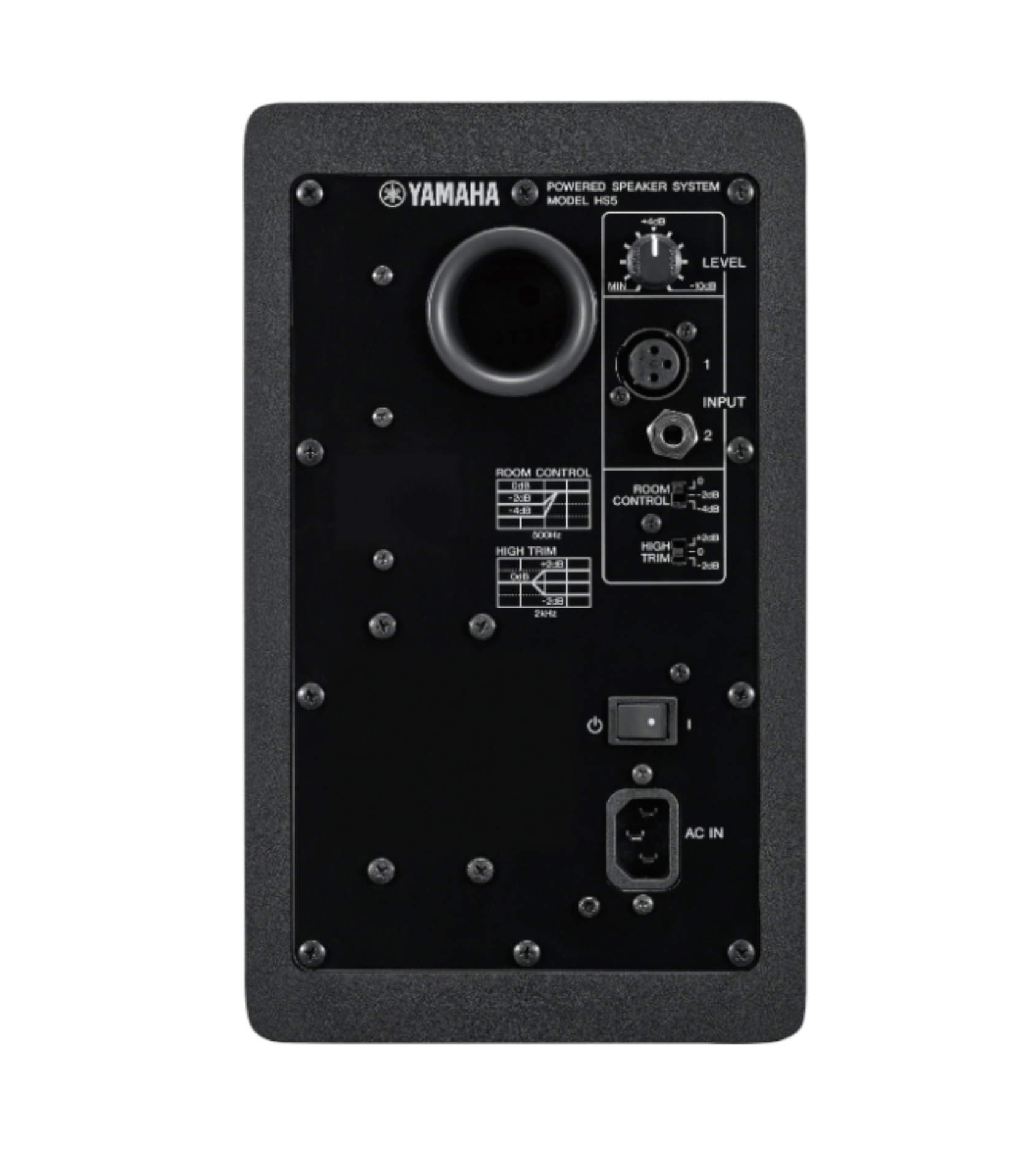

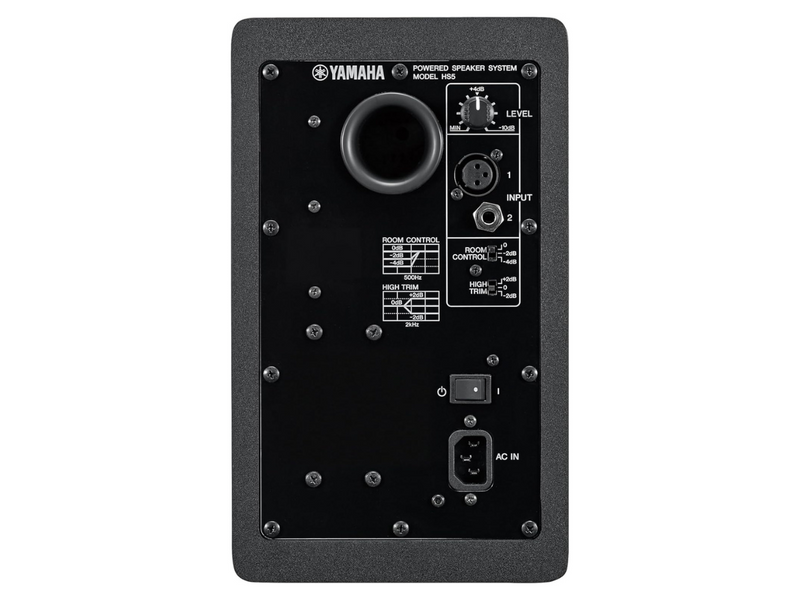

- Inputs: XLR and ¼″ TRS balanced/unbalanced
- Controls: Level trim (+4 dB click center), High trim ±2 dB, Room control –2/–4 dB
- Cabinet Material: MDF with bass-reflex port
Dimensions
- Width × Height × Depth: ~170 × 285 × 222 mm (≈6.7″ × 11.2″ × 8.7″)
- Weight: ~5.3 kg (≈11.7 lb)
What's in the Box
- Yamaha HS5 Powered Studio Monitor (single)
- Power Cord
- User Manual
Precision Bi-Amp Design
Each HS5 monitor employs a dedicated amplifier for both its 5″ woofer and 1″ tweeter, delivering accurate, flat frequency response across the entire spectrum. This bi-amplified setup ensures crystal-clear mids and highs, offering the reliable, uncolored sound that professionals demand when mixing and mastering.
Smart Room Tuning Controls
Built-in Room Control and High Trim switches let you tailor your frequency response to suit your environment—adjusting bass near walls and tweaking the treble to compensate for bright or cooled-down acoustics. It gives you a flatter, more balanced listening experience, even in imperfect spaces.
