- Features
- Specifications
- Dimensions
- Whats in the box
- 8 touch-sensitive pads for expressive drumming
- 2 assignable foot pedals (for hi-hat and bass drum) included
- 570 built-in voices + 30 additional percussion phrases
- 75 preset drum kits plus 10 user-customizable kits
- Compact, portable design — can run on AC adapter or 6 “C” batteries
- Built-in stereo speakers for standalone use
- MIDI IN/OUT ports — usable as a MIDI percussion controller or sound module
- AUX input and headphone output for silent practice or external playback
- 4-track onboard recorder (up to 5 songs, ~7,000 notes per song) for capturing ideas
- Onboard effects: 9-mode reverb, 2-band master EQ
| Specification | Detail |
|---|---|
| Pads | 8 touch-sensitive rubber pads |
| Pedals | 2 (hi-hat & bass drum) |
| Tone Generator | AWM Stereo Sampling |
| Voices | 570 voices + 30 phrases |
| Drum Kits | 75 presets + 10 user kits |
| Maximum Polyphony | 32 notes |
| Built-in Songs | 105 |
| Onboard Recorder | 4 tracks, up to 5 songs, ~7,000 notes per song |
| Effects | Reverb (9 types), Master EQ (2-band) |
| Speakers | 2 × stereo speakers, 5 W + 5 W amp |

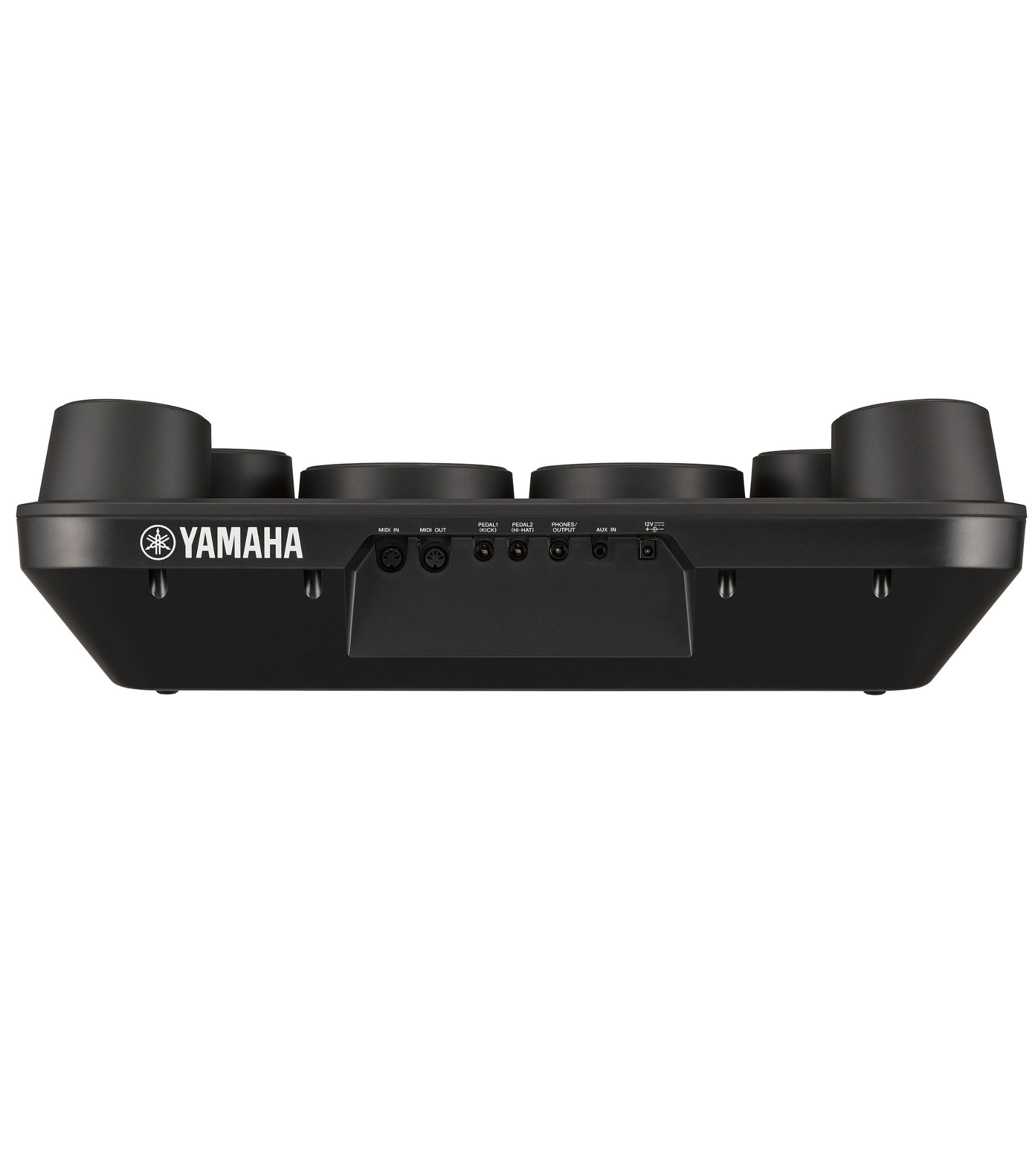

| Outputs / Inputs | Headphone out, AUX In (stereo), MIDI In/Out, Pedal inputs |
| Power Supply | AC adapter or 6 × “C” batteries |
| Dimensions (W × H × D) | 602 × 180 × 411 mm |
| Weight | 4.2 kg (without batteries) |
Boxed dimensions: not officially specified by manufacturer

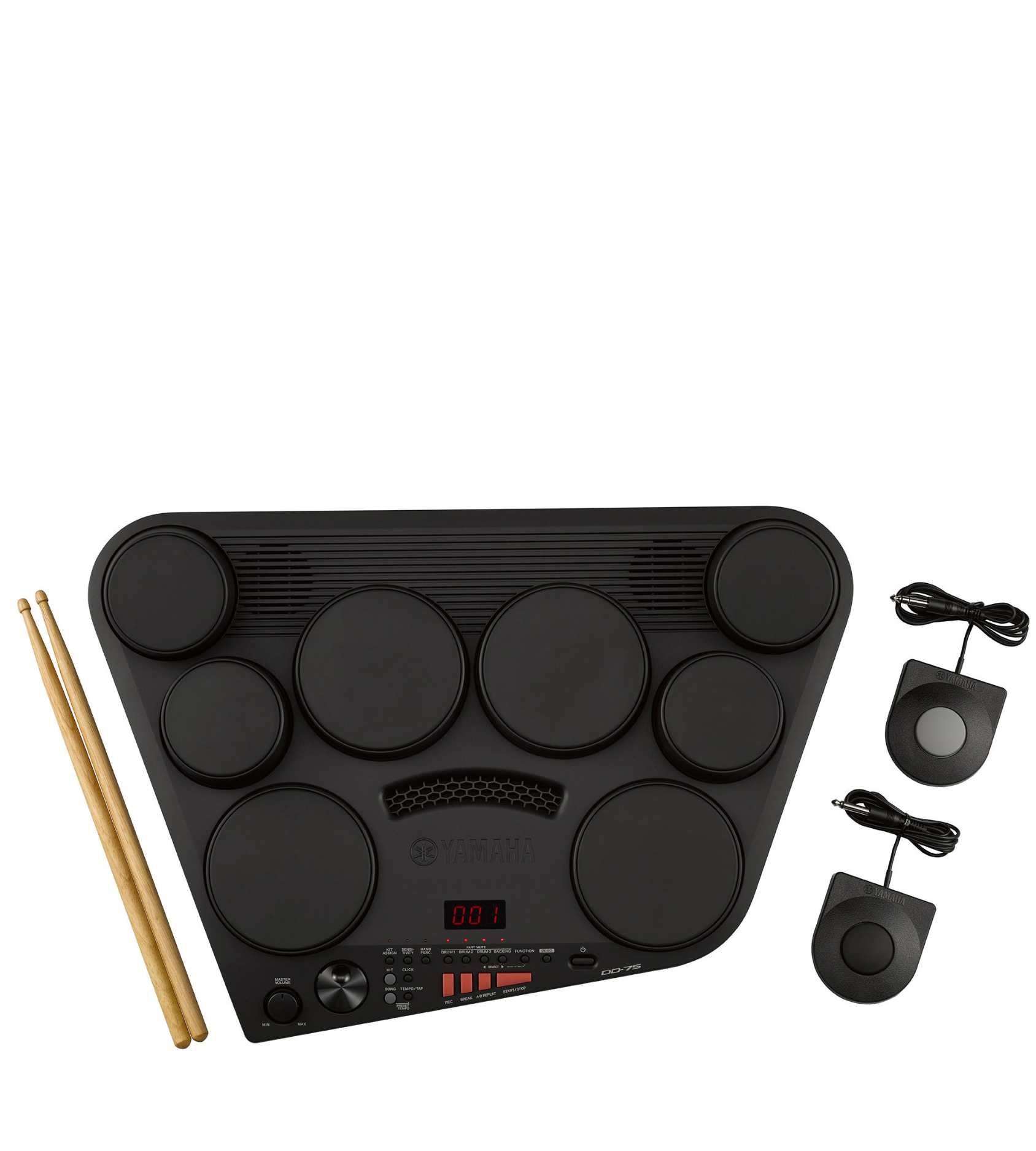

- DD-75 drum pad unit
- Pair of drumsticks
- Two foot pedals (kick & hi-hat) × 1 each
- AC adaptor (depending on region)
- User manual / documentation
