- 120 mono input channels with advanced digital mixing architecture
- Dante networking support with up to 144 × 144 channels for scalable audio systems
- Dual 12.1″ multi-touch displays plus 7″ touchscreen for intuitive control
- 28 motorized faders (24 + 4 configuration) for flexible mixing workflow
- Built-in DSP effects including high-end reverb, EQ, dynamics, and VCM plug-ins
- Split Mode allows one console to function as two independent mixers
- “Assist” functions for automatic gain, naming, and fader balance optimization
- DAW remote control integration for seamless studio workflow
- Redundant dual power supply for enhanced reliability during live operation
- High-resolution audio processing with natural, transparent sound quality
| Specification | Detail |
|---|---|
| Input Channels | 120 mono |
| Buses | 48 Mix + 12 Matrix + 2 Stereo |
| Faders | 28 motorized (24 + 4) |
| Display | 2 × 12.1″ touchscreen + 1 × 7″ touchscreen |
| Analog Inputs | 32 |
| Analog Outputs | 16 |
| Dante I/O | 144 in / 144 out |
| USB Audio Interface | 18 in / 18 out |
| AES/EBU | 2 in / 2 out (with SRC) |
| Expansion Slot | 1 × PY slot |
| Power Supply | Redundant dual power supply |
| Power Consumption | 240 W |
| Dimensions (W × H × D) | 793 × 324 × 564 mm |
| Net Weight | 23.5 kg |
Not officially specified by manufacturer.

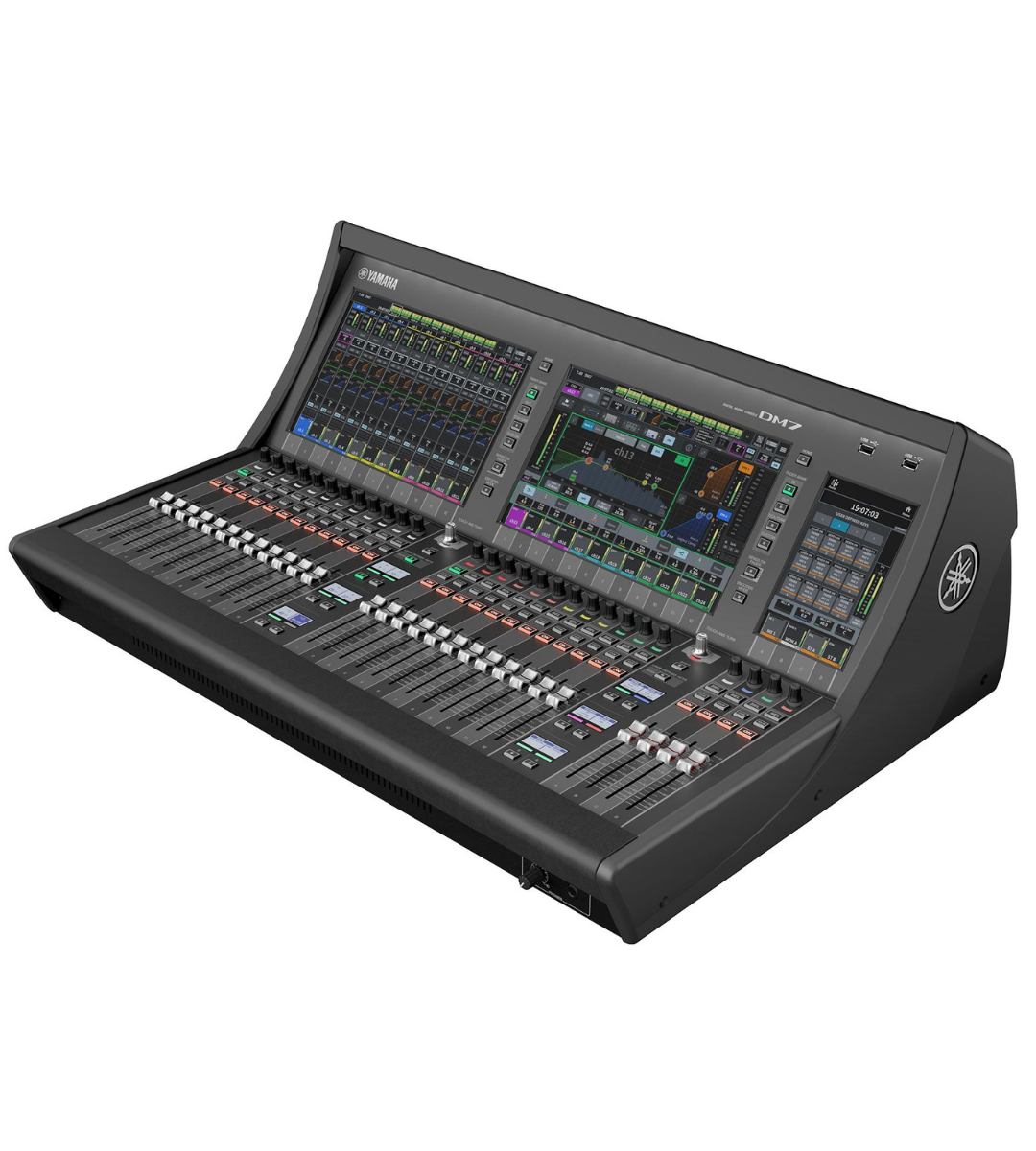

- Yamaha DM7 digital mixing console
- AC power cables (dual power supply)
- User documentation and manuals
