Yamaha

YAMAHA DM3-S DIGITAL MIXER

YAMAHA DM3-S DIGITAL MIXER

₱127,000.00 PHP
₱127,000.00 PHP
Sale Sold out

The Yamaha DM3S is a 22-channel digital mixer with capabilities that far exceed the confines of its ultra-compact size. Although the DM3S is jam-packed with cutting-edge features, it's a breeze to navigate thanks to its best-in-class, 9-inch touchscreen and single all-purpose touch-and-turn knob. You get crystal-clear 96kHz audio, which is bolstered by 16 excellent-sounding mic preamps and eight analog outputs. Yamaha has long been renowned for their digital effects, going way back to their '80s-era REV and SPX processors, and the DM3S reflects that storied heritage.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • 16 mono input channels + 1 stereo + 2 FX returns
  • Bus structure: 1 Stereo, 6 Mix, 2 FX, 2 Matrix buses (supports input→matrix routing)
  • Analog I/O: 16 Mic/Line inputs (12 XLR + 4 XLR/TRS combo), 8 XLR outputs
  • Interfaces: USB-to-Host (USB-B), USB-to-Device (USB-A), Ethernet, Phones, DC power input
  • 9″ multi-touch display, 9 motorized faders (8 channels + 1 master), “Touch-and-Turn” rotary encoder
  • Recording/playback: 18-track multitrack over USB-to-Host, 2-track to USB storage
  • Sampling rates: 48 kHz / 96 kHz
  • Low latency: < 1.3 ms (input to omni-out at 96 kHz)
  • High dynamic range (110 dB), low distortion (< 0.01%) and noise floor (-126 dBu input noise)
  • Lightweight & durable—ideal for live, studio, and installation settings
  • Control via Yamaha apps: DM3 Editor, StageMix, and ProVisionaire
  • Quick-Pro presets and One-Knob compression/EQ for fast, polished sound

  • Power: DC 24 V / 2.5 A, 43 W consumption
  • Frequency response: ±0.5 dB from 20 Hz–20 kHz (input to omni-out)
  • Signal delay: < 1.3 ms at 96 kHz
  • Total harmonic distortion: < 0.01% (input to omni-out)
  • Equivalent input noise: –126 dBu (max gain)
  • Residual output noise: –84 dBu (ST main off)
  • Dynamic range: 110 dB (DA converter), 106 dB (input to omni-out)
  • Crosstalk: –100 dB between adjacent channels
  • Recording/playback: 18-track via USB-to-host; 2-track to USB device
  • Environment: Operating 0–40 °C; Storage –20 to 60 °C

320 mm × 455 mm × 140 mm

  • Yamaha DM3-S mixer unit
  • PA-L500 power adapter (100 V–240 V, includes power cord)
  • Owner’s manual
  • Cubase AI download information

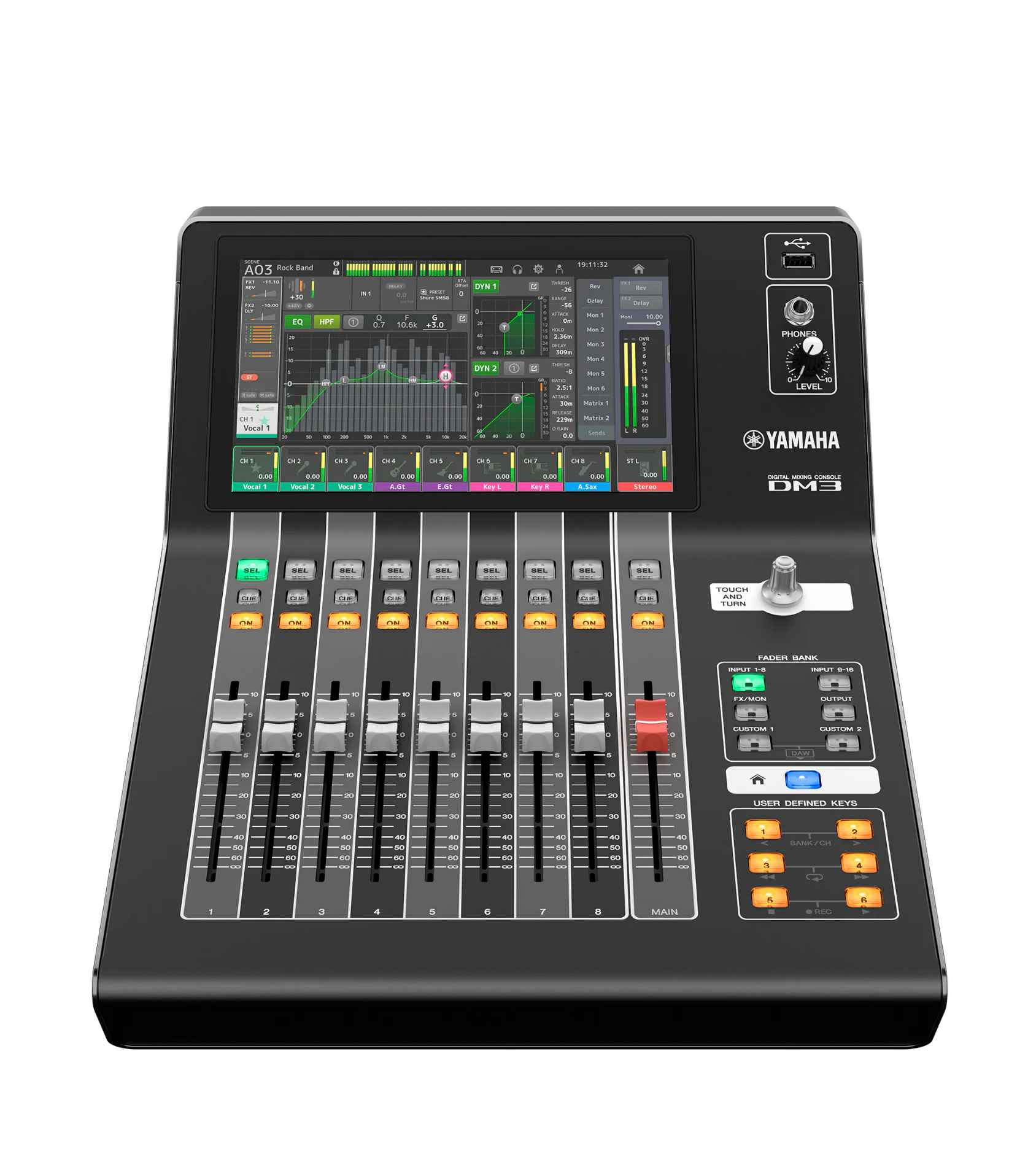

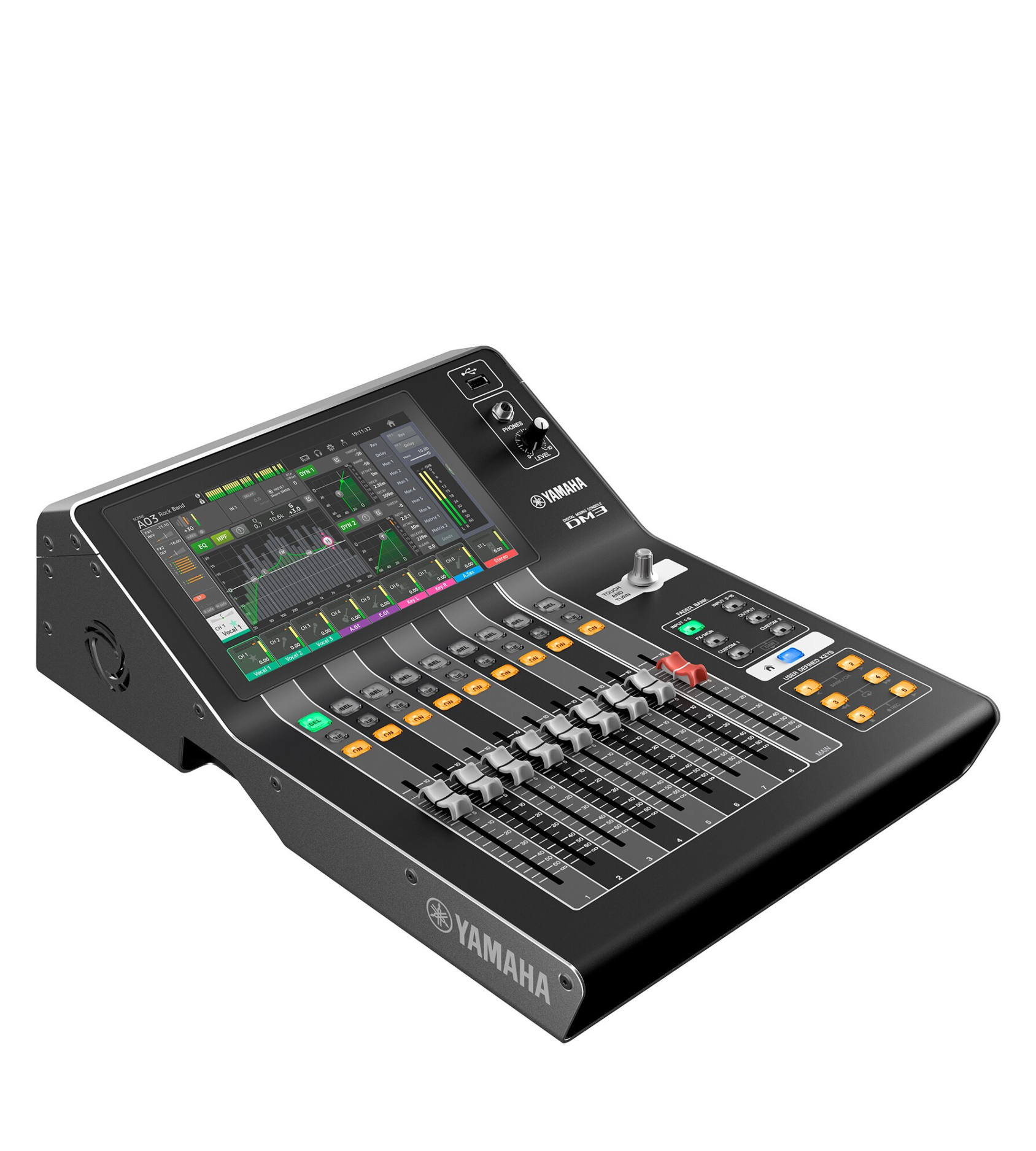

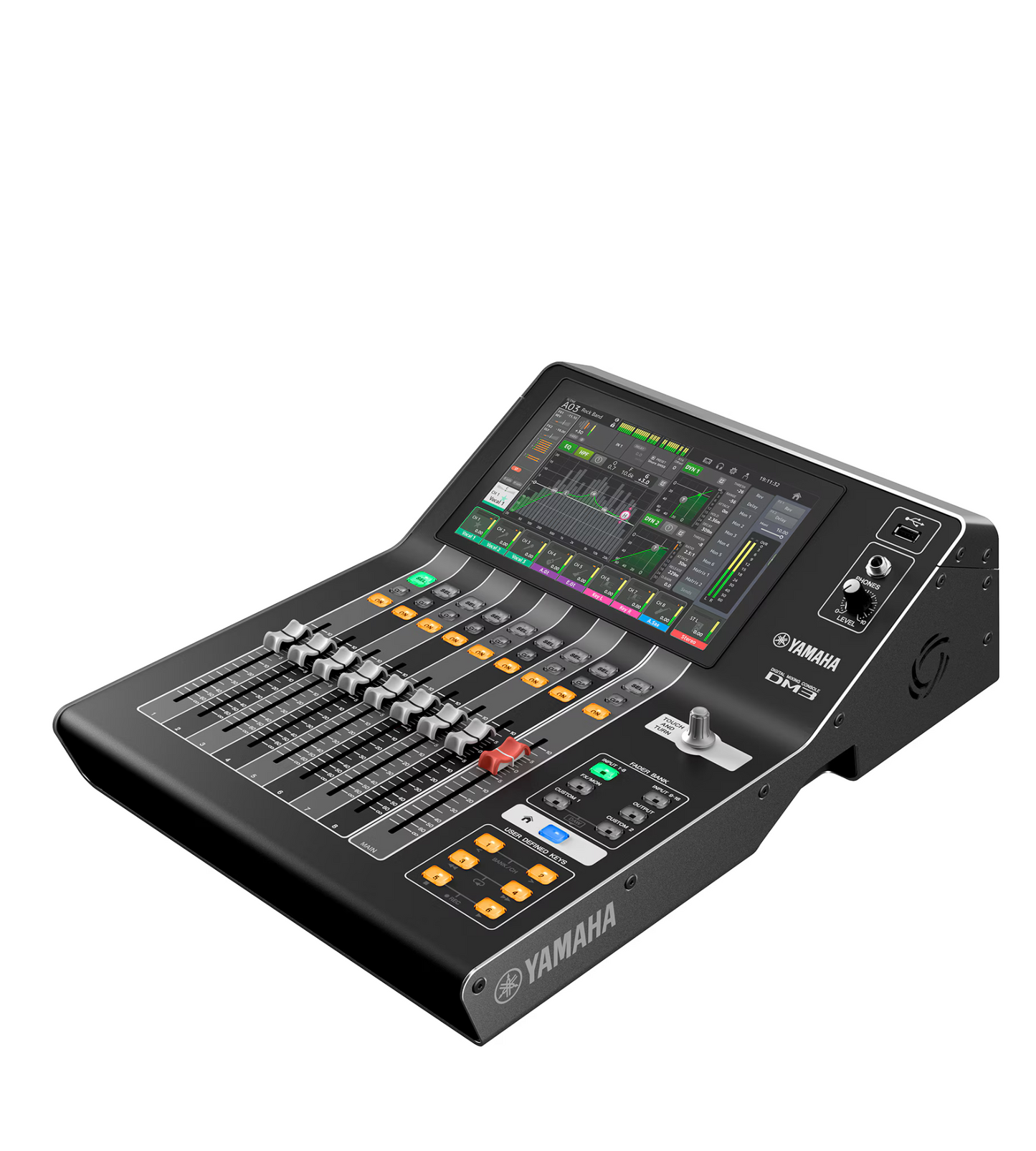

Intuitive Multi-Touch Interface

The DM3-S boasts a sharp 9″ multi-touch screen paired with a single touch-and-turn control knob, enabling precise, fast adjustments. This modern interface simplifies navigation through settings, effects, and scene changes, making setup smoother and live mixing more seamless—even under pressure.

Custom Image 1
Custom Image 2

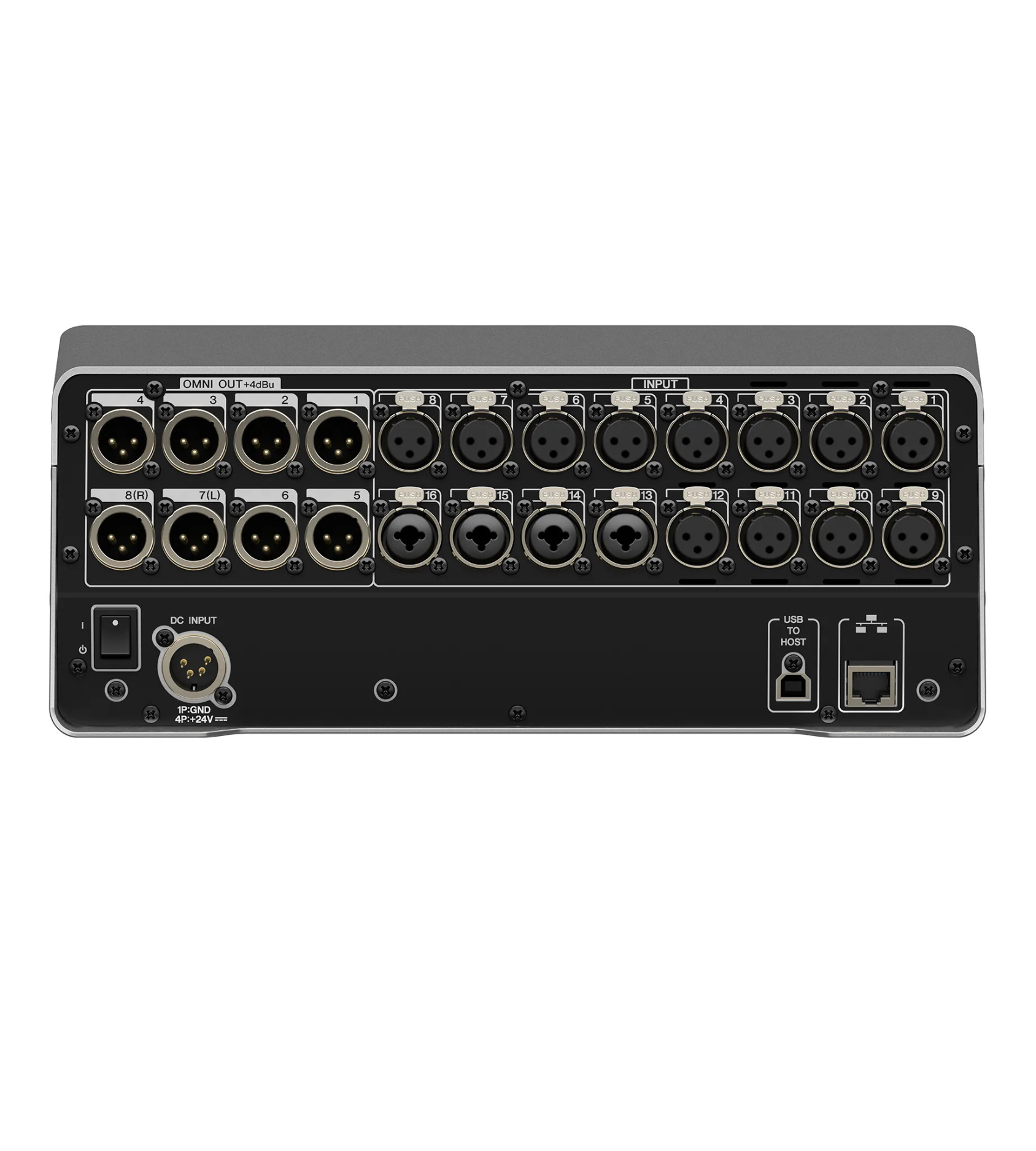

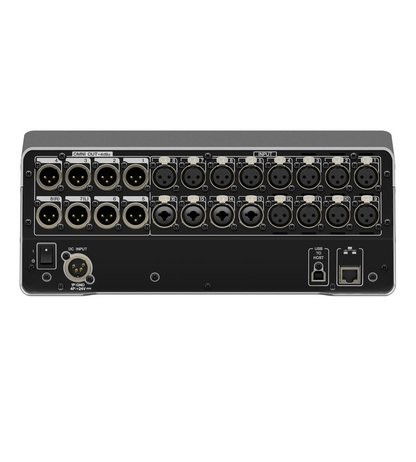

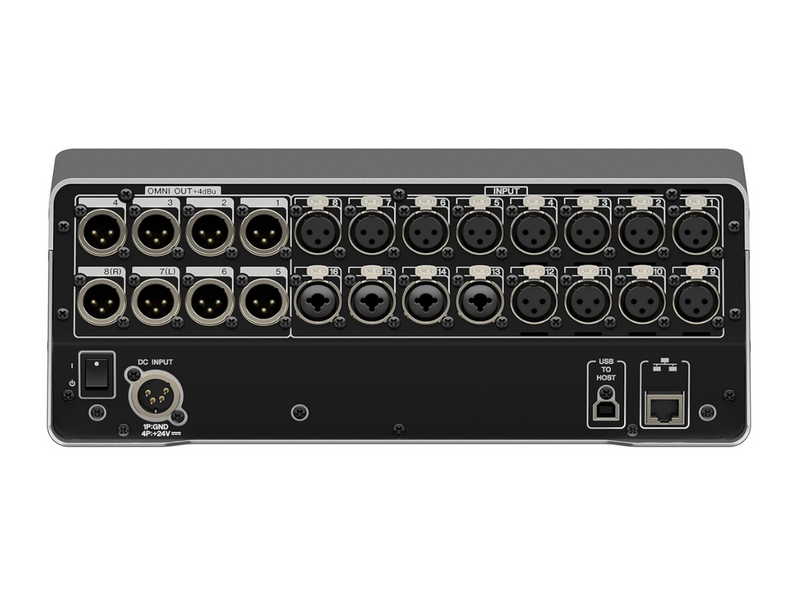

Comprehensive Rear Panel Connections

The DM3-S is equipped with a versatile set of rear-panel connections, including 16 mic/line inputs with high-quality preamps, two stereo line inputs, and balanced XLR main outputs. It also features AES/EBU digital out, two monitor sends, footswitch input, and a USB 2x2 interface for computer or streaming use. With built-in Dante support, it easily integrates into larger audio networks, making it suitable for both live sound and studio setups.
