- Dante-enabled digital mixer with 16 × 16 network audio channels for scalable systems
- 16 mono + 1 stereo + 2 FX return channels for flexible mixing applications

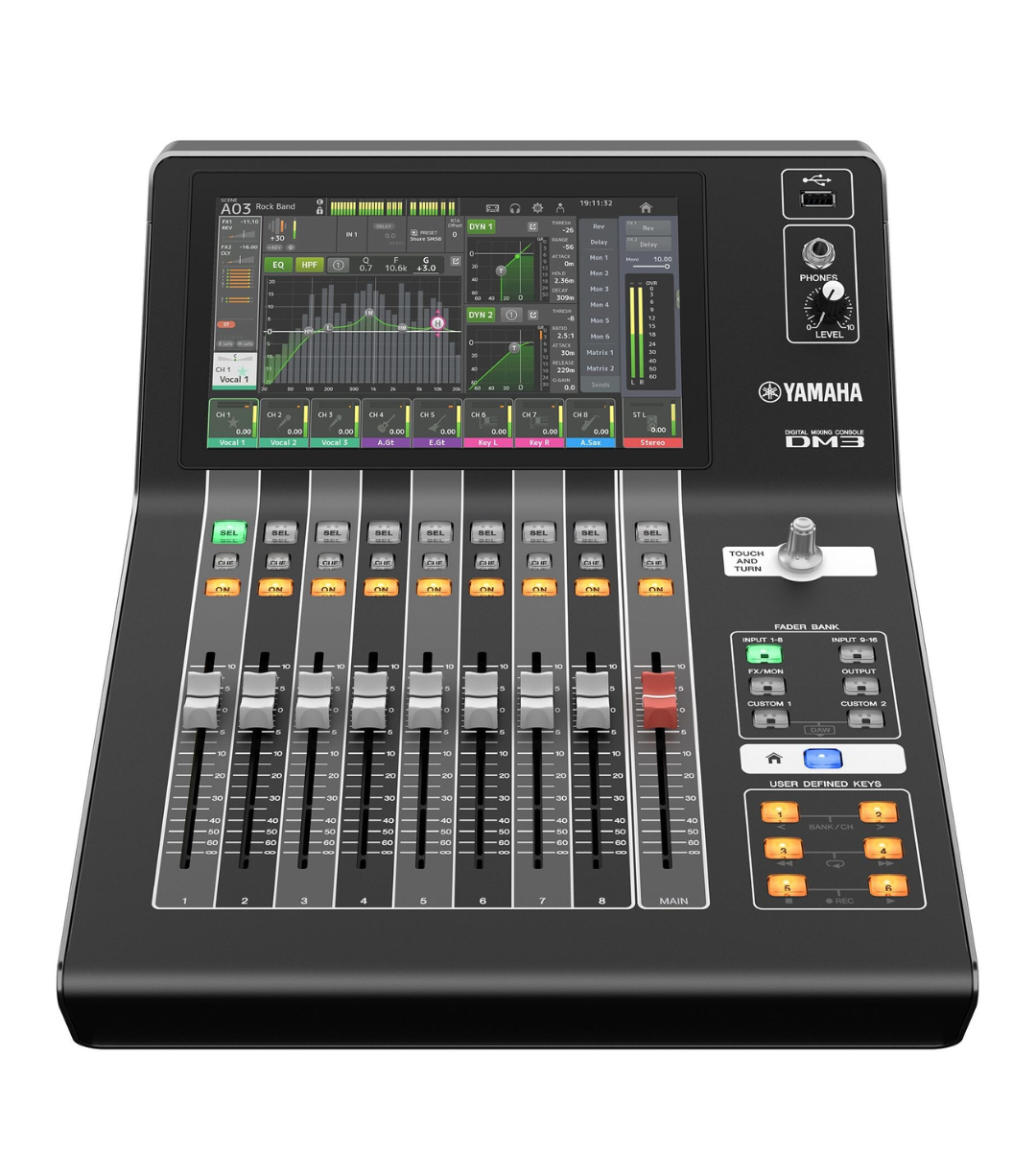

- 9-inch multi-touch screen for intuitive control and fast workflow
- 9 motorized faders (8 + 1 master) for precise level control
- Built-in high-quality DSP effects including reverb, EQ, dynamics, and GEQ
- 18 onboard effects processors for creative sound shaping
- USB audio interface (18 in / 18 out) for multitrack recording and playback
- QuickPro Presets for fast setup with optimized settings
- Compact and lightweight design for easy transport and setup
- Seamless integration with Yamaha StageMix and Editor software
| Specification | Detail |
|---|---|
| Mixing Capacity | 16 mono + 1 stereo + 2 FX return channels |
| Faders | 9 motorized (8 channels + 1 master) |
| Display | 9″ multi-touch screen |

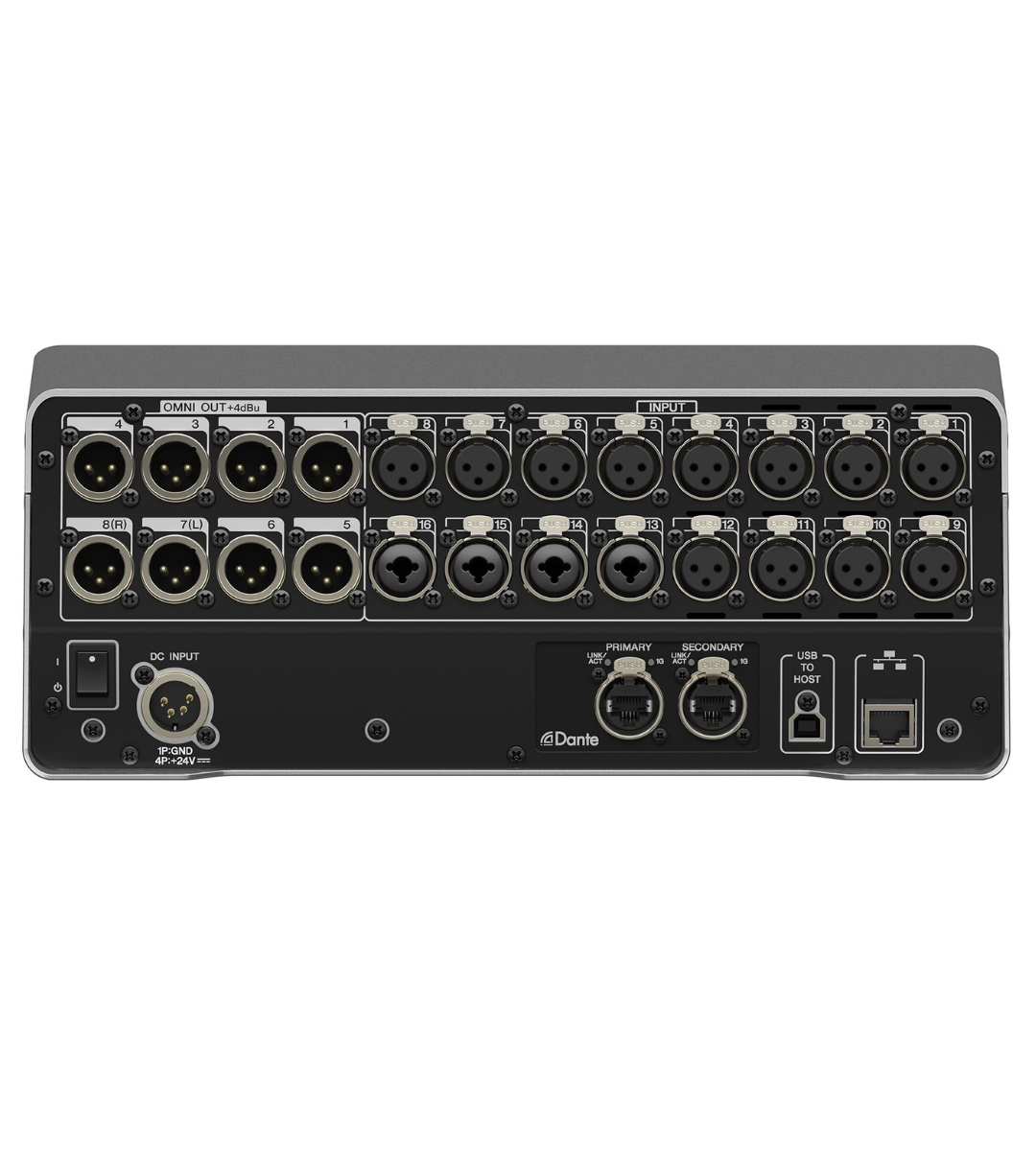

| Analog Inputs | 16 Mic/Line (12 × XLR + 4 × XLR/TRS combo) |
| Analog Outputs | 8 × XLR |
| Dante I/O | 16 in / 16 out |
| USB Audio Interface | 18 in / 18 out |
| Buses | 1 Stereo, 6 Mix, 2 FX, 2 Matrix |
| Effects | 18 types with GEQ on mix and stereo channels |
| Sampling Rate | 48 kHz / 96 kHz |
| Power Supply | DC power input (external adapter) |
| Dimensions (W × H × D) | 320 × 140 × 455 mm |
| Net Weight | 6.5 kg |
Not officially specified by manufacturer.

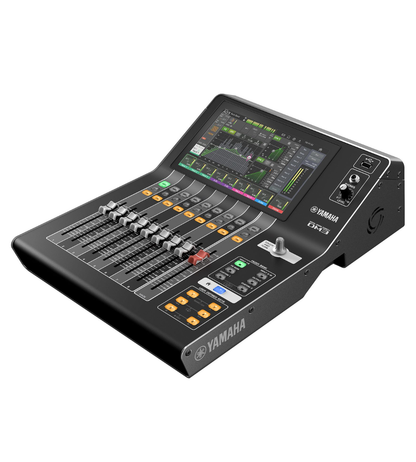

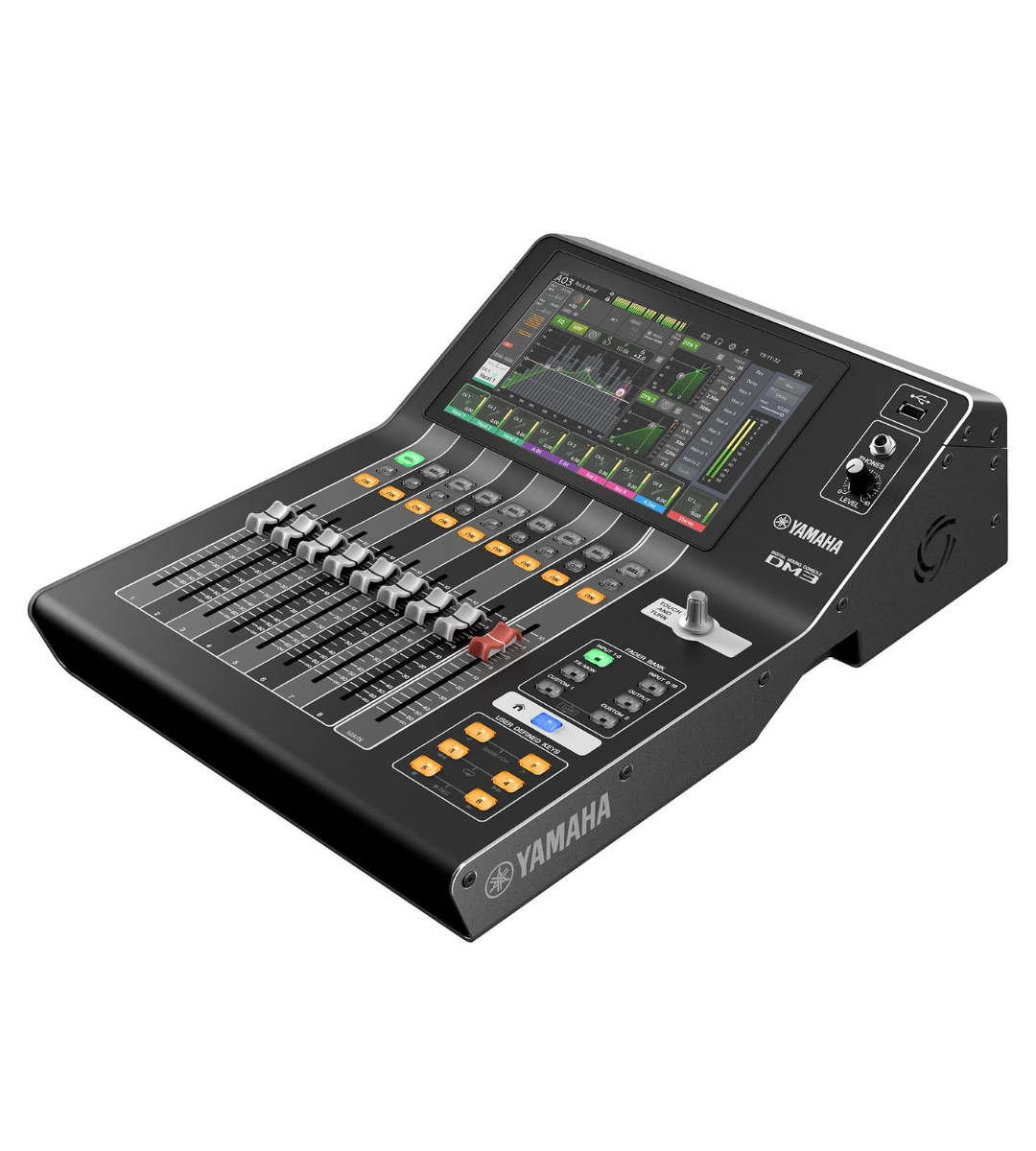

- Yamaha DM3 Dante digital mixing console
- AC power cable
- User manual and documentation
