- 2-way bi-amped powered floor monitor with bass-reflex design
- 1000W Class-D amplifier (700W LF + 300W HF)
- 12" coaxial ferrite woofer with 2.5" voice coil
- 1.75" coaxial compression driver for excellent phase coherence
- FIR-X™ tuning with linear phase FIR filters for superior sound clarity
- Maximum SPL of 129 dB
- Integrated 2-channel mixer with Mic/Line inputs
- High-strength plywood enclosure with durable Polyurea coating
- Optimized 90° × 90° coverage for stage monitoring
- Ideal for live performances, stage monitoring, and portable PA systems
| Model | DHR12M |
| Speaker Type | 2-Way Bi-Amped Powered Speaker, Bass-Reflex |
| Amplifier Power | 1000 W Class-D (700 W LF + 300 W HF) |
| LF Driver | 12" Cone, 2.5" Voice Coil, Ferrite Magnet |
| HF Driver | 1.75" Coaxial Compression Driver |
| Frequency Range (-10 dB) | 55 Hz – 20 kHz |
| Maximum SPL | 129 dB SPL |
| Coverage | 90° H × 90° V |
| Crossover | 1.8 kHz (FIR-X™ Tuning) |
| Inputs | 2 × Combo XLR/TRS, 2 × RCA |
| Output | 1 × XLR Thru |
| Enclosure Material | Plywood with Polyurea Coating |
| Power Requirement | 100–240 V AC, 50/60 Hz |
| Product Dimensions (L × W × H) | 594 × 397 × 352 mm |
| Product Weight | 19.3 kg |
| Package Dimensions (L × W × H) | Not specified by manufacturer |
| Shipping Weight (with Box) | Not specified by manufacturer |

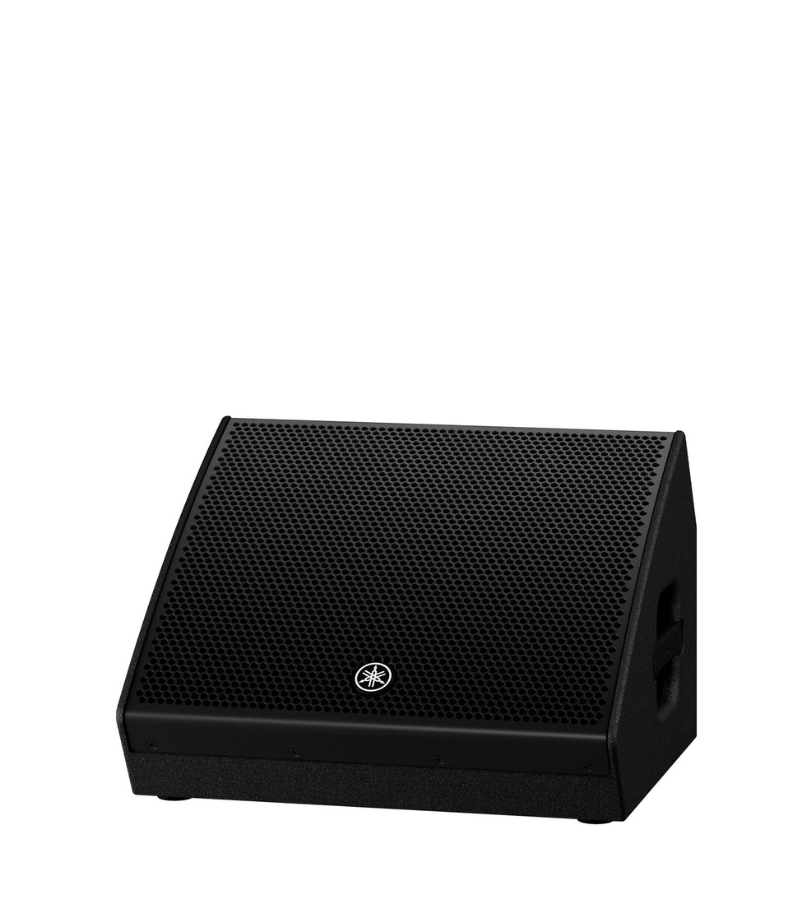

- Yamaha DHR12M Powered Loudspeaker
- AC Power Cord
- Owner's Manual
- Warranty Documentation
