- 2-way bi-amped powered floor monitor with bass-reflex design
- 1000W Class-D amplifier (800W LF + 200W HF)

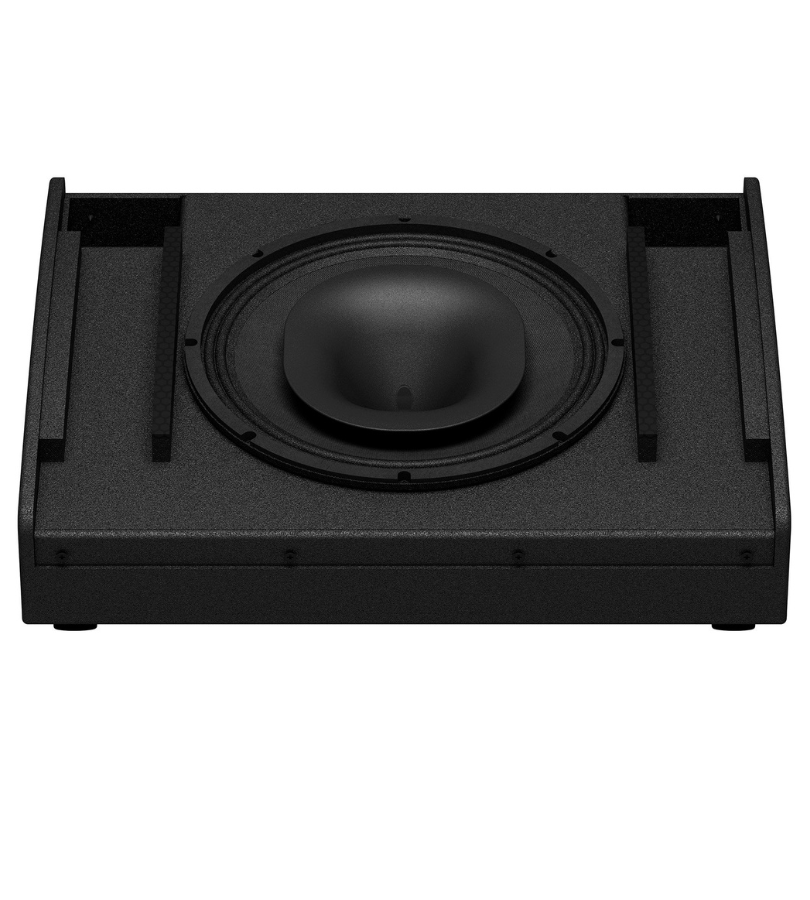

- 15" coaxial ferrite woofer with 3" voice coil
- 1.75" coaxial compression driver for precise phase alignment
- FIR-X™ tuning with linear phase FIR filters for exceptional sound clarity
- Maximum SPL of 131 dB
- Integrated 2-channel mixer with Mic/Line inputs
- Premium plywood enclosure with durable Polyurea coating
- 65° × 75° constant directivity coverage optimized for stage monitoring

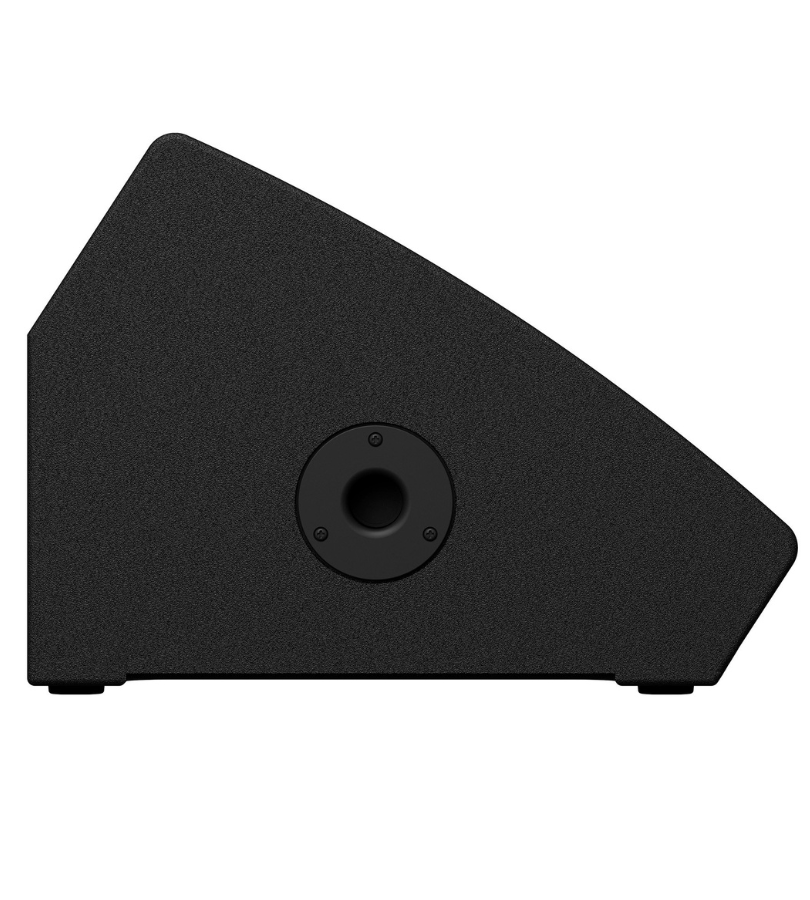

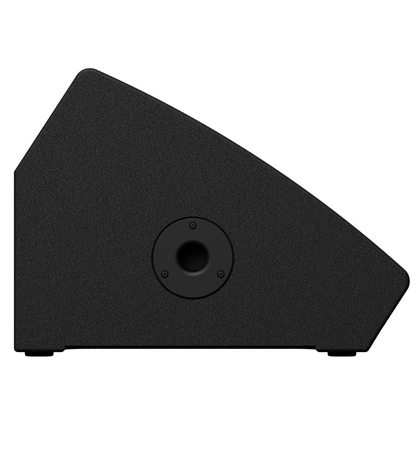

- 35 mm pole socket allows use as a front-of-house speaker
| Model | DHR15M |
| Speaker Type | 2-Way Bi-Amped Powered Speaker, Bass-Reflex |
| Amplifier Power (Dynamic) | 1000 W Class-D (800 W LF + 200 W HF) |
| Continuous Power | 465 W (400 W LF + 65 W HF) |
| LF Driver | 15" Cone, 3" Voice Coil, Ferrite Magnet |
| HF Driver | 1.75" Coaxial Compression Driver |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz |
| Maximum SPL | 131 dB SPL |
| Coverage | 65° H × 75° V |
| Crossover | 1.8 kHz (FIR-X™ Tuning) |

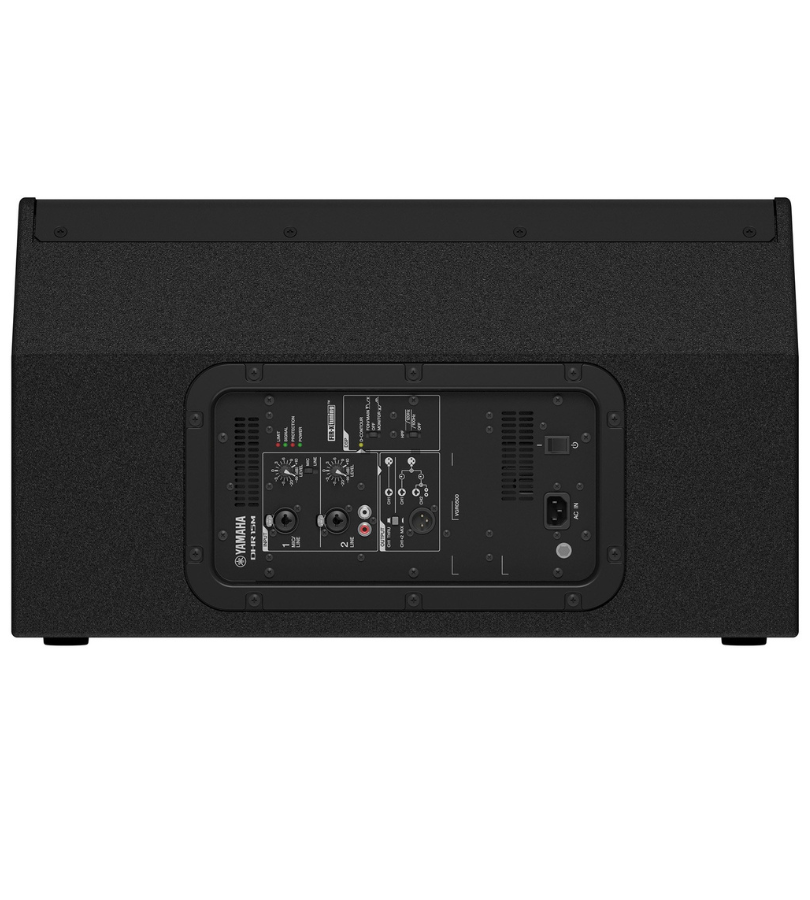

| Inputs | 2 × Combo XLR/TRS, 2 × RCA |
| Output | 1 × XLR Thru |
| Enclosure Material | Plywood with Polyurea Coating |
| Cooling | Variable-Speed Fan (4 Modes) |
| Power Requirement | 100–240 V AC, 50/60 Hz |
| Product Dimensions (L × W × H) | 642 × 450 × 343 mm |
| Product Weight | 22.0 kg |
| Package Dimensions (L × W × H) | Not specified by manufacturer |
| Shipping Weight (with Box) | Not specified by manufacturer |

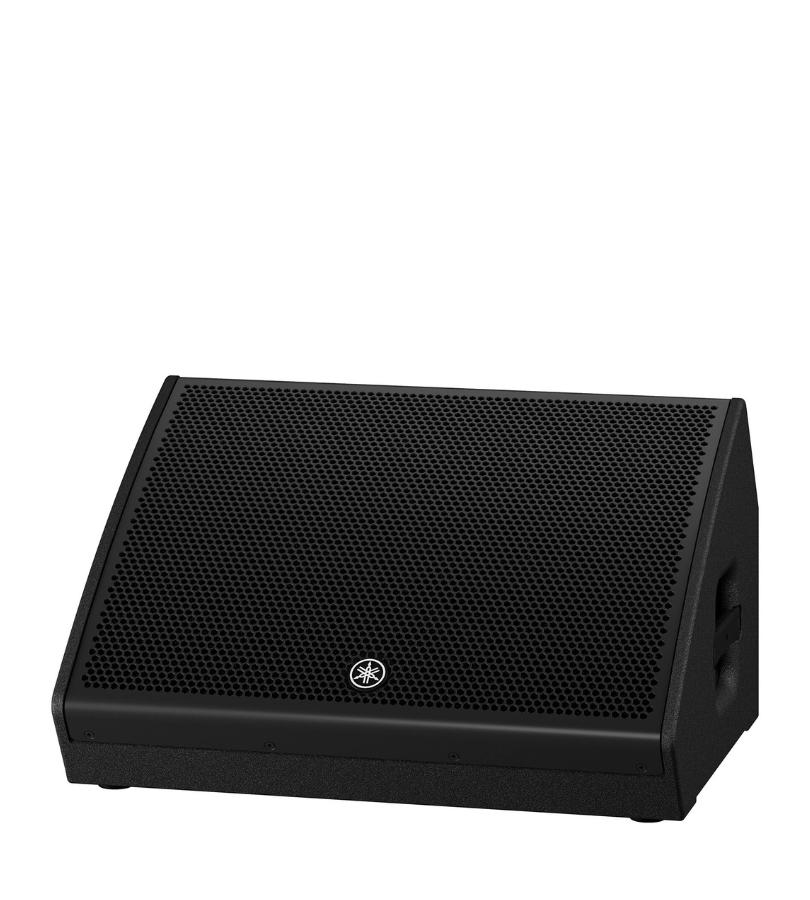

- Yamaha DHR15M Powered Monitor Speaker
- AC Power Cord
- Owner's Manual
- Warranty Documentation
