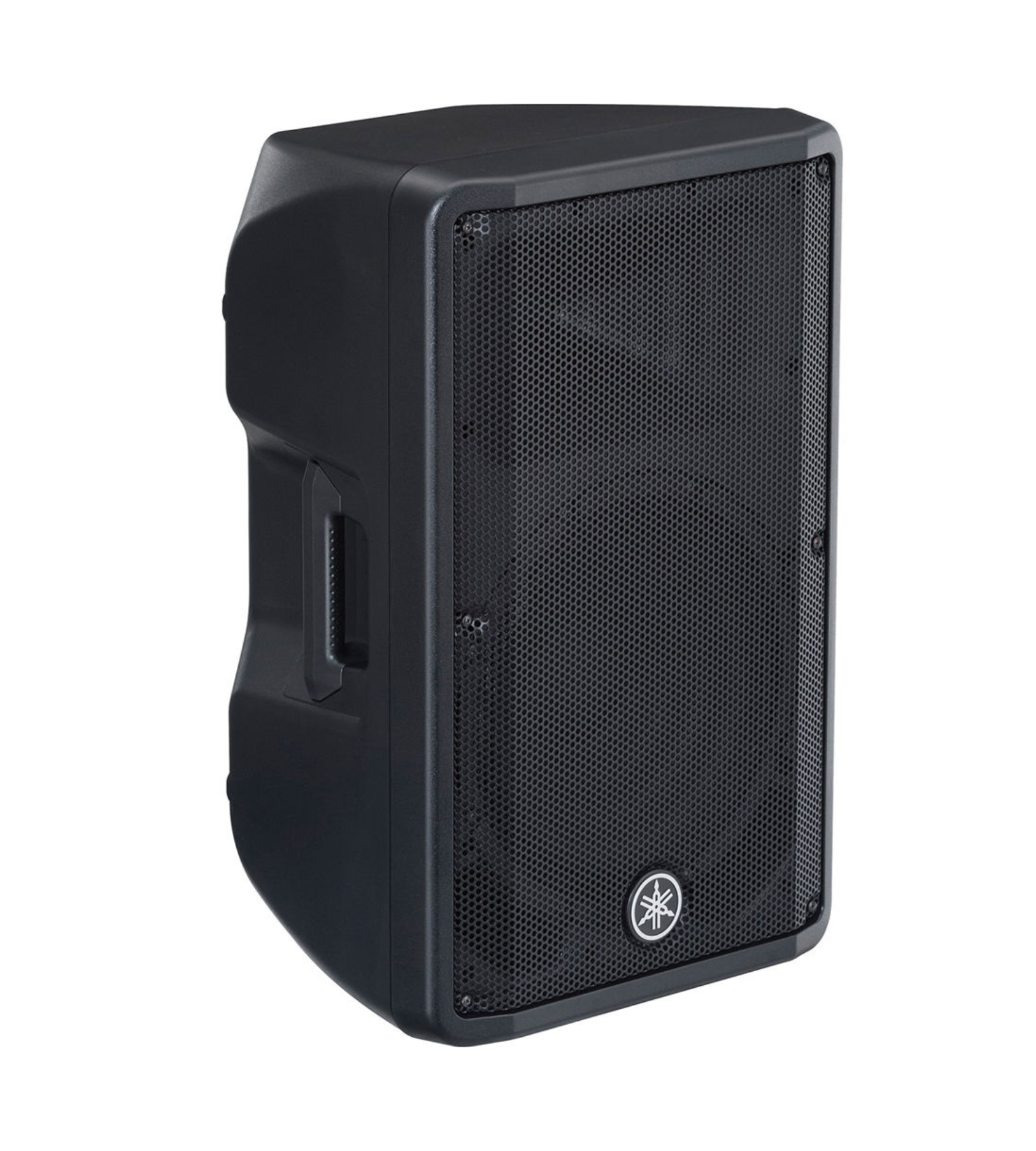

YAMAHA DBR12 POWERED SPEAKER

YAMAHA DBR12 POWERED SPEAKER

₱40,600.00 PHP
₱40,600.00 PHP
Sale Sold out

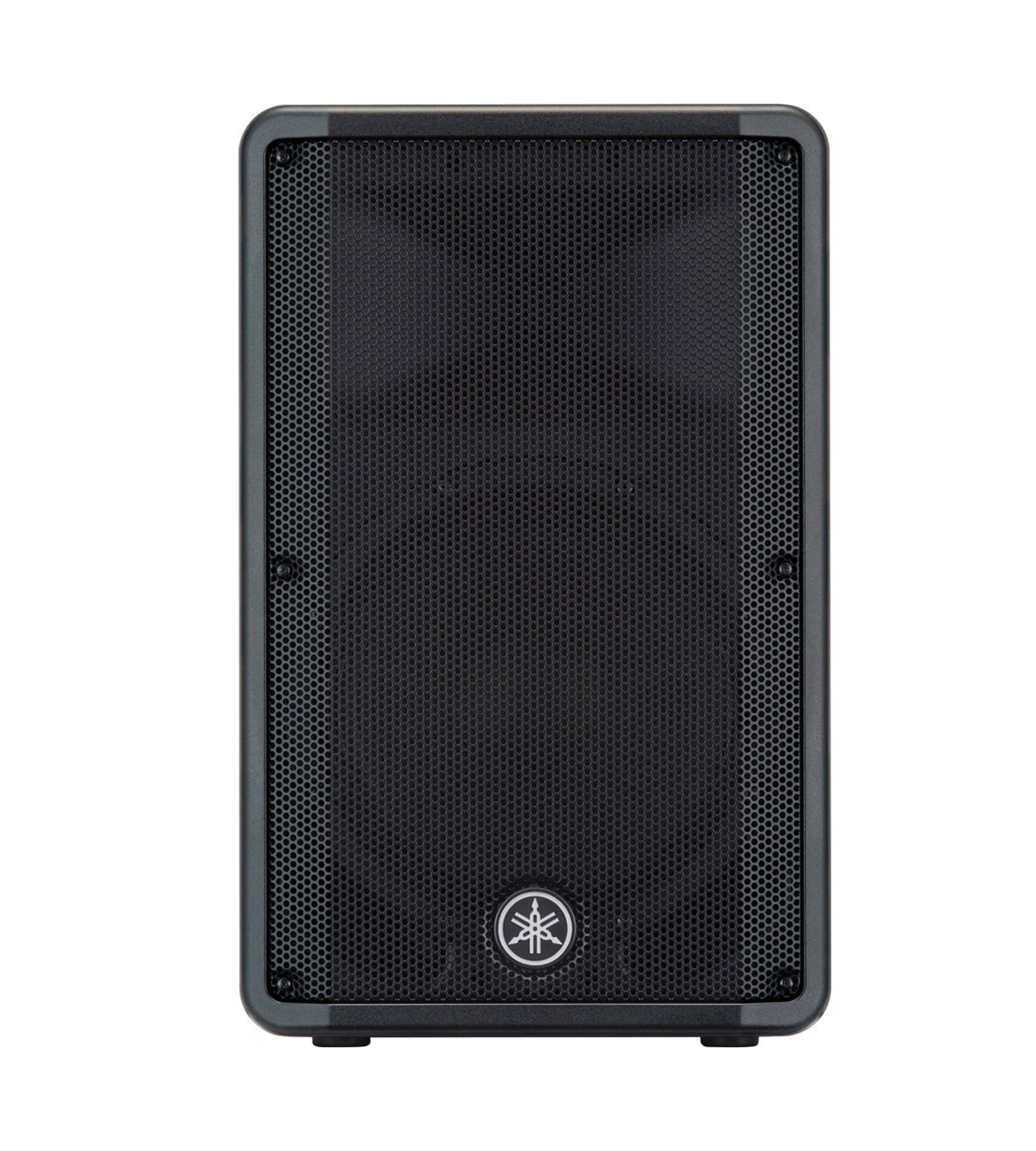

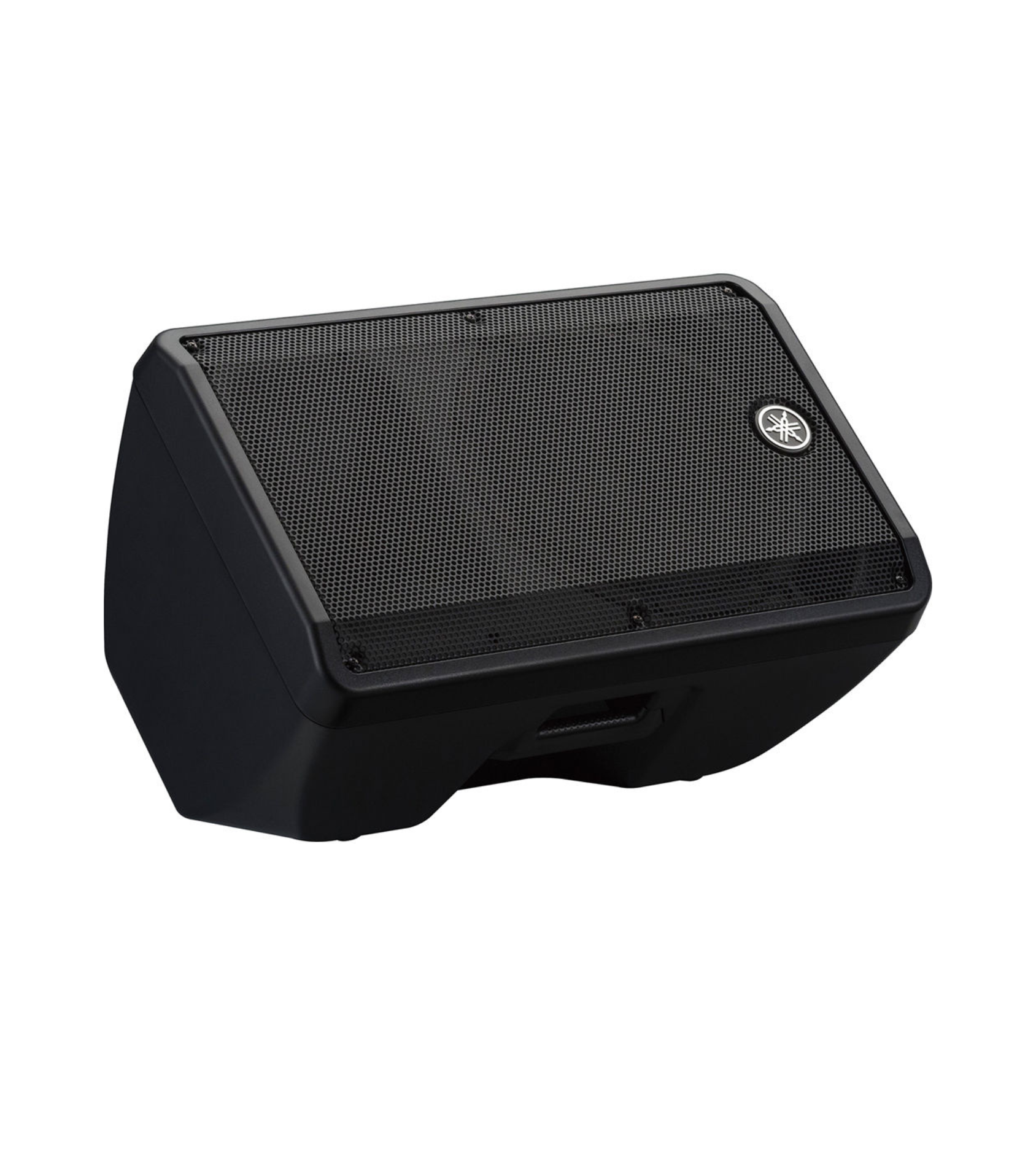

The DBR12 Active PA speaker features the same Yamaha state-of-the-art DSP technology inherited from its predecessors, ensuring superior performance and versatility, and safe, consistent operation. The DBR12 can project deep bass, clear midrange and accurate high frequencies to the outer-most edges of a very wide coverage area and can boast 1000W of power. The design incorporates an optimised 50°?wedge angle for floor monitoring use and is also, for its size, the most portable powered speaker currently offered by Yamaha.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

Key Features of Yamaha DBR12 Powered Speaker

  • Bi-amped 2‑Way Bass-Reflex Design
    Combines a 12″ cone woofer and 1.4″ compression driver in a precision-crafted bass-reflex enclosure.
  • 1000 W Peak / 465 W RMS Output
    Delivers powerful sound (800 W LF, 200 W HF) up to 131 dB SPL with Yamaha Class‑D amplifier.
  • FIR‑X Tuning™ DSP Crossover @ 2.1 kHz
    Linear-phase crossover ensures phase coherence and accurate frequency response.
  • 90° × 60° Constant-Directivity Horn
    Provides balanced coverage for live venues, stage monitoring, or PA use.
  • D‑CONTOUR Adaptive DSP Modes
    FOH/Main, Monitoring, or Off settings dynamically optimize tone and headroom.

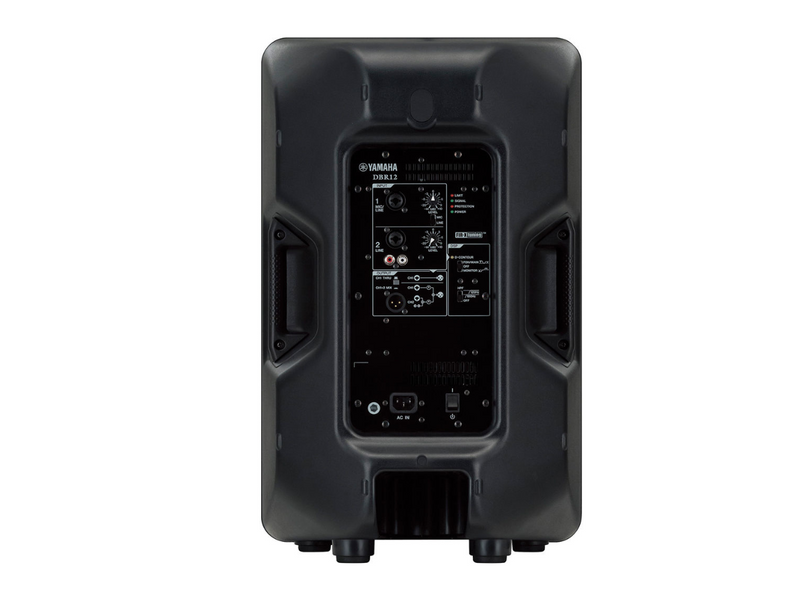

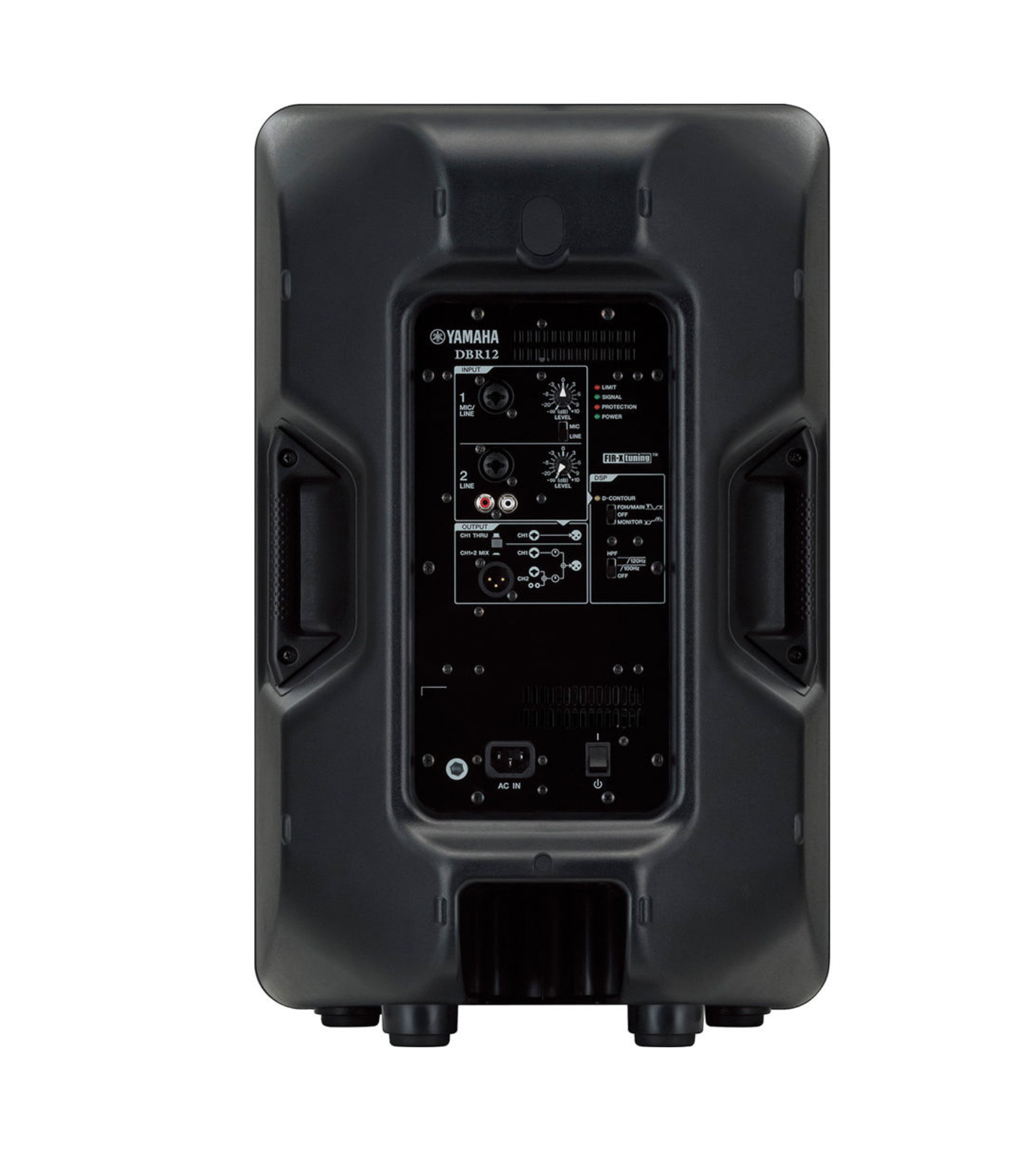

  • Integrated Mixer & Inputs
    Offers two channels (Combo XLR/TRS and RCA option), plus mix or thru output routing.

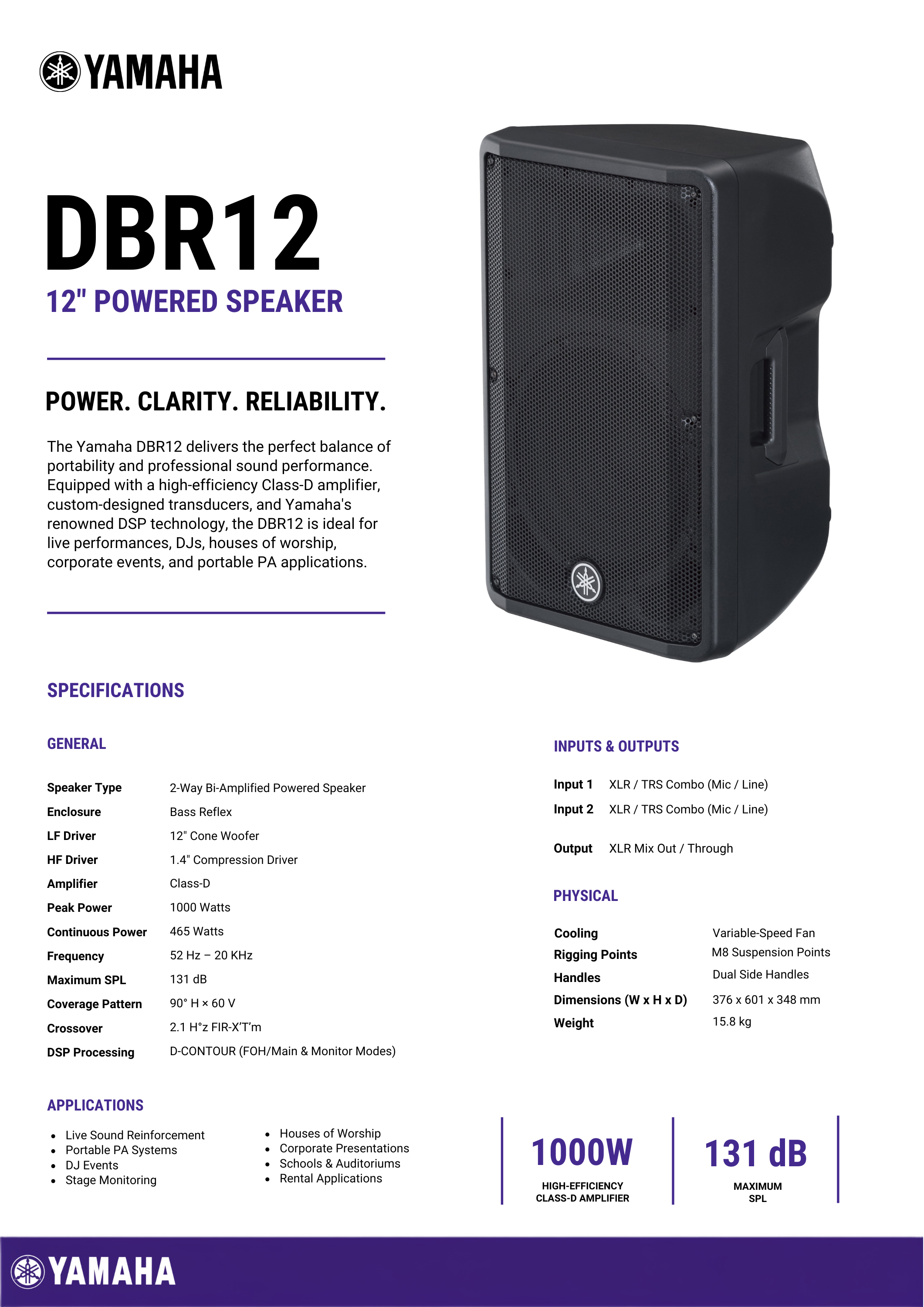

Technical Specifications

  • Frequency Range (–10 dB): 52 Hz – 20 kHz
  • Maximum SPL (1 m, on-axis): 131 dB
  • Amplifier Ratings: LF 800 W / HF 200 W Dynamic, LF 400 W / HF 65 W RMS
  • Crossover Frequency: 2.1 kHz (FIR‑X tuned)
  • Inputs: 2 × Combo XLR/TRS, RCA (Channel 2)
  • Output: XLR mix/thru (CH1 or CH1+CH2)
  • DSP Modes: D‑CONTOUR (FOH/Main, Monitor, Off)
  • Cooling & Mounting: 4-speed fan, side handles, pole socket, 3 × M8 fly points
  • Power Consumption: ~74 W at 1/8 power, ~18 W idle
  • Cabinet: Durable black plastic enclosure

Dimensions

  • Width × Height × Depth: 376 × 601 × 348 mm (≈14.8″ × 23.7″ × 13.7″)
  • Weight: 15.8 kg (≈34.8 lb)

What's in the Box

  • Yamaha DBR12 Powered Speaker (single unit)
  • AC Power Cord (IEC)
  • User Manual & Safety/Warranty Documentation

Hero Banner

Compact Powerhouse with Impressive Output

The Yamaha DBR12 is a versatile, high-performance powered speaker delivering up to 1,000 watts of Class-D power, engineered for crystal-clear audio across various live and playback applications. Its 12-inch woofer and 1.4-inch compression driver produce a punchy, well-balanced sound that reaches 131 dB SPL, making it a reliable choice for mid-sized venues, portable PA systems, and stage monitoring setups.

Custom Image 1
Custom Image 2

Wide Coverage with Onboard Sound Shaping

Designed with a 90° x 60° dispersion pattern, the DBR12 ensures even sound projection throughout the room, whether used on a stand or as a floor wedge. It features Yamaha's FIR-X tuning crossover technology for smooth frequency transitions and optimized phase response. The built-in 2-channel mixer allows simultaneous use of mic, line, or playback sources, and the D-Contour EQ presets make it easy to tailor the speaker’s sound for front-of-house, monitoring, or flat response use.

Road-Ready Design with Flexible Mounting Options

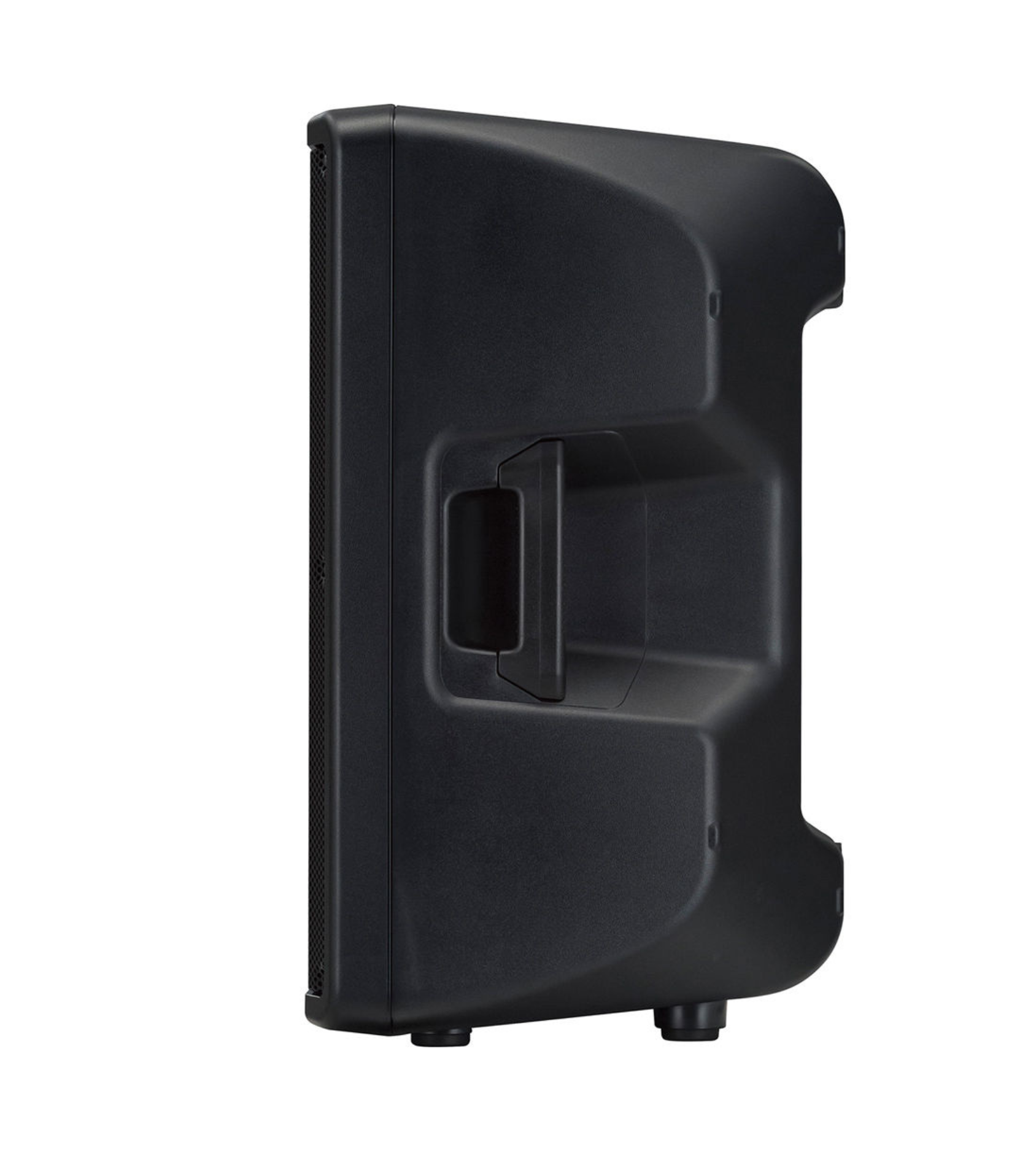

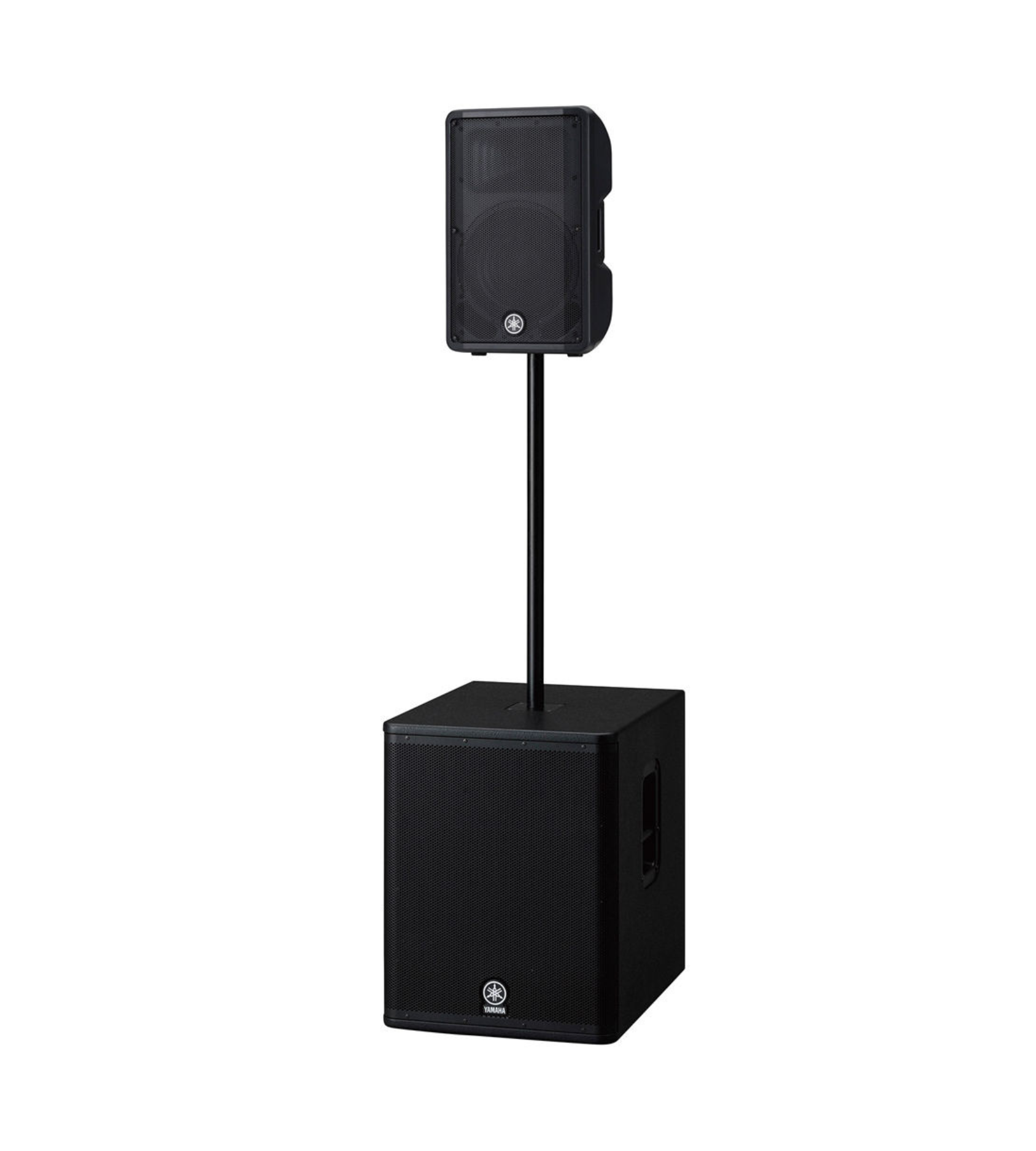

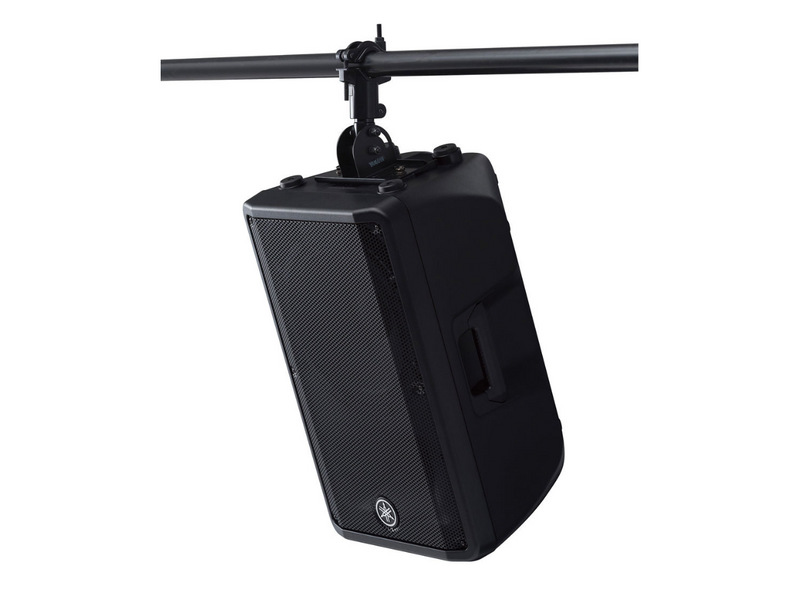

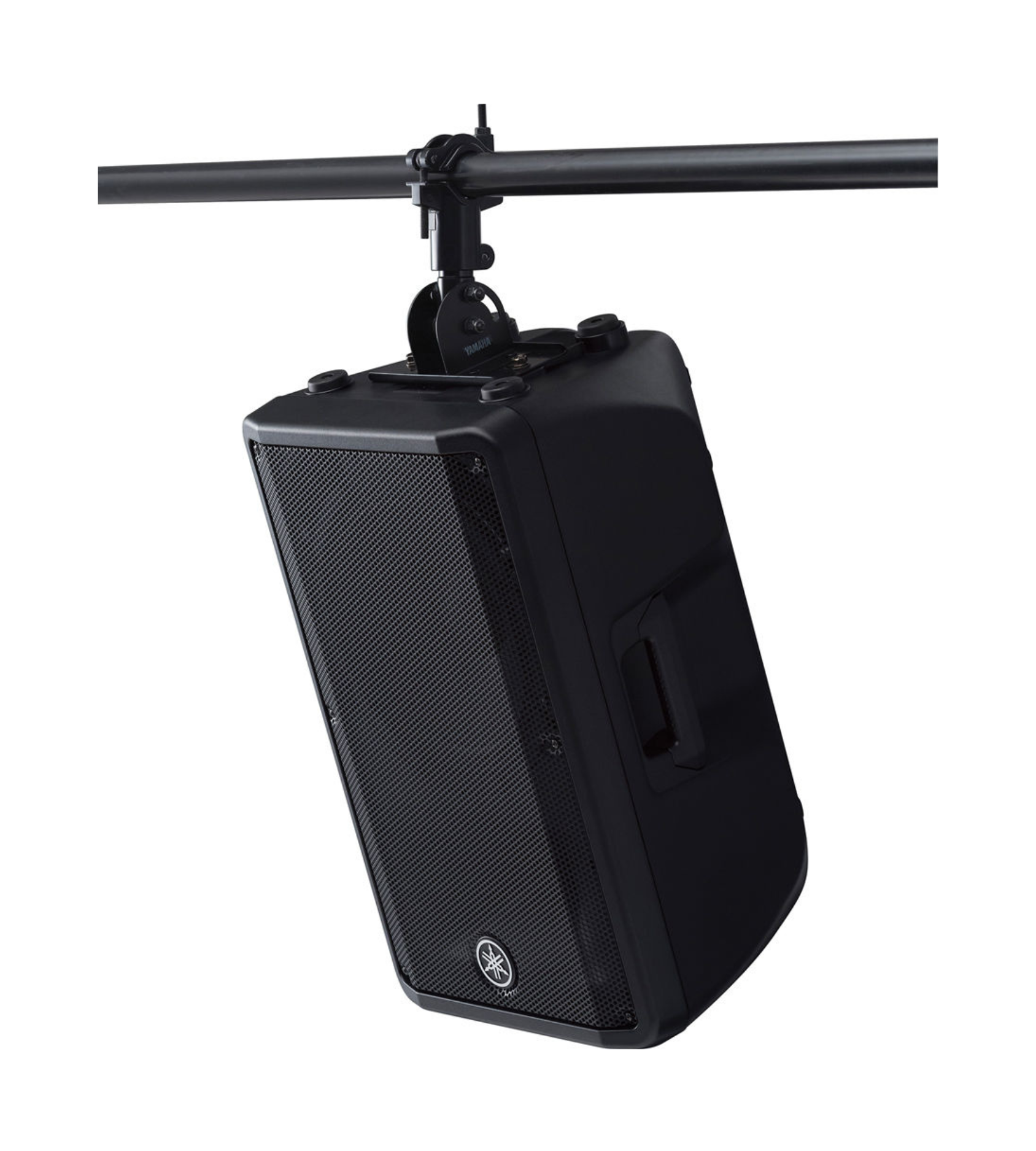

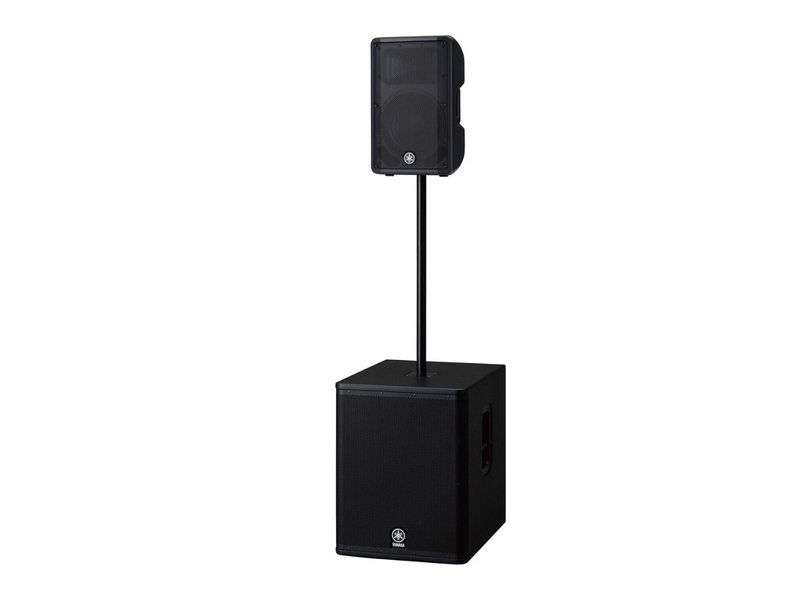

Weighing under 16 kg, the DBR12 is housed in a rugged, impact-resistant cabinet built to withstand the rigors of frequent transport and live use. Integrated handles provide easy portability, while the pole-mount socket, wedge angle, and M8 rigging points give users full flexibility for stand, floor, or flown configurations. Ideal for musicians, mobile DJs, and AV professionals, this speaker packs power, clarity, and control into a compact, gig-ready enclosure.
