Yamaha

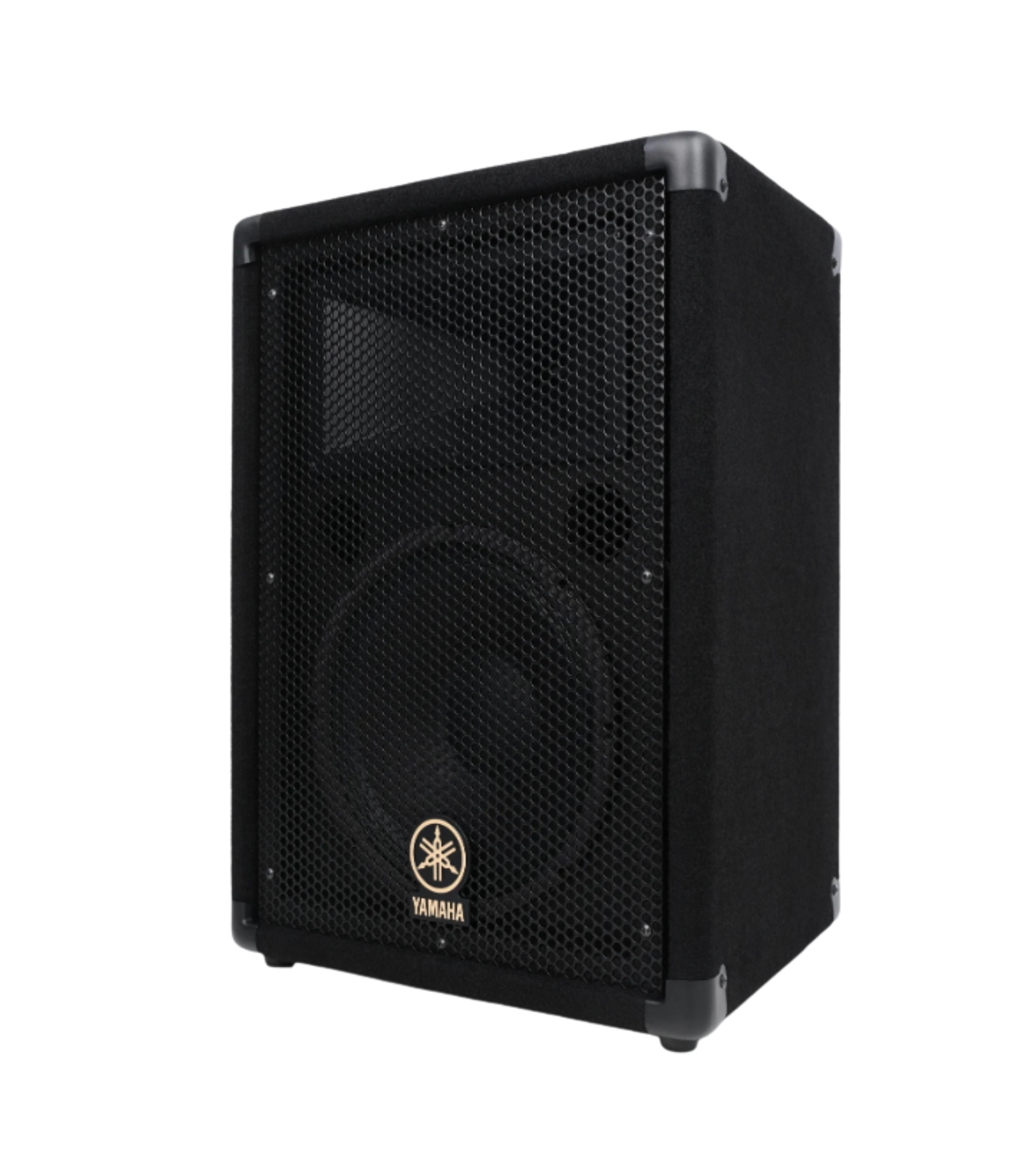

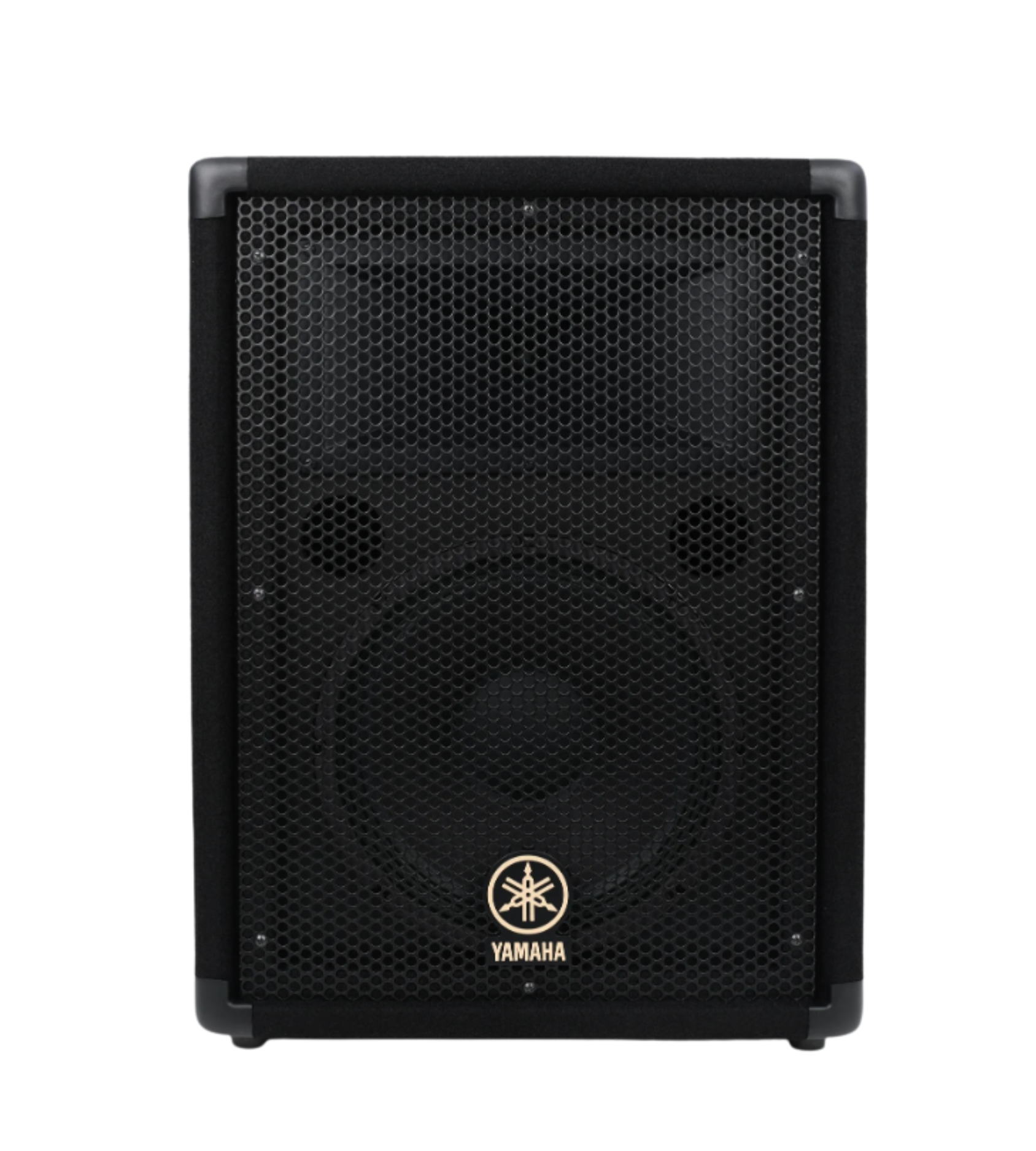

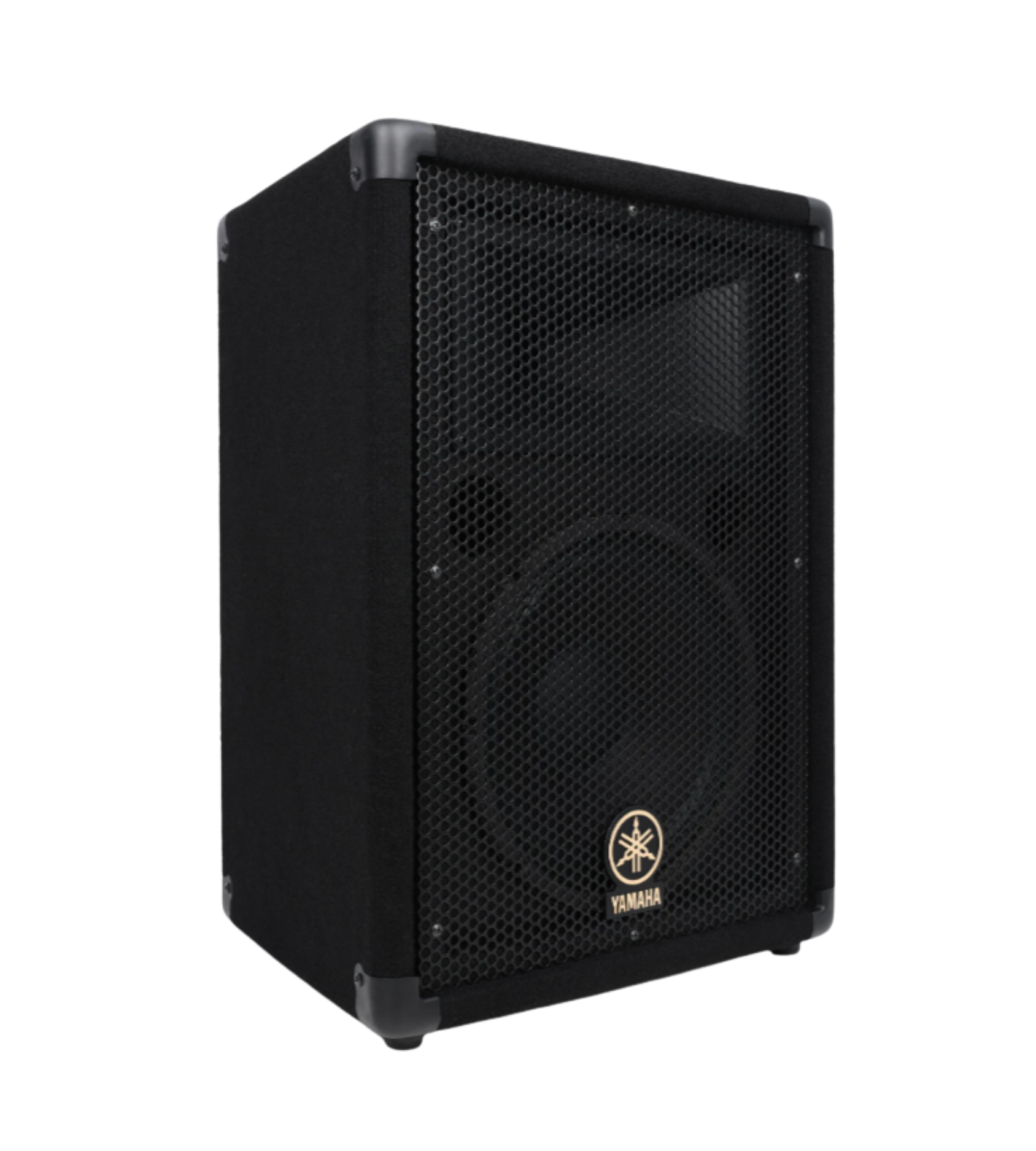

Yamaha BR10 500W 10 inch Passive Speaker

Yamaha BR10 500W 10 inch Passive Speaker

₱17,490.00 PHP
₱17,490.00 PHP
Sale Sold out

The Yamaha BR10 is a budget-friendly, 2-way passive PA speaker engineered for musicians, schools, coffee shops, and small venues. With its robust build, reliable sound, and classic sound reinforcement features, it delivers crisp highs and powerful lows in a compact, portable form factor.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

  • 2-way passive PA speaker with Bass-Reflex 10″ woofer and 1″ titanium high-frequency driver
  • Bass Reflex design for rich, full low-end response
  • Durable carpeted enclosure with steel corner protectors and heavy-duty metal handles
  • Full-face metal grille guards drivers from damage
  • Passive crossover protection circuitry safeguards the tweeter
  • Integrated pole socket for easy mounting on standard speaker stands
  • Reliable performance—ideal for rehearsals, presentations, and venues needing compact sound solutions

  • Type: 2-way bass-reflex passive speaker
  • LF Driver: 10″ cone; HF Driver: 1″ titanium compression driver with horn
  • Frequency Range (–10 dB): ~65 Hz – 20 kHz
  • Power Ratings: Noise: 125 W; Program: 250 W; Peak: 500 W
  • Nominal Impedance: 8 Ω
  • Sensitivity: ~96 dB SPL (1 W/1 m)
  • Dispersion Angle: 90° horizontal × 40° vertical

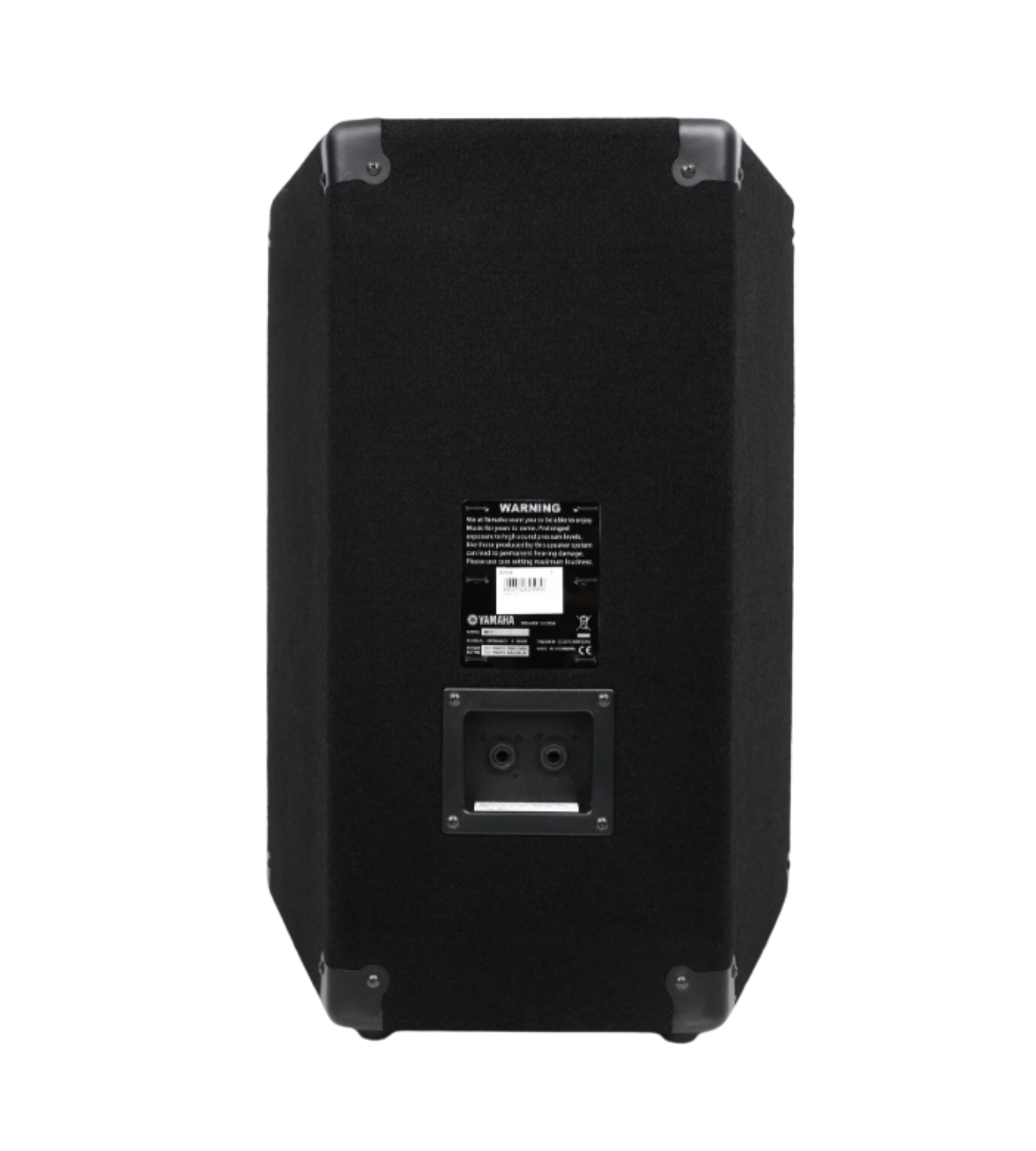

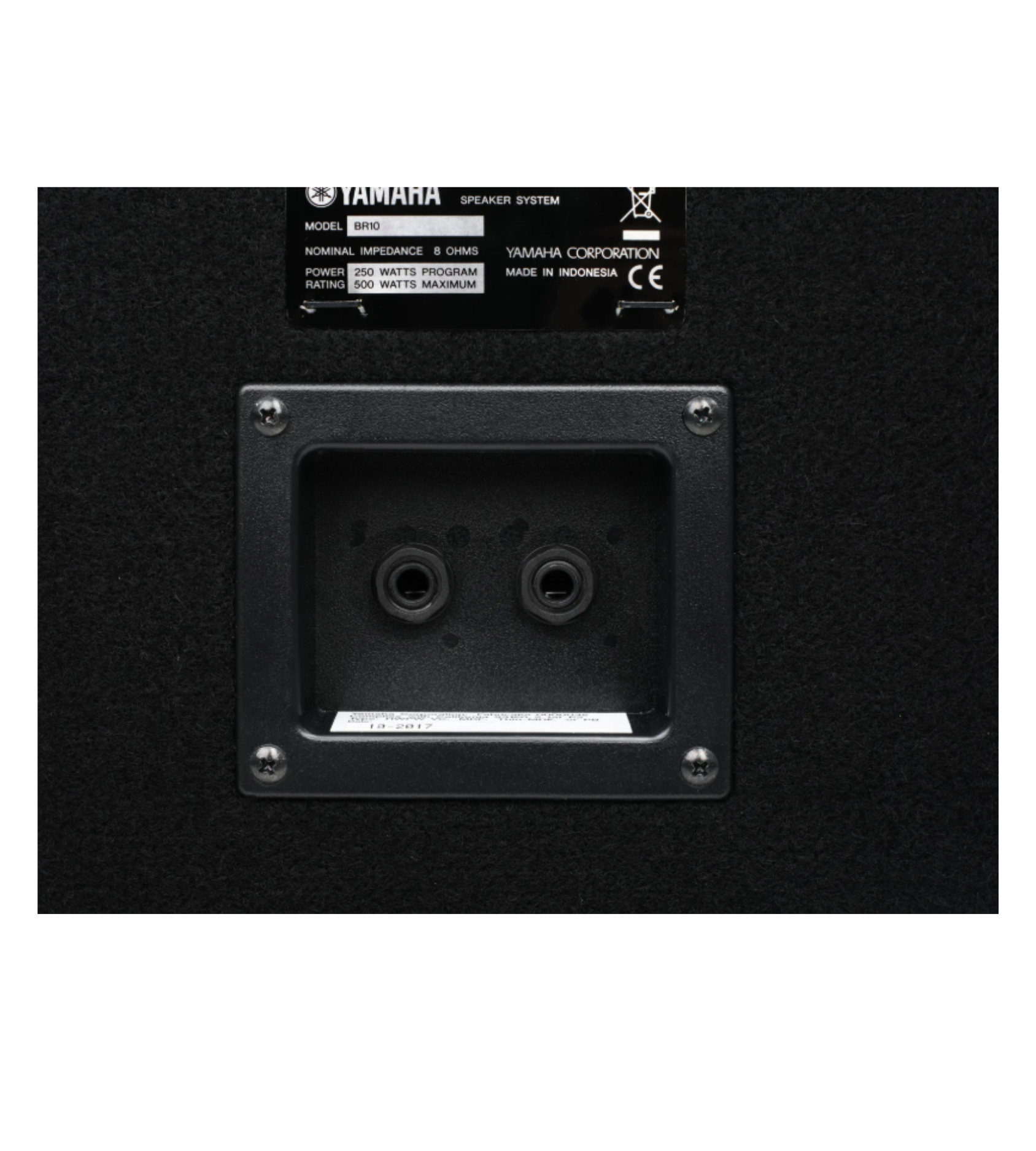

  • Inputs: Dual ¼″ (6.35 mm) phone jacks (parallel-enabled)

  • Width: 394 mm (15.5")
  • Height: 537 mm (21.1")
  • Depth: 326 mm (12.8")

  • Yamaha BR10 passive speaker cabinet
  • User manual (if provided)
  • Warranty documentation
