- 7.2-channel Class AB amplification (100 W per channel, 8 Ω, 20 Hz–20 kHz at 0.06% THD)
- Support for Dolby Atmos, DTS:X, Dolby TrueHD, Dolby Digital Plus, Cinema DSP 3D
- HDMI 2.1 video: 7 inputs, 1 output—supports 4K/60, 8K/60B, 4K/120AB (HDMI 1-3), HDR10, HDR10+, Dolby Vision, VRR, ALLM, eARC
- YPAO room calibration with Reflected Sound Control (R.S.C.) and Multi-Point measurement
- MusicCast multi-room audio, Wi-Fi (2.4/5 GHz), Ethernet, Bluetooth (SBC/AAC), AirPlay 2
- Front USB-A, Phono input, FM/AM tuner, Zone 2 preout + powered output, 12 V trigger
- App and Voice control (MusicCast Controller, Alexa, Google Assistant)
- Advanced audio processing: SP/DAC (384 kHz/32-bit), Pure Direct, Compressed Music Enhancer
- Amplifier: 7 channels, 100 W each (8 Ω, 2ch driven, 20 Hz–20 kHz, 0.06% THD)
- Audio Decoding: Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio, Cinema DSP 3D
- HDMI Inputs/Outputs: 7/1 with 8K/60B, 4K/120AB (via firmware), eARC, HDR formats
- Audio Formats: MP3, WMA, AAC (48 kHz), ALAC (96 kHz), FLAC/WAV/AIFF (up to 384 kHz), DSD (up to 11.2 MHz)
- Digital-to-Analog Converter: 384 kHz/32-bit BB PCM5102A
- Network & Streaming: MusicCast, Wi-Fi, Bluetooth, AirPlay 2, Ethernet
- Calibration: YPAO R.S.C. with multiple measurement points
- Zones: Zone 2 preout and powered output
- Power Consumption: Standby 0.1 W; typical idle & full operation vary

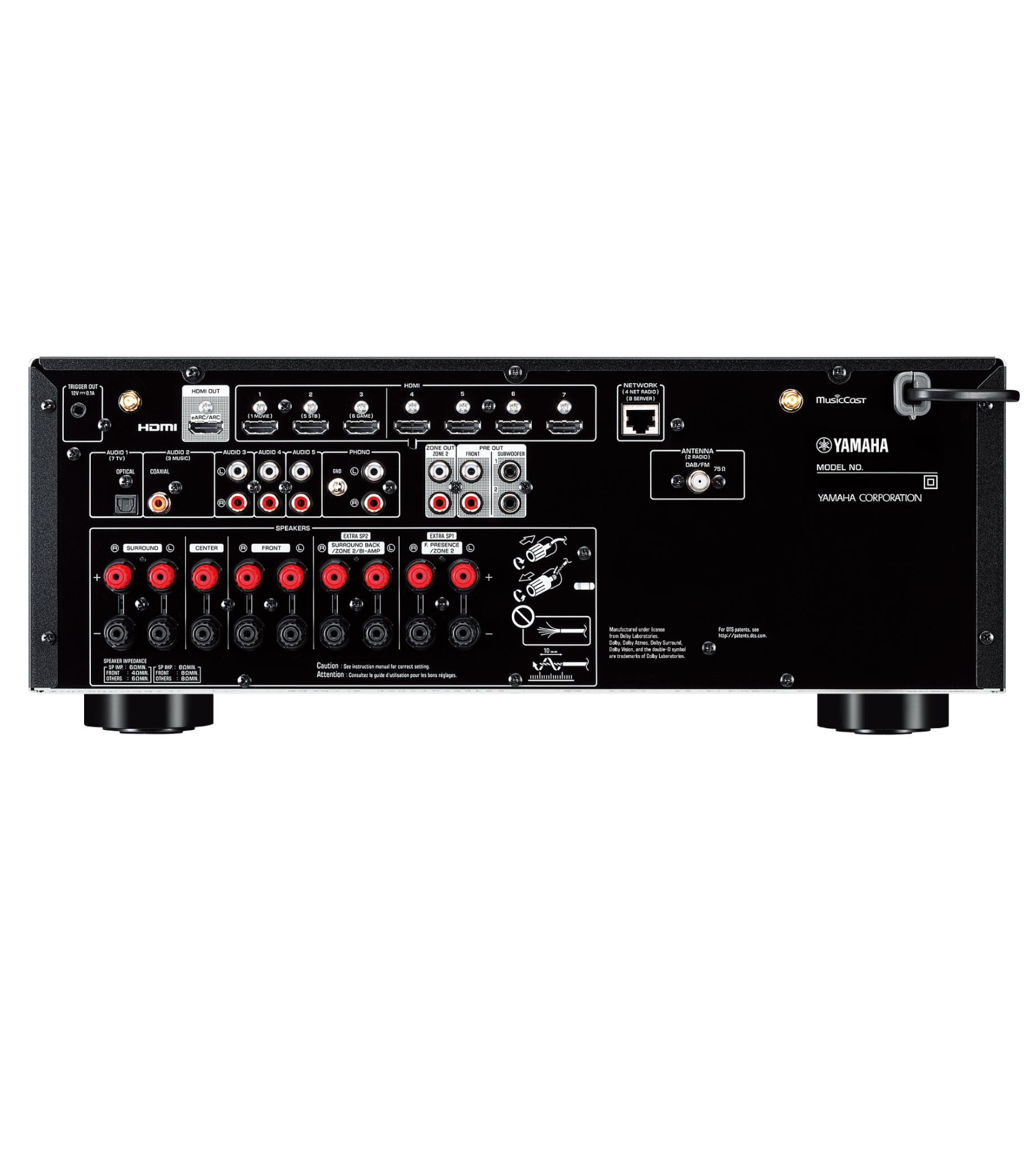

- Interfaces: Phono, USB-A front, FM/AM, antennas, HDMI, analog/digital audio inputs
435 × 245 × 377 mm (17-1/8″ × 9-5/8″ × 14-7/8″)

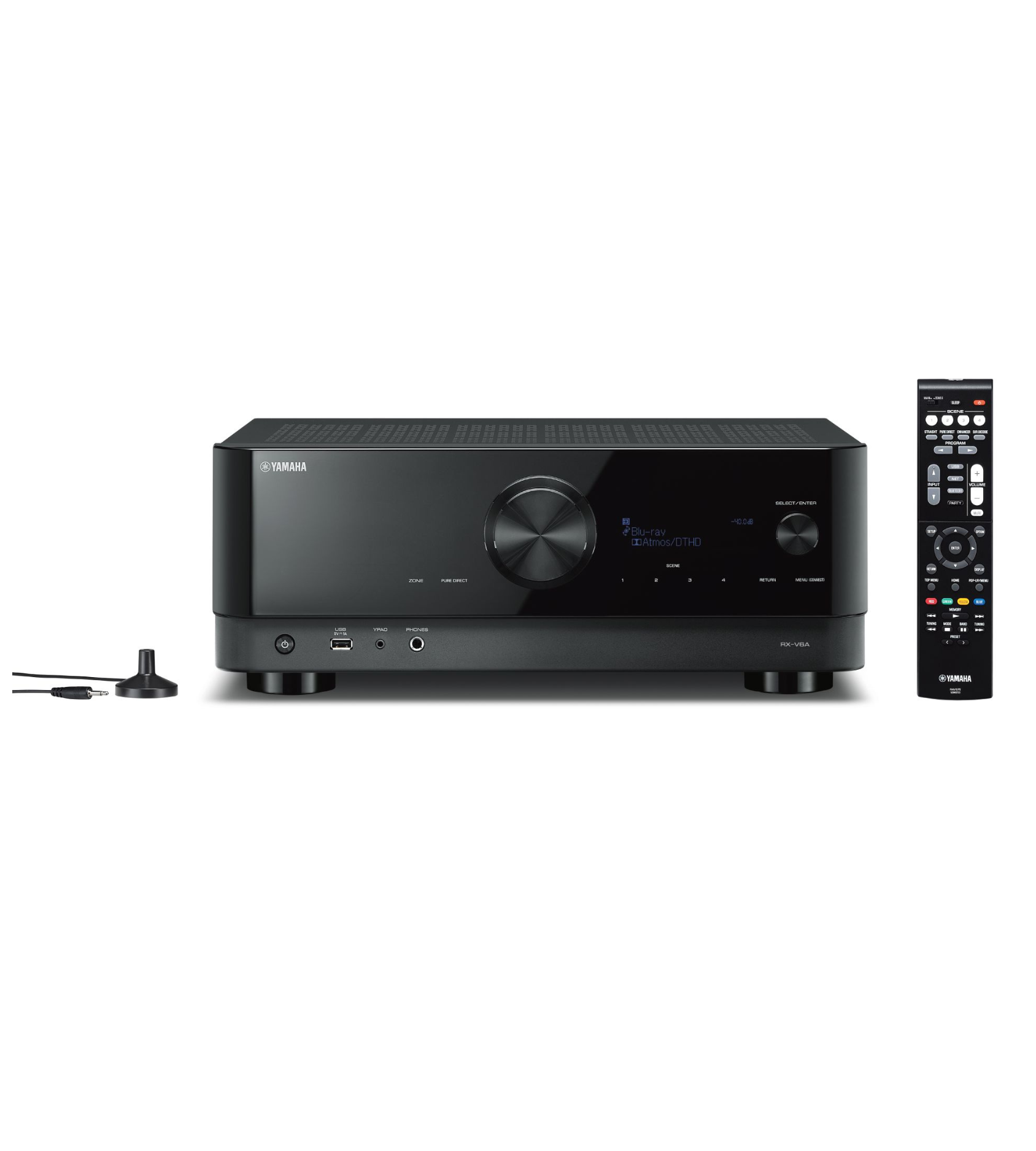

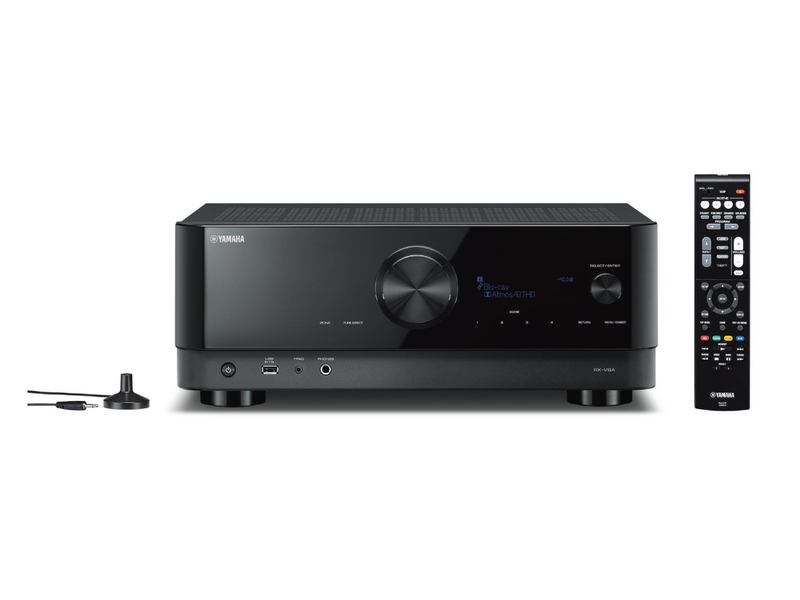

- Yamaha RX-V6A AV receiver unit
- Remote control (RAV575)
- 2 × AAA batteries
- YPAO calibration microphone
- FM antenna (wire)
- AM loop antenna
- Quick Start Guide, Safety brochure, Warranty & registration materials
Cinematic Surround Sound and Immersive Audio
The Yamaha RX-V6A redefines home entertainment with its powerful 7.2-channel output and support for Dolby Atmos and DTS:X. These cutting-edge formats, combined with Yamaha’s Cinema DSP 3D and YPAO multi-point room calibration, deliver a rich, theater-like audio experience tailored precisely to your space. Whether you're watching blockbuster movies or enjoying live concert recordings, this receiver captures every detail and spatial nuance, surrounding you with immersive, high-resolution sound.
Future-Ready Video and Gaming Technology
Equipped with HDMI 2.1 and support for 8K/60Hz and 4K/120Hz passthrough, the RX-V6A is designed for next-gen visuals and gaming. Gamers will appreciate features like ALLM (Auto Low Latency Mode) and VRR (Variable Refresh Rate), which provide ultra-smooth performance and reduced input lag. With compatibility for HDR10+, Dolby Vision, and HLG, your content looks more vibrant and lifelike, ensuring a truly cinematic experience right from your living room.
