- Features
- Specifications
- Dimensions
- Whats in the box
- 7.2-channel Class-AB high-slew-rate amplification, 100 W per channel (8 Ω, 20 Hz–20 kHz, 0.06% THD)
- Immersive audio: Dolby Atmos, DTS:X, Dolby Atmos Height Virtualization, Cinema DSP 3D, Virtual Presence/Surround Back, Dialogue Lift
- Surround:AI automatic sound optimization
- Scene PLUS integration, App & Web control, remote control, SCENE presets (8 sets)
- Rich video support: HDMI 2.1 (7 in / 1 out) with 4K/60, 4K/120 AB, 8K/60 B, HDR10, HDR10+, Dolby Vision, Hybrid-Log Gamma, BT.2020, VRR, ALLM, eARC
- YPAO R.S.C. room calibration with multipoint measurement, Adaptive DRC
- MusicCast multi-room audio, Wi-Fi (2.4/5 GHz), Bluetooth, AirPlay 2, Spotify Connect
- Includes phono input (MM), AM/FM tuner, 12V trigger output, IR in/out
- Supports Sonos Port integration and MusicCast Surround wireless speakers
- Build: AVENTAGE anti-resonance chassis, high-grade components, graphical on-screen GUI
Technical Specifications
- Rated Power: 7.2-channel amplifier, 100 W × 2 channels (8 Ω)
- Supported Surround Formats: Dolby Atmos, DTS:X, Dolby TrueHD, DTS-HD Master Audio
- Video Support: HDMI 2.1 for 8K60B, 4K120AB with HDCP 2.3, Dolby Vision, HDR10+, HLG
- Calibration: YPAO with Reflected Sound Control and multipoint measurement
- Streaming & Networking: Wi‑Fi, Ethernet, Bluetooth, AirPlay 2, MusicCast, voice control via Alexa/Google/Siri

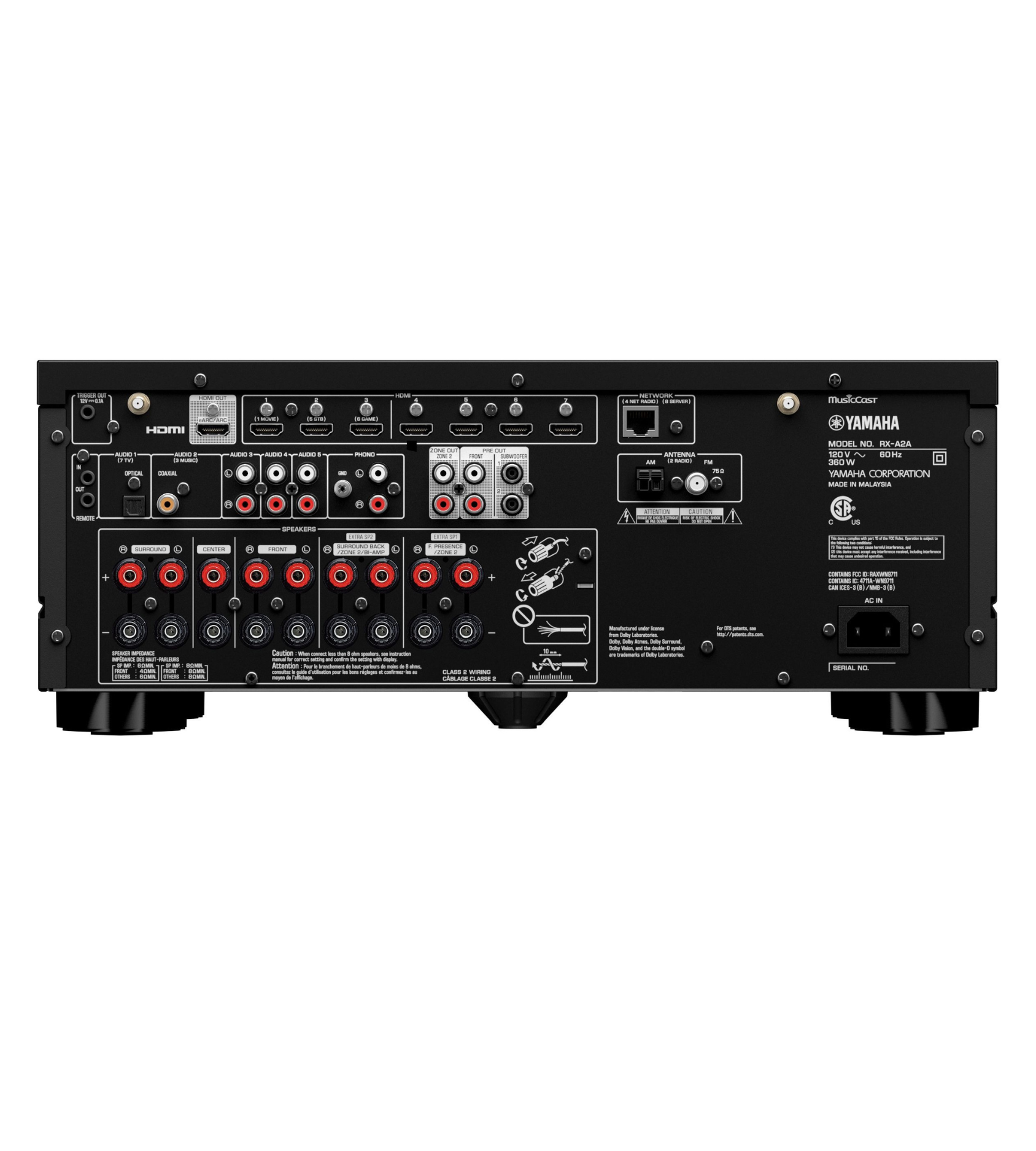

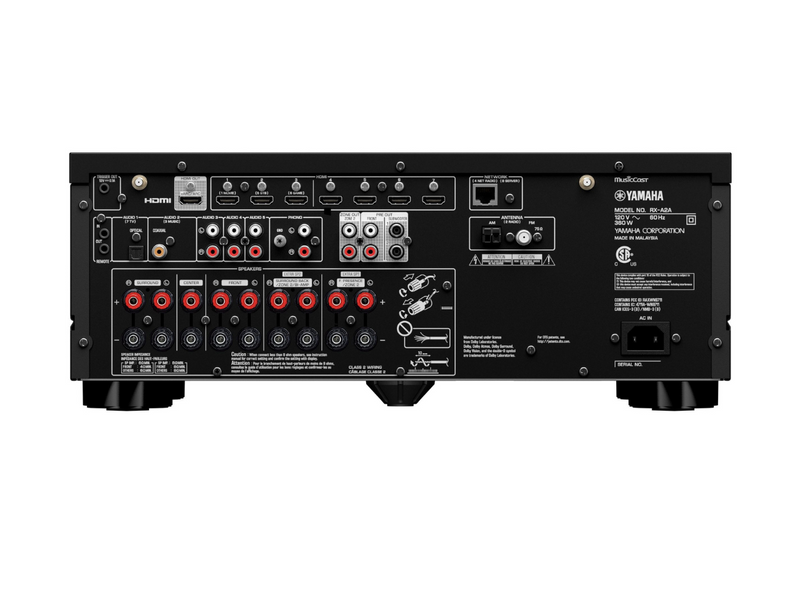

- Inputs/Outputs: 7 HDMI inputs, 1 HDMI output, phono MM, USB, optical/analog inputs, zone 2 pre-outs & speaker terminals
Unit (without antennas): 43.5 × 17.1 × 37.2 cm
With antennas upright: 43.5 × 24.5 × 37.2 cm

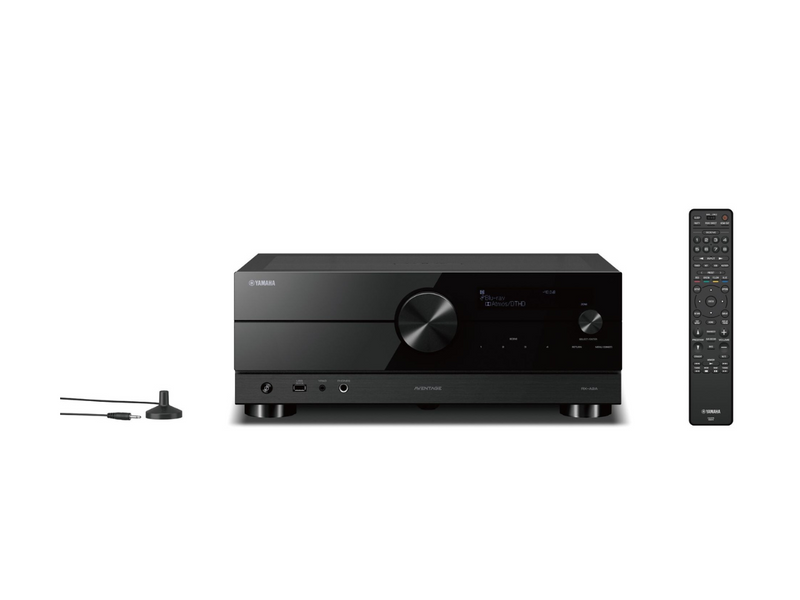

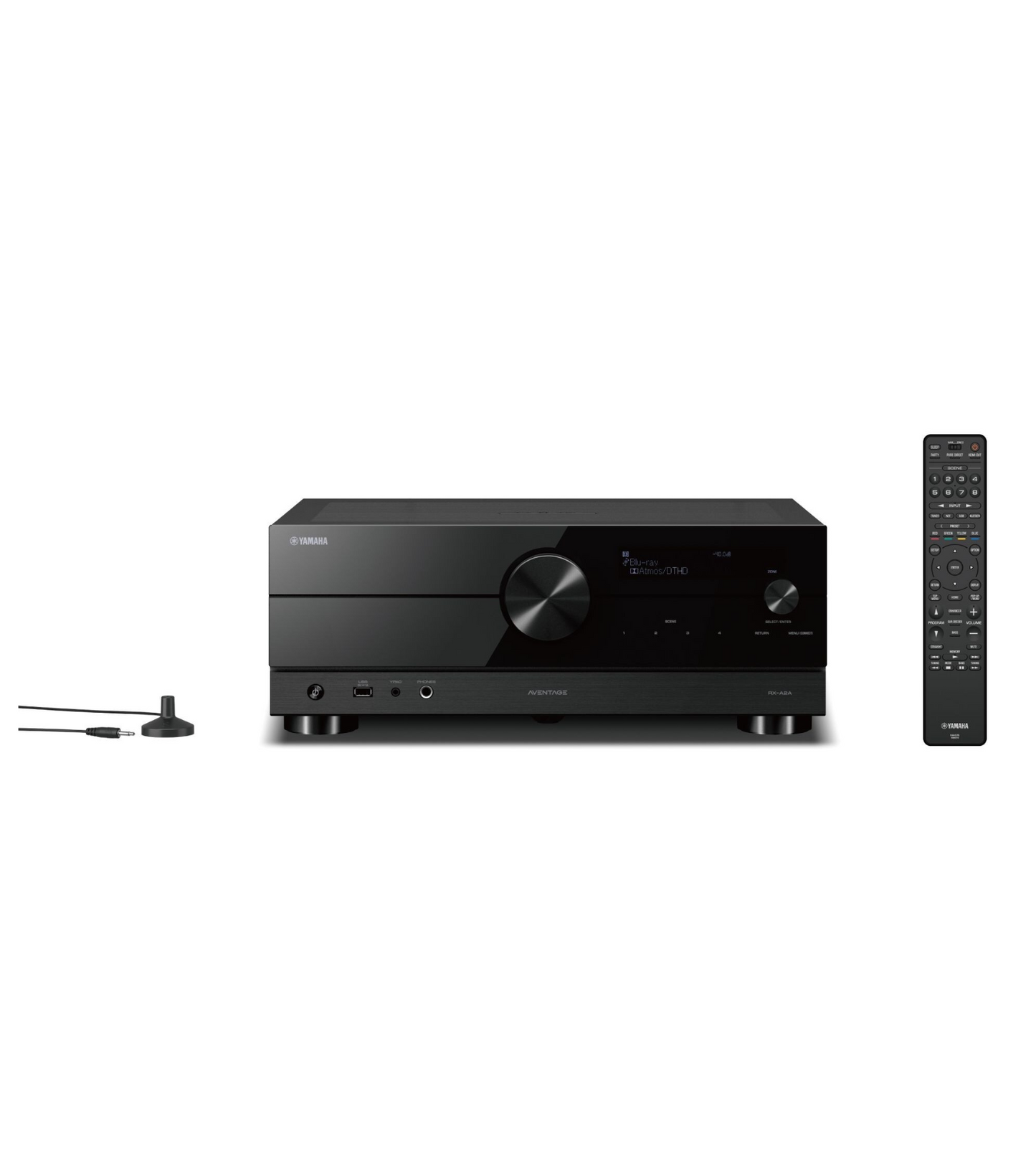

- Yamaha RX-A2A AV receiver unit
- Remote control (RAV576) + 2 × AAA batteries
- YPAO calibration microphone
- 2 × Wi-Fi/Bluetooth antennas (pre-installed)
- FM wire antenna
- AM loop antenna
- AC power cord
- Quick Start Guide, Safety brochure, Warranty & Registration materials
Immersive Sound with Advanced Surround Processing
The Yamaha RX-A2A delivers an exceptional home theater experience with support for Dolby Atmos and DTS:X, enveloping listeners in rich, multidimensional sound. Its 7.2-channel high-slew-rate amplifier provides 100 watts per channel, ensuring clarity and power across every frequency. Whether you're watching an action-packed film or listening to orchestral music, the RX-A2A produces a full-bodied and lifelike audio experience.
Cutting-Edge Video and Gaming Features
Equipped with HDMI 2.1 support, the RX-A2A is ready for the next generation of video and gaming. It allows for stunning 8K/60Hz and 4K/120Hz passthrough, plus features like VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport), making it perfect for gamers seeking responsive and smooth visuals. With HDR10+, Dolby Vision, and eARC support, you get a truly cinematic viewing experience with vivid color and crystal-clear audio sync.
