- Features
- Specifications
- Dimensions
- Whats in the box
- Low-profile boundary layer condenser microphone
- Hand-crafted 1/2-inch true-condenser sE8 omni capsule
- Omnidirectional polar pattern
- Transformerless Class-A circuitry
- High sensitivity and low-noise electronics
- Switchable Classic and Modern character voicings
- Switchable 80 Hz and 160 Hz low-cut filter
- Switchable 10 dB and 20 dB attenuation pad
- Gold-plated XLR connector
- Rugged all-metal housing
- Compatible with the sE8 cardioid capsule for interchangeable capsule options
- Suitable for on-stage miking, grand piano, boardroom speech, and room ambience
| Specification | Detail |
|---|---|
| Microphone Type | Small-Diaphragm True Condenser Boundary Microphone |
| Capsule | Hand-crafted Small-Diaphragm True-Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 20 Hz – 20 kHz |
| Sensitivity | 50 mV/Pa (-26 dBV) |
| Maximum SPL | 143 / 153 / 163 dB SPL (0 / 10 / 20 dB attenuation pad) |
| Equivalent Noise Level | 14 dB(A) |
| Dynamic Range | 129 / 139 / 149 dB (0 / 10 / 20 dB attenuation pad) |
| Signal-to-Noise Ratio | 86 dB |
| Low-Cut Filter | 80 / 160 Hz, 6 dB/octave, switchable |
| Attenuation Pad | 10 / 20 dB, switchable |
| Power Requirement | 48 V Phantom Power according to IEC 61938 |
| Electrical Impedance | 60 Ohms |
| Recommended Load Impedance | >1 kOhms |
| Current Consumption | 5.0 mA |
| Connector | 3-pin Male XLR |
| Microphone Length | 139 mm |
| Microphone Width | 95 mm |
| Microphone Height | 28.5 mm |
| Microphone Weight | 538 g |
Boxed dimensions: Not officially specified by sE Electronics.

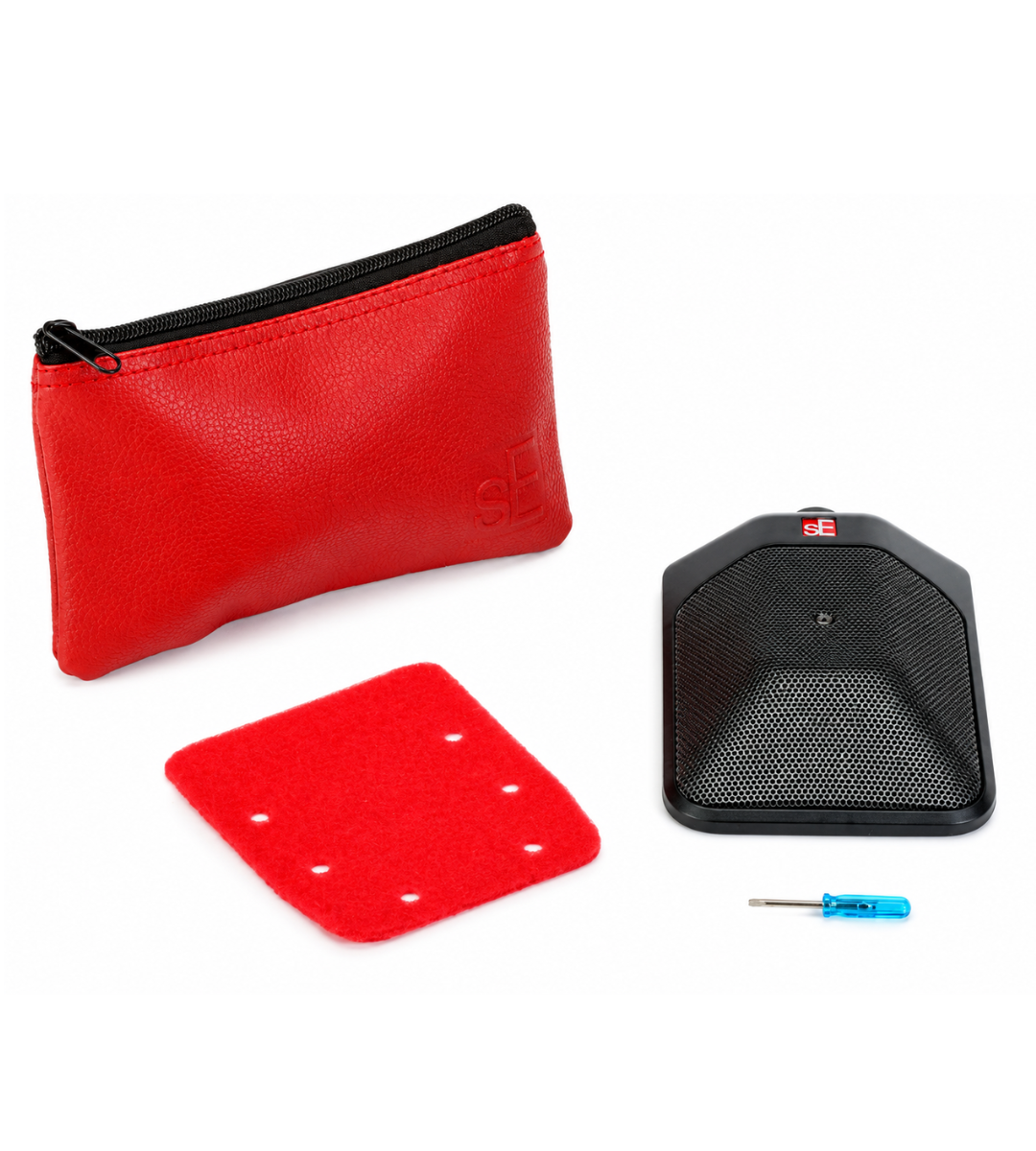

- BL8 omni microphone
- Pouch
- sE logo sticker
- Quick start guide
- User manual with warranty card
