- 61 full‑size velocity‑sensitive synth keys for expressive play
- Over 1,600 onboard tones including pianos, basses, synths, orchestral, and world instruments
- Support for World Expansion titles via Roland Cloud for global instrument sounds
- Audio Player with independent pitch and tempo control for backing tracks
- 8 phrase pads for triggering samples, rhythm parts, or sequencer clips
- 8‑track step sequencer for building arrangements directly on the keyboard
- Class‑compliant USB‑C audio/MIDI interface for DAW recording and control
- Ergonomic panel with intuitive controls for live performance and editing
- Lightweight, portable design with rugged construction
| Specification | Detail |
|---|---|
| Keyboard | 61 keys, velocity‑sensitive |
| Maximum Polyphony | 256 voices |
| Tones / Presets | 1,600+ onboard tones |
| Drum Kits | 55+ |
| Expansion | EXZ World Expansion Series (up to 3 slots) |
| User Sample Memory | Approx. 12 minutes (WAV import) |
| Scenes | 1,600+ preset, 256 user, 100 favorites |
| Effects | Multi‑Effects, EQ, Chorus, Reverb |
| Sequencer | 8 tracks, up to 64 steps |
| Controllers | Pitch Bend/Mod lever, 4 sliders, 8 pads |
| Display | Graphic LCD |

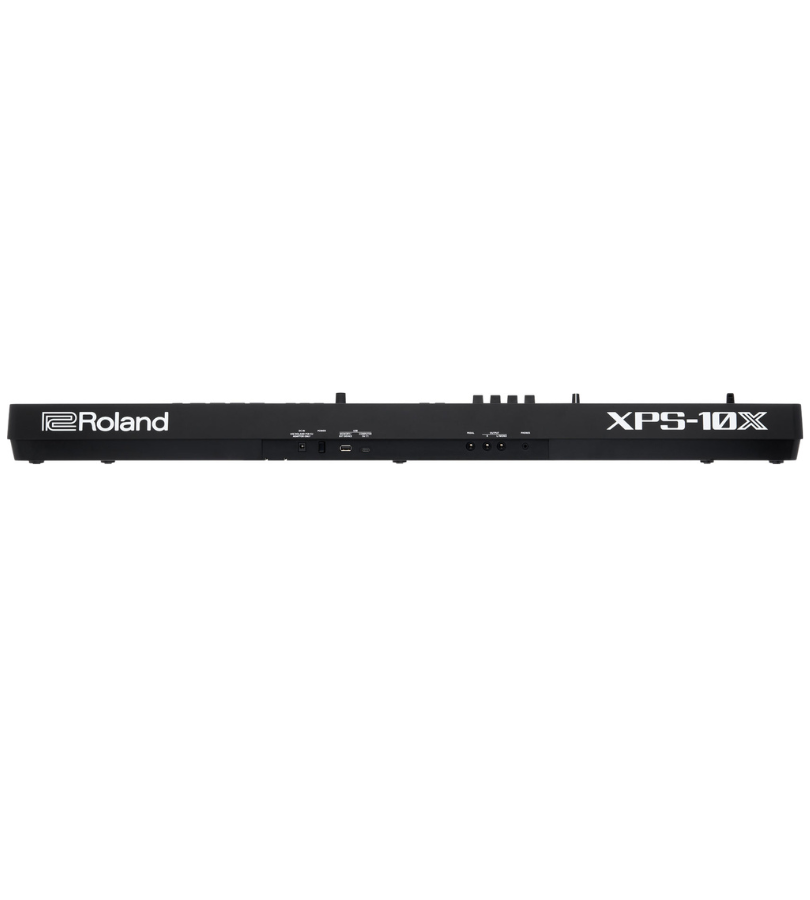

| Connectors | Headphones, L/Mono & R outputs, pedal jack, USB‑C (Audio/MIDI), USB‑A |
| Power Supply | AC adaptor or USB‑C (bus power supported) |
| Dimensions (W × D × H) | 1,002 × 268 × 93 mm |
| Net Weight | 4.6 kg |
Approximate boxed dimensions: 110 × 35 × 17 cm (manufacturer packaging may vary)

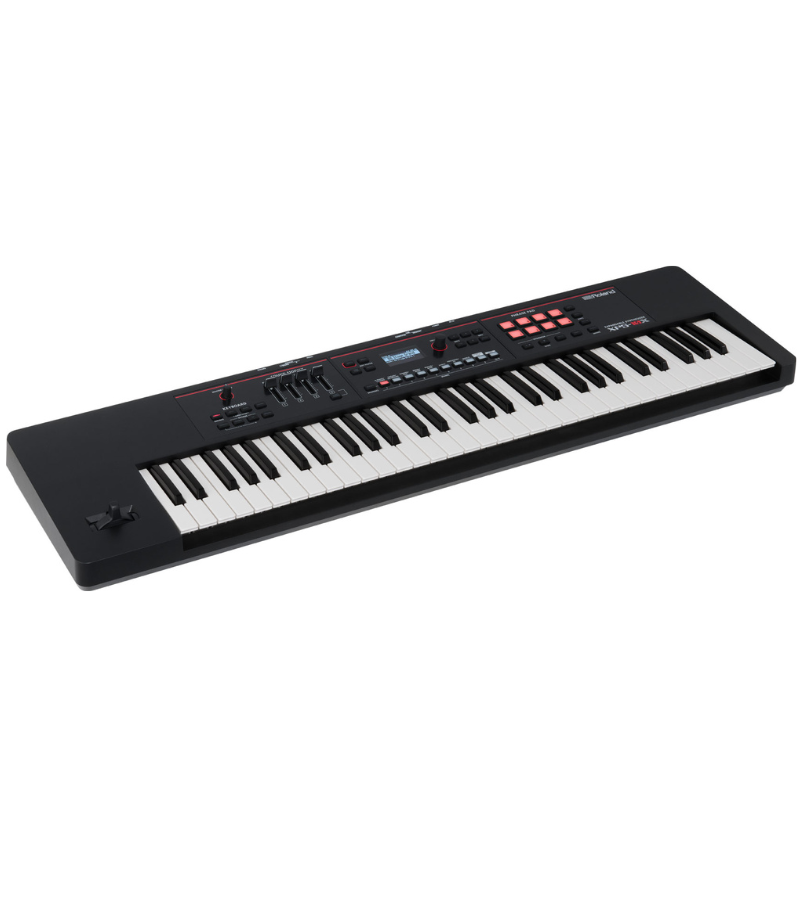

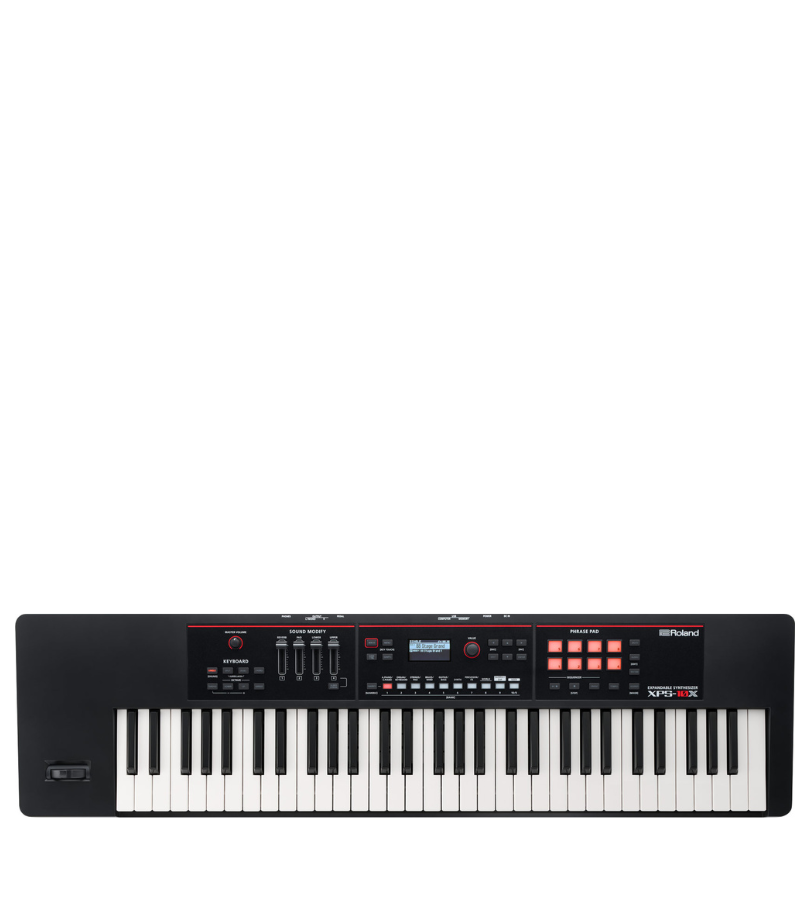

- Roland XPS‑10X Expandable Synthesizer keyboard
- AC power adaptor (PSB‑5U)
- Power cord
- Startup guide and safety leaflet
