- Converts stereo line-level signals to balanced, low-impedance XLR outputs for clean long-distance transmission.
- Multiple input options including 1/4", 3.5 mm, and RCA for versatile connectivity with multimedia devices.
- Active circuitry powered by +48 V phantom power eliminates the need for batteries or external adapters.
- -15 dB pad switch prevents distortion when handling high-output audio sources.
- Ground lift switch removes hum caused by ground loops in complex audio setups.
- Parallel throughput connectors allow simultaneous signal routing to amplifiers or monitors.
- Rugged metal enclosure with protective bumpers ensures durability for stage and studio use.
| Product Type | Active stereo direct box |
| Application | Computers, smartphones, keyboards, DJ equipment, multimedia sources |
| Inputs | 2 × 1/4" TS, 1 × 3.5 mm TRS, stereo RCA |
| Outputs | 2 × XLR (balanced, isolated) |
| Through Output | Stereo RCA thru |
| Input Impedance | 50 kΩ |
| Output Impedance | 600 Ω |
| Frequency Response | 10 Hz – 40 kHz |
| Pad | -15 dB |
| Ground Lift | Yes |
| Polarity Switch | Yes |
| Power Requirement | 48 V phantom power |
| Construction | Metal with nylon bumpers |
| Dimensions | 15.2 × 8.9 × 3.8 cm |
| Net Weight | 0.3 kg |
Approx. 17.5 × 14.7 × 7.4 cm
Boxed product weight: Approx. 0.46 kg

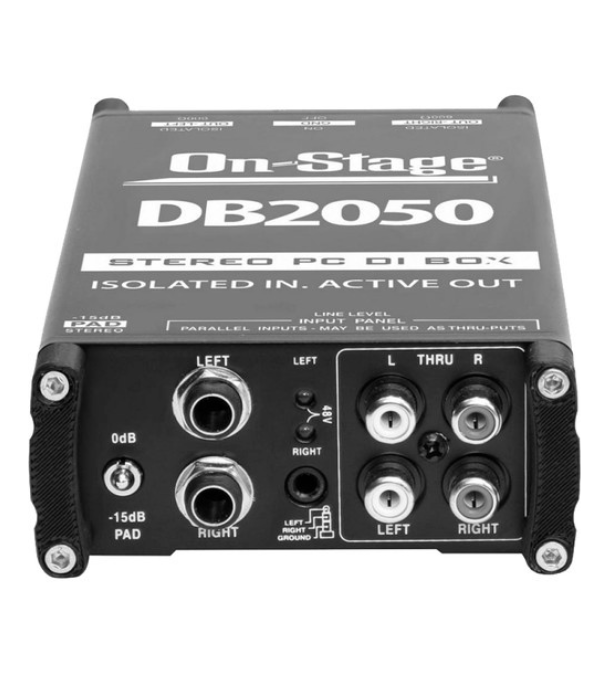

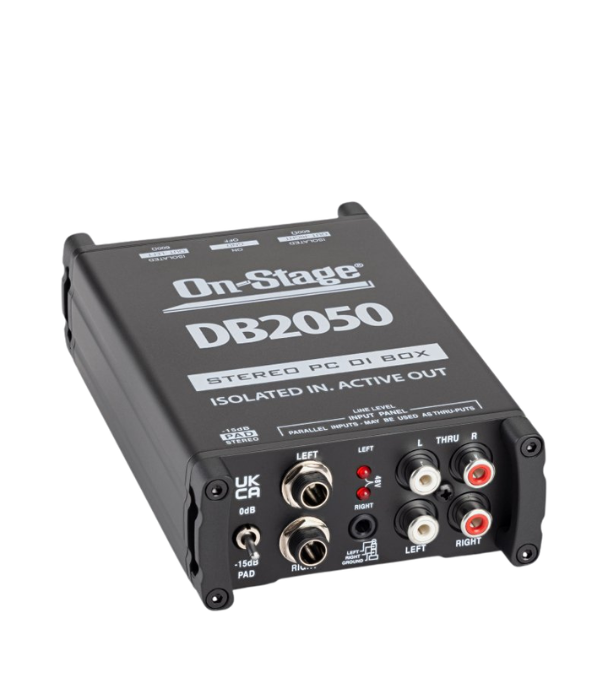

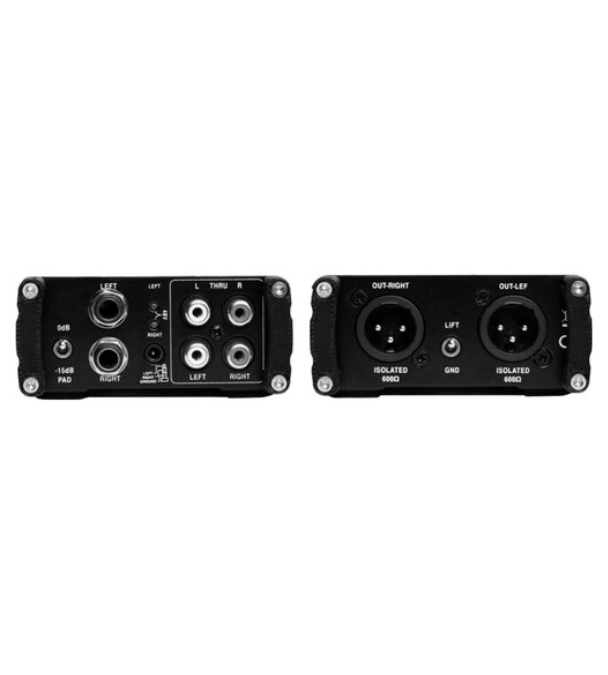

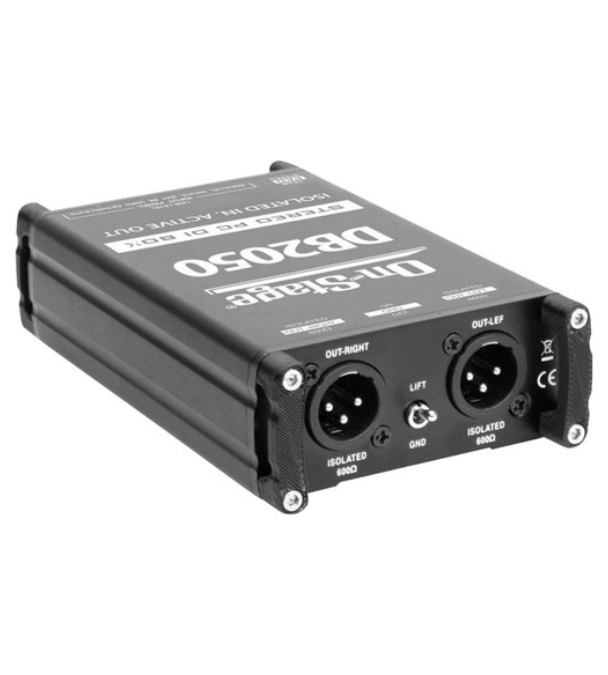

- On-Stage DB2050 Active Stereo Multimedia Direct Box
