- Specifications
| Model No. | PQ-12D |
|---|---|
| Type | 12" 2-way full range speaker box |
| Frequency Response (-6dB) | 50 Hz - 20 kHz |
| Max. SPL (1m, free space) | 124 dB |
| Power Output (RMS) | 400W |
| Impedance | 4 Ohms |
| Transducer HF | 1.34" Ti. Diap driver |
| Transducer LF | 12" woofer, 2.5" voice coil |
| Amplifier | Class-D 2-way amplifier |
| DSP Module | DSP-100, 96 kHz, 24-bit DSP processor (Music, Live, Speech, Flat) |
| Protection | Short circuit, overheating, over-current, soft boot, LCC, PFC |

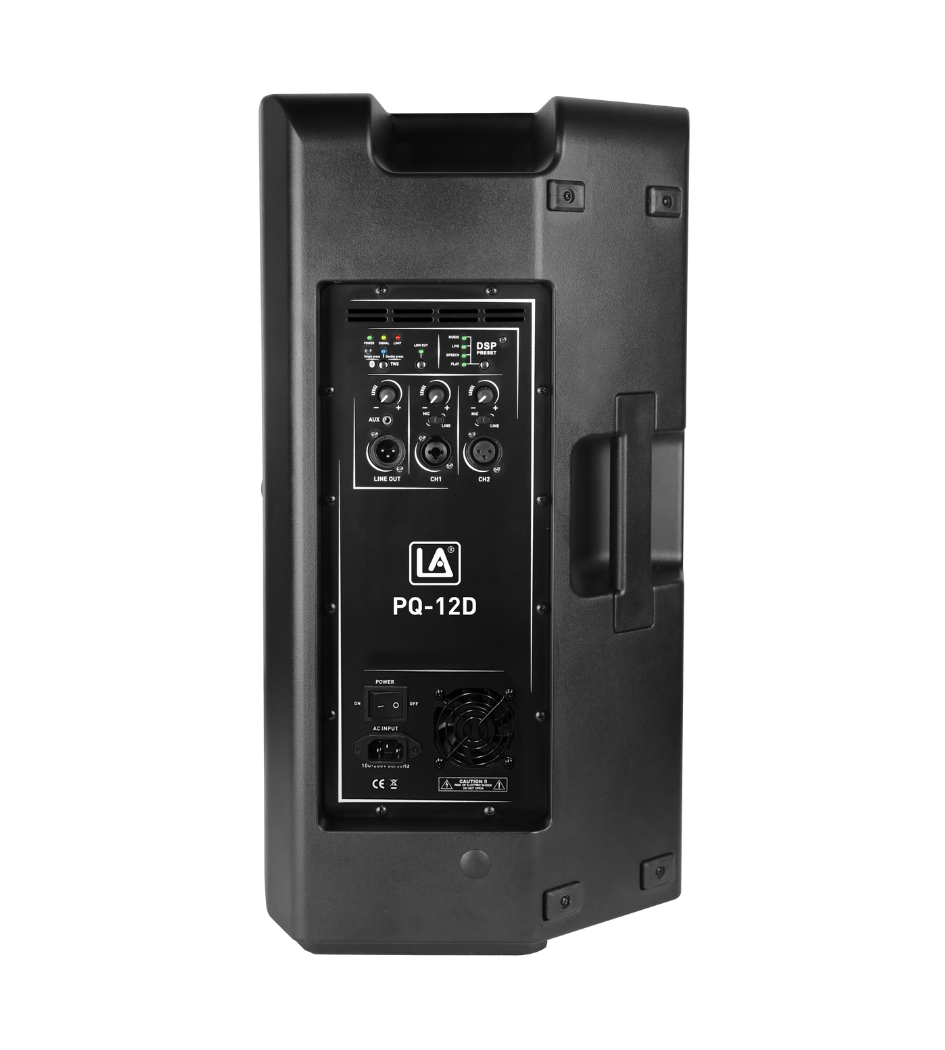

| Controls | Power On/Off, DSP modes, line level, mic/line switch |
| Indicators | Signal, limit, DSP modes |
| Audio Input / Output | 1* Combo XLR/Jack, 1* XLR In, 1* Aux Line In, 1* XLR Out |
| Optional Function | Bluetooth 5.2 + TWS |
| Power Supply | 100~260V 60/50 Hz |
| Enclosure | H-PP with painting, 35mm stand pole, top + side handles |
| Grille | Metal grille with acoustic fabric |
