- Bluetooth® audio streaming for background music or performance use :contentReference[oaicite:1]{index=1}
- QuickSmart DSP with 4 factory presets, system-match, 2-band EQ, and 5 user memories :contentReference[oaicite:2]{index=2}
- 1,000 W Class-D amplifier delivering up to 127 dB peak SPL :contentReference[oaicite:3]{index=3}
- SST (Signal Synchronized Transducers) waveguide for consistent 90° × 60° coverage :contentReference[oaicite:4]{index=4}
- Three built-in handles and a rugged polypropylene cabinet for easy transport :contentReference[oaicite:5]{index=5}
- 4-channel input mixer (2 XLR/TRS, 3.5 mm aux) plus XLR link output :contentReference[oaicite:6]{index=6}
- LCD screen for live DSP parameter control
| Specification | Detail |
|---|---|
| Frequency Response (-3 dB) | 55 Hz – 18 kHz :contentReference[oaicite:7]{index=7} |
| Frequency Range (-10 dB) | 42 Hz – 20 kHz :contentReference[oaicite:8]{index=8} |
| Max SPL | 127 dB :contentReference[oaicite:9]{index=9} |
| Power Rating | 1,000 W Class-D :contentReference[oaicite:10]{index=10} |
| LF Driver | EVS-15K, 15″ woofer :contentReference[oaicite:11]{index=11} |
| HF Driver | DH-1K compression driver :contentReference[oaicite:12]{index=12} |
| Coverage (H × V) | 90° × 60° :contentReference[oaicite:13]{index=13} |
| Connectors | 2 × XLR/TRS combo, 1 × 3.5 mm aux in, 1 × XLR link out :contentReference[oaicite:14]{index=14} |
| Enclosure | Polypropylene composite :contentReference[oaicite:15]{index=15} |
| Grille | 18-gauge steel, black powder coat :contentReference[oaicite:16]{index=16} |
| Dimensions (H × W × D) | 685 × 426 × 383 mm :contentReference[oaicite:17]{index=17} |
| Net Weight | 17.3 kg (38 lb) :contentReference[oaicite:18]{index=18} |
| Power Consumption | 100–240 V~, 50–60 Hz, 0.8–0.5 A :contentReference[oaicite:19]{index=19} |
Boxed dimensions: approximately 685 × 426 × 383 mm

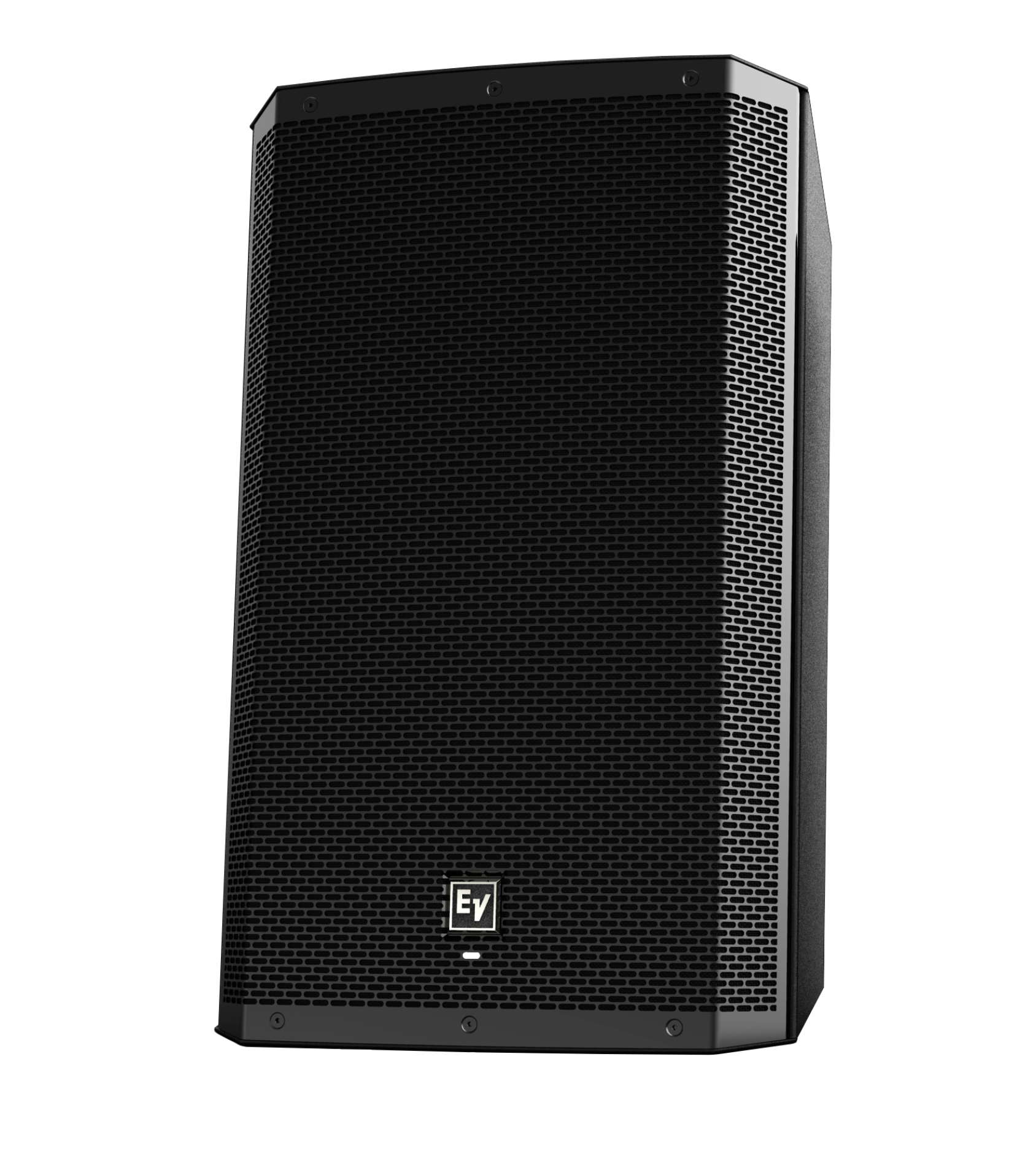

- ZLX-15BT powered speaker
- Power cable
- User manual
