- 18″ EVS-18K low-frequency driver
- 134 dB max SPL (1 m) capability
- 400 W continuous / 1600 W peak power handling
- 9-ply, 15 mm internally-braced plywood enclosure with textured finish
- Dual NL4 speakON connectors for secure connections
- Integrated handles for transport and stacking / pole-mount compatibility
- Supplemental bass support for ELX full-range speakers
| Specification | Detail |
|---|---|
| Woofer | 1 × 18" EVS-18K |
| Frequency Response (-3 dB) | 50 Hz – 100 Hz |
| Frequency Range (-10 dB) | 35 Hz – 200 Hz |
| Sensitivity (1 W / 1 m) | 96 dB |
| Power Handling (Continuous / Peak) | 400 W / 1600 W |
| Maximum SPL (Calculated) | 134 dB |
| Nominal Impedance | 8 Ω |
| Minimum Impedance | 6.7 Ω |
| Connectors | Dual NL4 speakON |
| Cabinet Material | 9-ply, 15 mm plywood, braced |
| Grille | 18 ga steel, black powder-coat |
| Dimensions (H × W × D) | 661 × 507 × 574 mm |
| Weight (Net) | approx. 30.6 kg |
Boxed dimensions: ~661 × 507 × 574 mm

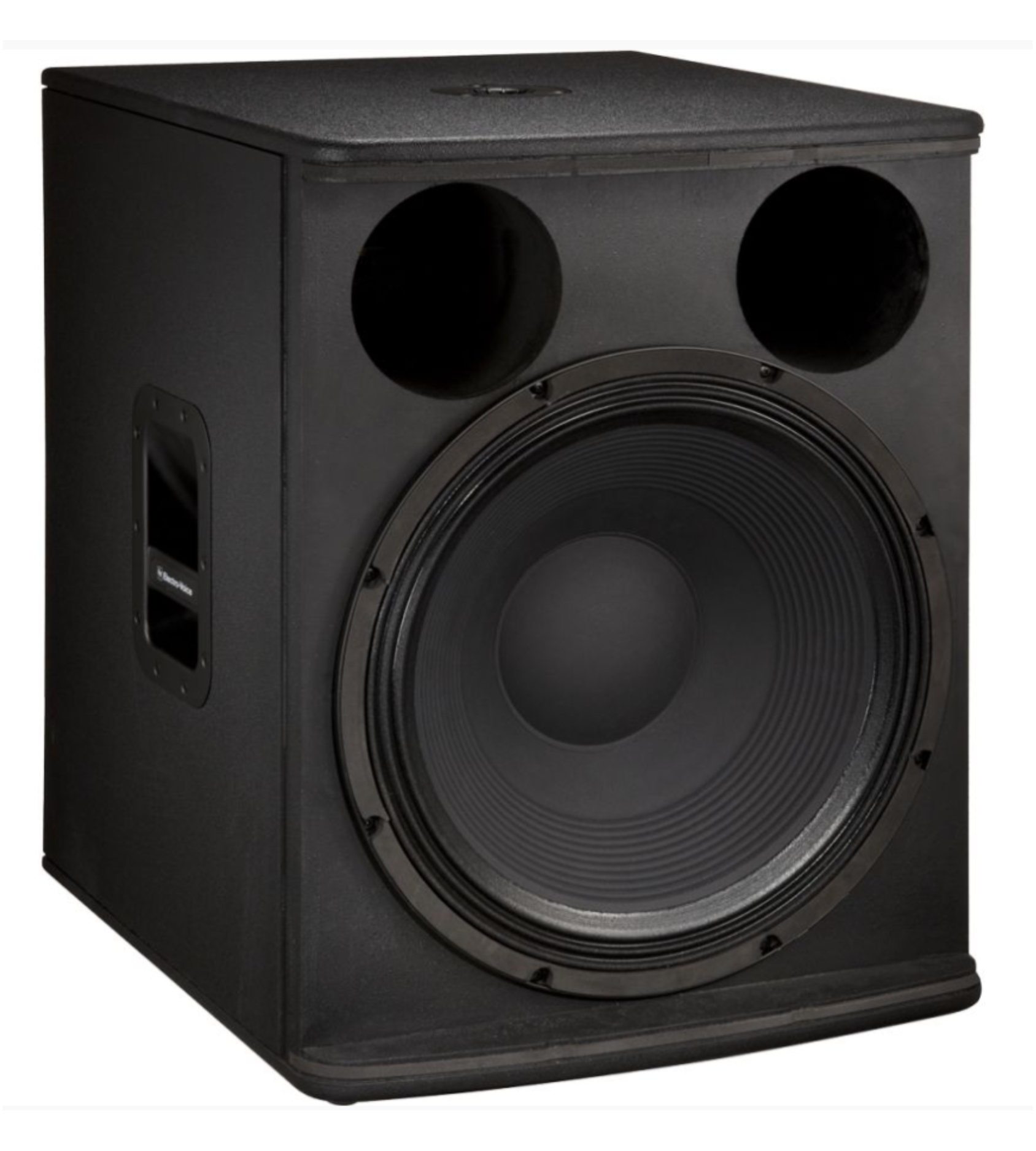

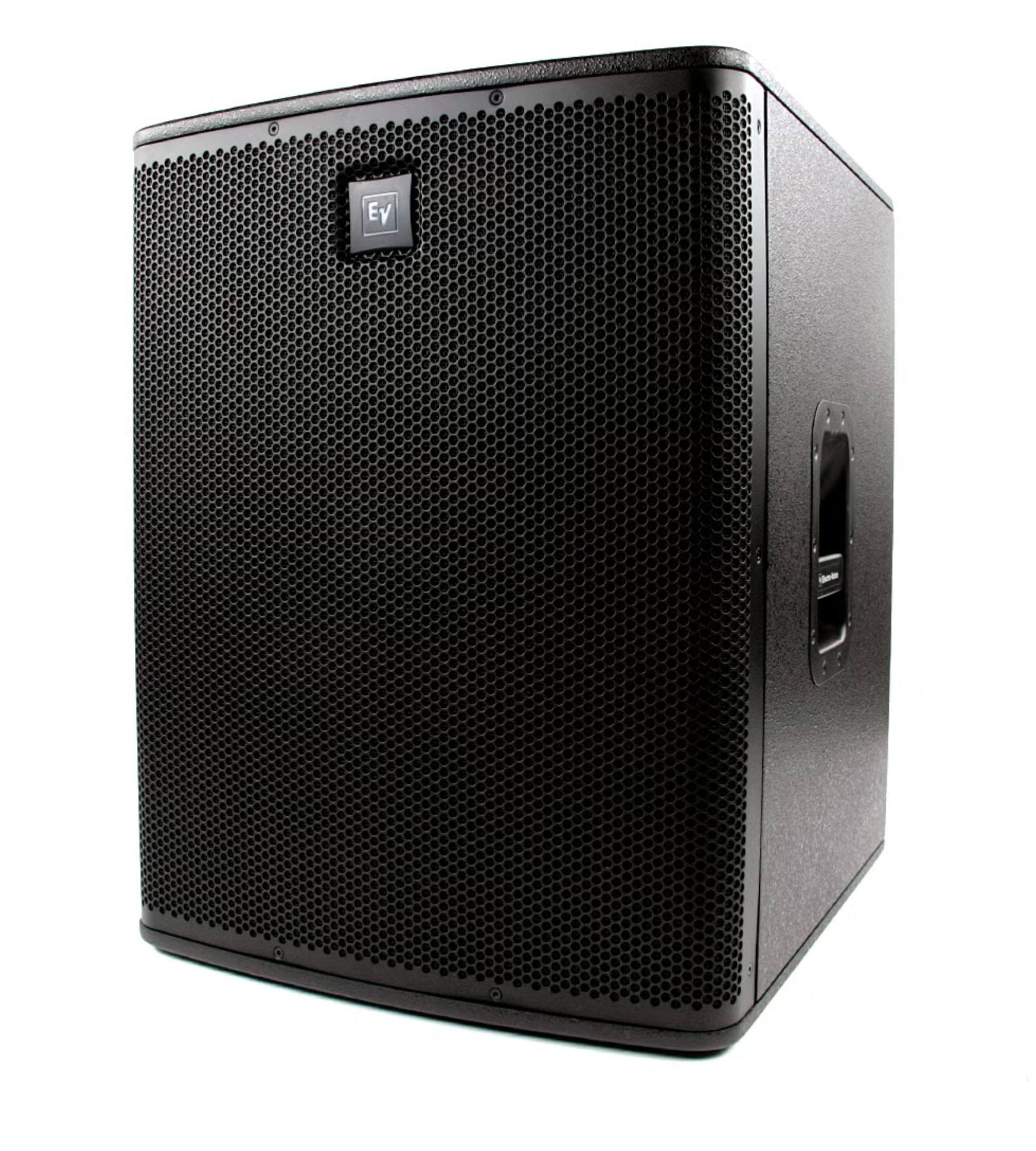

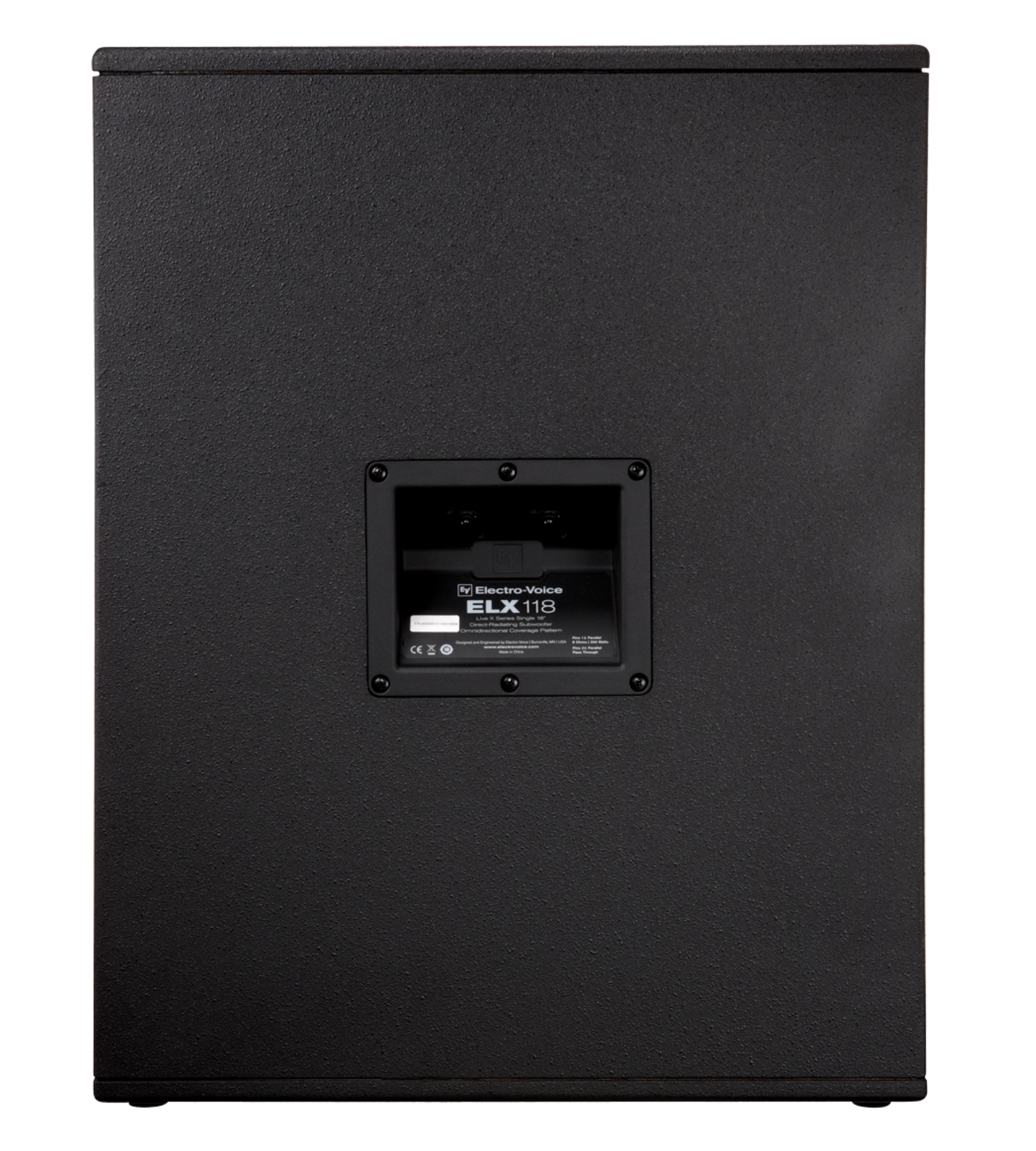

- ELX-118S passive subwoofer unit
- User manual / documentation
