- Features
- Specifications
- Dimensions
- Whats in the box
- 1500 W Class-D amplifier providing up to 132 dB peak SPL :contentReference[oaicite:1]{index=1}
- Integrated QuickSmartDSP with single-knob user interface and LCD display :contentReference[oaicite:2]{index=2}
- Signal Synchronized Transducers (SST) waveguide for consistent coverage :contentReference[oaicite:3]{index=3}
- 15 mm plywood cabinet with EVCoat finish and internal bracing for durability :contentReference[oaicite:4]{index=4}

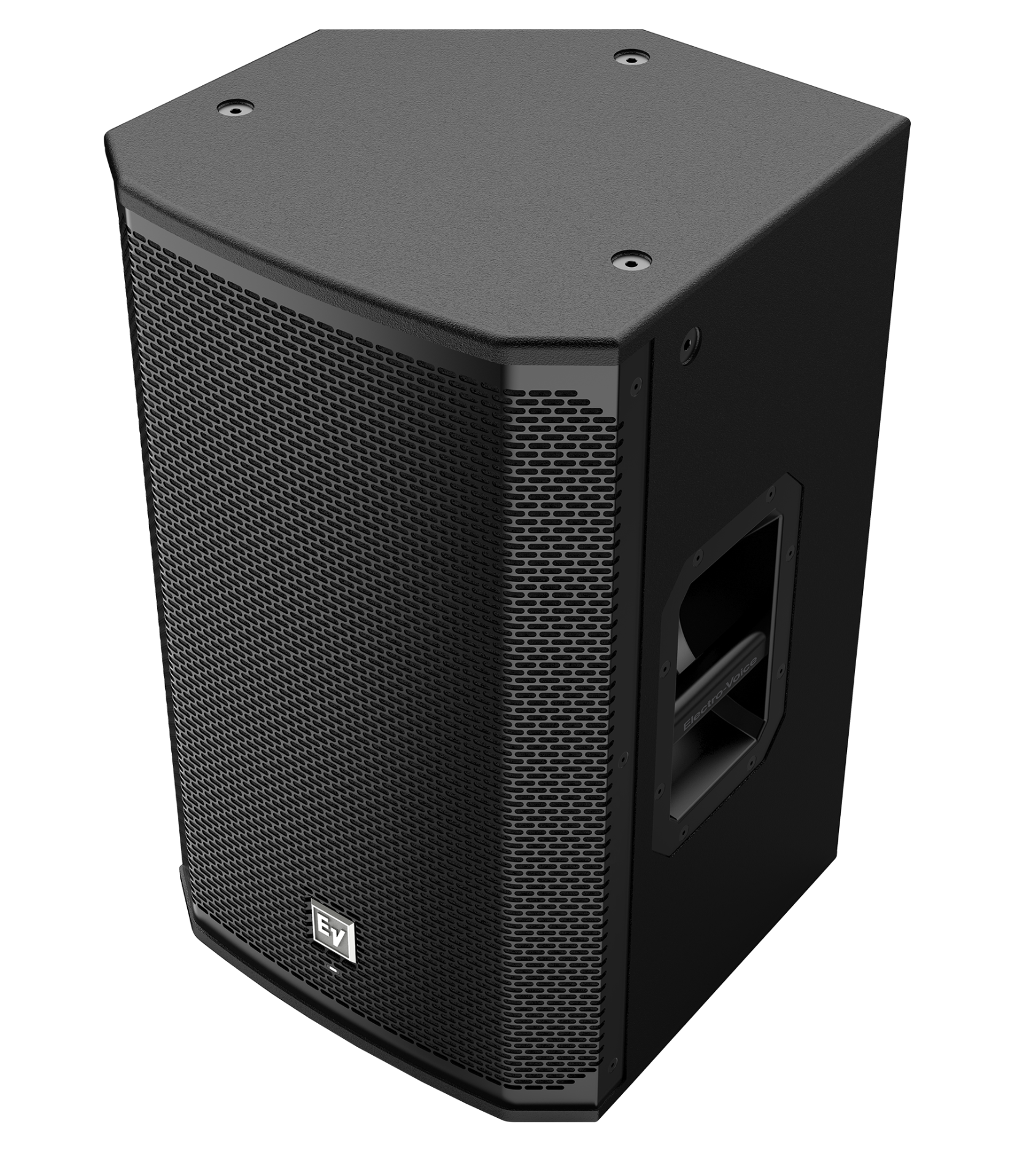

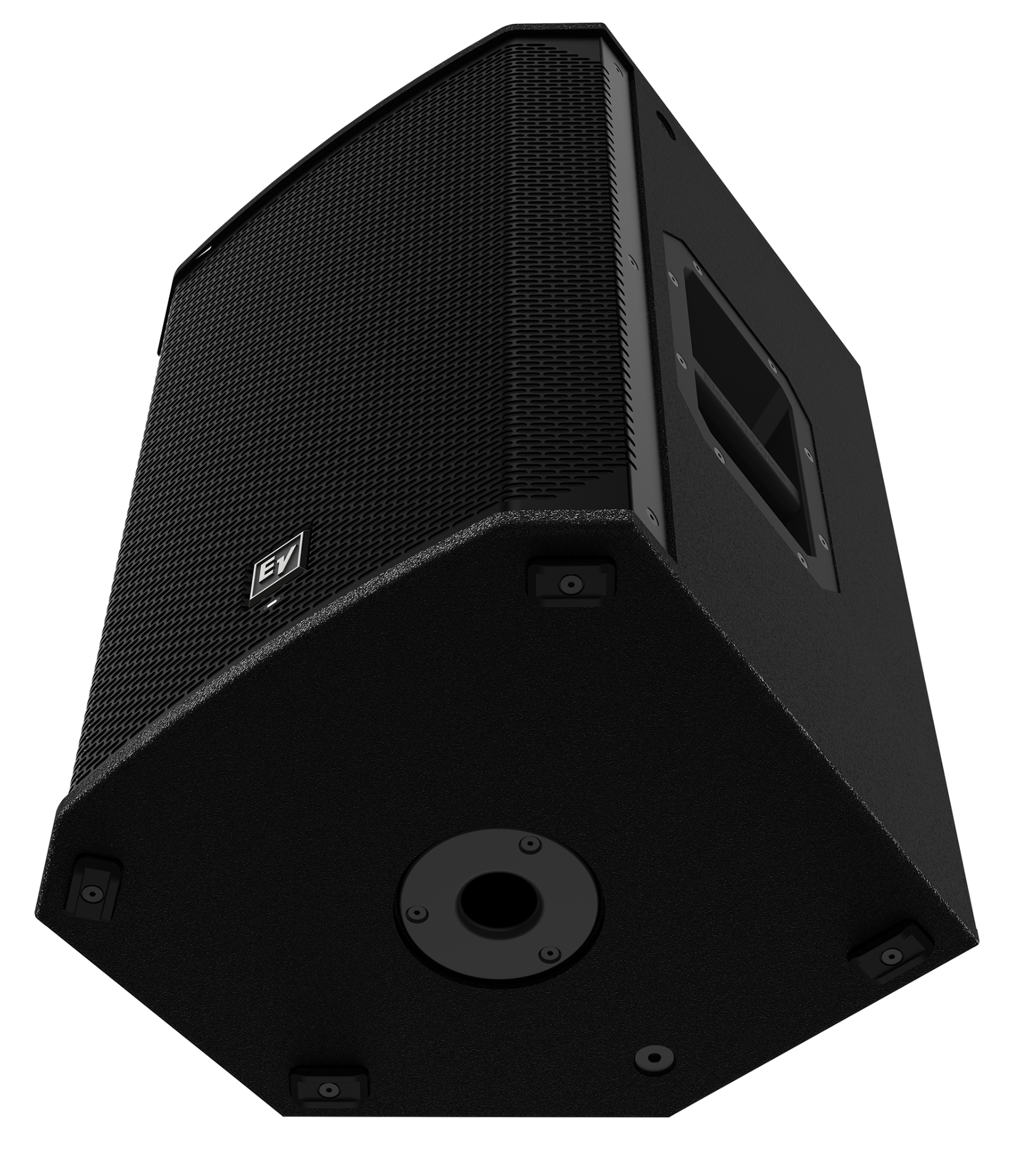

- Eight M10 threaded mounting points and aluminum pole-mount socket for flexible rigging :contentReference[oaicite:5]{index=5}
- Smart thermal management with variable speed fan controlled by onboard sensors :contentReference[oaicite:6]{index=6}
| Specification | Detail |
|---|---|
| Frequency Response (-3 dB) | 60 Hz – 18 kHz :contentReference[oaicite:10]{index=10} |
| Frequency Range (-10 dB) | 50 Hz – 20 kHz :contentReference[oaicite:11]{index=11} |
| LF Transducer | EVS-12M, 300 mm (12 in) :contentReference[oaicite:12]{index=12} |
| HF Transducer | DH-1M, 1-inch titanium compression driver :contentReference[oaicite:13]{index=13} |
| Crossover Frequency | 1.7 kHz :contentReference[oaicite:14]{index=14} |
| Maximum SPL (1 m) | 132 dB :contentReference[oaicite:15]{index=15} |

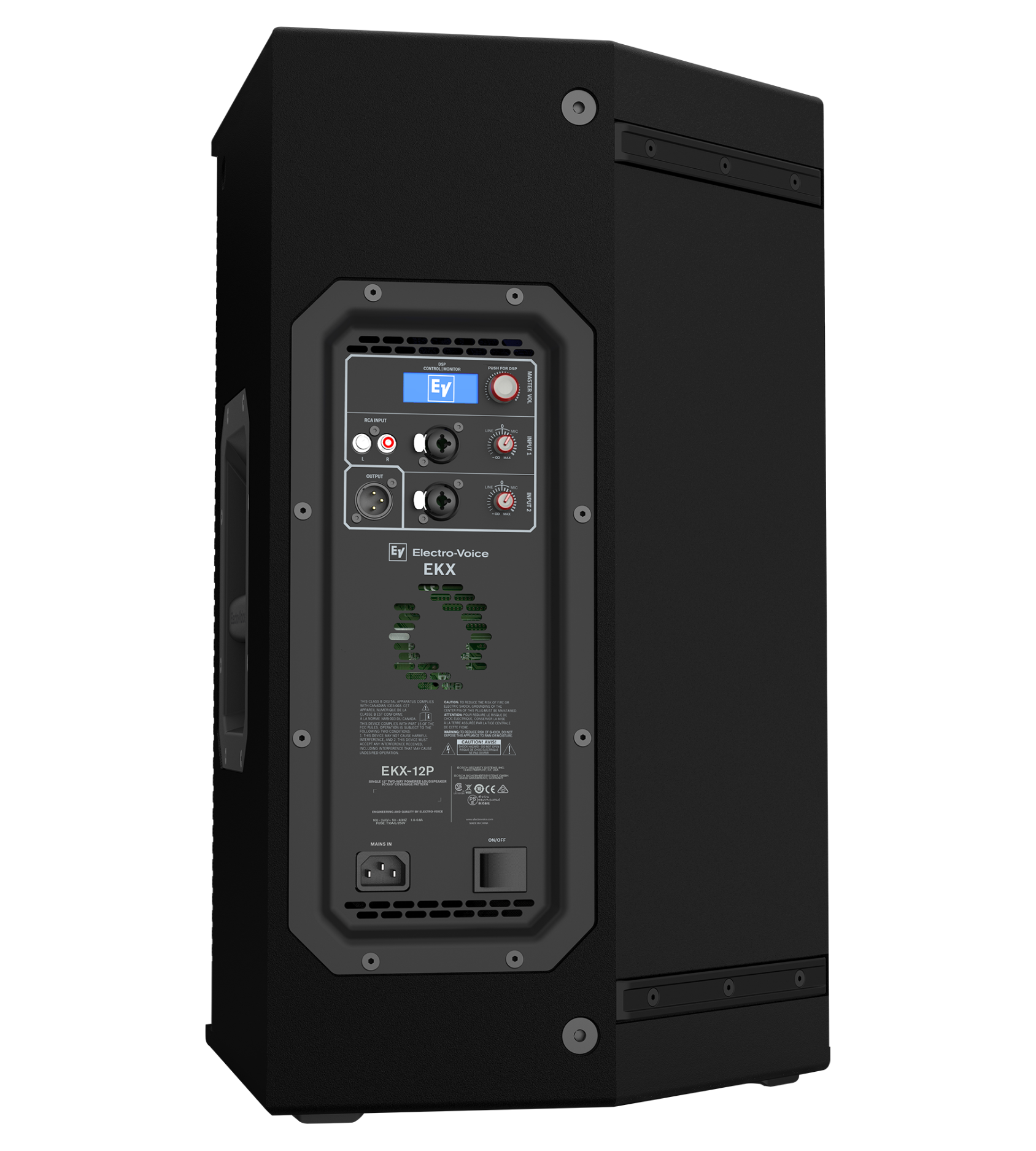

| Inputs | 2 × XLR/TRS combo, 1 × Stereo RCA input :contentReference[oaicite:16]{index=16} |
| Link Output | XLR link output :contentReference[oaicite:17]{index=17} |
| Enclosure Material | 15 mm plywood with EVCoat finish :contentReference[oaicite:18]{index=18} |
| Dimensions (H × W × D) | 607 × 375 × 356 mm (24 × 15 × 14 in) :contentReference[oaicite:19]{index=19} |
| Net Weight | 18.8 kg :contentReference[oaicite:20]{index=20} |
| Power Consumption | 1.8 A @ 1/8 power :contentReference[oaicite:21]{index=21} |
Approximately 607 × 375 × 356 mm

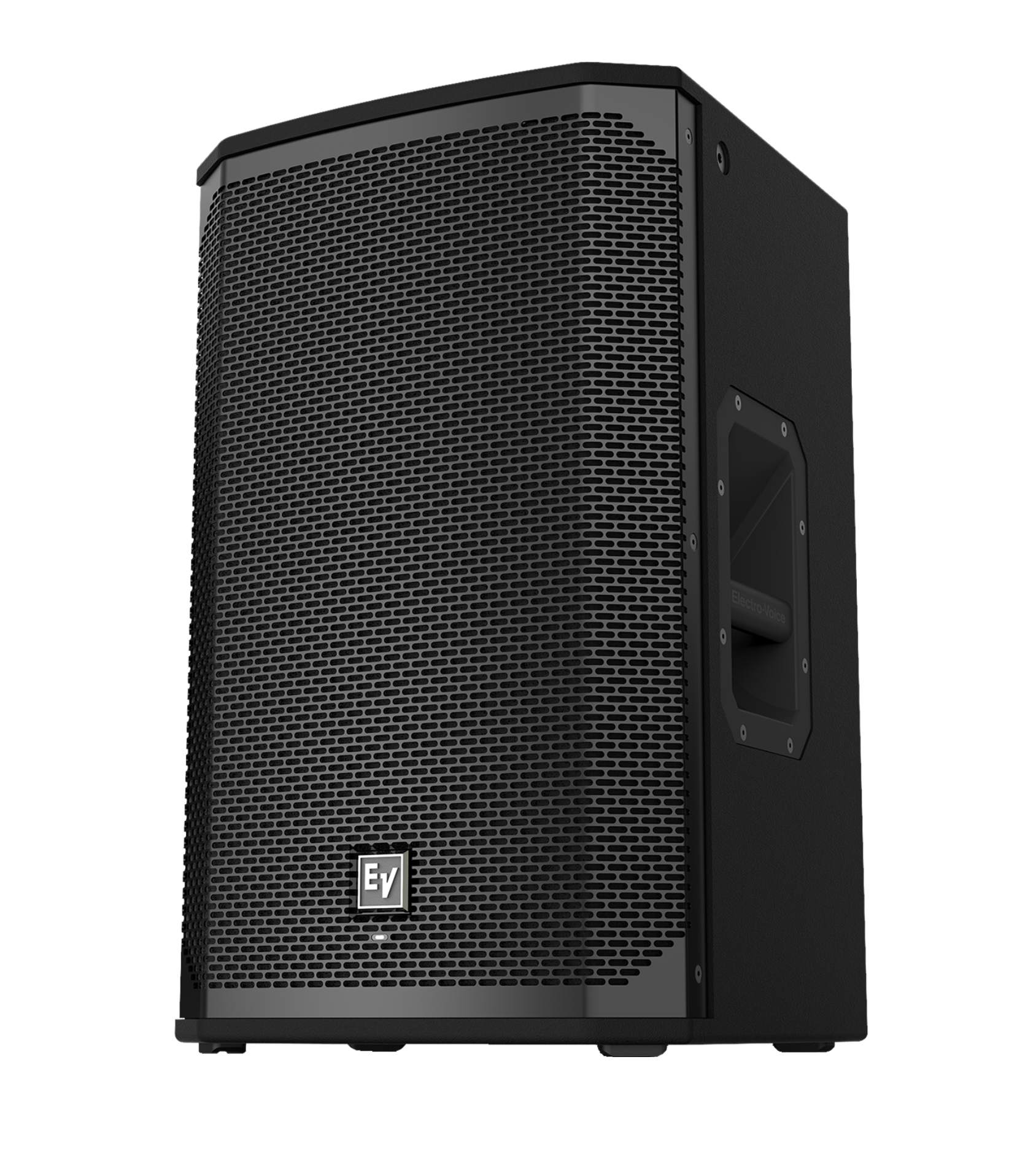

- EKX-12P powered loudspeaker unit × 1 :contentReference[oaicite:7]{index=7}
- Power / IEC cable × 1 :contentReference[oaicite:8]{index=8}
- User manual / documentation × 1 :contentReference[oaicite:9]{index=9}
