- Features
- Specifications
- Dimensions
- Whats in the box
- 6.5″ paper‑cone driver for wide frequency response
- Built‑in 70 V/100 V transformer with multiple power taps (1 W / 2 W / 3 W / 6 W)
- High sensitivity for clear, broad coverage
- Wide frequency range suited to speech and music

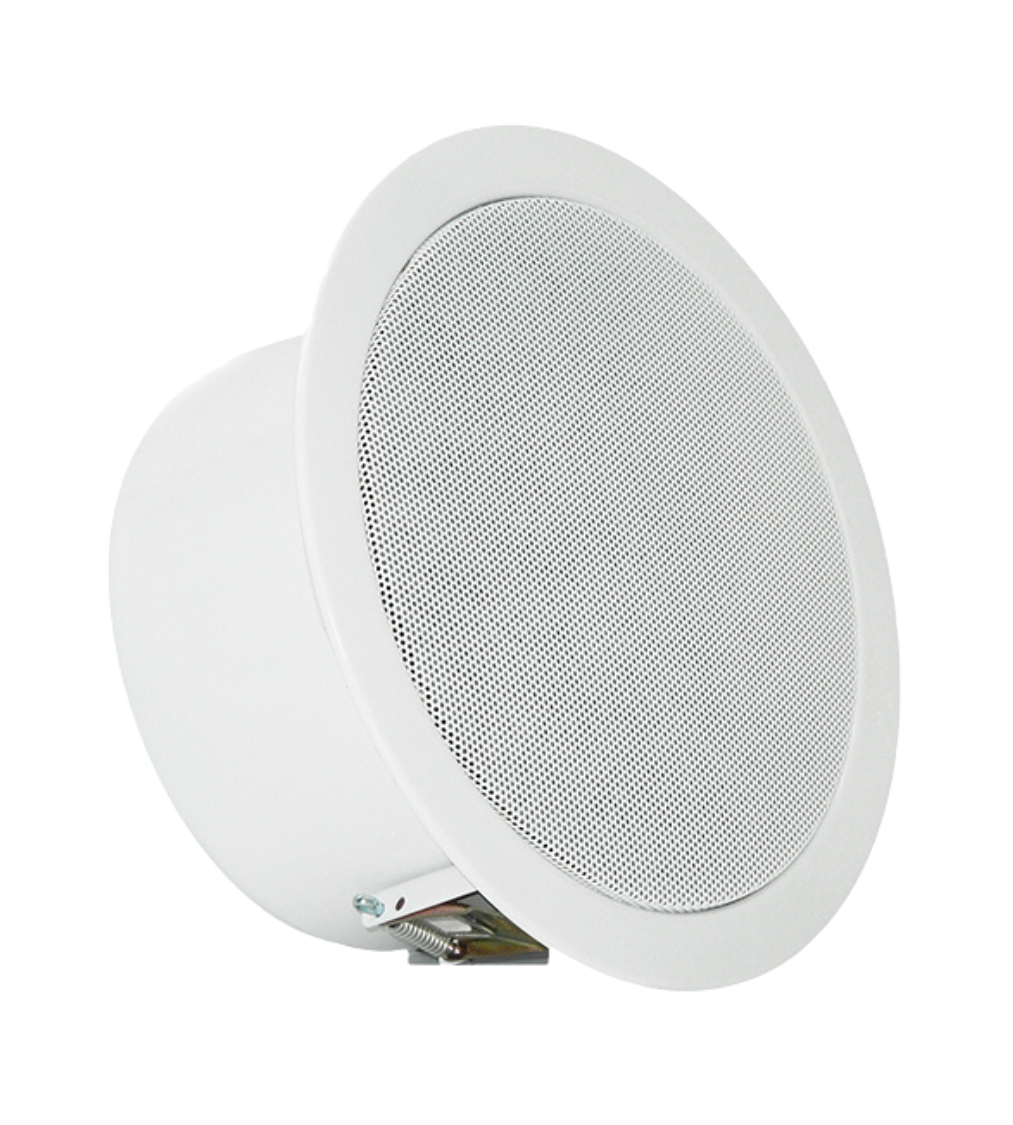

- Spring‑clip mounting for quick ceiling install
- Steel frame and durable construction for long‑term reliability
| Specification | Detail |
|---|---|
| Driver Size | 6.5″ paper cone |
| Rated Output Power | 3 W (multiple taps: 1/2/3/6 W selectable) |
| Maximum Power | 6 W |
| Nominal Voltage | 70 V / 100 V |
| Frequency Response | 80 Hz – 20 kHz |
| Sensitivity (1 W/1 m) | ≈ 91 ± 2 dB |
| Max SPL (1 m) | ≈ 97 ± 2 dB |
| Installation Hole | ≈ Ø166 – Ø174 mm |
| Overall Diameter | ≈ Ø200 mm |
| Weight | ≈ 1.0 kg |
Boxed dimensions: not officially provided by manufacturer

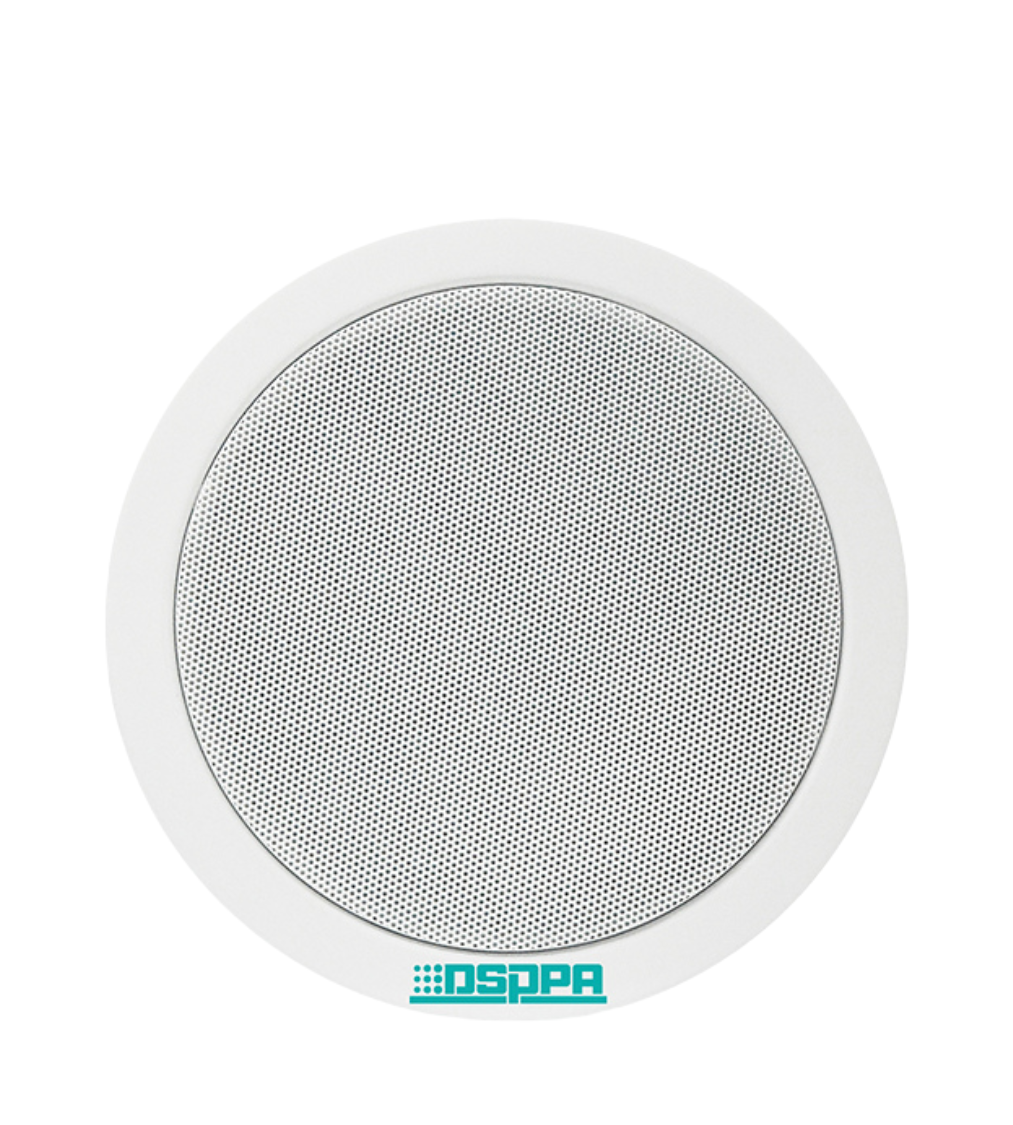

- DSP662 ceiling speaker unit
- Spring clip mounting hardware
- User/installation instructions
