Key Features of CKMOVA Wicom E S5 Wireless Intercom System
- Full‑duplex communication allowing simultaneous talk and listen
- Includes one single‑ear master headset and four single‑ear remote headsets
- Environmental Noise Cancellation (ENC) for clear communication in noisy environments
- Up to 400 m (1312 ft) line-of-sight operating range
- Group A / Group B isolation modes for segmented team channels
- PPT function with “announce” button and master-to-master linking up to 16 remote headsets
Technical Specifications
- Frequency Band: 1.9 GHz (DECT 6.0), various regional configurations
- Modulation: GFSK; Output Power: < 24 dBm
- Audio Specs: 300 Hz – 5 kHz voice range; SNR ≥ 65 dB; Distortion < 1%
- Operating Range: up to 400 m line-of-sight
- Battery: 1000 mAh Li-ion; Charging Time: ~2 hours
- Battery Life: Remote units ~10 h; Master with 4 remotes ~5 h
- Power Consumption: < 0.5 W per unit
- Operating Temp: –10 °C to 50 °C; Storage Temp: –20 °C to 55 °C
Dimensions
- Headset body (master & remote): approx. 195 × 145 × 28 mm (≈7.6″ × 5.7″ × 1.1″)
- Weight per headset: ~360 g (≈12.7 oz)

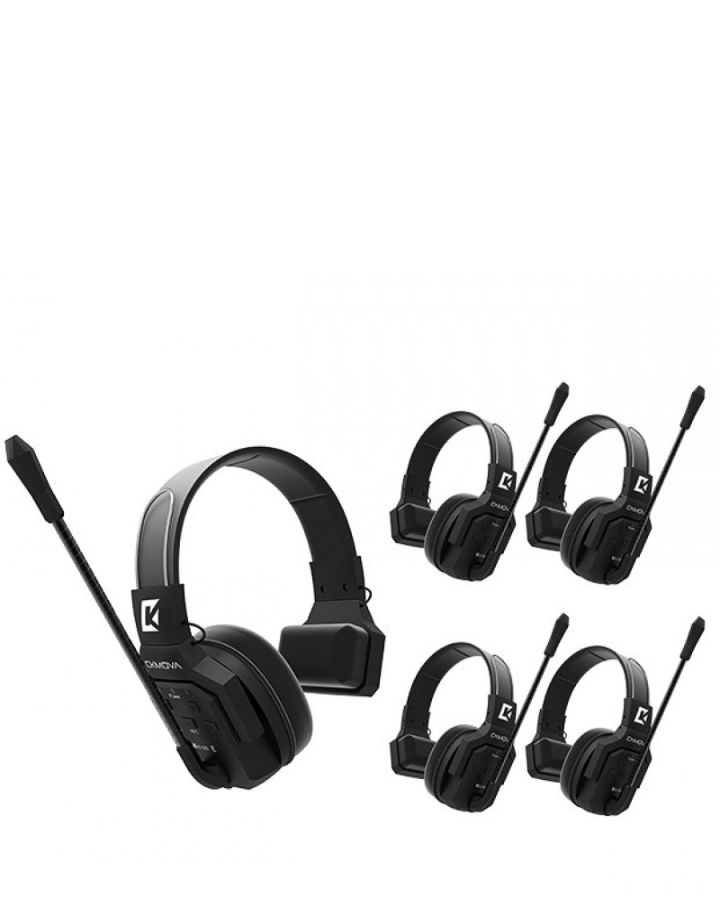

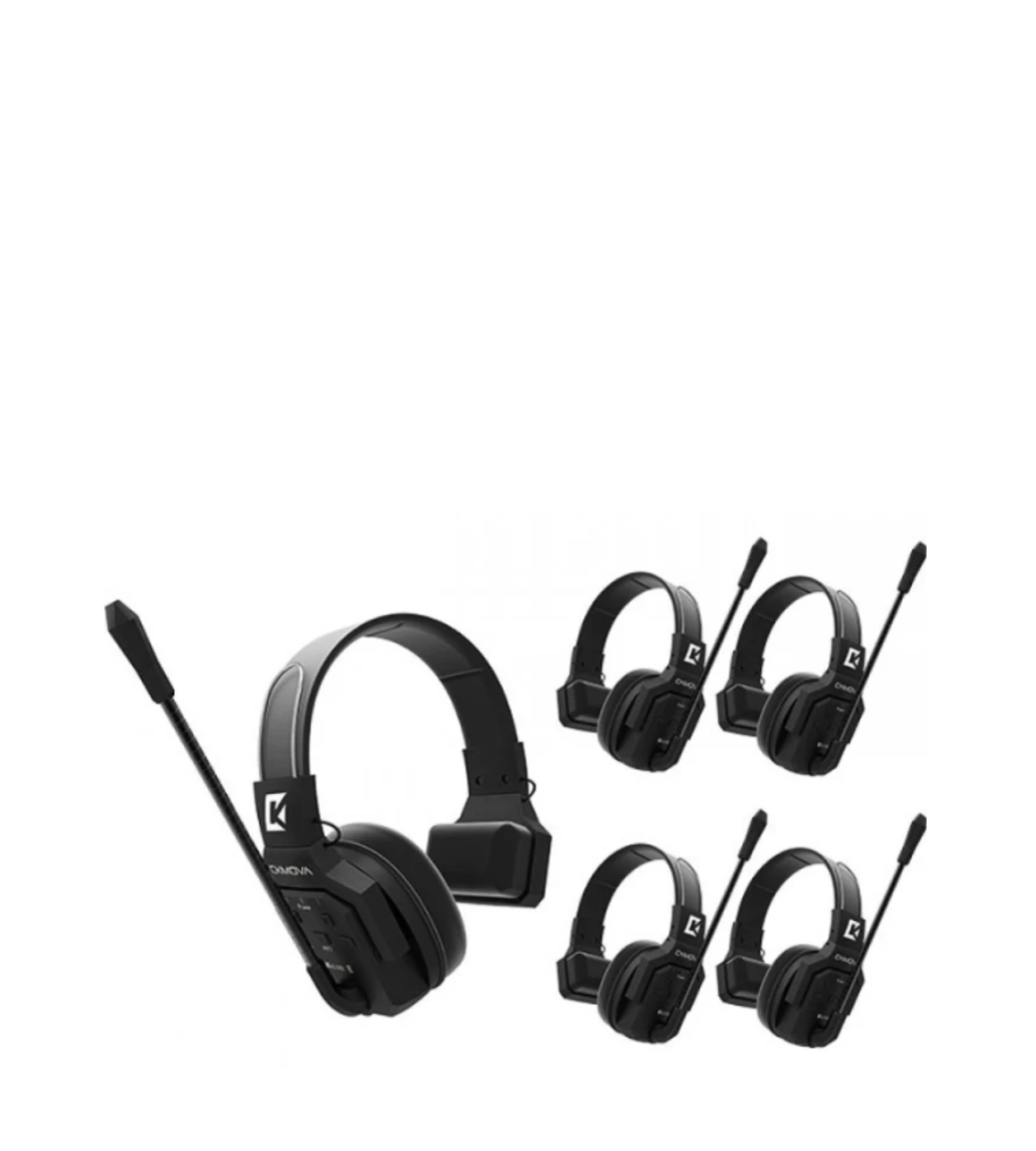

What's in the Box
- 1 × Single‑ear master headset
- 4 × Single‑ear remote headsets
- 5 × Rechargeable BL‑5C batteries
- USB‑C charging cable and charger
- Carrying case
- User manual and warranty card
