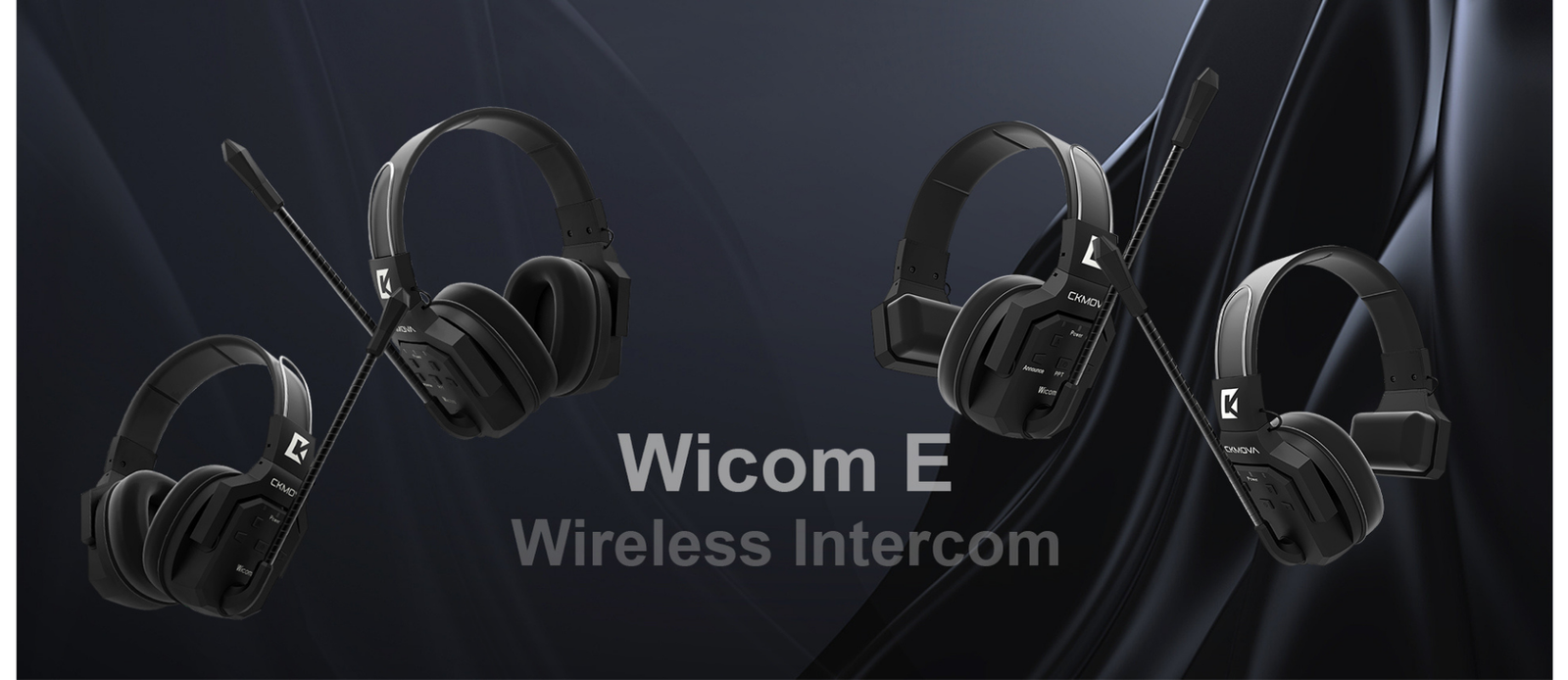

Key Features of CKMOVA Wicom E D9 Wireless Intercom System
- Full-duplex communication allowing simultaneous talk/listen functionality

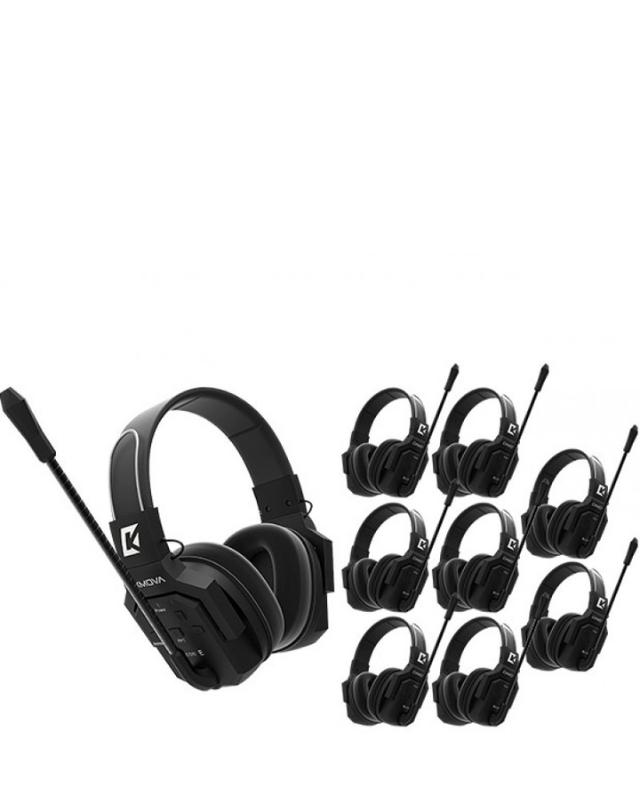

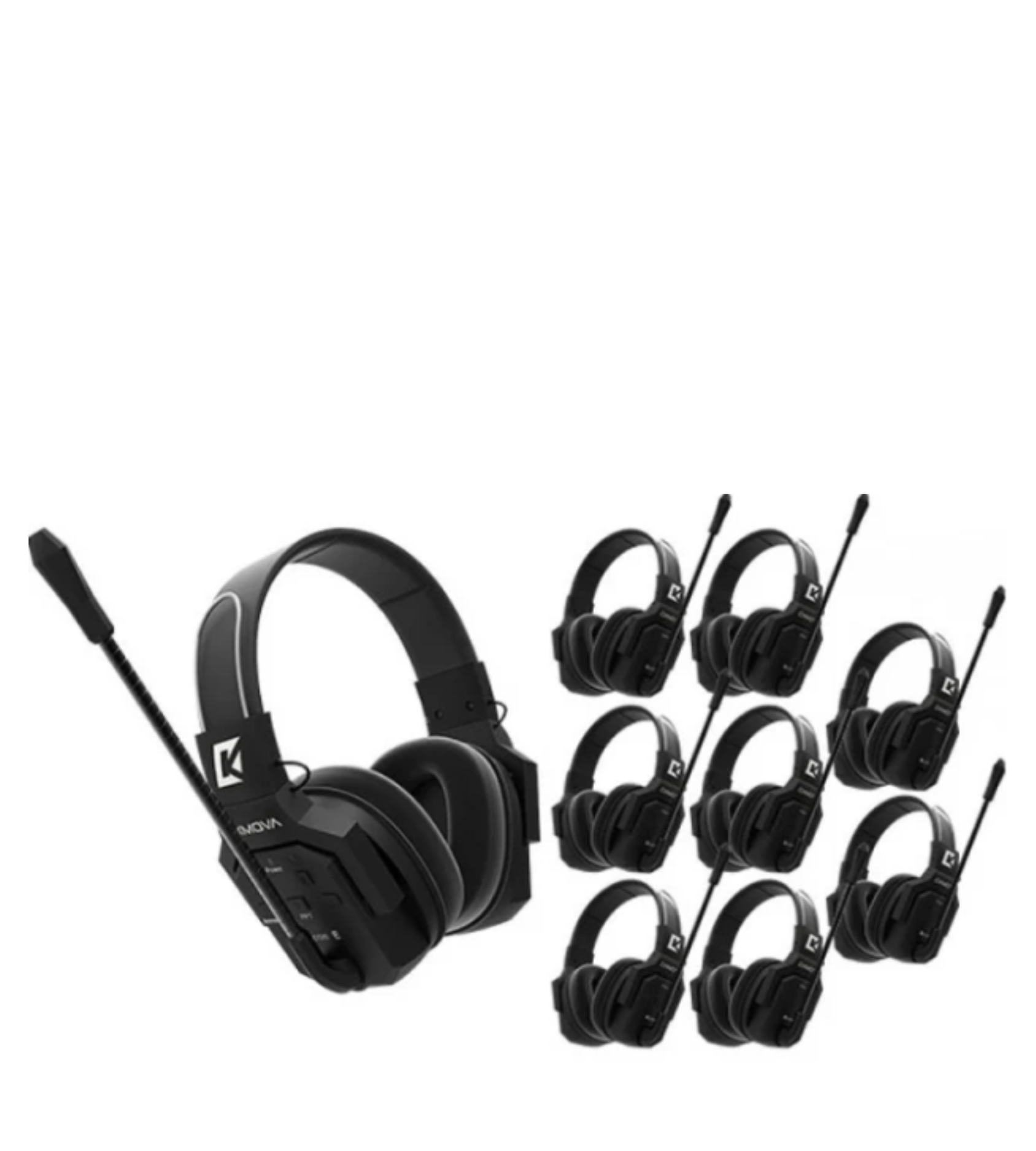

- Includes one dual‑ear master headset and eight dual‑ear remote headsets
- ENVIRONMENTAL NOISE CANCELLATION (ENC) for clear communication in loud environments

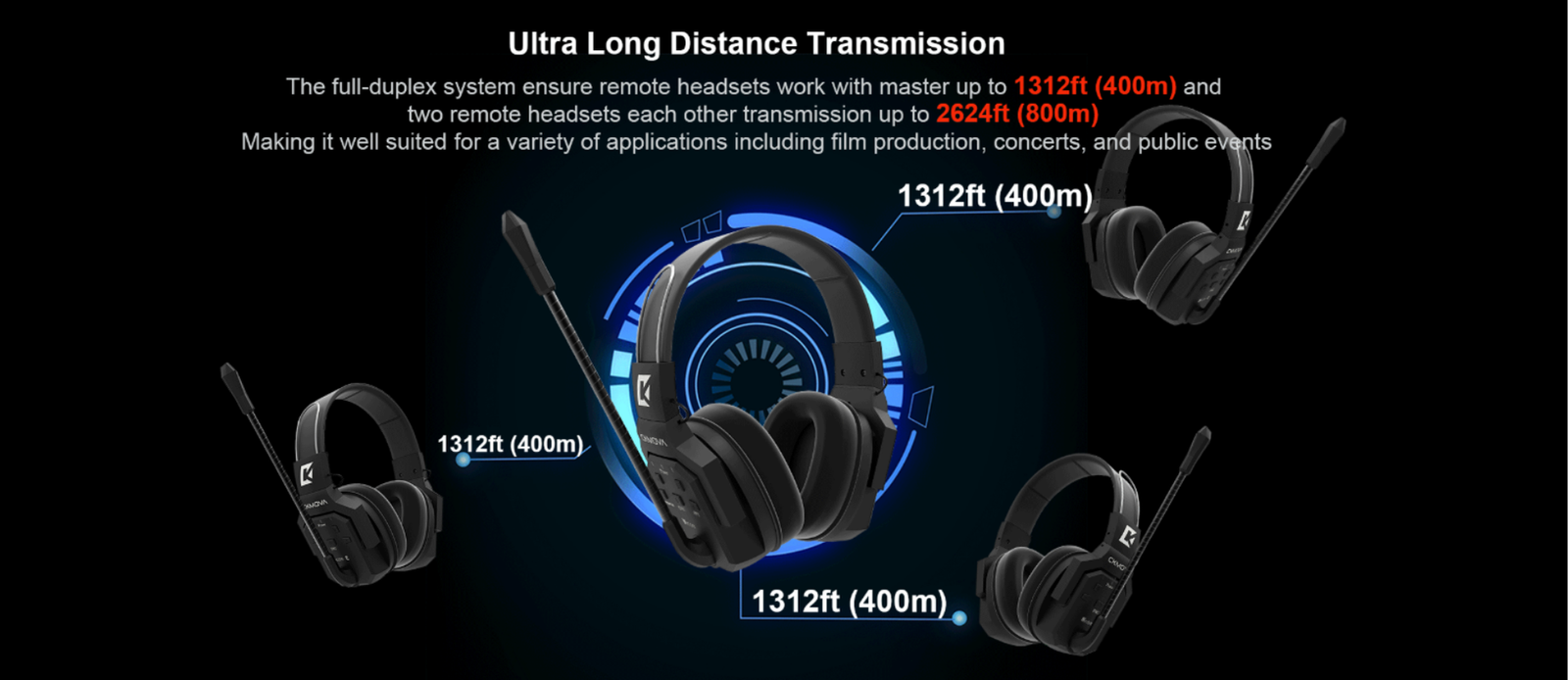

- Up to 400 m line-of-sight range per headset

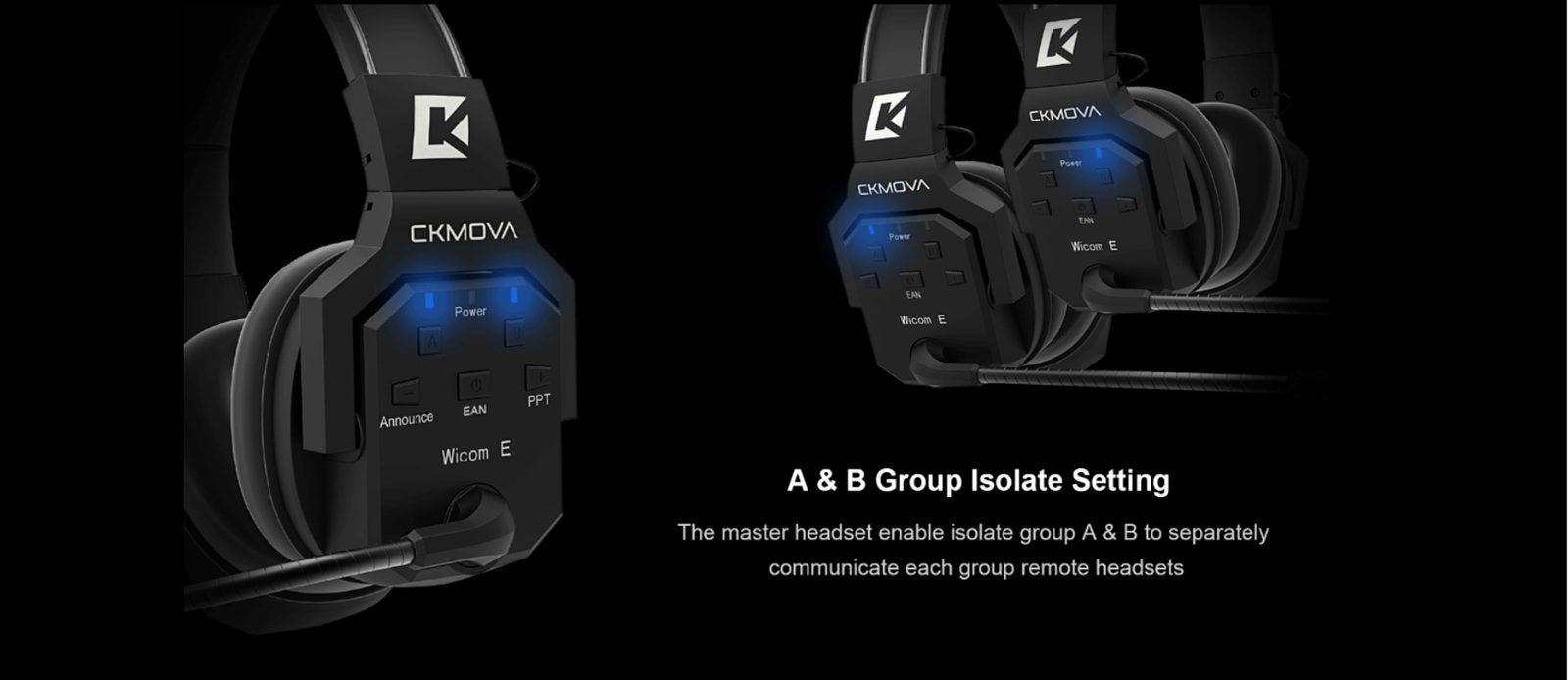

- Group A / Group B isolation modes for segmented team chatter

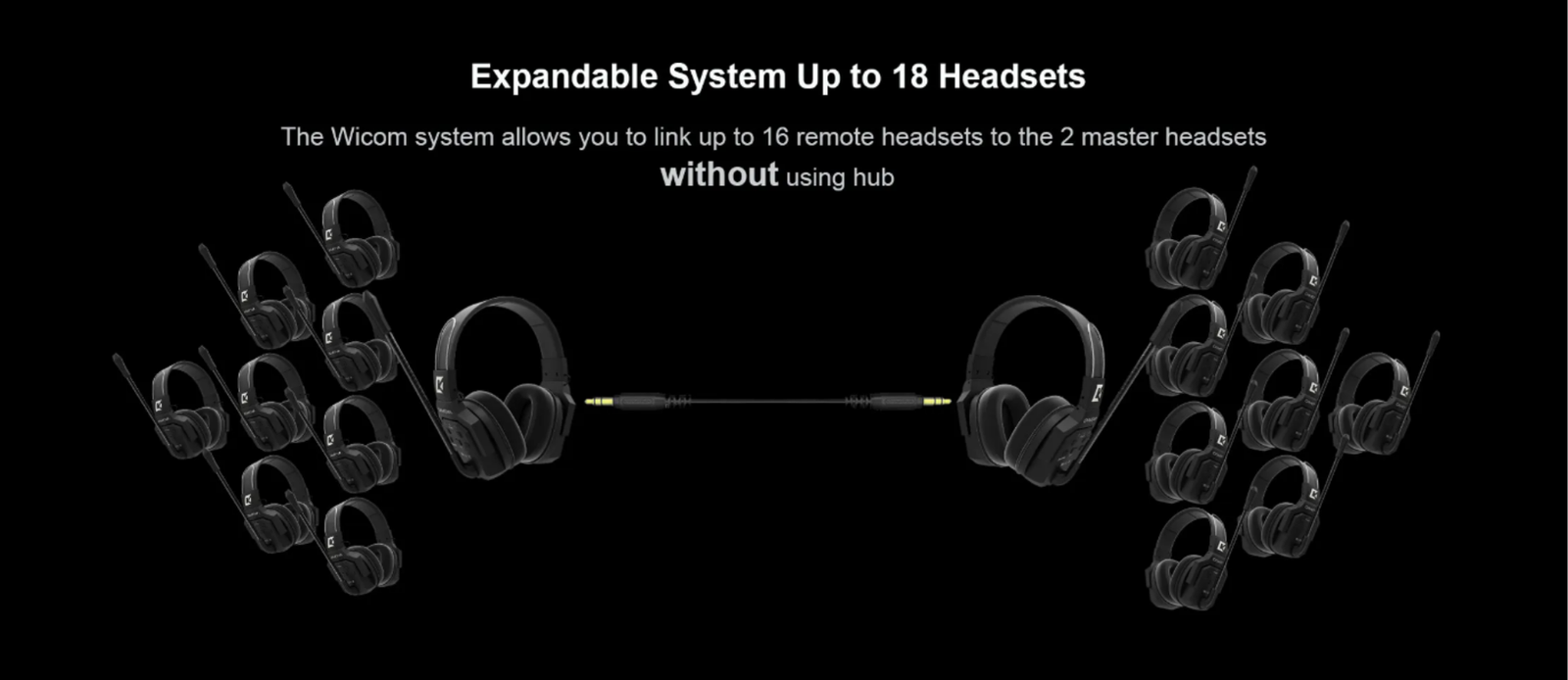

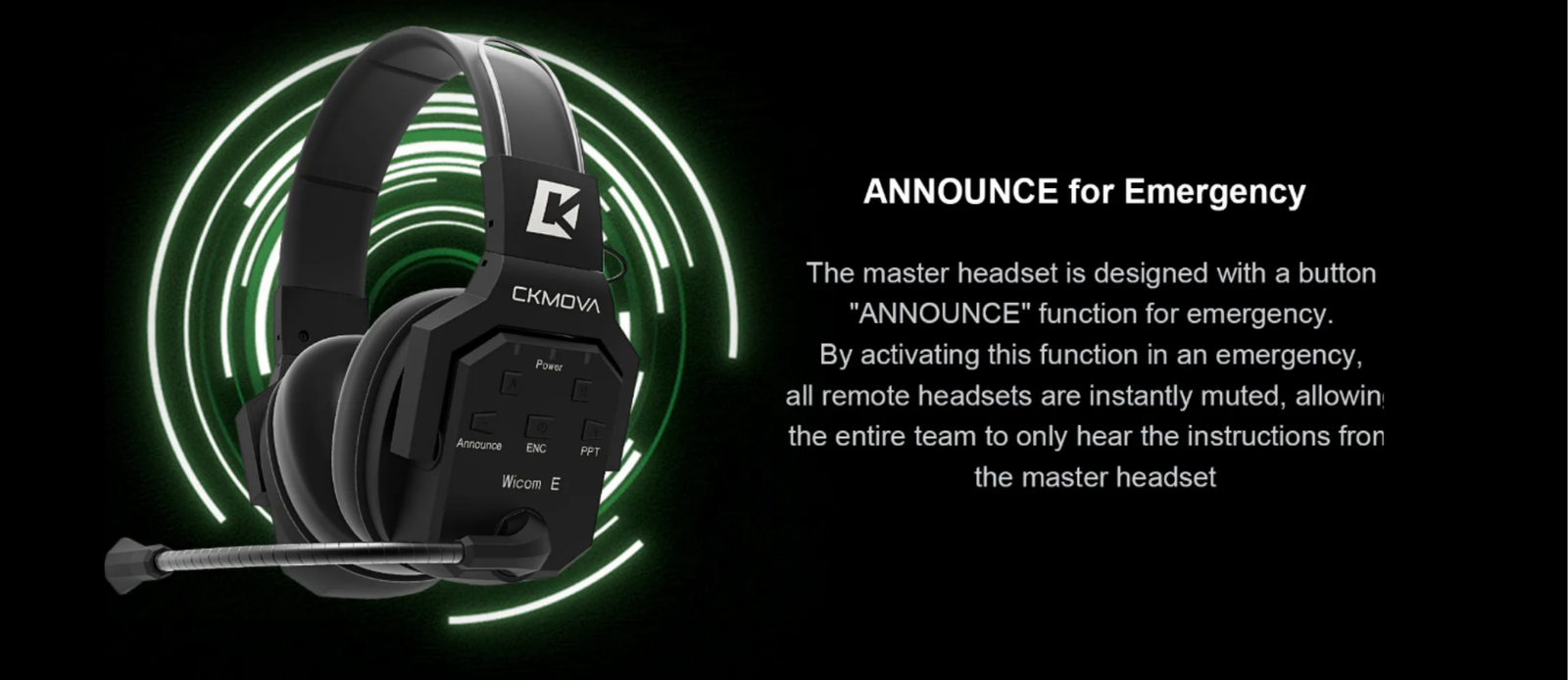

- PPT (push-to-talk), Announce mode, and wired master-to-master linking available
Technical Specifications
- Frequency Band Options: 1880‑1900 MHz / 1920‑1930 MHz / 1910‑1920 MHz / 1893‑1906 MHz / 1880‑1895 MHz depending on region
- Modulation: GFSK; Output Power: < 24 dBm
- Range: Up to 400 m LOS
- Frequency Response (voice): approx. 300 Hz – 5 kHz
- SNR: ≥ 65 dB; Distortion: < 1%
- Battery: 1000 mAh rechargeable; charging time ≈ 2 hours
- Battery Life: Master with 8 remotes ≈ 5 h; remotes ≈ 10 h
- Power Consumption: < 0.5 W per unit
- Operating Temp: –10 °C to 50 °C; Storage Temp: –20 °C to 55 °C
Dimensions
- Master & remote headset body size: 195 × 145 × 28 mm
- Individual headset weight: ~360 g
