Key Features of CKMOVA Wicom E D5 Wireless Intercom System
- Full-duplex communication for simultaneous talk/listen between users

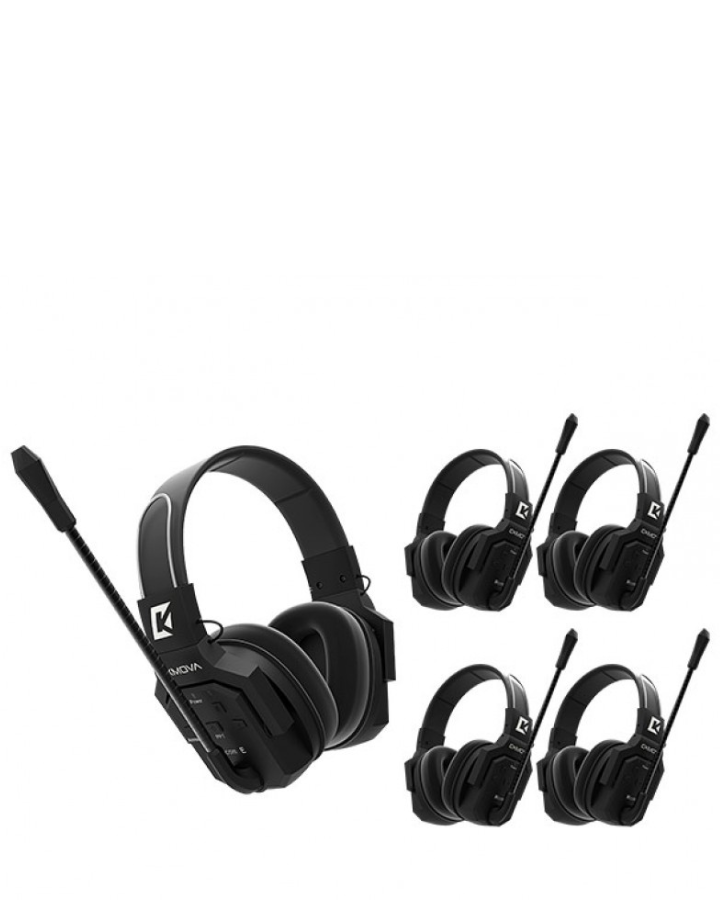

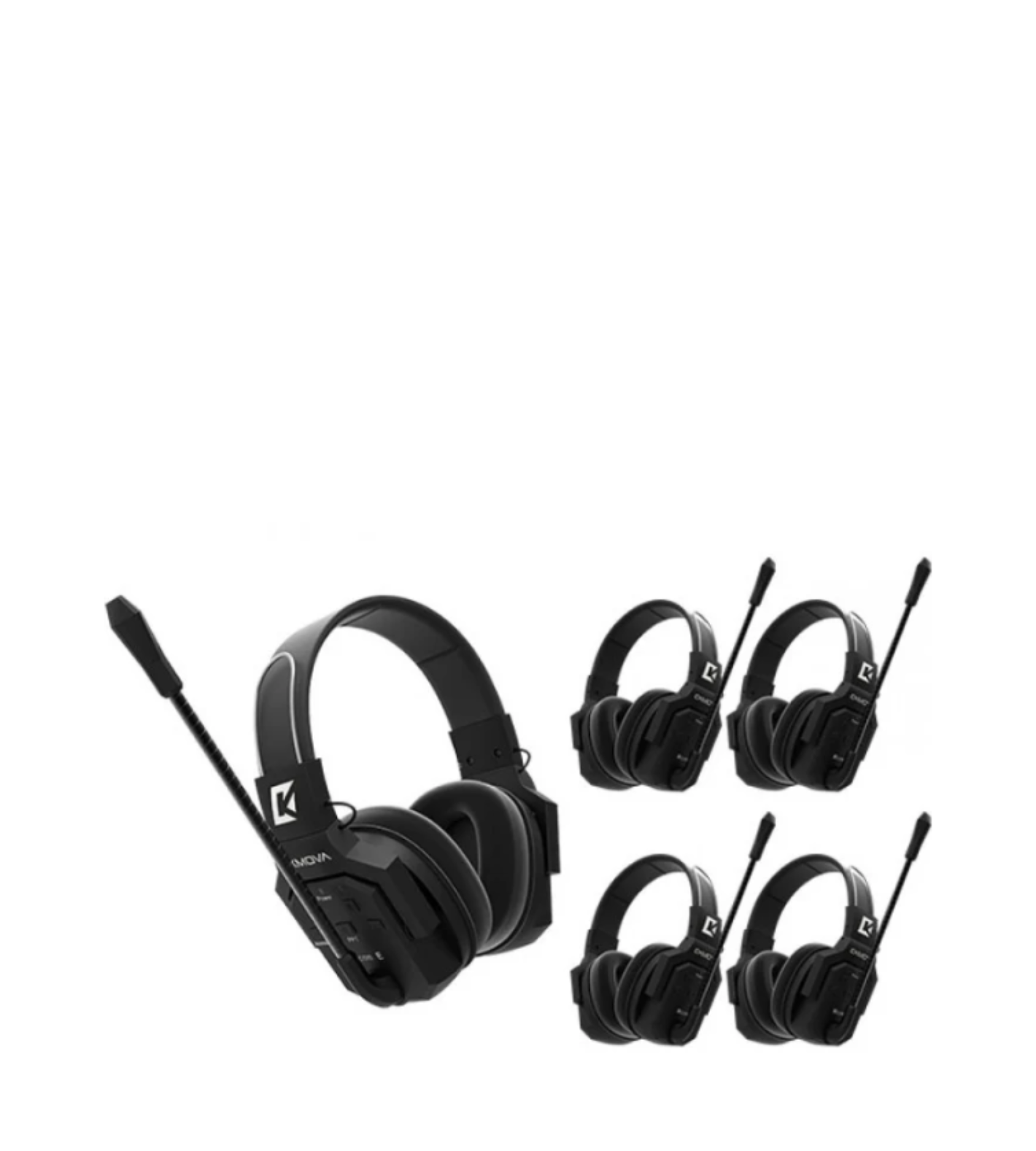

- Includes one dual-ear master headset and four dual-ear remote headsets
- Environmental Noise Cancellation (ENC) for clear audio in loud environments
- Operational range up to 400 m line-of-sight
- Supports Group A/B isolation modes to separate communication channels
- Expandable to support up to 16 remote headsets via master-to-master linking
Technical Specifications
- Frequency Band (region-dependent): 1880–1900, 1910–1920, 1920–1930, or 1893–1906 MHz
- Modulation: GFSK; RF Ouput Power: < 24 dBm
- Audio: 300 Hz – 5 kHz, SNR ≥ 65 dB, distortion < 1%
- Range: up to 400 m (line-of-sight)
- Battery: 1000 mAh lithium-ion, charging time ≈ 2 hours
- Battery Life: Remotes ≈ 10 h; Master (with 4 remotes) ≈ 6 h; (with 8 remotes) ≈ 5 h
- Power Consumption: < 0.5 W per unit
- Operating Temperature: –10 °C – 50 °C; Storage: –20 °C – 55 °C
Dimensions
- Headset body (master & remote): 195 × 145 × 28 mm
- Individual headset weight: approx. 360 g (≈12.7 oz)
What's in the Box
- Dual-ear master headset
- Four dual-ear remote headsets
- Rechargeable batteries (BL‑5C) and charging cables
- Carrying case
- User manual and warranty documentation
