- Features
- Specifications
- Dimensions
- Whats in the box
- Digital 2.4 GHz dual-channel wireless transmission
- Colour OLED display on both receiver and transmitters
- Mono & stereo output mode switchable
- Low cut filter selectable (40 / 80 / 120 Hz)
- Mic input / line input mode switchable on transmitters
- Internal & external mic mode switchable
- 3.5 mm headphone real-time monitoring on receiver
- Fast auto pairing via button on transmitter & receiver
- Stable 150 m (492 ft) line-of-sight range
- Latency < 5 ms

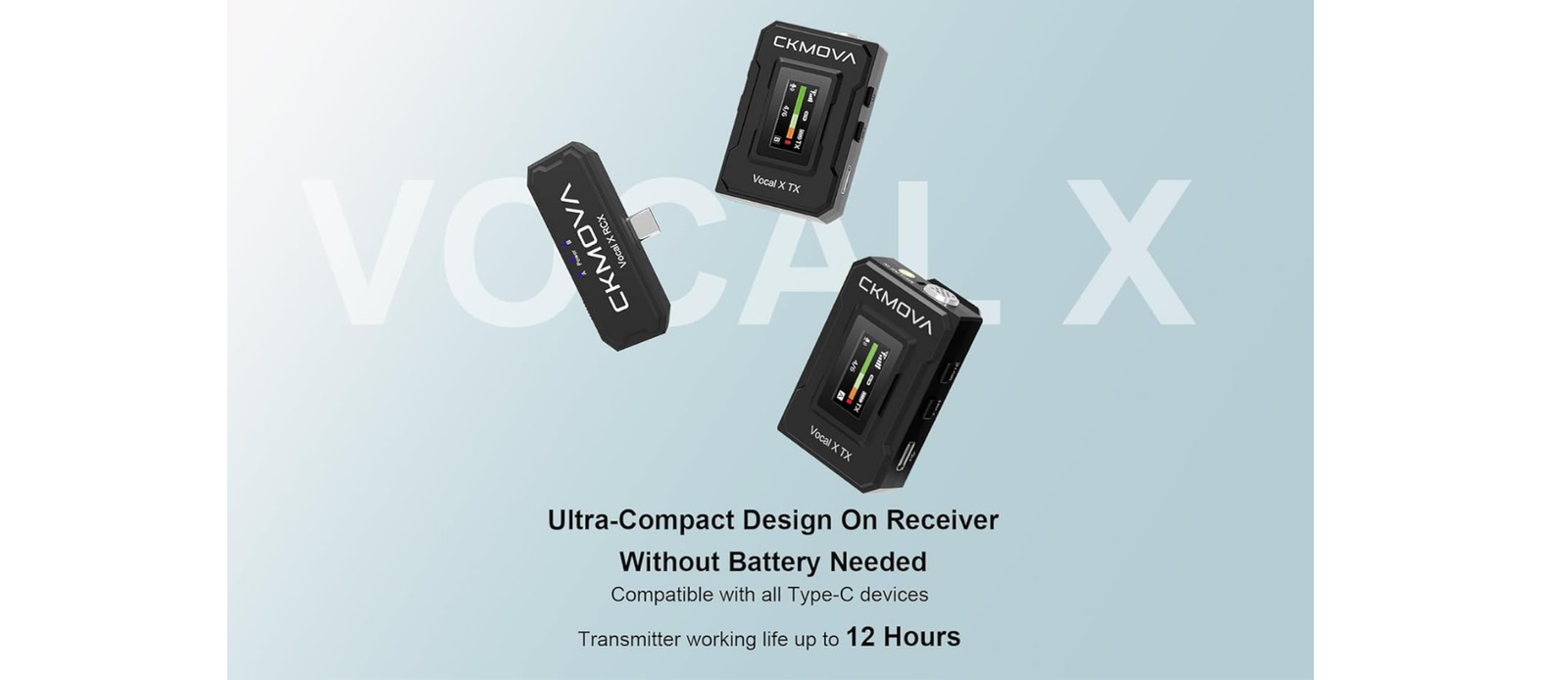

- Up to 12 hours battery runtime (TX & RX)
- RF output power 10 mW
- THD ≤ 0.5 %
| Specification | Detail |
|---|---|
| Transmission Type / Band | Digital 2.4 GHz |
| Modulation | GFSK |
| Frequency Response | 20 Hz – 20 kHz |
| Operating Range (Line of Sight) | 150 m / 492 ft |
| Latency | < 5 ms |
| THD (Total Harmonic Distortion) | ≤ 0.5 % |
| RF Output Power | 10 mW |
| Sensitivity | –41 ± 1 dB (0 dB = 1 V/Pa @ 1 kHz) |
| Signal-to-Noise Ratio (SNR) | 100 dB SPL |
| Battery Type | Built-in Li-ion (TX & RX) |
| Battery Runtime | 12 hours |
| Charging Time | ≈ 3 hours |
| Input / Output (Transmitter) | 3.5 mm TRS mic/line input, internal mic, switchable |
| Output (Receiver) | 3.5 mm TRS output, headphone monitoring |
| Colour OLED Display | Yes (RX & TX) |
| Low Cut Filter Options | Off / 40 / 80 / 120 Hz |
| Mic / Line Mode | Switchable |
| Dimensions (Receiver / Transmitter) | Approx. 56 × 38 × 17 mm (per listing) :contentReference[oaicite:1]{index=1} |
| Weight | Very low (≈ 0.5 g for TX per listing, though likely typo) :contentReference[oaicite:2]{index=2} |
| Operating Temperature | 32°F to 122°F (0 °C to 50 °C) |
Boxed dimensions: (not officially published)

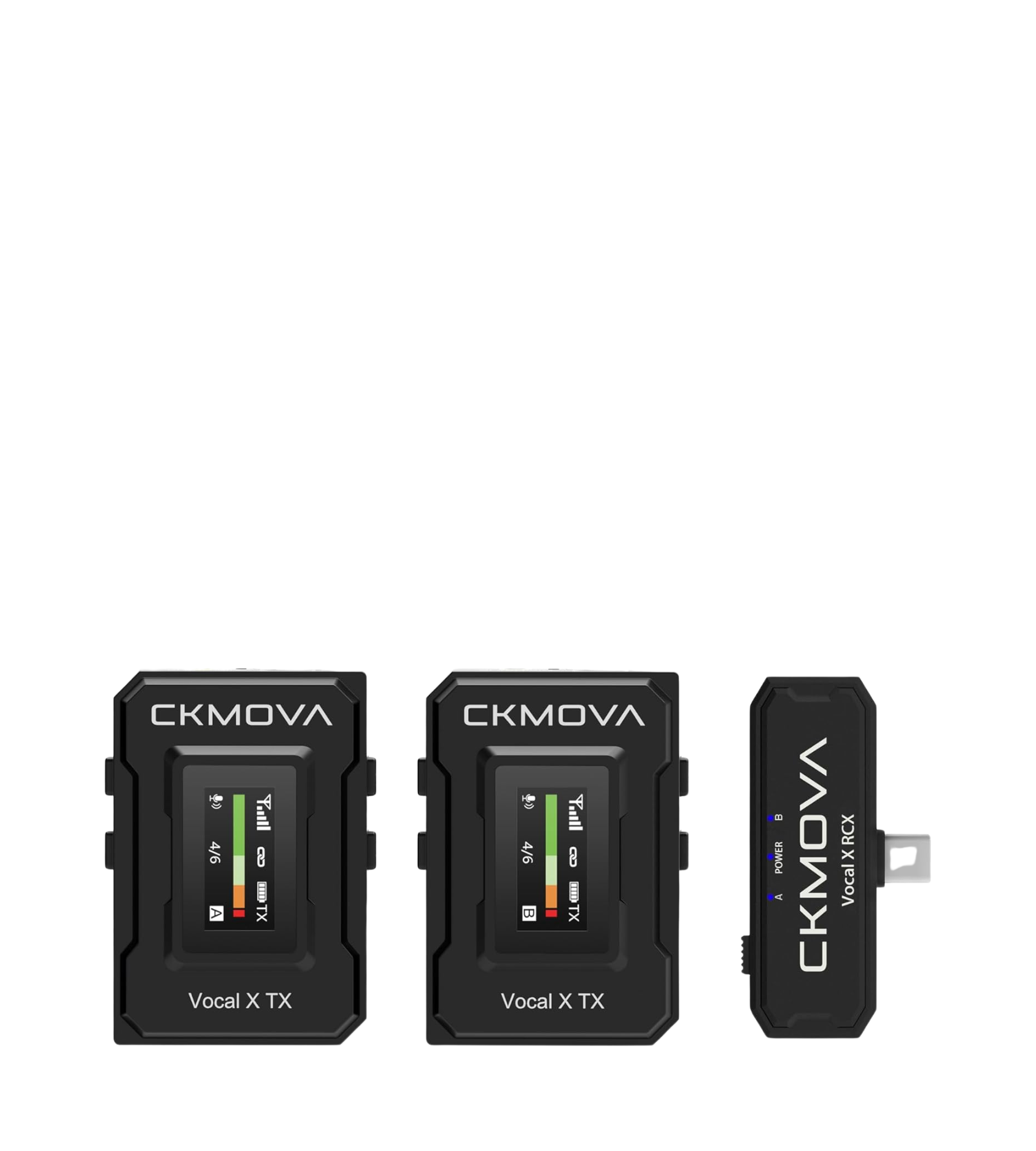

- Vocal X RX (receiver) × 1
- Vocal X TX (transmitters) × 2
- Type-C charging cables × 2

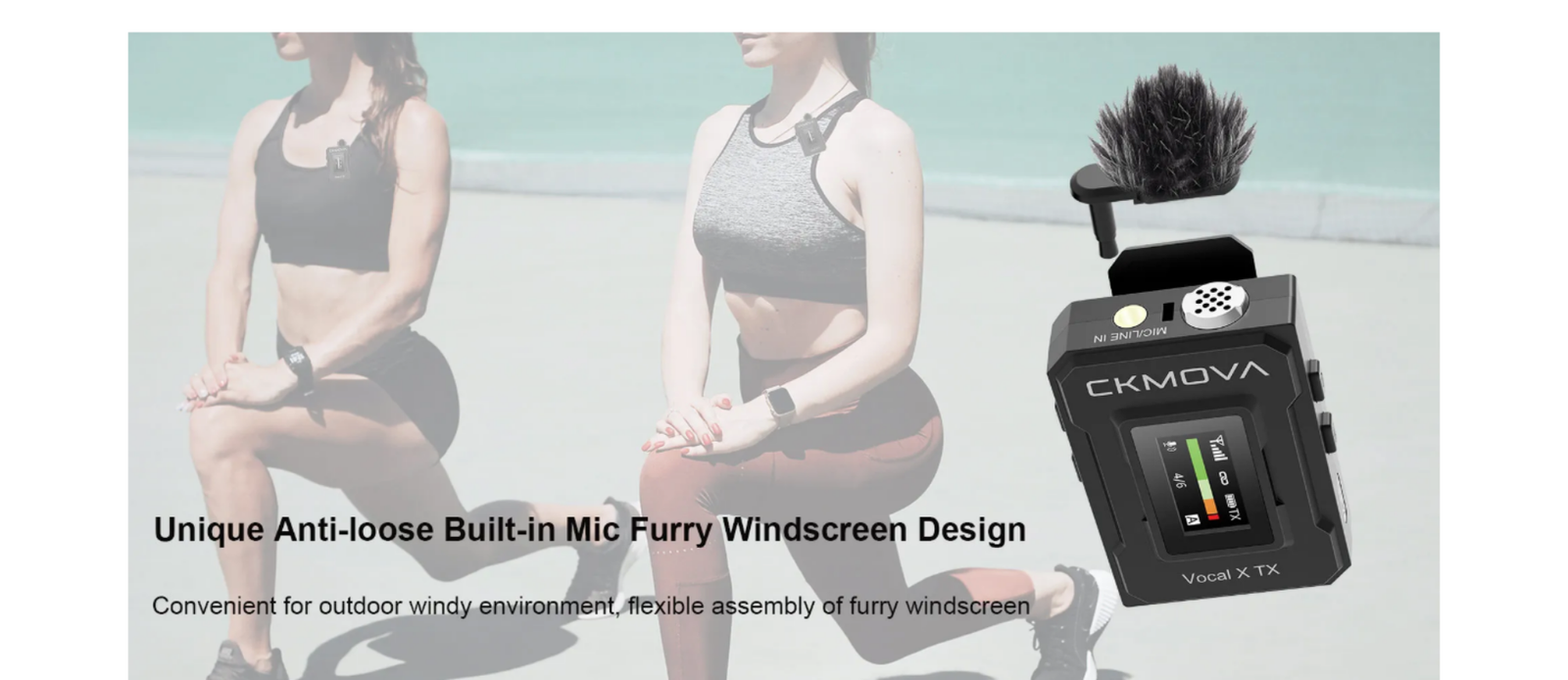

- Built-in mic windscreen / furry cover × 2
- Storage pouch / bag × 1
- User manual × 1
- Warranty card × 1
