- Features
- Specifications
- Dimensions
- Whats in the box
- Dual-channel digital 2.4 GHz wireless microphone system

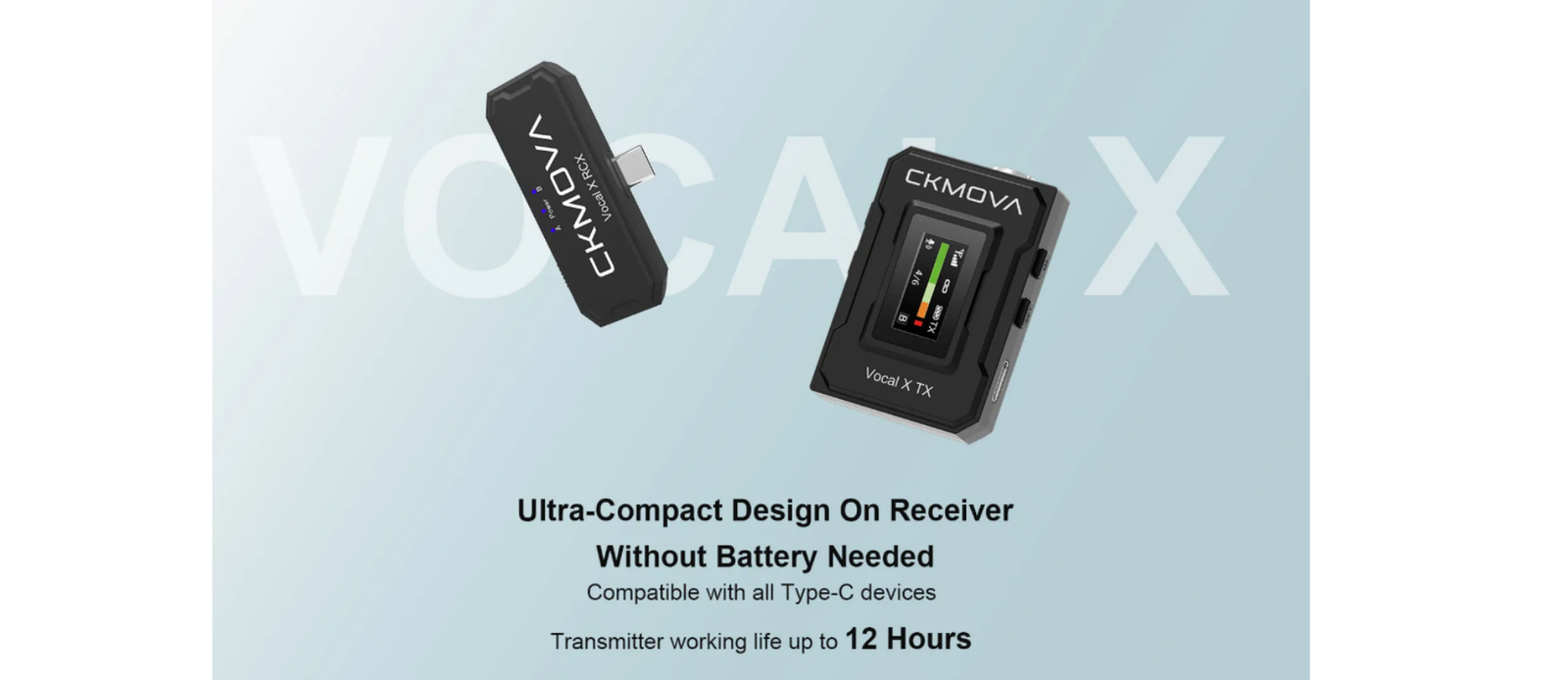

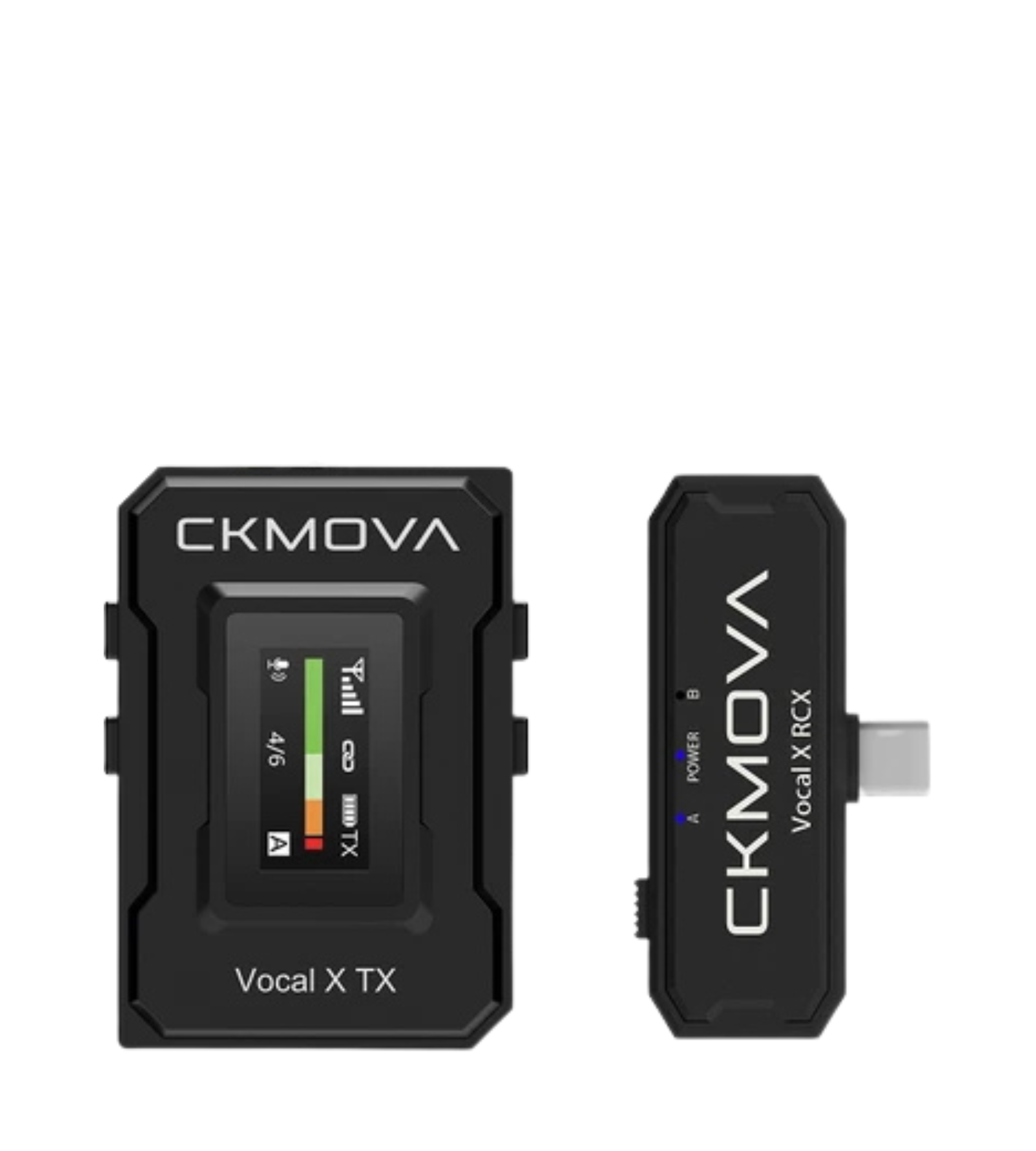

- Compact clip-on transmitters with internal mic and external mic support
- Switchable output: mono / stereo modes
- Selectable low-cut filters (e.g. 40 / 80 / 120 Hz)
- Mic input / line input mode switch
- OLED displays on transmitters & receiver for level, battery, signal
- 3.5 mm headphone realtime monitoring on receiver
- Up to ~100 m working range (line of sight, digital link)
- Low latency (likely < 5 ms)
| Specification | Detail (tentative) |
|---|---|
| Transmission Type / Band | Digital 2.4 GHz |
| Modulation | GFSK |
| Output Modes | Mono / Stereo switchable |
| Low-Cut Filter Options | Off / 40 / 80 / 120 Hz |
| Mic / Line Input Mode | Switchable |
| Frequency Response | 20 Hz – 20 kHz |
| Latency | < 5 ms (expected) |
| Max Range (Line of Sight) | ~100 m |
| RF Output Power | 10 mW (likely) |
| Sensitivity | –33 ± 3 dB (0 dB = 1 V/Pa @ 1 kHz, likely) |
| Signal-to-Noise Ratio (SNR) | ~ 80 dB SPL |
| Battery Runtime | ~10 hours (typical) |
| Charging Time | 2–2.5 hours |
| Dimensions (TX / RX) | ~ 56 × 38 × 17 mm (similar to V2 form factor) |
| Unit Weight (TX / RX) | ~ 30 g each |
Boxed dimensions: 19.5 × 14.5 × 3.0 cm (approximate, based on typical Vocal X packaging)
- Vocal X TX (transmitters) × 2
- Vocal X RX (receiver) × 1
- 3.5 mm TRS to TRS output cable
- 3.5 mm TRS to TRRS output cable
- External lavalier microphones (for each TX) × 2
- Windscreens / furry covers × 2
- Type-C charging cables × 3
- Storage pouch / bag × 1
- User manual × 1
