- Features
- Specifications
- Dimensions
- Whats in the box

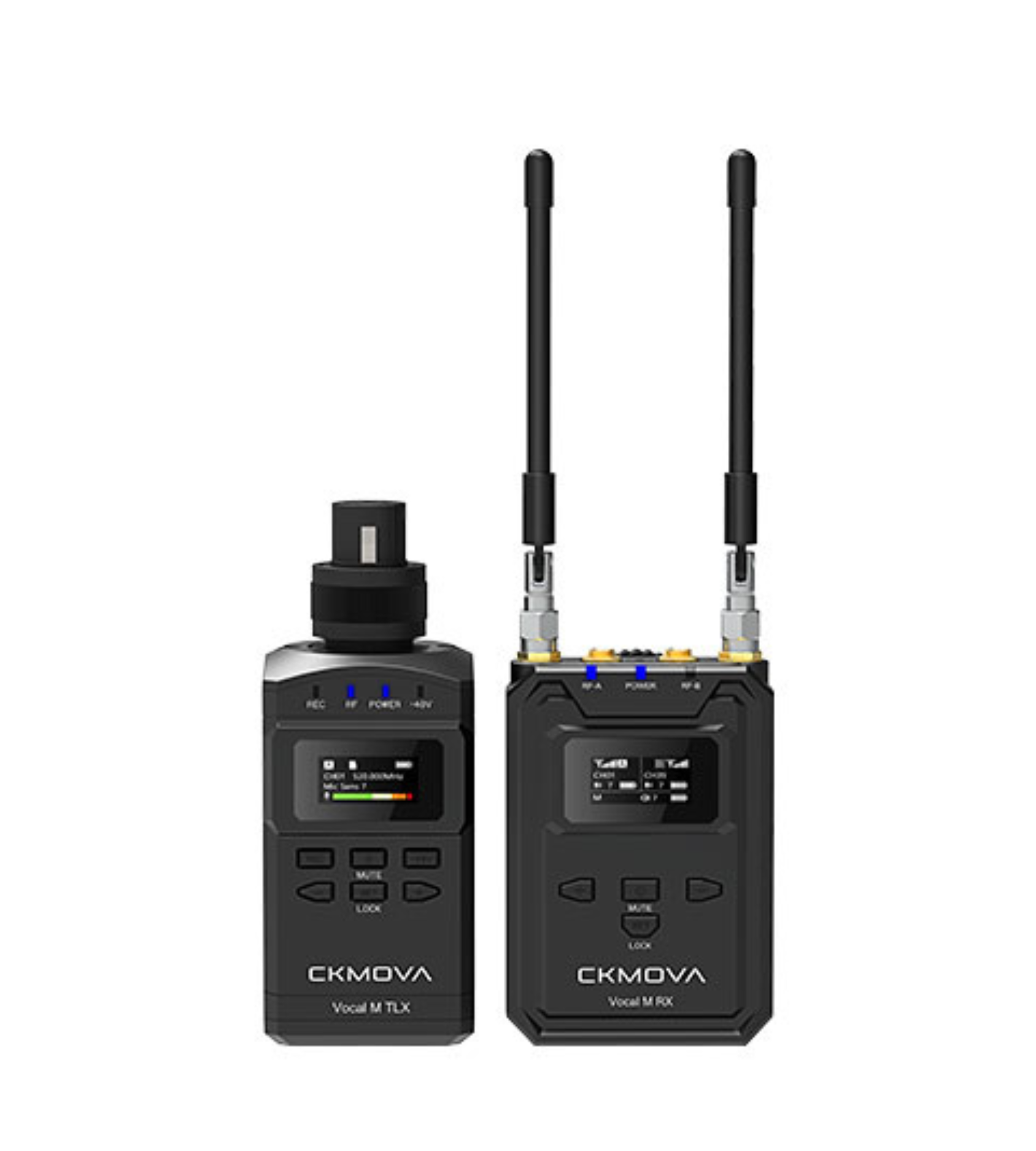

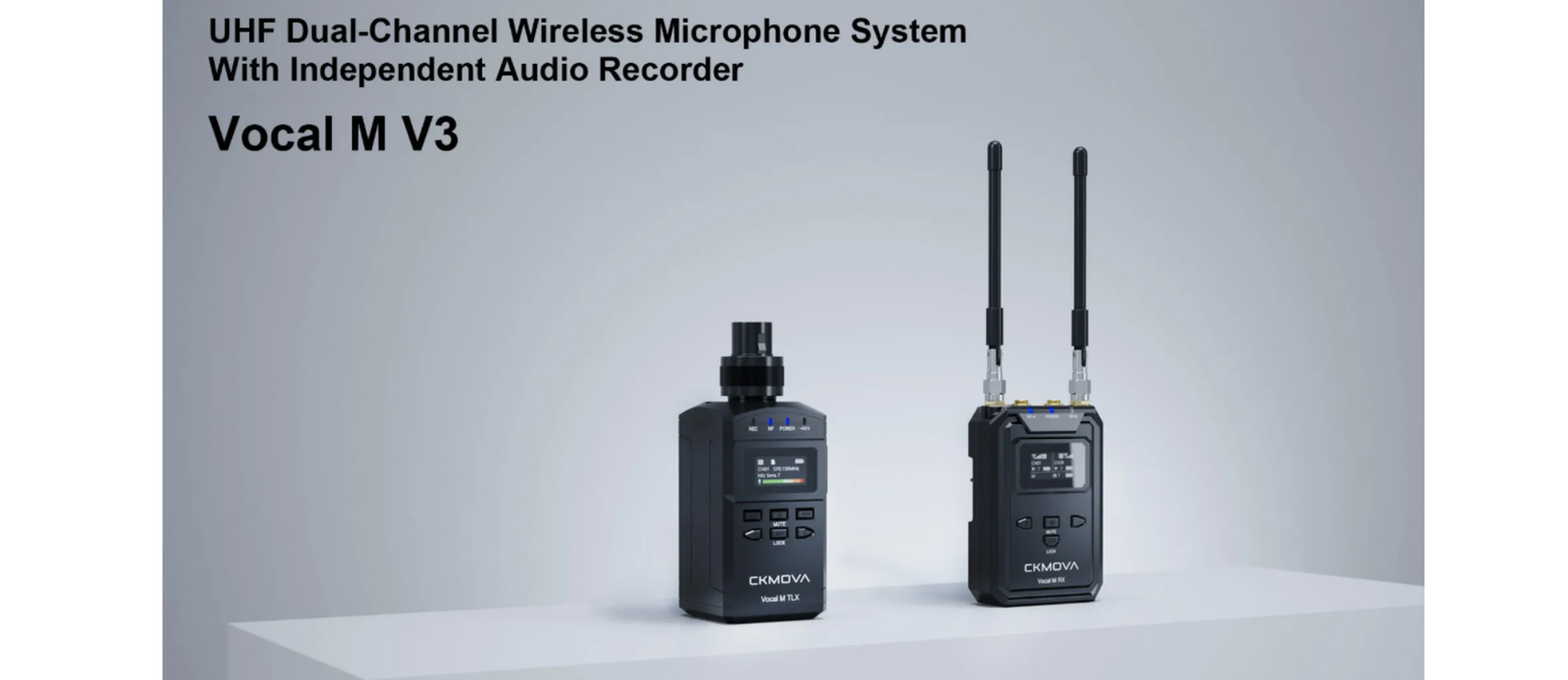

- Dual-channel UHF wireless communication (535–585 MHz band)
- True diversity receiver for stable signal reception
- Plug-on XLR transmitter with +48 V phantom power support
- Built-in audio recorder via microSD (up to 32 GB, WAV format)
- OLED displays on both transmitter and receiver with status indicators
- Selectable mono / stereo output on receiver

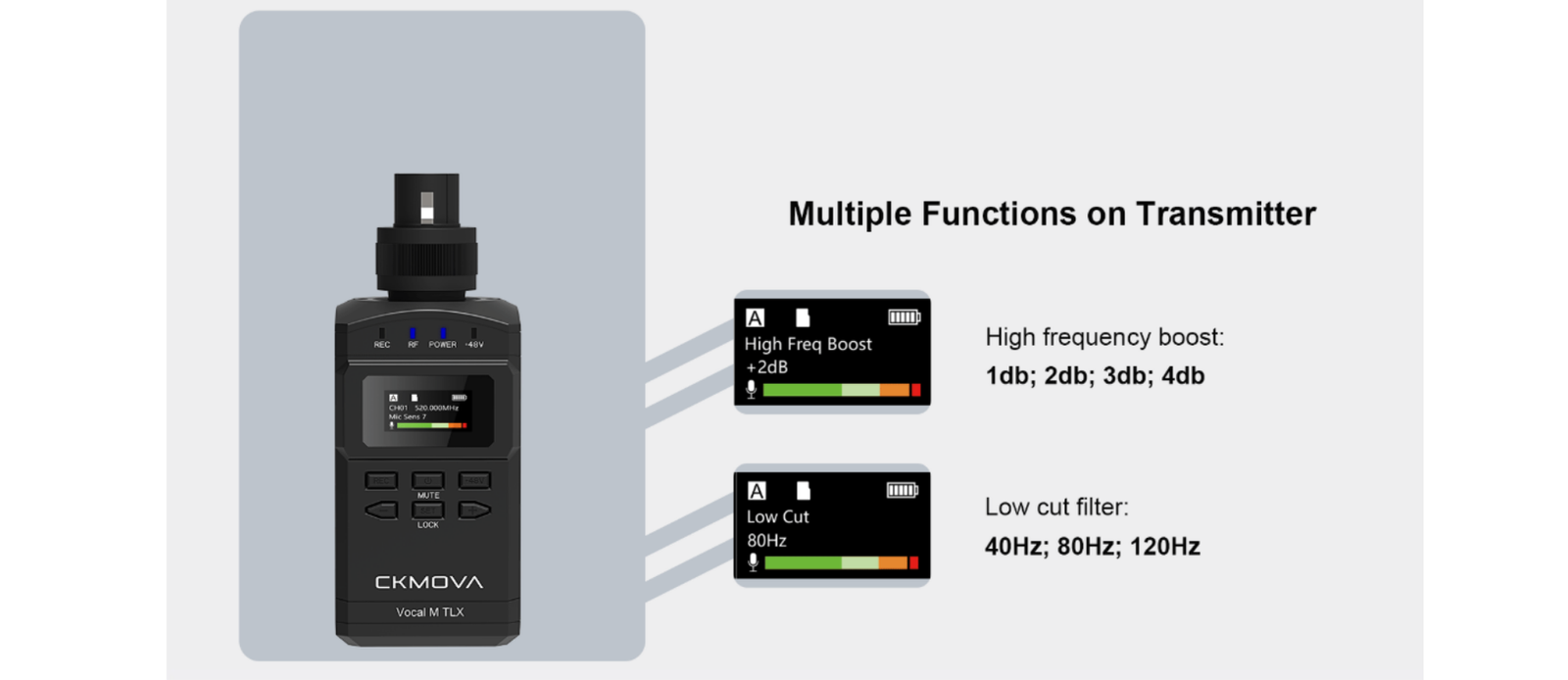

- Low-cut filters (40 Hz / 80 Hz / 120 Hz) and high frequency boost (1–4 dB)
- Mute and keypad lock functionality on both units
- Detach-and-rotate 360° antennas; auto/manual IR pairing
- Up to 12 hours of battery runtime (built-in Li-ion) and USB-C charging
| Specification | Detail |
|---|---|
| Wireless Technology | Analog UHF |
| Frequency Band | 535 – 585 MHz |
| Max Operating Range (Line of Sight) | 492 ft / 150 m |
| Diversity | True diversity |
| RF Output Power | 50 mW |
| Gain Range | 30 dB |
| Frequency Response | 20 Hz – 20 kHz |
| Latency | < 6 ms |
| THD | < 0.5 % |
| SNR | > 80 dB |

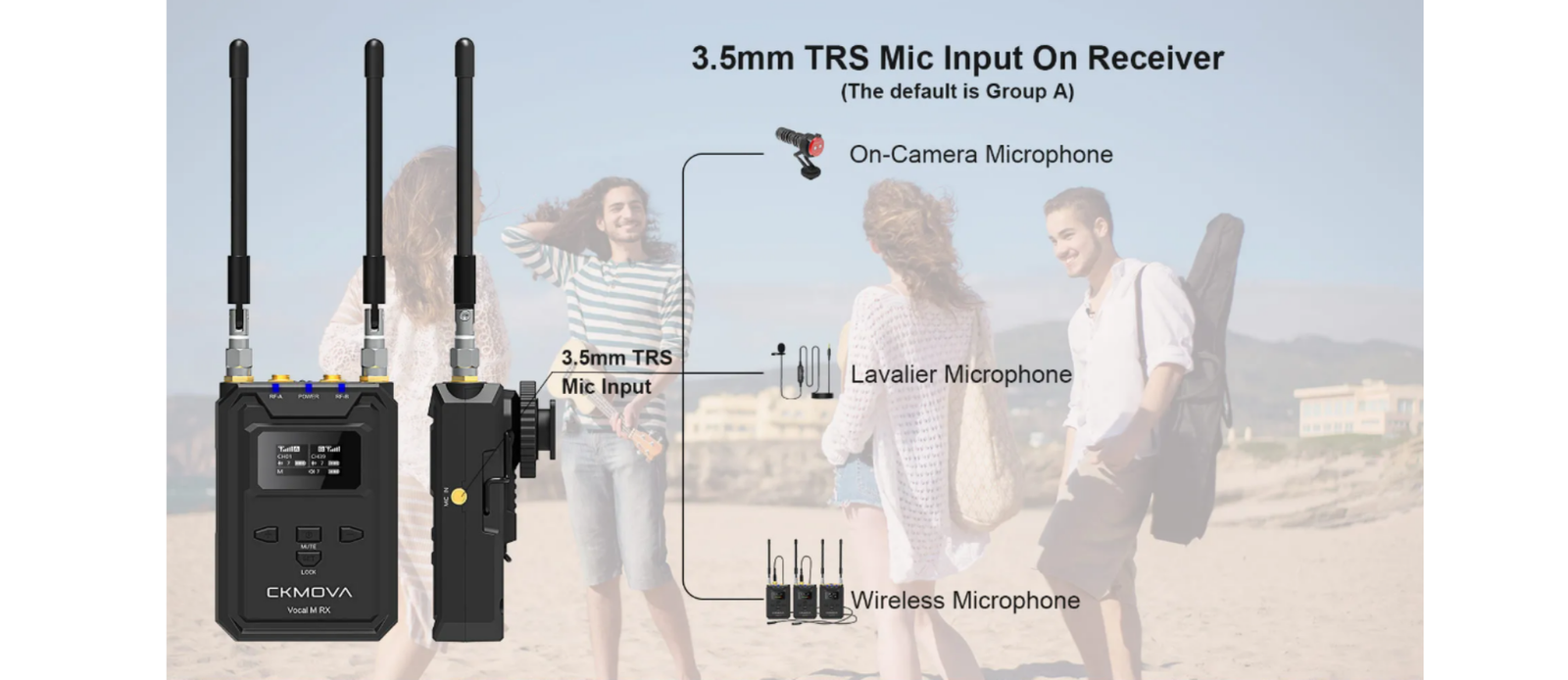

| Input / Output | Locking 3.5 mm TRS mic/line, 3-pin XLR, headphone jacks |
| Recorder | microSD up to 32 GB, WAV format |
| Low-Cut Filter | 40 / 80 / 120 Hz |
| High Frequency Boost | +1 / +2 / +3 / +4 dB |
| Battery Type | Built-in lithium ion (1500 mAh) |
| Battery Life | Up to 12 hours |
| Charging Time | 2 hours (via USB-C) |
| Dimensions (Transmitter) | 56 × 80 × 22 mm |
| Dimensions (Receiver) | 56 × 80 × 22 mm |
| Weight (Transmitter incl. battery) | 125 g |
| Weight (Receiver incl. battery) | 135 g |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | –20 °C to 60 °C |
Boxed dimensions: 11.5 × 9.3 × 4.3 in (≈ 29.2 × 23.6 × 10.9 cm)
- Plug-on XLR Transmitter × 1
- Receiver (dual-channel bodypack) × 1
- Locking 3.5 mm TRS to 3.5 mm TRS audio cable × 1
- Locking 3.5 mm TRS to 3-pin XLR audio cable × 1
- USB-C charging cables × 2
- Shoe mount adapter × 1
- Belt clip × 1
- Detachable antennas × 2
- Hard carry case × 1
- User manual × 1
- Warranty card × 1
