FEATURES
- Full‑range 2.25″ transducer for balanced music and voice reproduction.
- Supports low‑impedance (16 Ω) and constant‑voltage (70 V/100 V) operation with transformer taps.
- Weather‑resistant enclosure rated IP55 for outdoor wet location installations.
- Consistent tonality across the FreeSpace speaker line for matched systems.
- Euroblock input connectors for secure professional wiring.
- Updated enclosure with removable logos for modern aesthetic integration.
TECHNICAL SPECS
| Speaker Type | Passive surface‑mount loudspeakers (pair) |
| Driver | 1 × 2.25″ (57 mm) full‑range transducer |
| Frequency Range (−10 dB) | 83 Hz – 19 kHz |
| Frequency Response (±3 dB) | Approx. 95 Hz – 16 kHz |
| Sensitivity | ≈ 87 dB SPL (1 W @ 1 m) |
| Nominal Impedance | 16 Ω (transformer bypass) |
| Transformer Taps | 70 V: 1, 2, 4, 8, 16 W + bypass; 100 V: 2, 4, 8, 16 W + bypass |
| Power Handling (Continuous) | ≈ 20 W |
| Power Handling (Peak) | ≈ 80 W |
| Coverage (H × V) | Approx. 145° × 140° |
| Connectivity | Euroblock input |
| Environmental Rating | IP55 (wet locations) |
| Operating Temp. | −25 °C to 70 °C |
| Net Weight (each) | ≈ 1.63 kg |
| Impedance Options | 16 Ω low‑impedance or constant‑voltage modes |
DIMENSIONS (BOXED)
Approx. 577 mm × 367 mm × 274 mm (carton for pair).
Boxed product weight: Approx. 11.43 kg (pair).

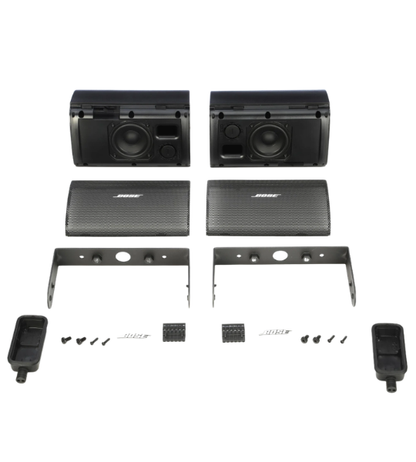

WHAT’S IN THE BOX
- 2 × FreeSpace FS2SE Surface‑Mount Loudspeakers (pair)
- 2 × U‑Brackets
- 2 × Weather‑Resistant Input Covers
- 2 × Speaker Grilles
- Installation Guide
