FEATURES

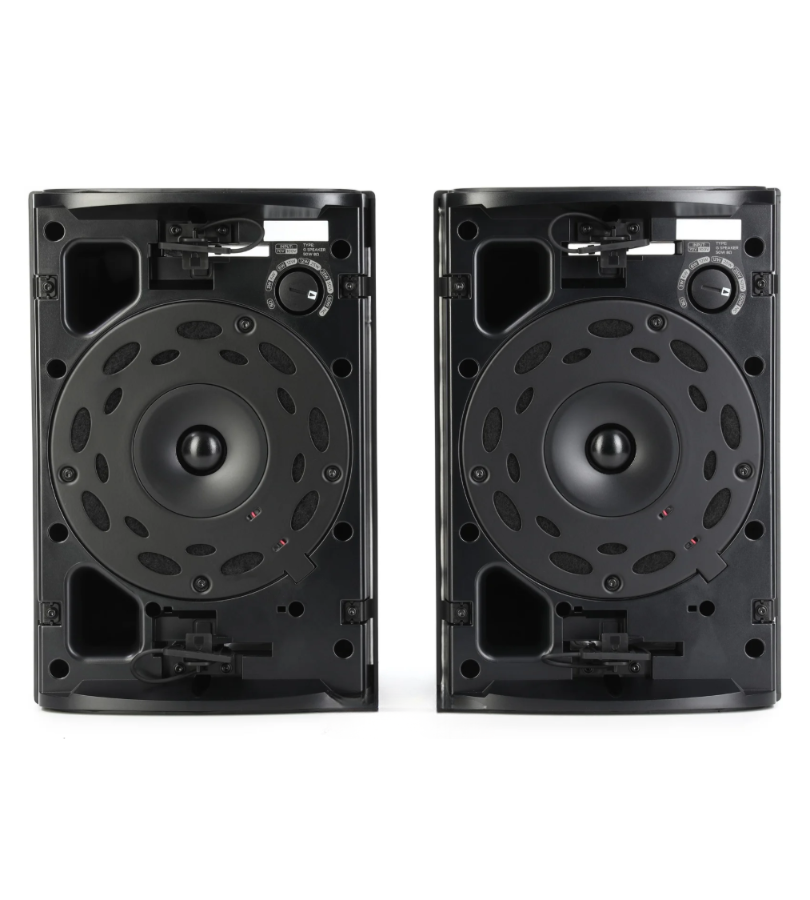

- Two-way coaxial driver system with 5.25″ woofer and 1″ tweeter for balanced sound and wide frequency response.
- IP55 rated weather-resistant enclosure with engineered plastics and aluminum grille for outdoor and indoor use.

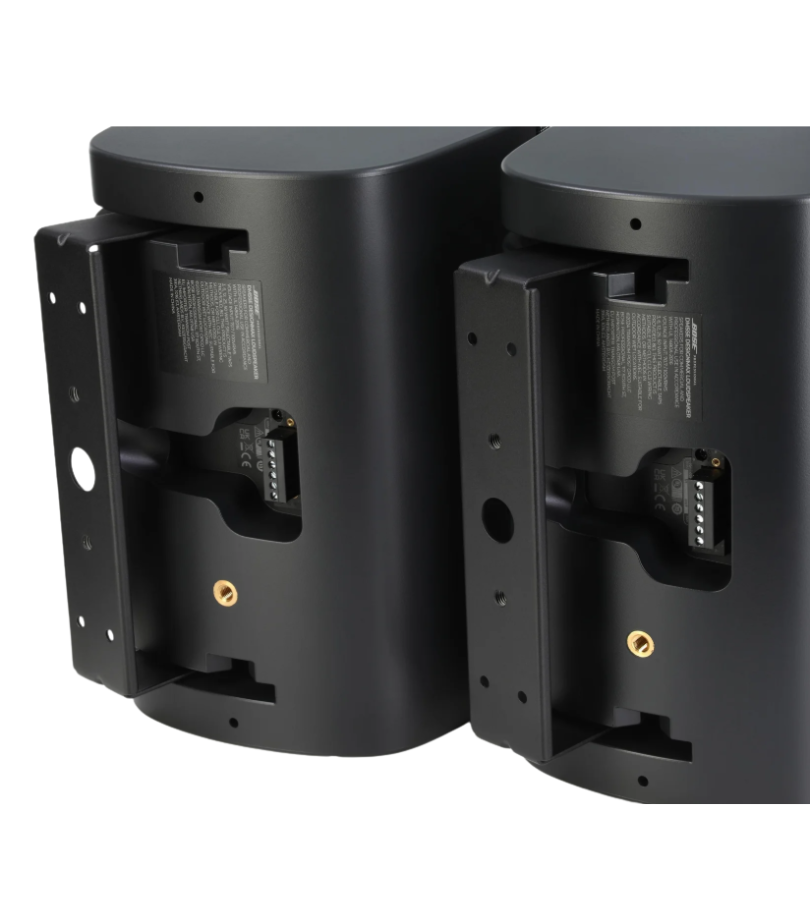

- Hidden QuickHold U-bracket system for fast, secure surface mounting.
- Rotatable, removable, and paintable grilles for aesthetic integration into any environment.
- Compatible with 8 Ω, 70 V, and 100 V installations with transformer taps for system flexibility.

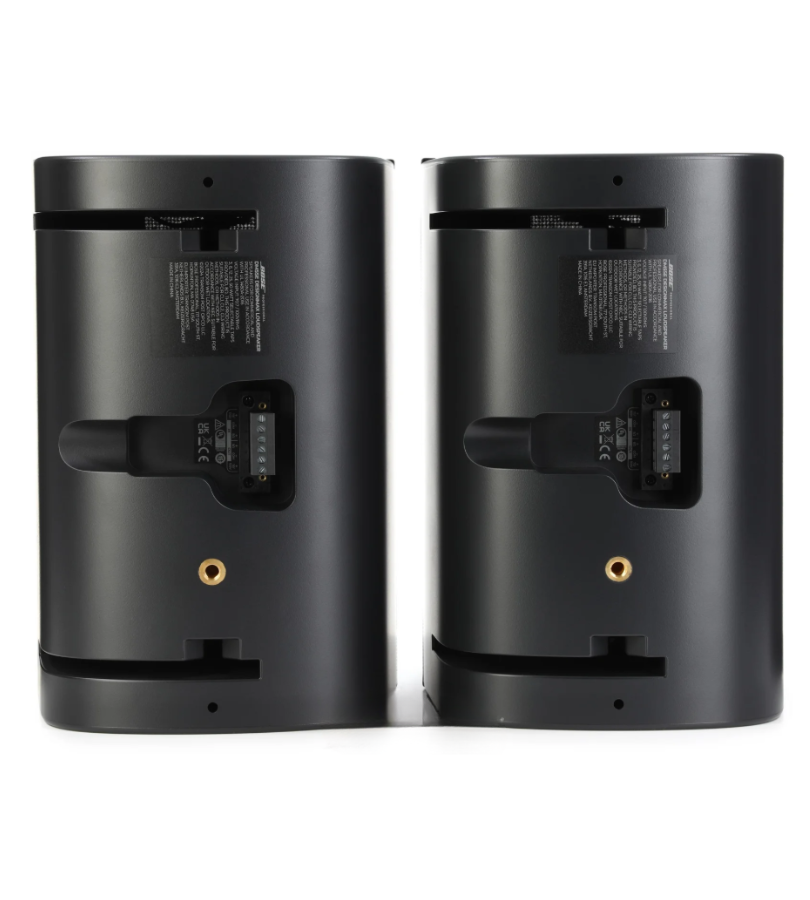

- Euroblock connectors for professional, secure wiring.
TECHNICAL SPECS
| Speaker Type | Passive 2-way surface-mount loudspeaker (pair) |
| Drivers | 1 × 5.25″ woofer + 1 × 1″ coaxial tweeter |
| Frequency Range (−10 dB) | 65 Hz – 20 kHz |
| Coverage Pattern | Approx. 135° conical |
| Power Handling (Continuous) | 60 W |
| Power Handling (Peak) | 240 W |
| Sensitivity | 89 dB SPL (1 W @ 1 m) |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Transformer Taps | 70 V & 100 V taps: up to 50 W |
| Enclosure Rating | IP55 (dust and water resistant) |
| Connectivity | Euroblock input |
| Dimensions (each) | 286 mm × 192 mm × 197 mm (H × W × D; without bracket) |
| Net Weight (each) | ≈ 4.4 kg |
| Operating Temperature | −25 °C to 70 °C |
DIMENSIONS (BOXED)
Approx. 577 mm × 367 mm × 274 mm (pair carton).
Boxed product weight: Approx. 11.43 kg (pair).

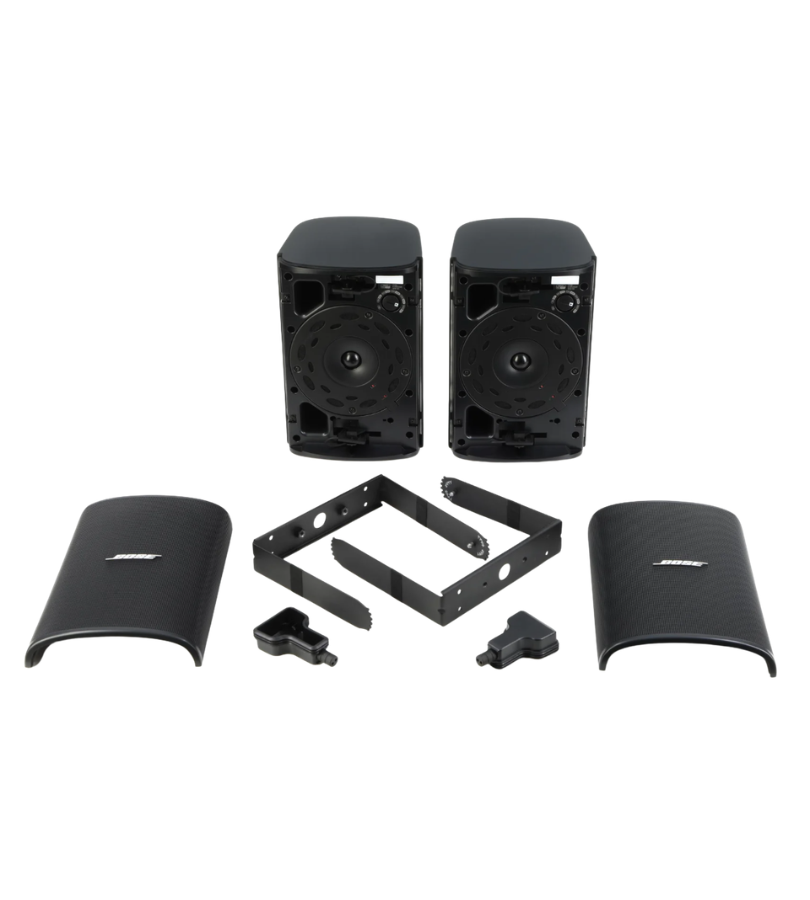

WHAT’S IN THE BOX
- 2 × Bose DesignMax DM5SE Loudspeakers (pair)
- 2 × Weather-Resistant Input Covers
- 2 × Speaker Grilles
- 2 × U-Brackets
- Installation Guide
