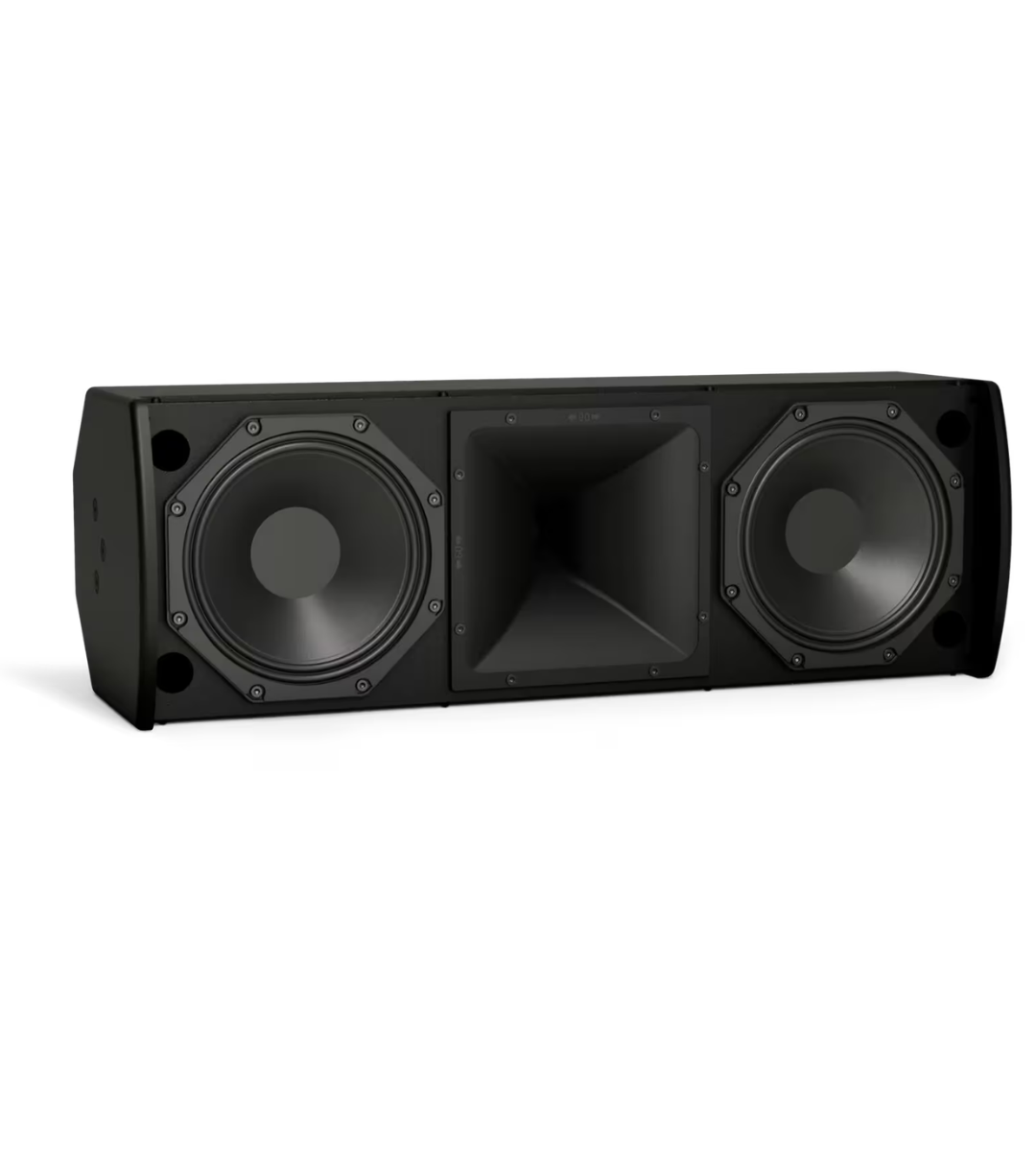

- Two-way loudspeaker with dual 8-inch low-frequency drivers and compression driver.
- 90° × 60° constant-directivity horn for consistent coverage.
- IP55-rated weather-resistant design for outdoor installations.

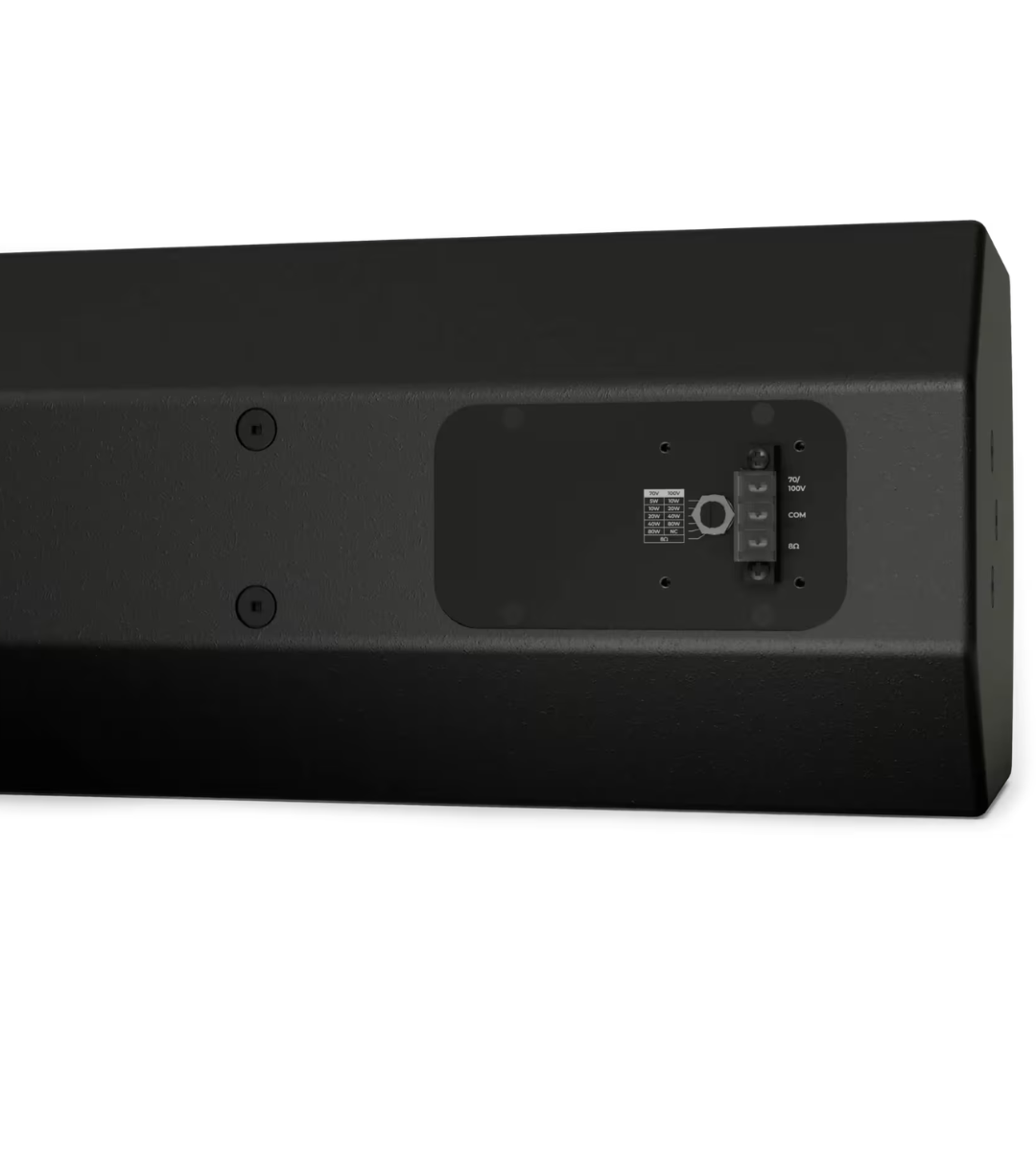

- Integrated 70V/100V transformer with low-impedance bypass.
- High-output performance for speech and music applications.
- Weather-sealed enclosure and input panel protection.
- Exterior-grade plywood cabinet construction.

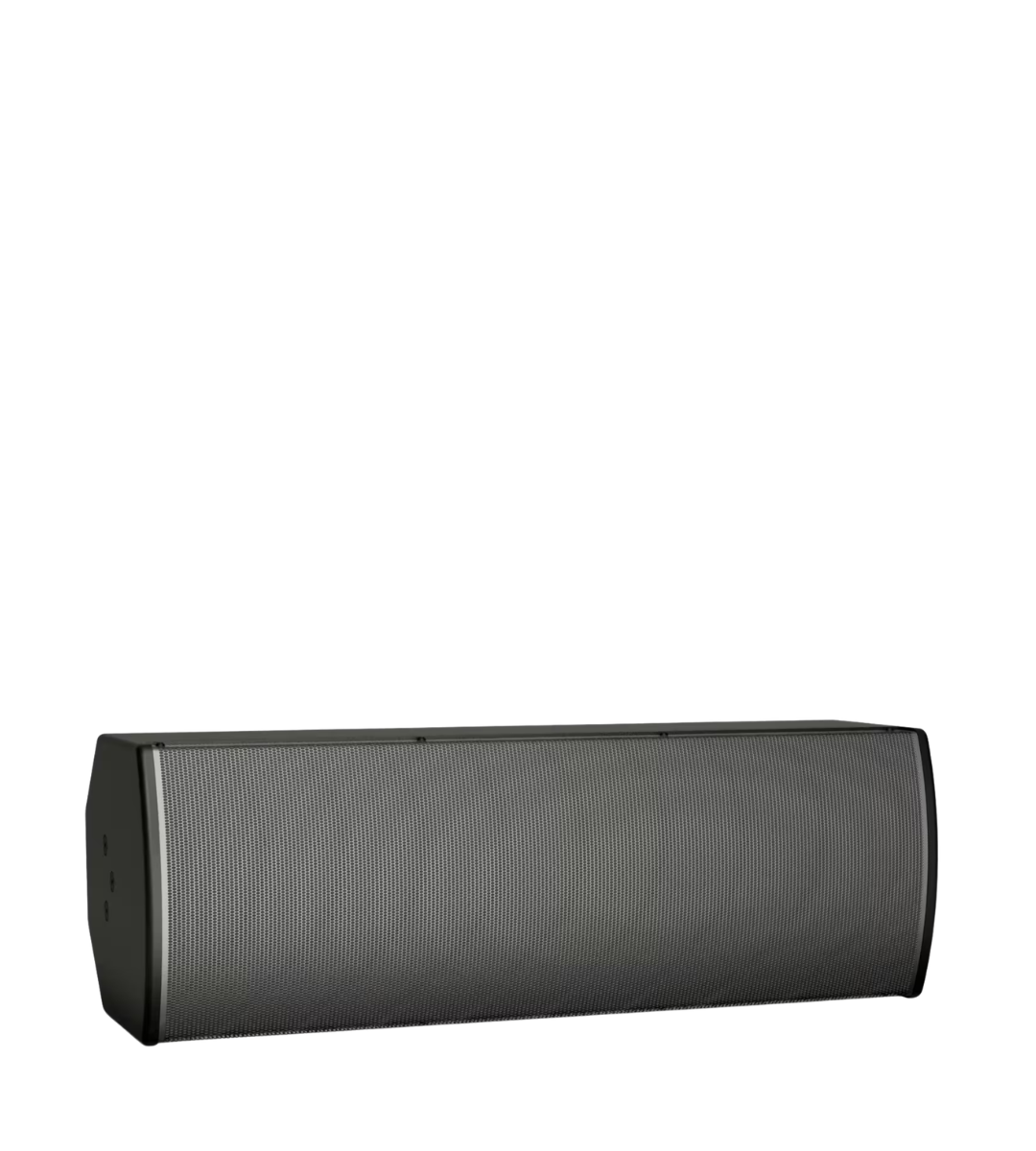

- Three-layer stainless-steel grille with acoustic foam backing.

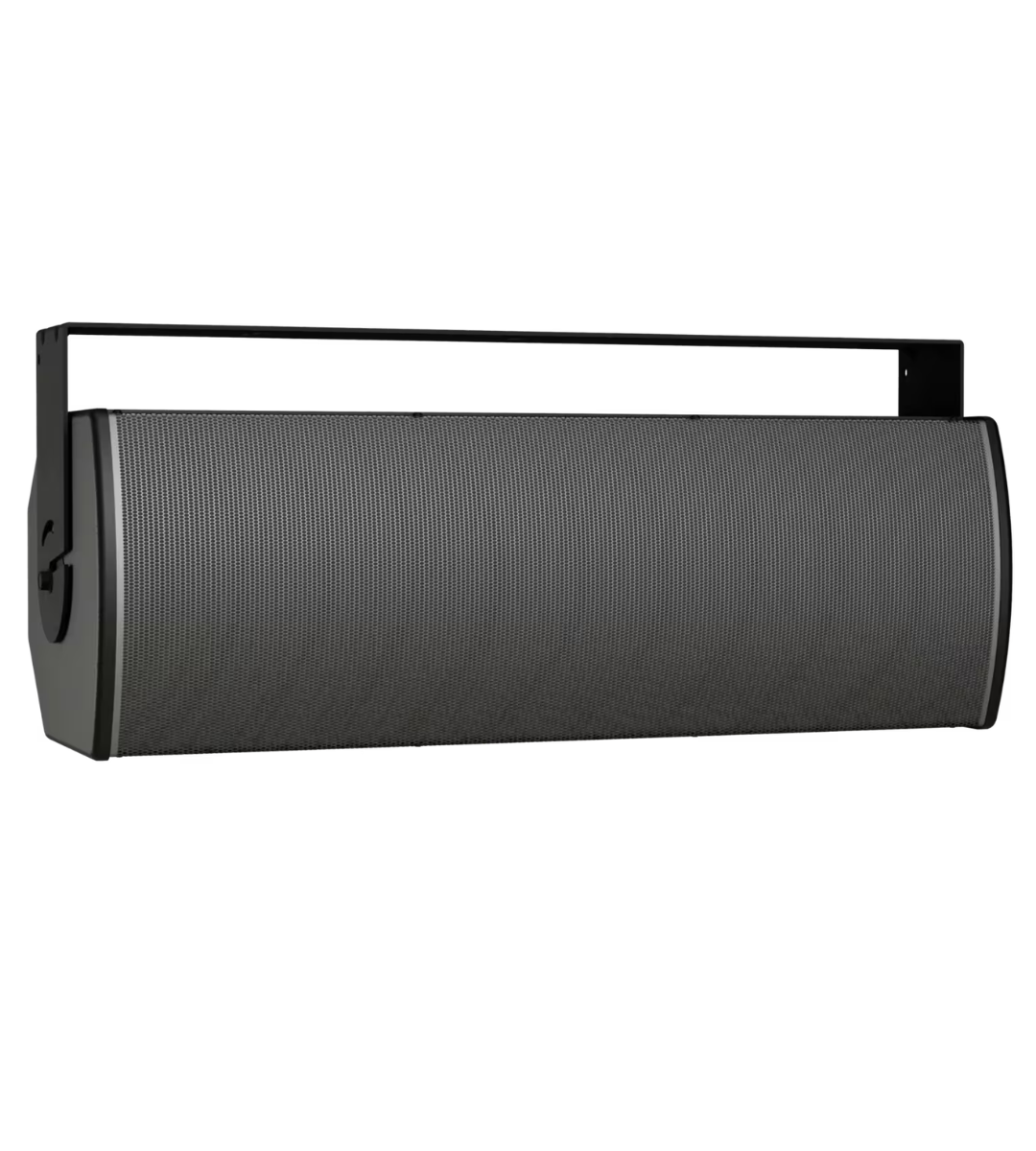

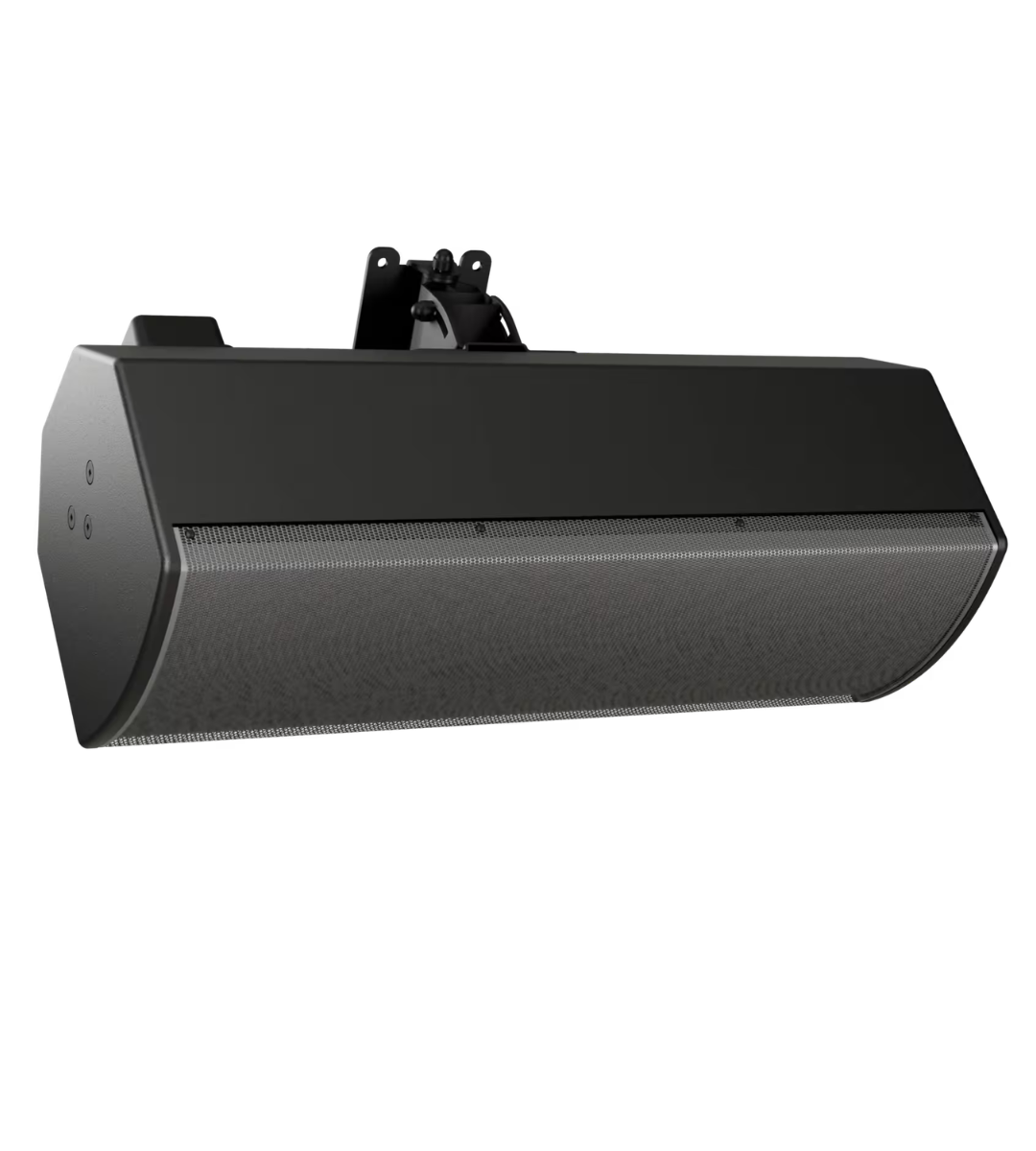

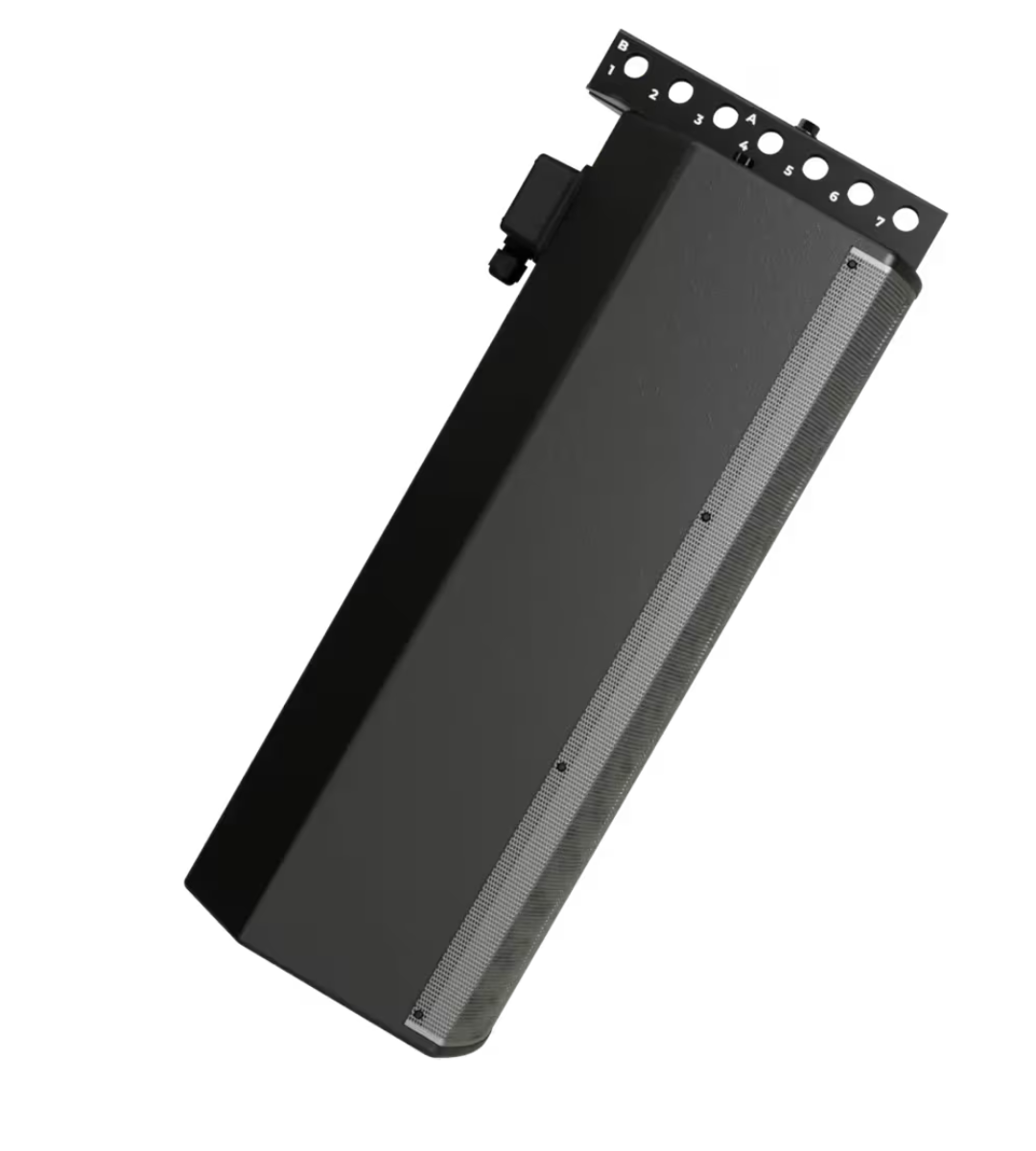

- Compatible with multiple mounting accessories and suspension options.
- Available in black or white finishes.
| Driver Configuration | 2 × 8" LF Woofers, 1 × Compression Driver |
| Frequency Range (-10 dB) | 70 Hz – 18 kHz |
| Coverage Pattern | 90° × 60° |
| Nominal Impedance | 8 Ω (Transformer Bypass) |
| Power Handling (Continuous) | 300 W |
| Power Handling (Peak) | 1200 W |
| Sensitivity (1W/1m) | 95 dB |
| Maximum SPL | 120 dB Continuous / 122 dB Peak |
| Transformer Taps (70V) | 5W, 10W, 20W, 40W, 80W |
| Transformer Taps (100V) | 10W, 20W, 40W, 80W |
| Environmental Rating | IP55 |
| Enclosure Material | Exterior-Grade Plywood |
| Grille | Three-Layer Stainless Steel |
| Speaker Dimensions (L × W × H) | 27.9 × 68.6 × 23.5 cm |
83.0 × 39.0 × 37.0 cm
- 1 × ArenaMatch Utility AMU208 Loudspeaker
- 1 × U-Bracket
- 4 × M8 Mounting Screws
- 4 × M4 Screws
- 1 × Input Cover
- 2 × Rubber Washers
- 1 × T3 Square Drive Tool
