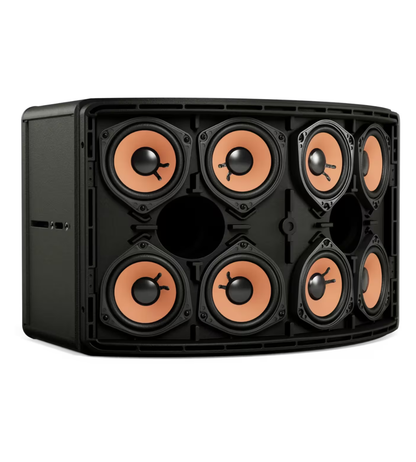

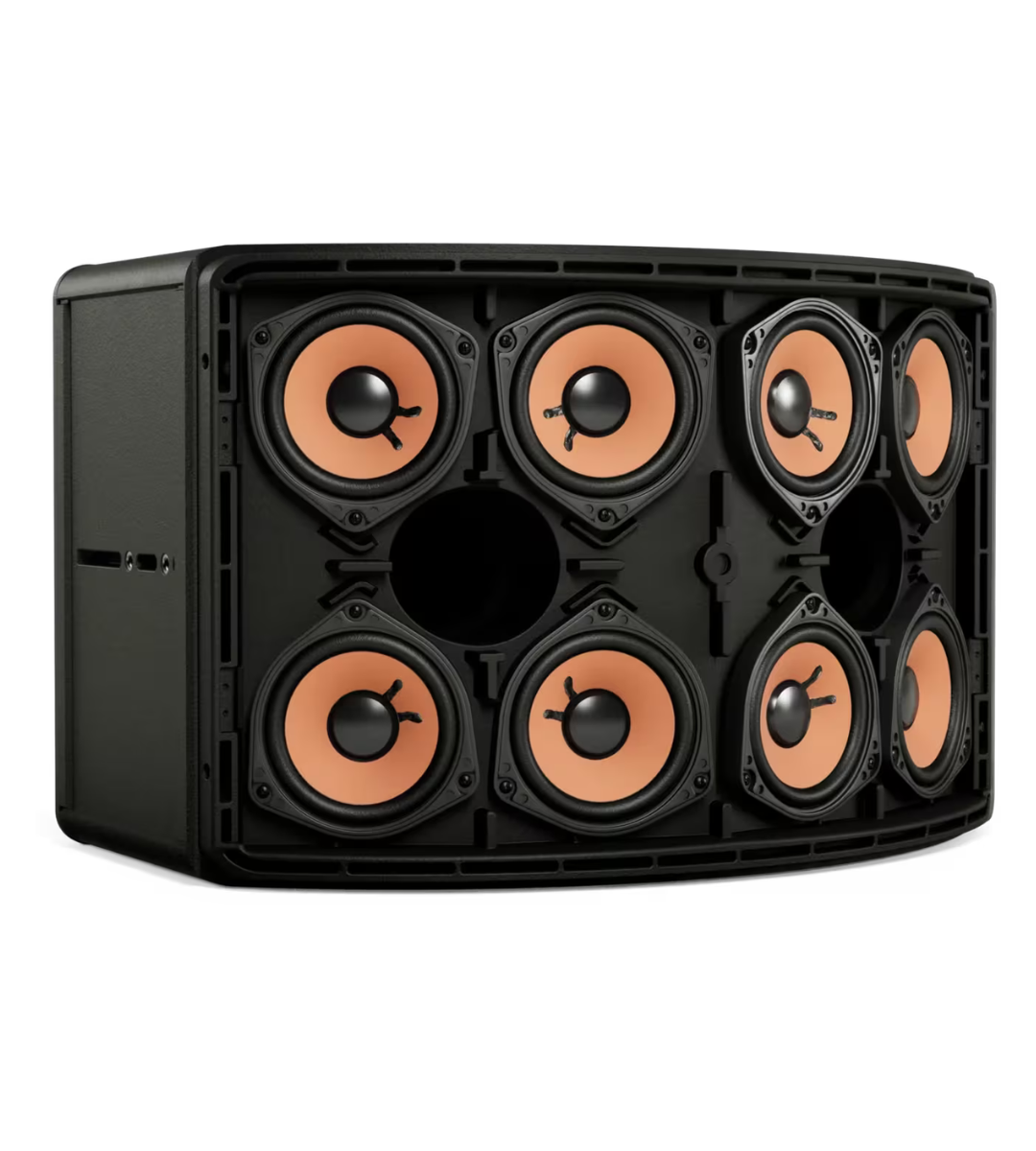

- Eight 4.5-inch full-range drivers in a high-output array design.
- Wide 120° horizontal × 100° vertical coverage pattern.
- Articulated Array® technology for consistent sound distribution.
- Suitable for both indoor and outdoor installations.
- IP55-rated weather-resistant enclosure.
- No tweeters or passive crossover network for improved reliability.
- High speech intelligibility and vocal clarity.
- Durable mineral-reinforced HDPE enclosure.
- Powder-coated steel grille for long-term durability.

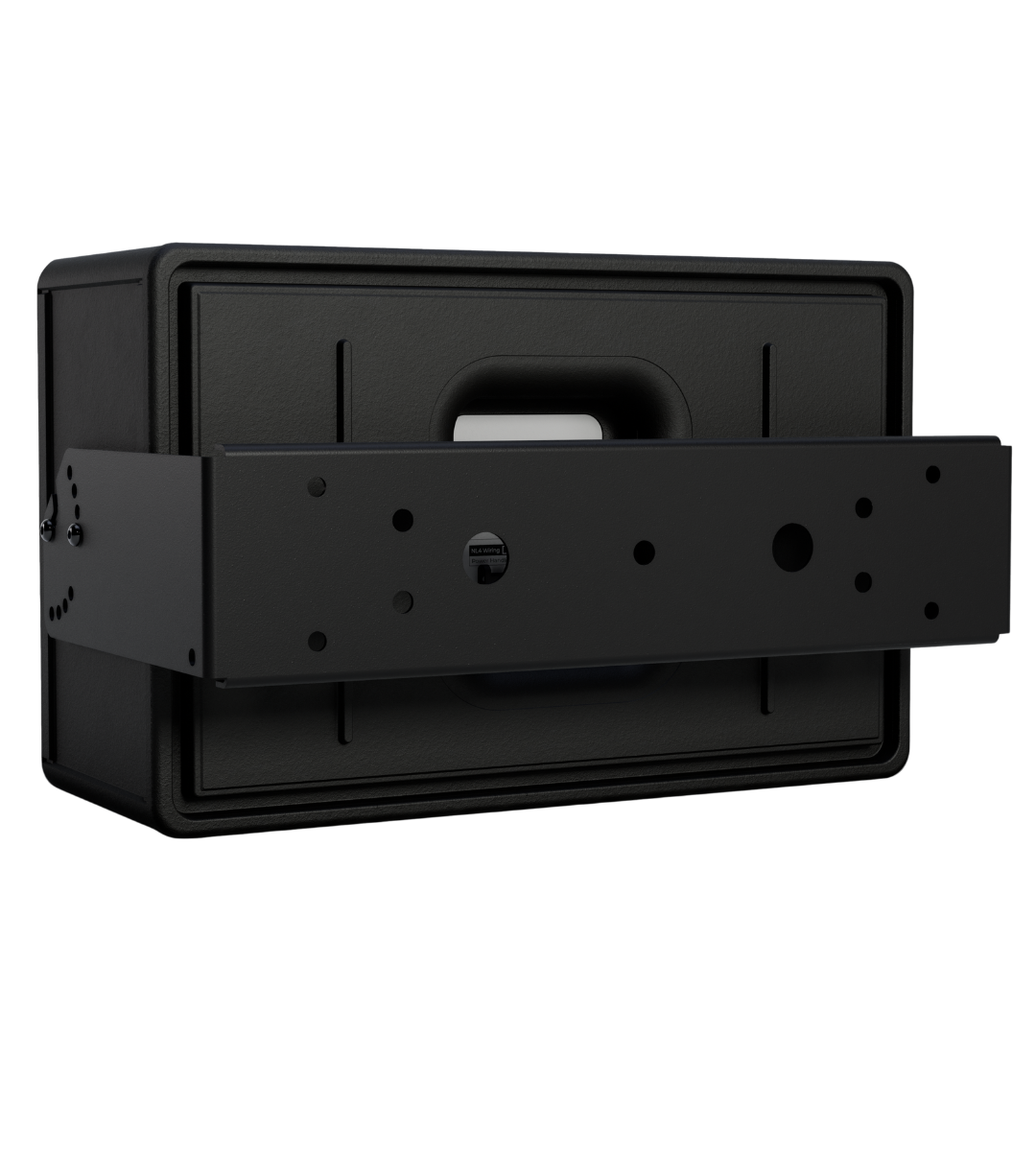

- Multiple mounting options with integrated M8 suspension points.
| Driver Configuration | 8 × 4.5-inch (114 mm) Full-Range Drivers |
| Frequency Range (-10 dB) | 52 Hz – 15 kHz |
| Coverage Pattern | 120° H × 100° V |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous) | 240 W |
| Power Handling (AES) | 300 W |
| Peak Power Handling | 960 W |
| Sensitivity (1W/1m) | 92 dB |
| Maximum SPL (Continuous) | 116 dB |
| Maximum SPL (Peak) | 122 dB |
| Protection | Automatic Reset Power Limiting Circuit |

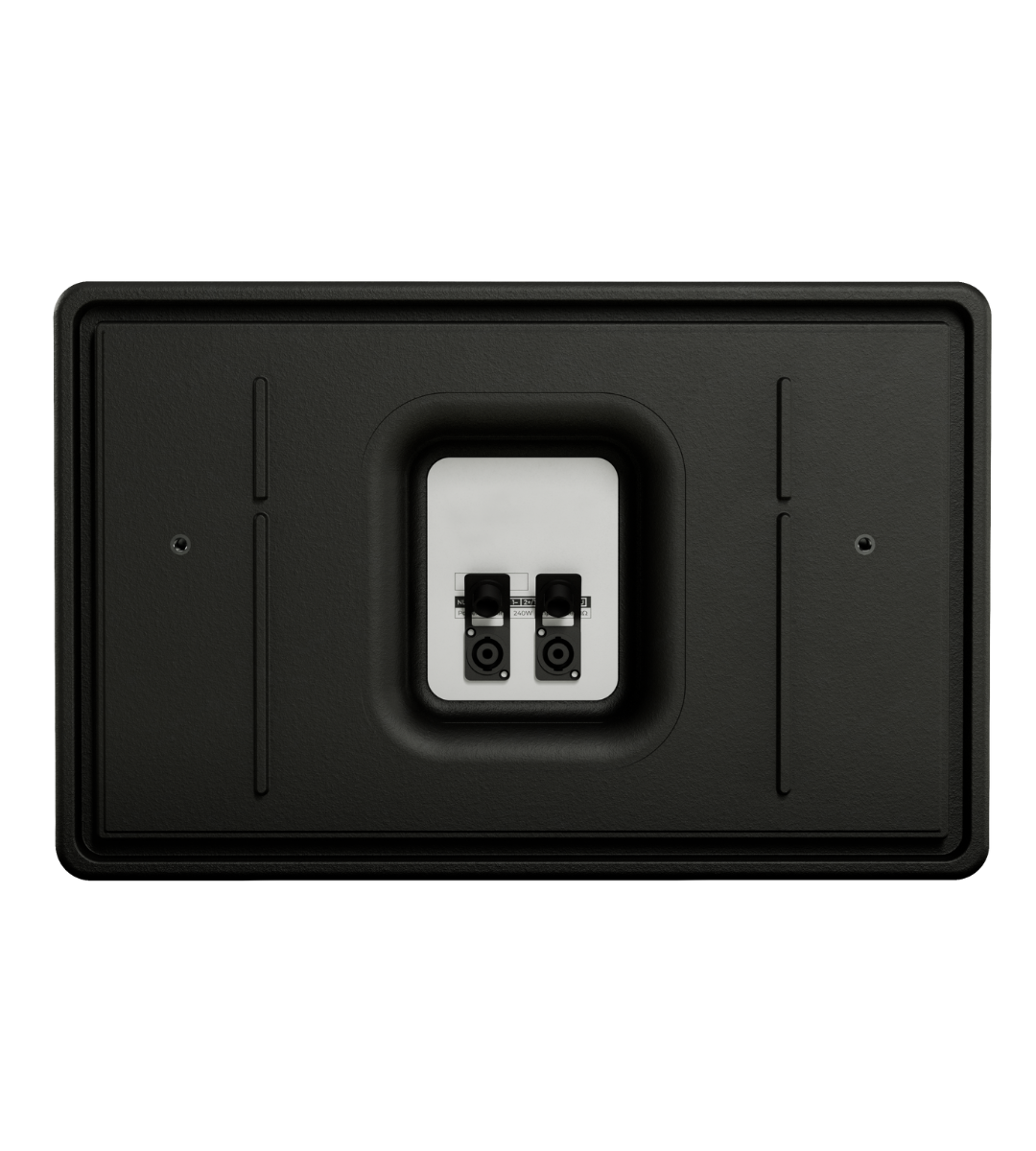

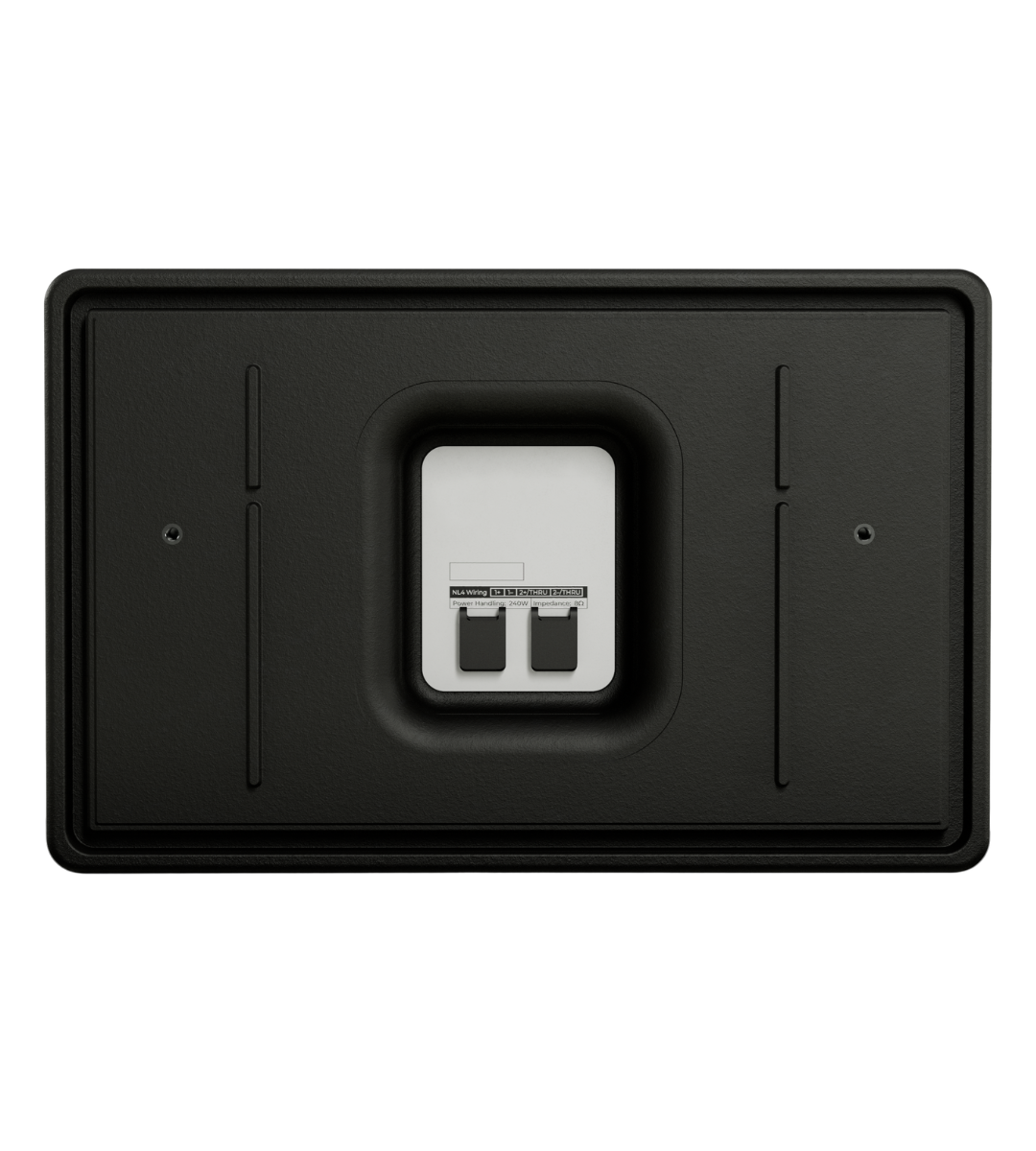

| Connectors | 2 × Neutrik NL4 (Parallel Wired) |
| Environmental Rating | IP55 |
| Enclosure Material | Mineral-Reinforced HDPE |
| Grille | Powder-Coated Steel |
| Mounting Points | 8 × M8 Threaded Inserts |
| Speaker Dimensions (L × W × H) | 31.8 × 52.3 × 33.4 cm |
63.0 × 42.0 × 42.0 cm
- 1 × Panaray 802 Series V Loudspeaker
- 1 × Installation Guide
