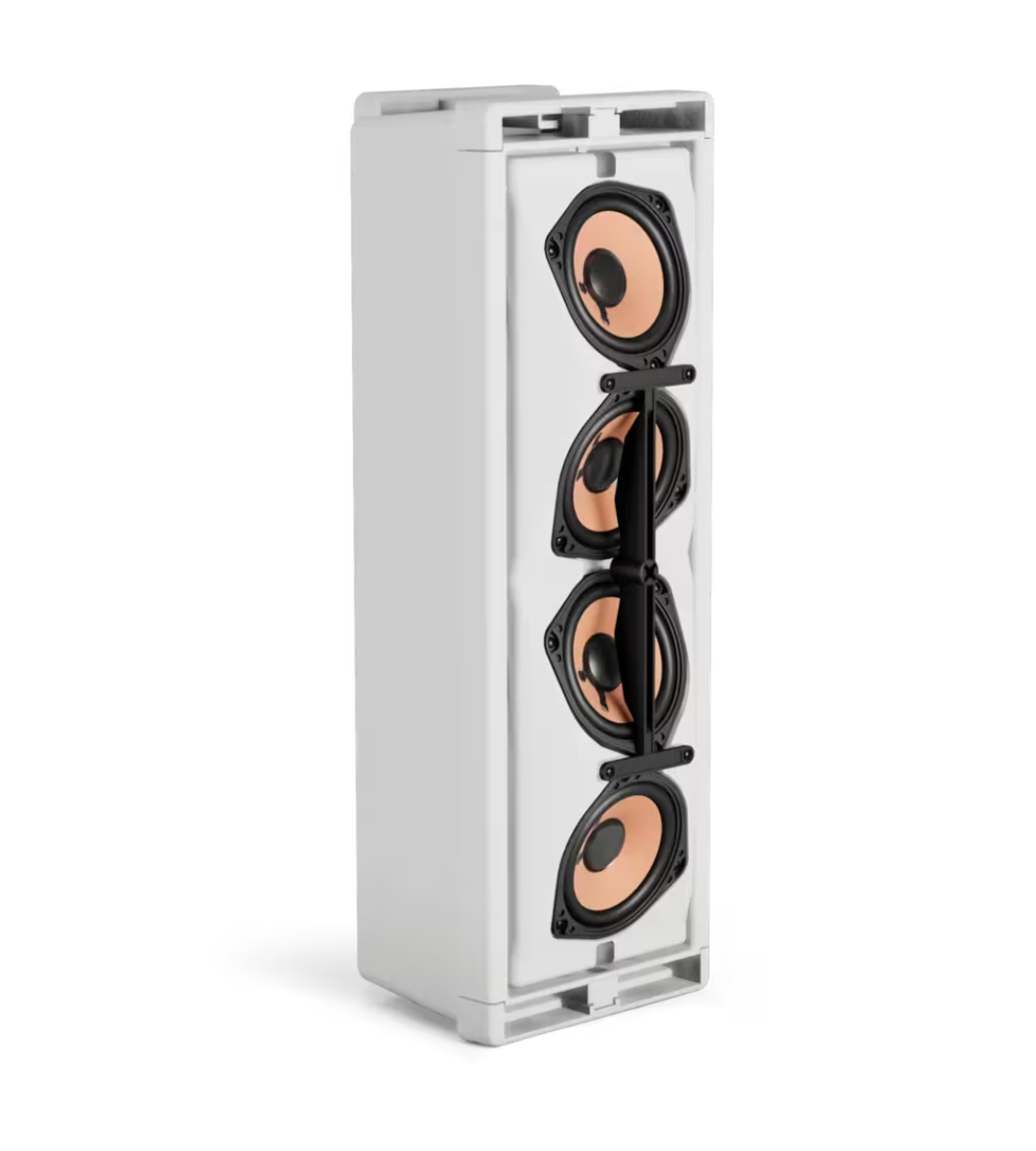

- Four 4.5-inch full-range drivers in an Articulated Array® design.
- Wide 120° horizontal × 60° vertical coverage pattern.
- High speech intelligibility and natural music reproduction.
- Compact enclosure suitable for indoor and outdoor installations.
- IP55-rated weather-resistant construction.
- No tweeters or passive crossover network for improved reliability.
- Full-range performance with extended low-frequency response.
- Mineral-reinforced HDPE enclosure for durability.
- Powder-coated steel grille for long-term protection.
- Multiple mounting options with integrated M8 suspension points.
| Driver Configuration | 4 × 4.5-inch (114 mm) Full-Range Drivers |
| Frequency Range (-10 dB) | 73 Hz – 15 kHz |
| Coverage Pattern | 120° H × 60° V |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous) | 150 W |
| Peak Power Handling | 600 W |
| Sensitivity (1W/1m) | 91 dB |
| Maximum SPL (Continuous) | 113 dB |
| Maximum SPL (Peak) | 119 dB |
| Protection | Automatic Reset Power Limiting Circuit |
| Connectors | 2 × Neutrik NL4 (Parallel Wired) |
| Environmental Rating | IP55 |
| Enclosure Material | Mineral-Reinforced HDPE |
| Grille | Powder-Coated Steel |
| Mounting Points | 7 × M8 Threaded Inserts |
| Speaker Dimensions (L × W × H) | 59.1 × 20.6 × 20.2 cm |
66.0 × 28.0 × 28.0 cm

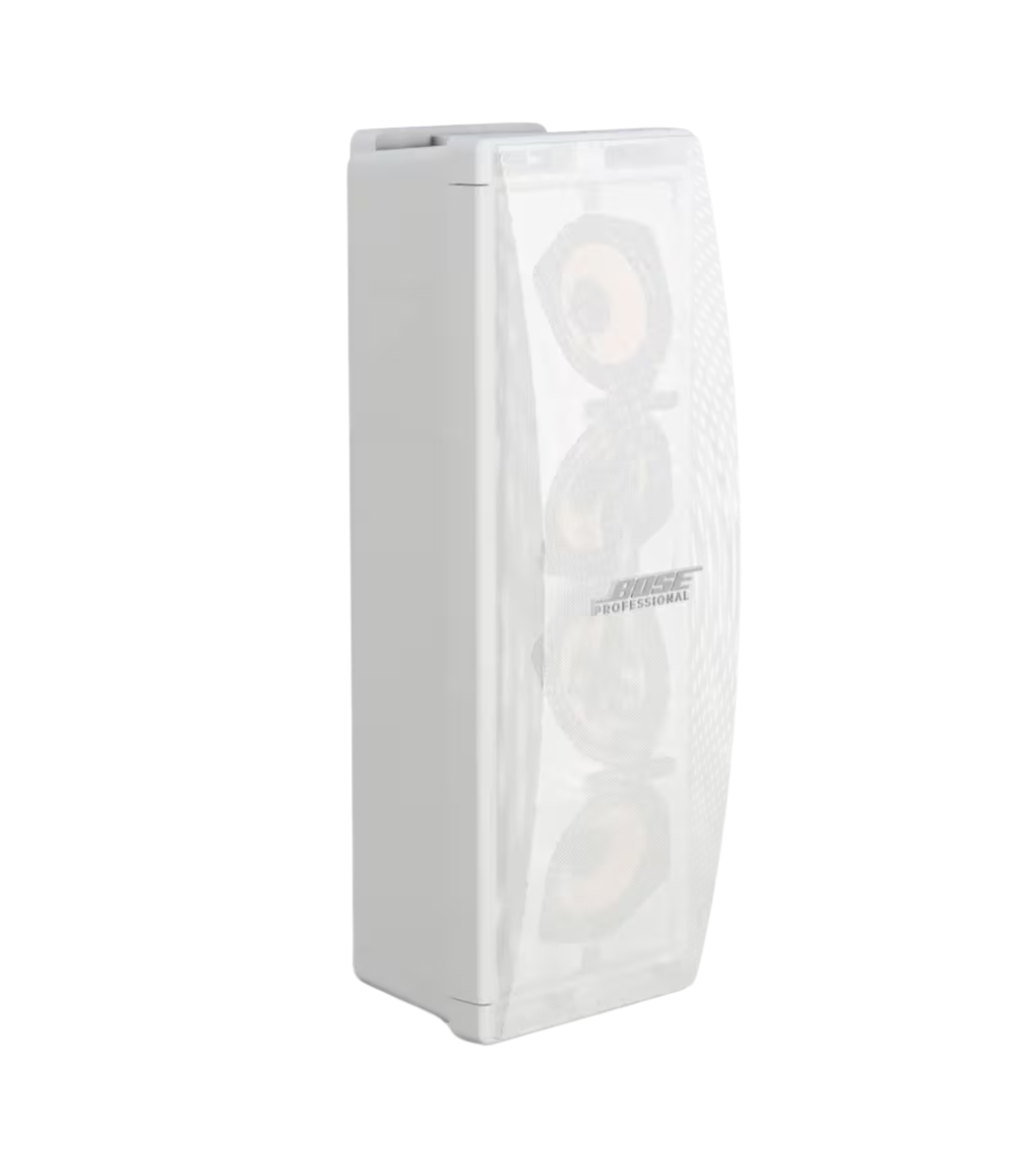

- 1 × Bose Professional Panaray 402 Series V Loudspeaker
- 1 × Installation Guide
