- XLR plug-and-play design for microphones and compatible audio sources
- Automatic frequency tracking for fast setup and stable operation
- Supports dynamic microphones, small-diaphragm condenser microphones, and line input sources
- Compatible with musical instruments and other audio equipment
- +48 V phantom power for compatible condenser microphones
- Independent SET controls for frequency, volume, and signal-strength adjustment on the transmitter
- LCD display for frequency and status monitoring
- Built-in lithium batteries
- USB-C charging
| Specification | Detail |
|---|---|
| System Type | UHF Wireless Audio Conversion System |
| Carrier Frequency | 460–950 MHz |
| Working Distance | 20–50 m, depending on environment |
| Receiver Sensitivity | −95 dBm |
| Receiver S/N Ratio | >95 dB |
| Receiver Balanced Audio Output | 280 mV |
| Receiver Output Connector | XLR male |
| Receiver THD | <0.5% |
| Receiver Frequency Response | 60 Hz–16 kHz |
| Receiver Display | LCD |
| Receiver Battery | Built-in lithium battery |
| Receiver Working Current | 110 mA |
| Receiver Charging | USB-C, DC 5 V, >1000 mA |
| Receiver Battery Life | Approx. 7 hours |
| Transmitter Frequency Control | Automatically tracks receiver working channel |
| Transmitter Harmonic Radiation | <−55 dBm |
| Transmitter Maximum Offset | ±45 kHz |
| Transmitter Frequency Response | 45 Hz–18 kHz |
| Transmitter Display | LCD |
| Transmitter Battery | Built-in lithium battery |
| Transmitter Working Current | 110–150 mA |
| Transmitter Battery Life | Approx. 7 hours |
| Transmitter Input Connector | XLR female |
| Input Methods | Dynamic coil microphone; small-diaphragm condenser microphone; line input |
| Phantom Power | +48 V |

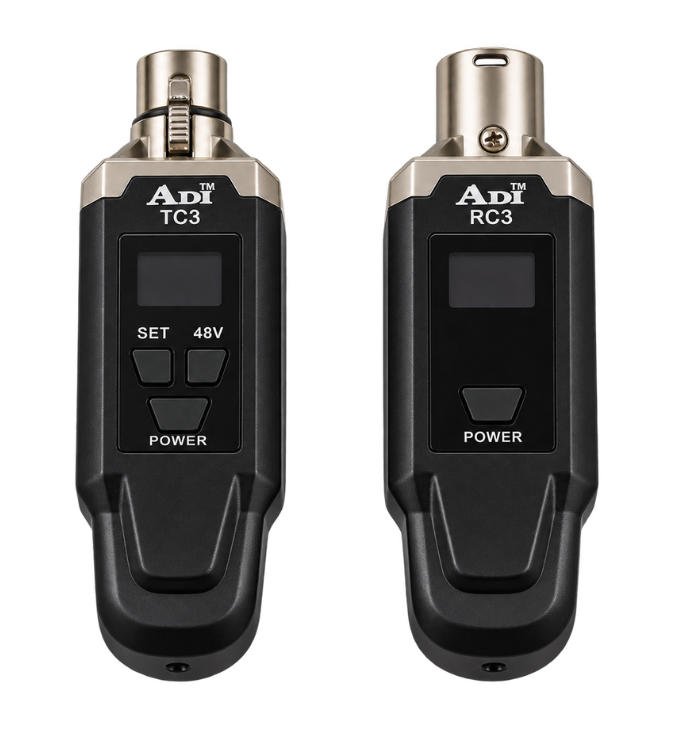

- Transmitter
- Receiver
