- Features
- Specifications
- Dimensions
- Whats in the box
- 61 organ-style touch-sensitive keys with adjustable (Soft/Medium/Hard/Off) response
- Rich sound engine: AWM stereo sampling with 650 voices—including 347 XGlite and 12 Super Articulation Lite voices
- 48-note polyphony for full, unbroken play in complex arrangements
- Accompaniment: 260 Styles with Smart Chord, Auto Chord Play, Duo Mode and Arpeggio functions
- 41 types of DSP effects (15 reverb, 7 chorus, 5 Master EQ, 26 harmony types)
- Built-in lessons (Keys to Success, 3-step Lesson, A-B Repeat, Touch Tutor)
- USB to Host: audio and MIDI interface for easy recording/playback
- Battery (6× AA, ~5 hrs) or adapter (PA-130) power; built-in speakers
- Polyphony: 48 notes
- Voices: 650 total (258 panel + 25 drum/SFX + 20 arpeggio + 347 XGlite)
- Preset Songs: 125; Styles: 260
- Effects: DSP 41 types (Reverb, Chorus, Master EQ, Harmony)
- Lesson Modes: Keys to Success, 3-step Lesson, etc.
- Connectivity: Aux In (¼″), Headphone Out (¼″), Sustain Pedal In, USB to Host
- Recording: 5 songs, 2 tracks, ~10,000 notes internal memory
- Tuning: adjustable 427.0–440.0–453.0 Hz in ~0.2 Hz steps
- Transpose: –12 to +12 semitones; Tempo: 11–280 bpm
- Registration Memories: 10; Smart Chord and Melody Suppressor included
- Width: 941 mm (37.1")
- Depth: 317 mm (12.5")
- Height: 105 mm (4.1")

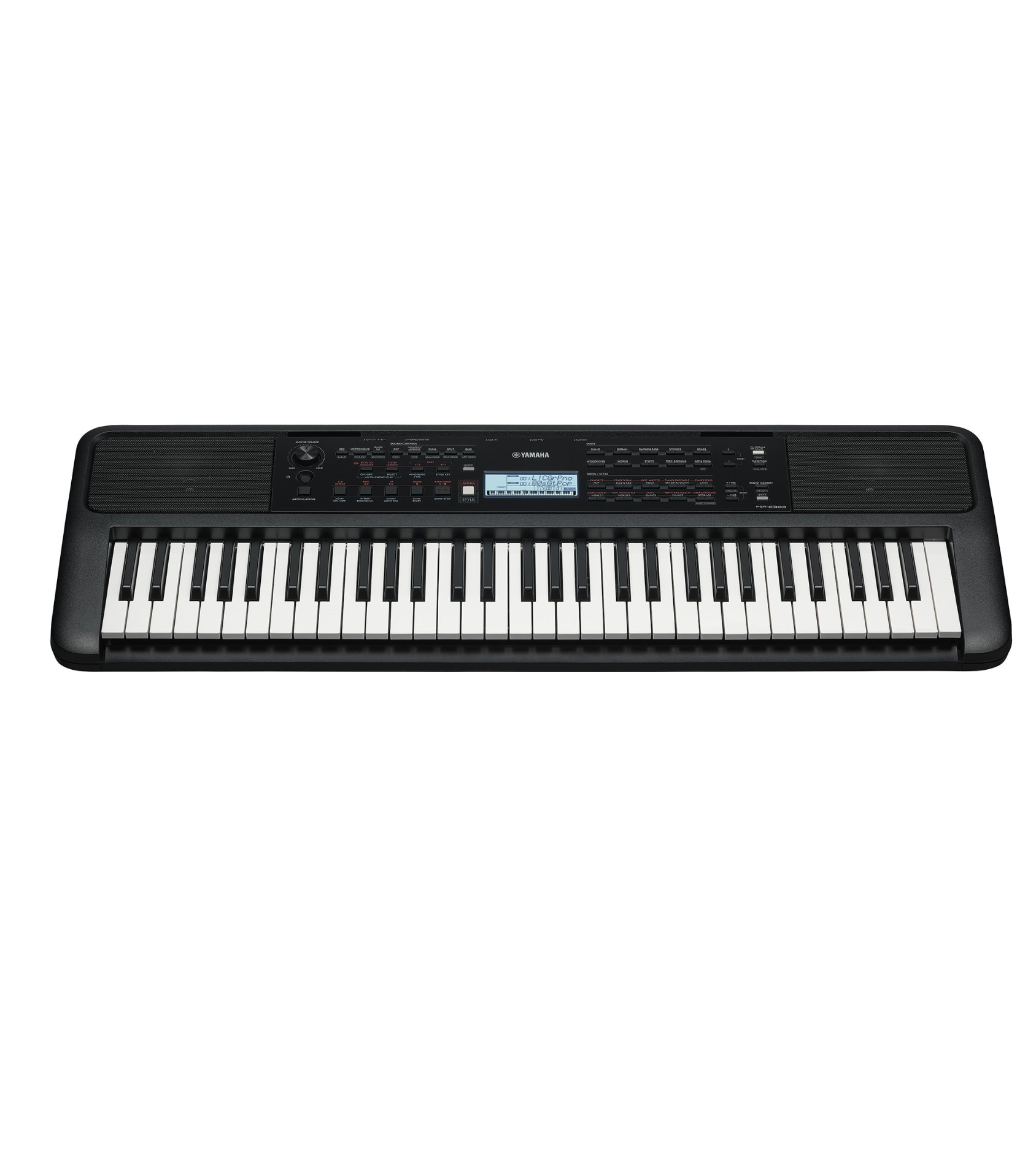

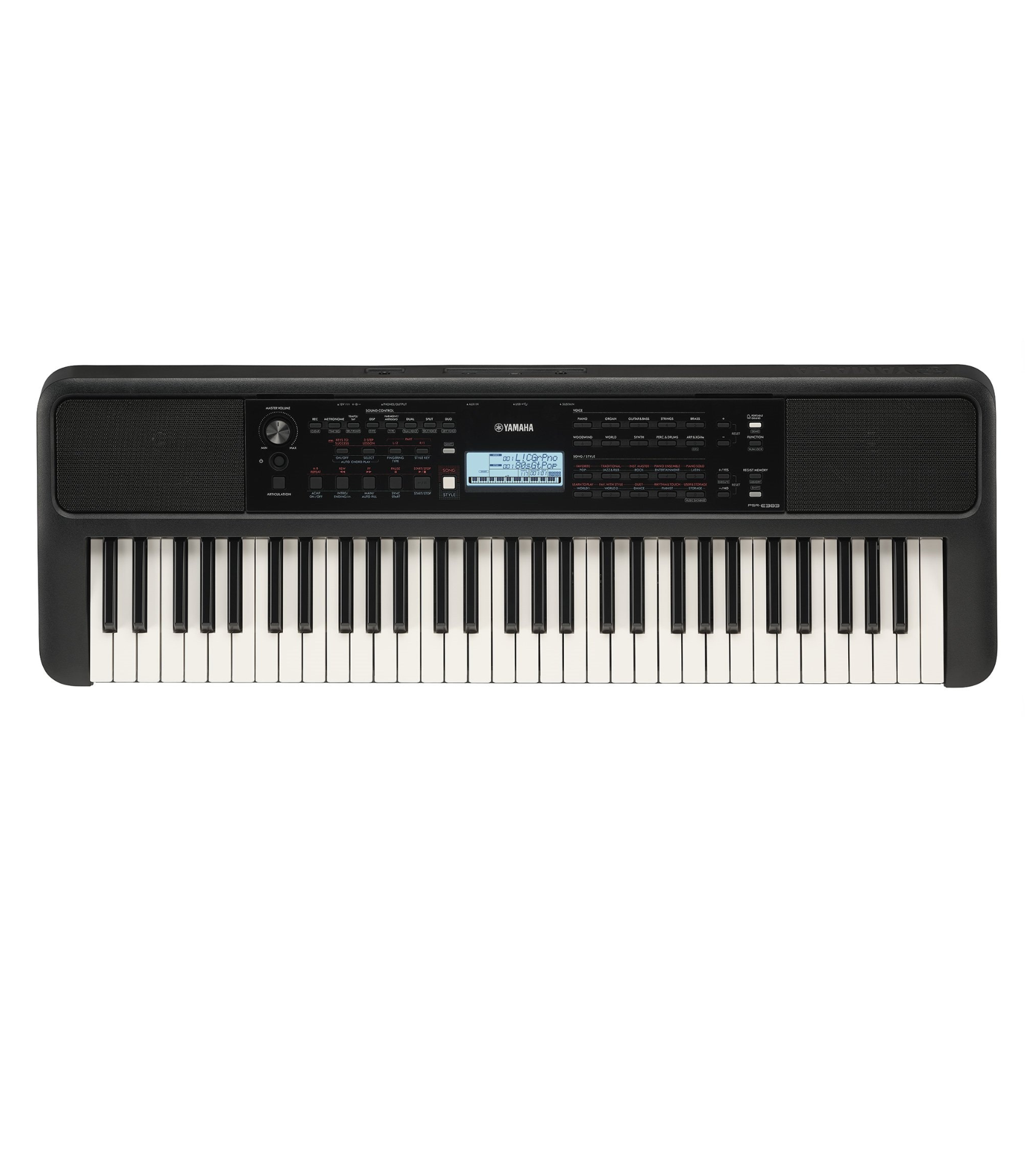

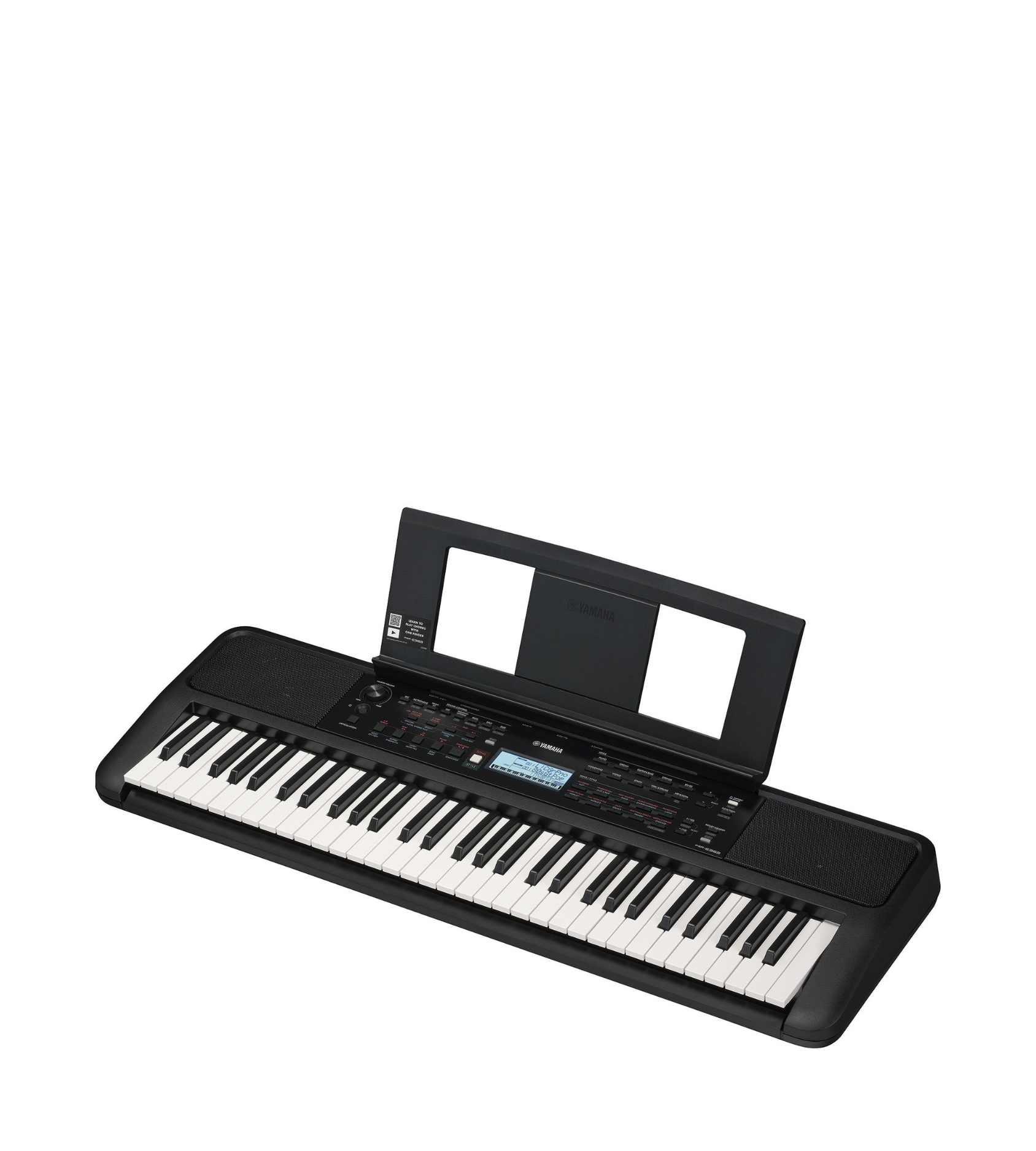

- Yamaha PSR-E383 keyboard
- PA-130 AC power adapter
- Music rest
- Owner’s manual and registration card
