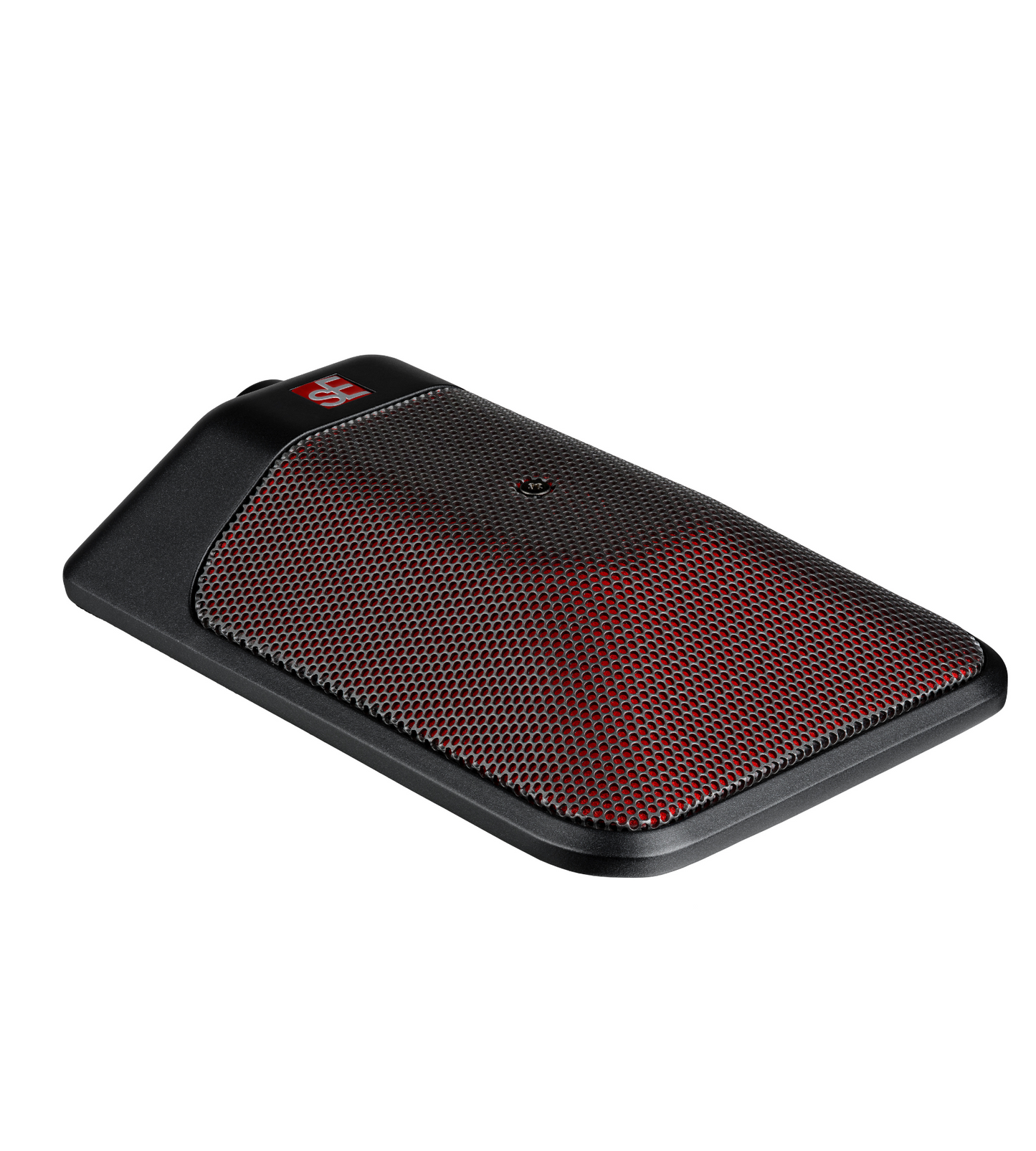

sE ELECTRONICS BL8 BOUNDARY LAYER MIC

sE ELECTRONICS BL8 BOUNDARY LAYER MIC

₱16,750.00 PHP
₱16,750.00 PHP
Sale Sold out

Bullet-proof, built like a tank and ready for the road, your secret weapon for a variety of applications such as kick drums and other high SPL sources.

View full details
  • Features
  • Specifications
  • Dimensions
  • Whats in the box

Key Features of sE Electronics BL8 Boundary Microphone

  • Half‑cardioid boundary condenser design using 3 µm sE8 small‑diaphragm capsule
  • Onboard EQ “Character” switch with Neutral, Classic, and Modern voicing modes
  • Switchable low‑cut filter (80 Hz or 160 Hz) and attenuation pad (–10 dB / –20 dB)
  • Transformerless Class‑A circuitry for wide dynamic range and low distortion

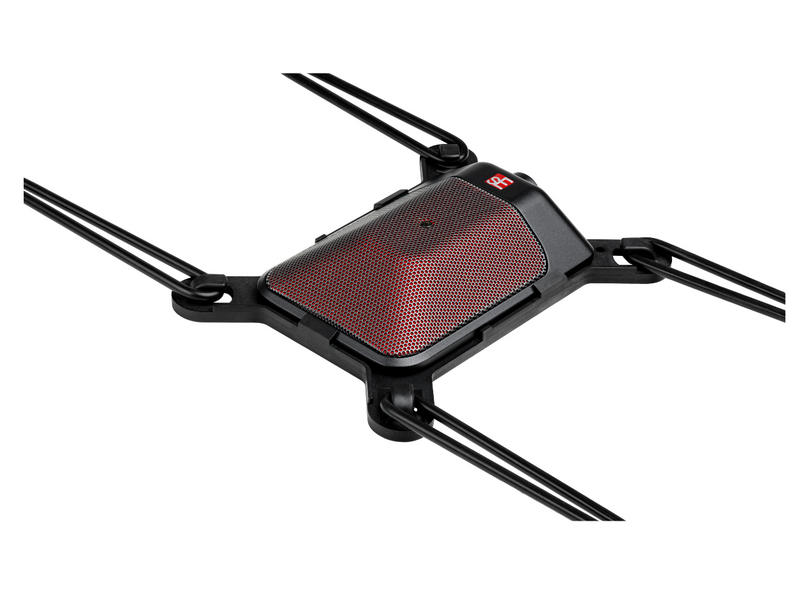

  • Built-in mount bracket and compatible with Kelly Shu isolation system for placement flexibility

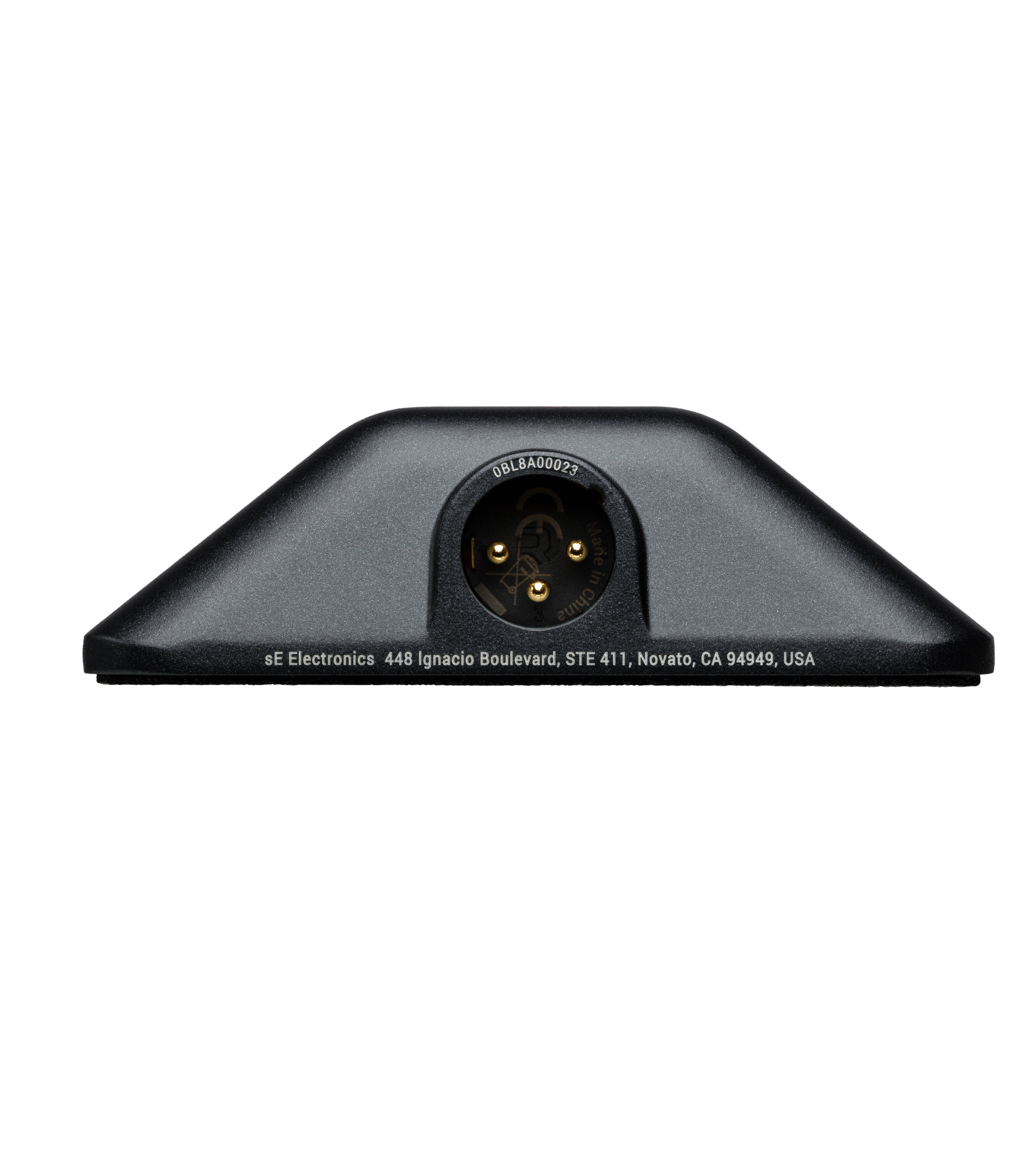

  • Rugged all‑metal chassis with gold‑plated XLR connector and non-slip rubber base

Technical Specifications

  • Polar Pattern: Half‑cardioid (optional omni capsule sold separately)
  • Frequency Response: 20 Hz – 20 kHz
  • Sensitivity: ~25 mV/Pa (–32 dBV)
  • Maximum SPL: 143 / 153 / 163 dB SPL (0 / –10 / –20 dB pad settings)
  • Equivalent Noise Level: ~14 dB(A); Dynamic Range: 129 / 139 / 149 dB
  • Output Impedance: ~60 Ω; Load Impedance: >1 kΩ recommended
  • Power Requirement: +48 V phantom; current consumption ~5 mA via XLR

Dimensions

  • Width × Depth × Height: 139 × 95 × 28.5 mm (≈5.47″ × 3.74″ × 1.12″)
  • Weight: ~538 g (≈1.18 lb)

What's in the Box

  • sE Electronics BL8 Boundary Microphone (cardioid capsule installed)
  • Padded fabric pouch for protection

Hero Banner

Engineered for Kick, Bass & Ambient Low-End Clarity

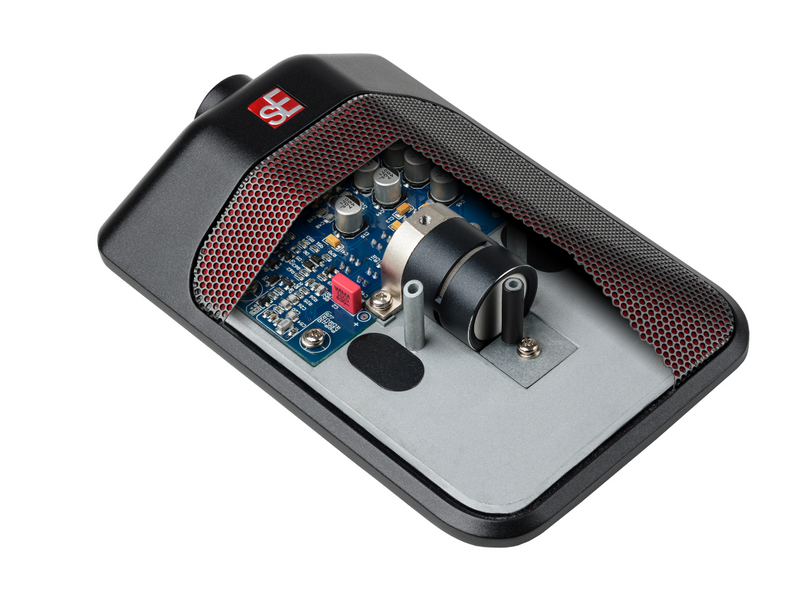

The BL8 uses the same ultra-thin 3 µm sE8 true-condenser capsule, built into a boundary-layer (PZM-style) housing so the diaphragm sits flush with its base plate. Mounted flat in front of a kick drum, bass cabinet, piano soundboard, or stage floor, it captures deep, low-frequency energy with punch and detail—delivering high noise immunity and clarity even at elevated sound pressure levels.

Custom Image 1
Custom Image 2

Flexible Tone & Rugged Build for Live or Studio Use

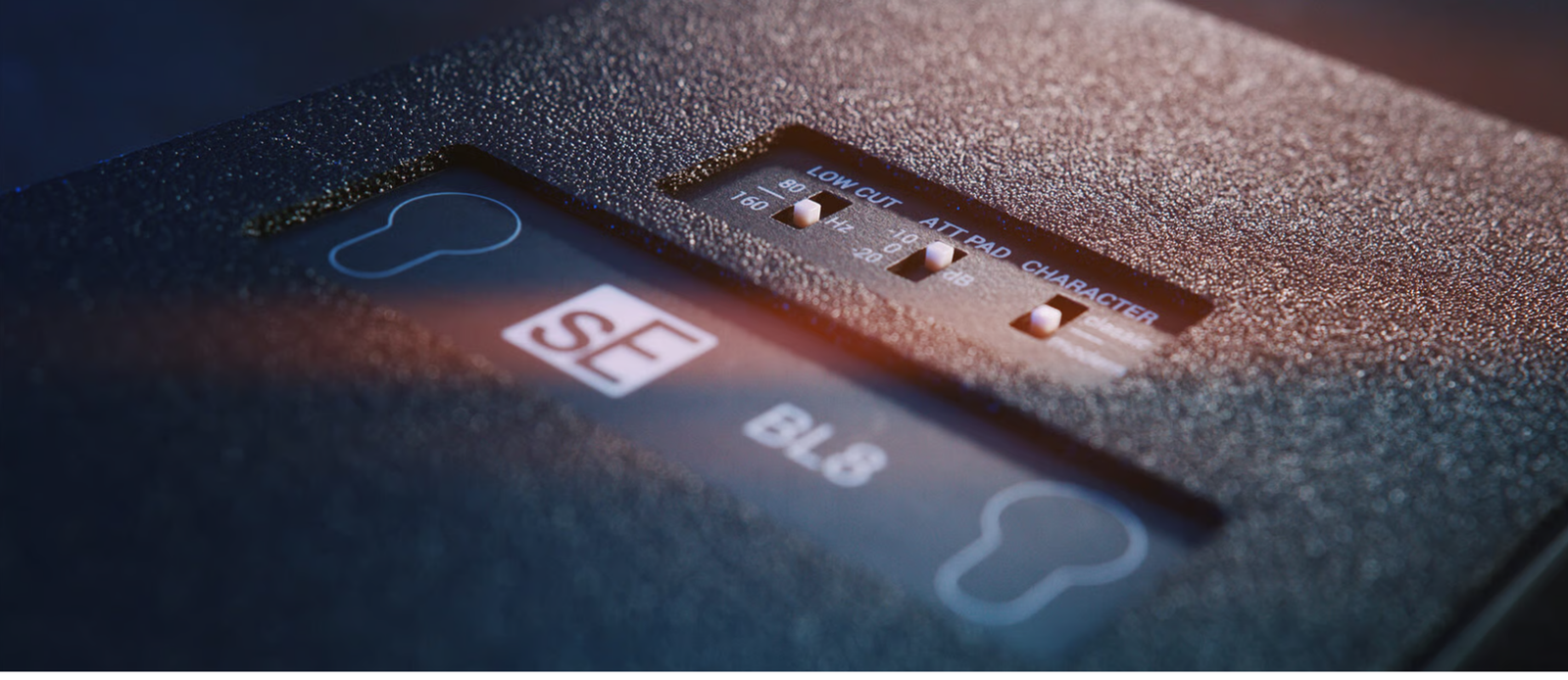

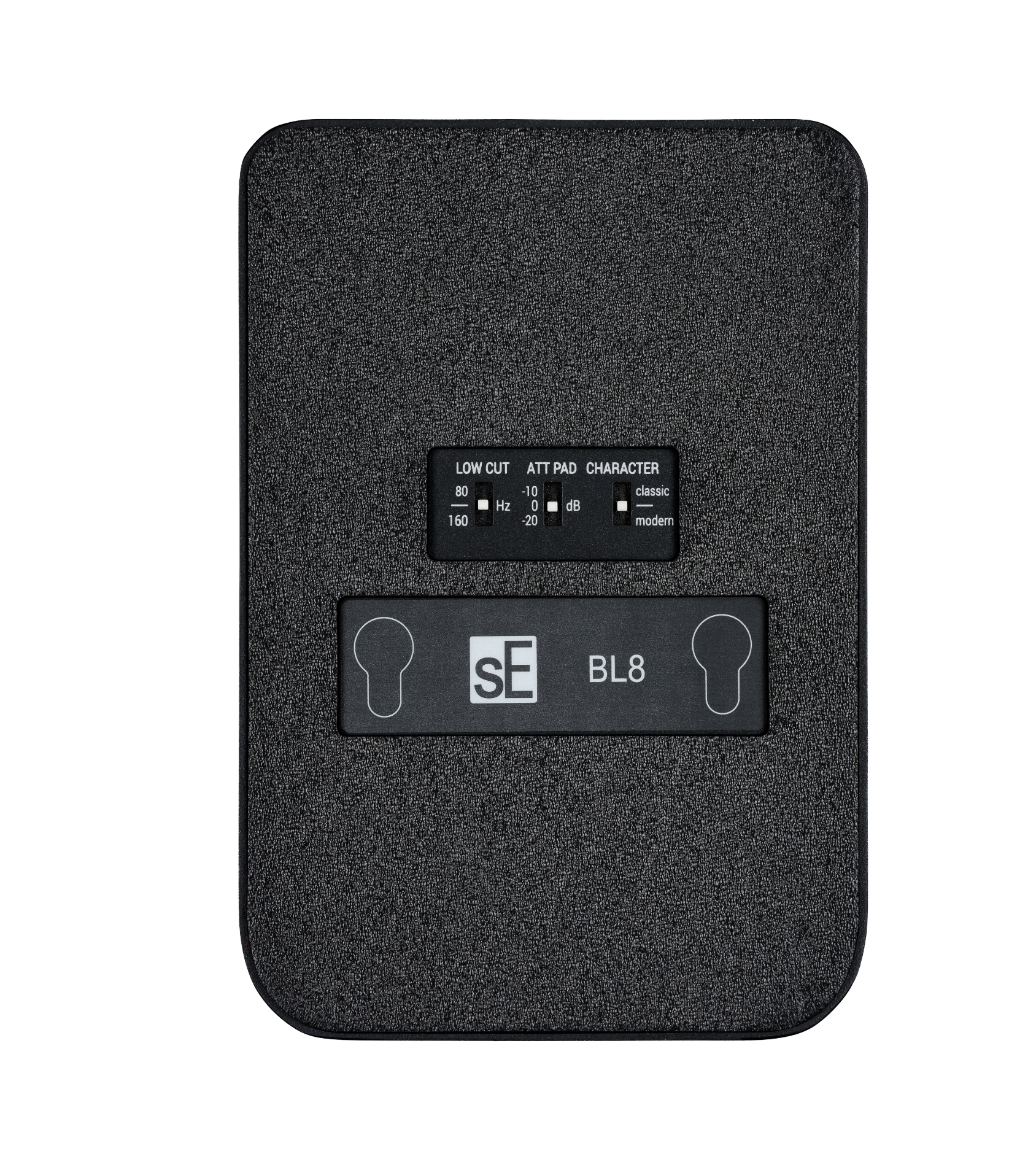

Onboard recessed switches (set with the included mini-screwdriver) enable selectable -10 dB or -20 dB attenuation pads, low-cut filters (80 Hz or 160 Hz), and a Classic vs Modern voicing mode—offering sonic shaping before the console. With transformerless Class‑A circuitry, built-in gold‑plated XLR connector, and a solid all-metal chassis with rubberized feet, the BL8 is robust and reliable for gigging or travel.

Versatility Beyond the Kick & Authentic Professional Praise

Though designed for bass drums, the BL8 excels in ambient or room capture, upright piano mounting, bass amps, acoustic room miking, or even live vocal tables. Reviewers and pro engineers often describe it as a “one-mic solution for kick” and regularly choose it over traditional expensive alternatives. Users praise its clarity, headroom, and compact flexibility—especially valued in scenarios where setup time or space is limited.
