- Features
- Specifications
- Dimensions
- Whats in the box

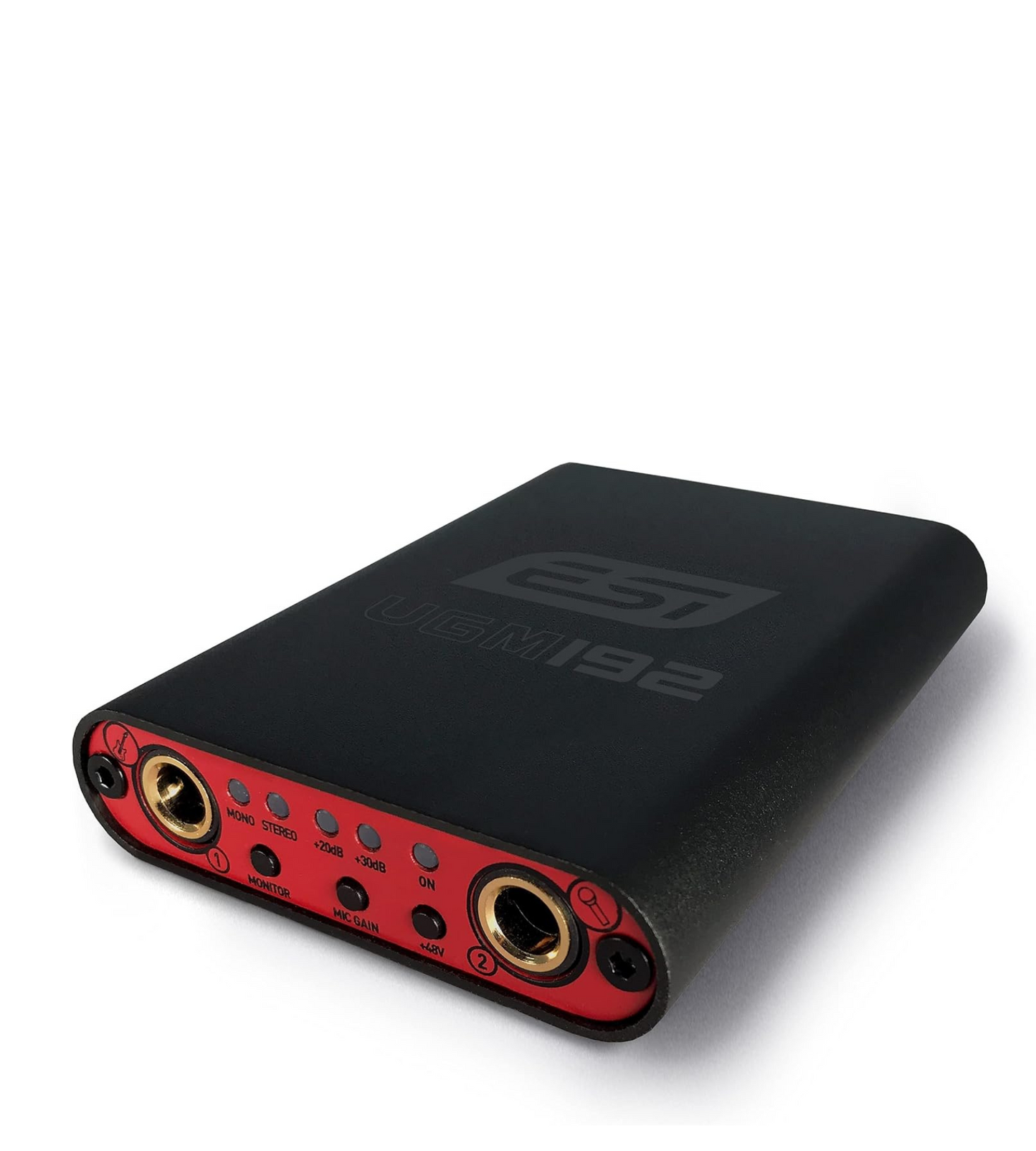

- Ultra-mobile USB-C audio interface (includes USB-C to USB-A cable)
- Bus-powered design with optional micro-USB power input
- One Hi-Z instrument input (¼″ TS) for guitar/bass
- One professional mic preamp (¼″ TRS) with switchable 48 V phantom power
- Stereo line/headphone output (¼″ TRS) for real-time monitoring
- Class-compliant operation (Windows, macOS, iOS, Android)
- Windows driver support: EWDM with ASIO 2.0, WDM, MME, DirectWIRE loopback
- 24-bit / 192 kHz A/D & D/A converters (114 dB dynamic range A-weighted)
- Compact dimensions: approx. 8.7 cm × 6.7 cm × 2.0 cm
- Inputs: 1 × Hi-Z (¼″ TS), 1 × mic preamp (¼″ TRS, +0 dB / +20 dB, 48 V phantom)
- Output: 1 × stereo line/headphone (¼″ TRS), selectable mono/stereo monitor modes
- A/D & D/A Conversion: 24-bit / 192 kHz, 114 dB dynamic range
- THD+N: –100 dB (A-weighted)
- Headphone output: Max +6.4 dBu, supports 32–600 Ω
- DirectWIRE loopback (Windows) for streaming/internal routing

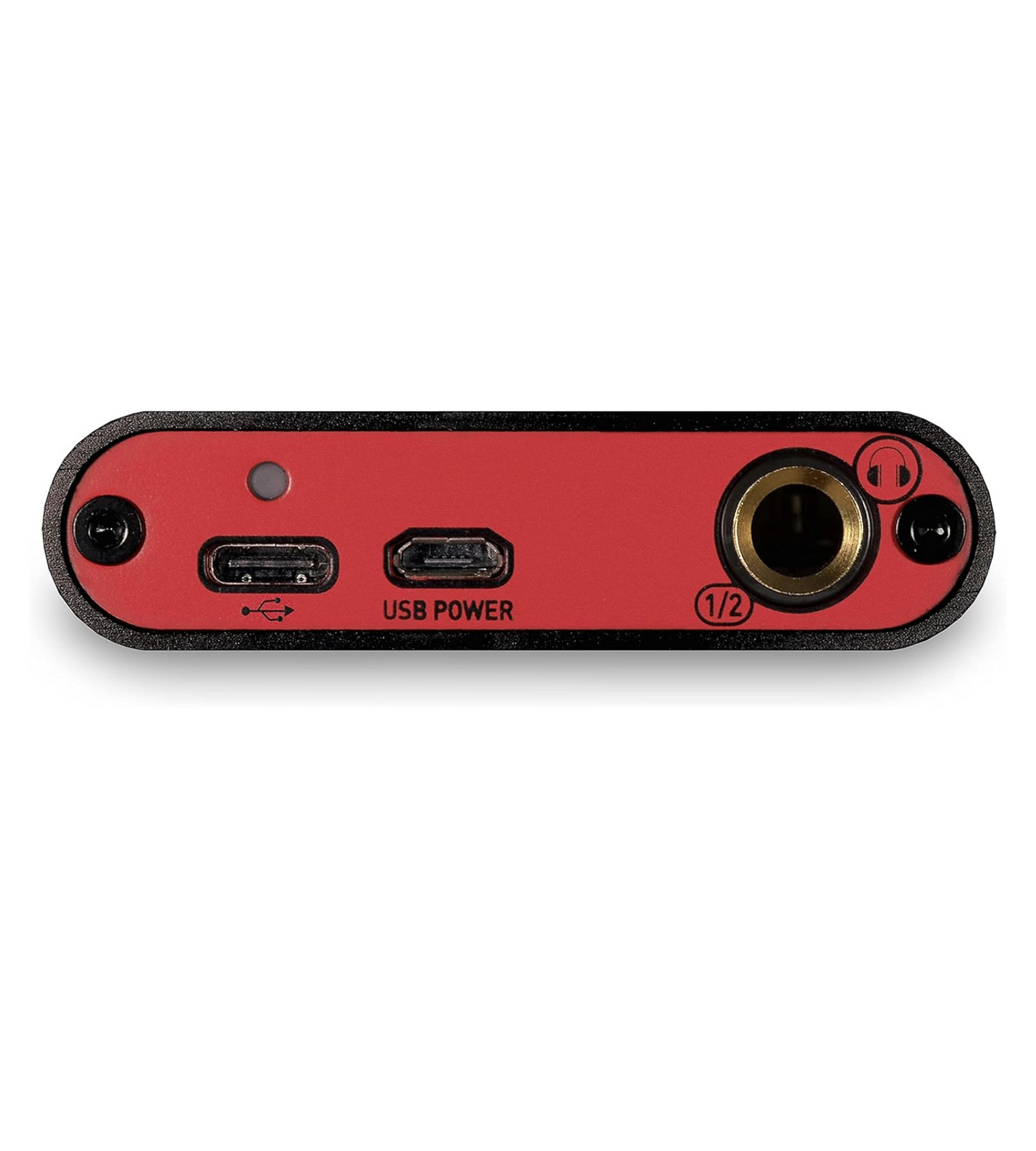

- Transport: USB 3.1 Gen1 via USB-C, bus-powered (USB-A compatible included), with optional external microUSB power
- Compatibility: USB class-compliant (CoreAudio on macOS/iOS), Windows drivers via EWDM with ASIO 2.0, DirectSound, WDM, MME support
Approx. 87 mm × 67 mm × 20 mm (W × D × H)
- ESI UGM192 audio interface
- USB-C to USB-C cable
- USB-C to USB-A cable
- Software bundle: inTone 2 ESI Edition, ampLion Free, GK Amplification 2 LE, Deckadance LE
